vtkCompositer Class Reference

#include <vtkCompositer.h>

Inheritance diagram for vtkCompositer:

Inheritance graph
[legend]

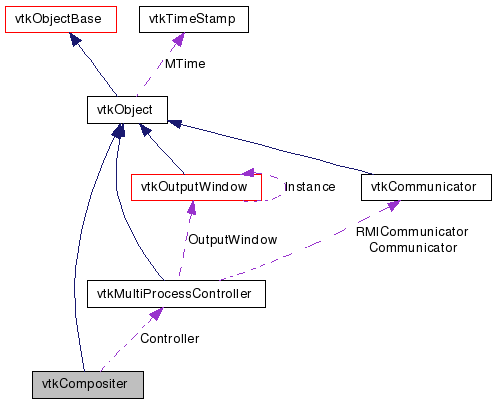

Collaboration diagram for vtkCompositer:

Collaboration graph
[legend]

List of all members.


Detailed Description

Super class for composite algorthms.

vtkCompositer operates in multiple processes. Each compositer has a render window. They use vtkMultiProcessControllers to communicate the color and depth buffer to process 0's render window. It will not handle transparency well.

See also:
vtkCompositeManager.

Definition at line 39 of file vtkCompositer.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void CompositeBuffer (vtkDataArray *pBuf, vtkFloatArray *zBuf, vtkDataArray *pTmp, vtkFloatArray *zTmp)
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()
virtual void SetNumberOfProcesses (int)
virtual int GetNumberOfProcesses ()

Static Public Member Functions

static vtkCompositerNew ()
static int IsTypeOf (const char *type)
static vtkCompositerSafeDownCast (vtkObject *o)
static void DeleteArray (vtkDataArray *da)
static void ResizeFloatArray (vtkFloatArray *fa, int numComp, vtkIdType size)
static void ResizeUnsignedCharArray (vtkUnsignedCharArray *uca, int numComp, vtkIdType size)

Protected Member Functions

 vtkCompositer ()
 ~vtkCompositer ()

Protected Attributes

vtkMultiProcessControllerController
int NumberOfProcesses

Member Typedef Documentation

Reimplemented from vtkObject.

Reimplemented in vtkCompressCompositer, and vtkTreeCompositer.

Definition at line 43 of file vtkCompositer.h.


Constructor & Destructor Documentation

vtkCompositer::vtkCompositer (  )  [protected]

vtkCompositer::~vtkCompositer (  )  [protected]


Member Function Documentation

static vtkCompositer* vtkCompositer::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

Reimplemented in vtkCompressCompositer, and vtkTreeCompositer.

virtual const char* vtkCompositer::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkCompressCompositer, and vtkTreeCompositer.

static int vtkCompositer::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkCompressCompositer, and vtkTreeCompositer.

virtual int vtkCompositer::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkCompressCompositer, and vtkTreeCompositer.

static vtkCompositer* vtkCompositer::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

Reimplemented in vtkCompressCompositer, and vtkTreeCompositer.

void vtkCompositer::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkCompressCompositer, and vtkTreeCompositer.

virtual void vtkCompositer::CompositeBuffer ( vtkDataArray pBuf,
vtkFloatArray zBuf,
vtkDataArray pTmp,
vtkFloatArray zTmp
) [virtual]

This method gets called on every process. The final image gets put into pBuf and zBuf.

Reimplemented in vtkCompressCompositer, and vtkTreeCompositer.

virtual void vtkCompositer::SetController ( vtkMultiProcessController  )  [virtual]

Access to the controller.

virtual vtkMultiProcessController* vtkCompositer::GetController (  )  [virtual]

Access to the controller.

virtual void vtkCompositer::SetNumberOfProcesses ( int   )  [virtual]

A hack to get a sub world until I can get communicators working.

virtual int vtkCompositer::GetNumberOfProcesses (  )  [virtual]

A hack to get a sub world until I can get communicators working.

static void vtkCompositer::DeleteArray ( vtkDataArray da  )  [static]

Methods that allocate and delete memory with special MPIPro calls.

static void vtkCompositer::ResizeFloatArray ( vtkFloatArray fa,
int  numComp,
vtkIdType  size
) [static]

Methods that allocate and delete memory with special MPIPro calls.

static void vtkCompositer::ResizeUnsignedCharArray ( vtkUnsignedCharArray uca,
int  numComp,
vtkIdType  size
) [static]

Methods that allocate and delete memory with special MPIPro calls.


Member Data Documentation

Definition at line 78 of file vtkCompositer.h.

Definition at line 79 of file vtkCompositer.h.


The documentation for this class was generated from the following file:
