vtkConstrainedPointHandleRepresentation Class Reference

#include <vtkConstrainedPointHandleRepresentation.h>

Inheritance diagram for vtkConstrainedPointHandleRepresentation:

[legend]

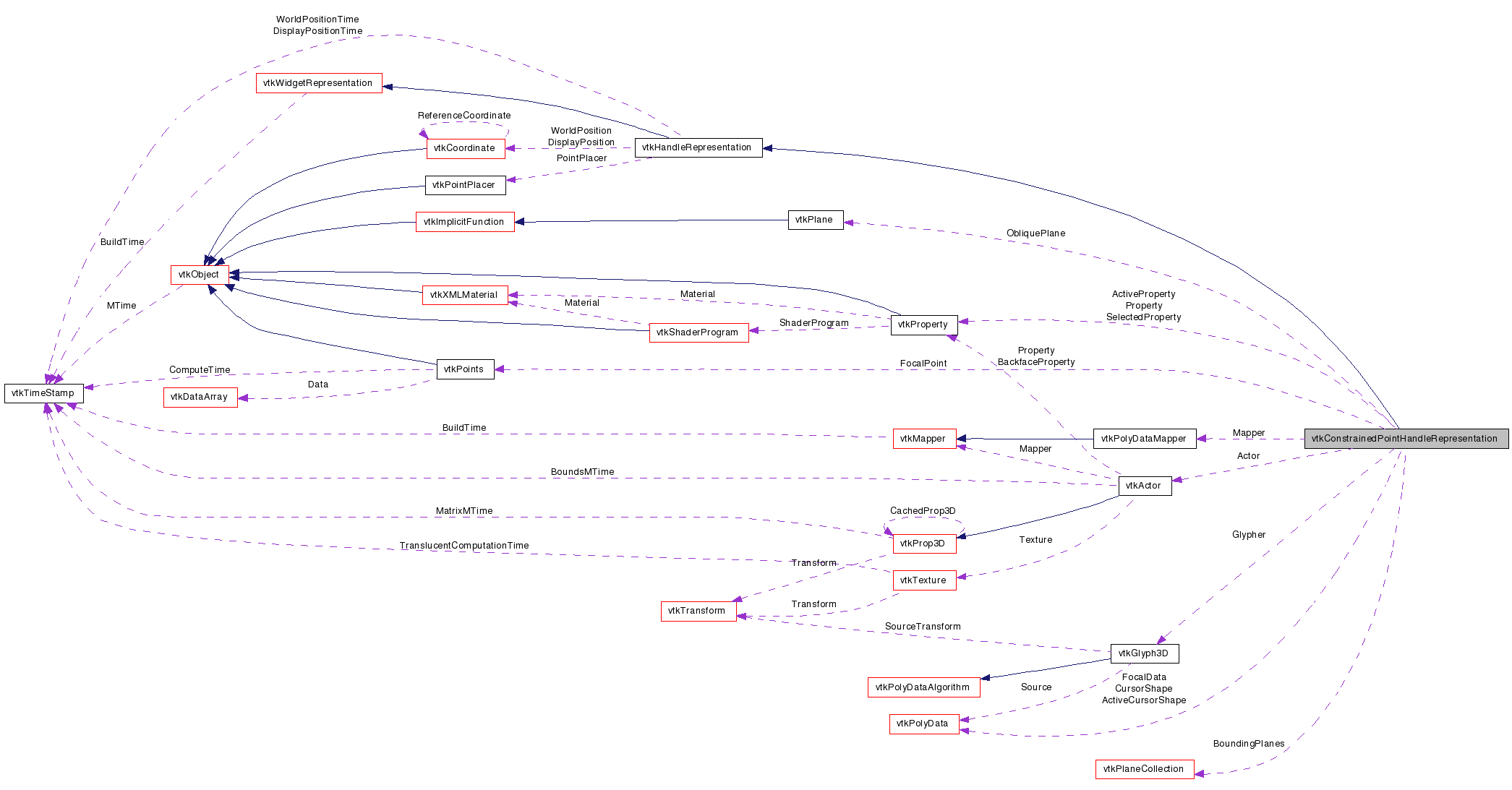

Collaboration diagram for vtkConstrainedPointHandleRepresentation:

[legend]

List of all members.

Detailed Description

point representation constrained to a 2D plane

This class is used to represent a vtkHandleWidget. It represents a position in 3D world coordinates that is constrained to a specified plane. The default look is to draw a white point when this widget is not selected or active, a thin green circle when it is highlighted, and a thicker cyan circle when it is active (being positioned). Defaults can be adjusted - but take care to define cursor geometry that makes sense for this widget. The geometry will be aligned on the constraining plane, with the plane normal aligned with the X axis of the geometry (similar behavior to vtkGlyph3D).

TODO: still need to work on 1) translation when mouse is outside bounding planes 2) size of the widget

See also:: vtkHandleRepresentation vtkHandleWidget

Tests:: vtkConstrainedPointHandleRepresentation (Tests)

Definition at line 56 of file vtkConstrainedPointHandleRepresentation.h.


typedef vtkHandleRepresentation	Superclass
static int	IsTypeOf (const char *type)
static vtkConstrainedPointHandleRepresentation *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Types
enum	{ XAxis = 0, YAxis, ZAxis, Oblique }
Public Member Functions
void	SetProjectionNormalToXAxis ()
void	SetProjectionNormalToYAxis ()
void	SetProjectionNormalToZAxis ()
void	SetProjectionNormalToOblique ()
virtual int	CheckConstraint (vtkRenderer *renderer, double pos[2])
virtual void	SetDisplayPosition (double pos[3])
void	Highlight (int highlight)

void	SetCursorShape (vtkPolyData *cursorShape)
vtkPolyData *	GetCursorShape ()

void	SetActiveCursorShape (vtkPolyData *activeShape)
vtkPolyData *	GetActiveCursorShape ()

virtual void	SetProjectionNormal (int)
virtual int	GetProjectionNormal ()

void	SetObliquePlane (vtkPlane *)
virtual vtkPlane *	GetObliquePlane ()

void	SetProjectionPosition (double position)
virtual double	GetProjectionPosition ()

void	AddBoundingPlane (vtkPlane *plane)
void	RemoveBoundingPlane (vtkPlane *plane)
void	RemoveAllBoundingPlanes ()
virtual void	SetBoundingPlanes (vtkPlaneCollection *)
virtual vtkPlaneCollection *	GetBoundingPlanes ()
void	SetBoundingPlanes (vtkPlanes *planes)

void	SetPosition (double x, double y, double z)
void	SetPosition (double xyz[3])
double *	GetPosition ()
void	GetPosition (double xyz[3])

virtual vtkProperty *	GetProperty ()

virtual vtkProperty *	GetSelectedProperty ()

virtual vtkProperty *	GetActiveProperty ()

virtual void	SetRenderer (vtkRenderer *ren)
virtual void	BuildRepresentation ()
virtual void	StartWidgetInteraction (double eventPos[2])
virtual void	WidgetInteraction (double eventPos[2])
virtual int	ComputeInteractionState (int X, int Y, int modify)

virtual void	GetActors (vtkPropCollection *)
virtual void	ReleaseGraphicsResources (vtkWindow *)
virtual int	RenderOverlay (vtkViewport *viewport)
virtual int	RenderOpaqueGeometry (vtkViewport *viewport)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *viewport)
virtual int	HasTranslucentPolygonalGeometry ()
virtual void	ShallowCopy (vtkProp *prop)
Static Public Member Functions
static vtkConstrainedPointHandleRepresentation *	New ()
Protected Member Functions
	vtkConstrainedPointHandleRepresentation ()
	~vtkConstrainedPointHandleRepresentation ()
void	Translate (double eventPos[2])
void	Scale (double eventPos[2])
void	CreateDefaultProperties ()
int	GetIntersectionPosition (double eventPos[2], double worldPos[3], double tolerance=0.0, vtkRenderer *renderer=0)
void	GetProjectionNormal (double normal[3])
void	GetProjectionOrigin (double origin[3])
Protected Attributes
vtkActor *	Actor
vtkPolyDataMapper *	Mapper
vtkGlyph3D *	Glypher
vtkPolyData *	CursorShape
vtkPolyData *	ActiveCursorShape
vtkPolyData *	FocalData
vtkPoints *	FocalPoint
double	LastPickPosition [3]
double	LastEventPosition [2]
vtkProperty *	Property
vtkProperty *	SelectedProperty
vtkProperty *	ActiveProperty
int	ProjectionNormal
double	ProjectionPosition
int	ProjectToPlane
vtkPlane *	ObliquePlane
vtkPlaneCollection *	BoundingPlanes
double	InteractionOffset [2]

Member Typedef Documentation

typedef vtkHandleRepresentation vtkConstrainedPointHandleRepresentation::Superclass

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

Definition at line 64 of file vtkConstrainedPointHandleRepresentation.h.

Member Enumeration Documentation

anonymous enum

Enumerator:

XAxis
YAxis
ZAxis
Oblique

Definition at line 194 of file vtkConstrainedPointHandleRepresentation.h.

Constructor & Destructor Documentation

vtkConstrainedPointHandleRepresentation::vtkConstrainedPointHandleRepresentation ( ) [protected]

vtkConstrainedPointHandleRepresentation::~vtkConstrainedPointHandleRepresentation ( ) [protected]

Member Function Documentation

static vtkConstrainedPointHandleRepresentation* vtkConstrainedPointHandleRepresentation::New ( ) [static]

Instantiate this class.

Reimplemented from vtkObject.

virtual const char* vtkConstrainedPointHandleRepresentation::GetClassName ( ) [virtual]

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

static int vtkConstrainedPointHandleRepresentation::IsTypeOf ( const char * type ) [static]

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

virtual int vtkConstrainedPointHandleRepresentation::IsA ( const char * type ) [virtual]

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

static vtkConstrainedPointHandleRepresentation* vtkConstrainedPointHandleRepresentation::SafeDownCast ( vtkObject * o ) [static]

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

void vtkConstrainedPointHandleRepresentation::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Standard methods for instances of this class.

Reimplemented from vtkHandleRepresentation.

void vtkConstrainedPointHandleRepresentation::SetCursorShape ( vtkPolyData * cursorShape )

Specify the cursor shape. Keep in mind that the shape will be aligned with the constraining plane by orienting it such that the x axis of the geometry lies along the normal of the plane.

vtkPolyData* vtkConstrainedPointHandleRepresentation::GetCursorShape ( )

Specify the cursor shape. Keep in mind that the shape will be aligned with the constraining plane by orienting it such that the x axis of the geometry lies along the normal of the plane.

void vtkConstrainedPointHandleRepresentation::SetActiveCursorShape ( vtkPolyData * activeShape )

Specify the shape of the cursor (handle) when it is active. This is the geometry that will be used when the mouse is close to the handle or if the user is manipulating the handle.

vtkPolyData* vtkConstrainedPointHandleRepresentation::GetActiveCursorShape ( )

Specify the shape of the cursor (handle) when it is active. This is the geometry that will be used when the mouse is close to the handle or if the user is manipulating the handle.

virtual void vtkConstrainedPointHandleRepresentation::SetProjectionNormal ( int ) [virtual]

Set the projection normal to lie along the x, y, or z axis, or to be oblique. If it is oblique, then the plane is defined in the ObliquePlane ivar.

virtual int vtkConstrainedPointHandleRepresentation::GetProjectionNormal ( ) [virtual]

Set the projection normal to lie along the x, y, or z axis, or to be oblique. If it is oblique, then the plane is defined in the ObliquePlane ivar.

void vtkConstrainedPointHandleRepresentation::SetProjectionNormalToXAxis ( ) [inline]

Definition at line 94 of file vtkConstrainedPointHandleRepresentation.h.

void vtkConstrainedPointHandleRepresentation::SetProjectionNormalToYAxis ( ) [inline]

Definition at line 96 of file vtkConstrainedPointHandleRepresentation.h.

void vtkConstrainedPointHandleRepresentation::SetProjectionNormalToZAxis ( ) [inline]

Definition at line 98 of file vtkConstrainedPointHandleRepresentation.h.

void vtkConstrainedPointHandleRepresentation::SetProjectionNormalToOblique ( ) [inline]

Definition at line 100 of file vtkConstrainedPointHandleRepresentation.h.

void vtkConstrainedPointHandleRepresentation::SetObliquePlane ( vtkPlane * )

If the ProjectionNormal is set to Oblique, then this is the oblique plane used to constrain the handle position

virtual vtkPlane* vtkConstrainedPointHandleRepresentation::GetObliquePlane ( ) [virtual]

If the ProjectionNormal is set to Oblique, then this is the oblique plane used to constrain the handle position

void vtkConstrainedPointHandleRepresentation::SetProjectionPosition ( double position )

The position of the bounding plane from the origin along the normal. The origin and normal are defined in the oblique plane when the ProjectionNormal is Oblique. For the X, Y, and Z axes projection normals, the normal is the axis direction, and the origin is (0,0,0).

virtual double vtkConstrainedPointHandleRepresentation::GetProjectionPosition ( ) [virtual]

The position of the bounding plane from the origin along the normal. The origin and normal are defined in the oblique plane when the ProjectionNormal is Oblique. For the X, Y, and Z axes projection normals, the normal is the axis direction, and the origin is (0,0,0).

void vtkConstrainedPointHandleRepresentation::AddBoundingPlane ( vtkPlane * plane )

A collection of plane equations used to bound the position of the point. This is in addition to confining the point to a plane - these constraints are meant to, for example, keep a point within the extent of an image. Using a set of plane equations allows for more complex bounds (such as bounding a point to an oblique reliced image that has hexagonal shape) than a simple extent.

void vtkConstrainedPointHandleRepresentation::RemoveBoundingPlane ( vtkPlane * plane )

A collection of plane equations used to bound the position of the point. This is in addition to confining the point to a plane - these constraints are meant to, for example, keep a point within the extent of an image. Using a set of plane equations allows for more complex bounds (such as bounding a point to an oblique reliced image that has hexagonal shape) than a simple extent.

void vtkConstrainedPointHandleRepresentation::RemoveAllBoundingPlanes ( )

A collection of plane equations used to bound the position of the point. This is in addition to confining the point to a plane - these constraints are meant to, for example, keep a point within the extent of an image. Using a set of plane equations allows for more complex bounds (such as bounding a point to an oblique reliced image that has hexagonal shape) than a simple extent.

virtual void vtkConstrainedPointHandleRepresentation::SetBoundingPlanes ( vtkPlaneCollection * ) [virtual]

A collection of plane equations used to bound the position of the point. This is in addition to confining the point to a plane - these constraints are meant to, for example, keep a point within the extent of an image. Using a set of plane equations allows for more complex bounds (such as bounding a point to an oblique reliced image that has hexagonal shape) than a simple extent.

virtual vtkPlaneCollection* vtkConstrainedPointHandleRepresentation::GetBoundingPlanes ( ) [virtual]

A collection of plane equations used to bound the position of the point. This is in addition to confining the point to a plane - these constraints are meant to, for example, keep a point within the extent of an image. Using a set of plane equations allows for more complex bounds (such as bounding a point to an oblique reliced image that has hexagonal shape) than a simple extent.

void vtkConstrainedPointHandleRepresentation::SetBoundingPlanes ( vtkPlanes * planes )

A collection of plane equations used to bound the position of the point. This is in addition to confining the point to a plane - these constraints are meant to, for example, keep a point within the extent of an image. Using a set of plane equations allows for more complex bounds (such as bounding a point to an oblique reliced image that has hexagonal shape) than a simple extent.

virtual int vtkConstrainedPointHandleRepresentation::CheckConstraint	(	vtkRenderer *	renderer,
		double	pos[2]
	)			`[virtual]`

Overridden from the base class. It converts the display co-ordinates to world co-ordinates. It returns 1 if the point lies within the constrained region, otherwise return 0

Reimplemented from vtkHandleRepresentation.

void vtkConstrainedPointHandleRepresentation::SetPosition	(	double	x,
		double	y,
		double	z
	)

Set/Get the position of the point in display coordinates. These are convenience methods that extend the superclasses' GetHandlePosition() method. Note that only the x-y coordinate values are used

void vtkConstrainedPointHandleRepresentation::SetPosition ( double xyz[3] )

Set/Get the position of the point in display coordinates. These are convenience methods that extend the superclasses' GetHandlePosition() method. Note that only the x-y coordinate values are used

double* vtkConstrainedPointHandleRepresentation::GetPosition ( )

Set/Get the position of the point in display coordinates. These are convenience methods that extend the superclasses' GetHandlePosition() method. Note that only the x-y coordinate values are used

void vtkConstrainedPointHandleRepresentation::GetPosition ( double xyz[3] )

Set/Get the position of the point in display coordinates. These are convenience methods that extend the superclasses' GetHandlePosition() method. Note that only the x-y coordinate values are used

virtual vtkProperty* vtkConstrainedPointHandleRepresentation::GetProperty ( ) [virtual]

This is the property used when the handle is not active (the mouse is not near the handle)

virtual vtkProperty* vtkConstrainedPointHandleRepresentation::GetSelectedProperty ( ) [virtual]

This is the property used when the mouse is near the handle (but the user is not yet interacting with it)

virtual vtkProperty* vtkConstrainedPointHandleRepresentation::GetActiveProperty ( ) [virtual]

This is the property used when the user is interacting with the handle.

virtual void vtkConstrainedPointHandleRepresentation::SetRenderer ( vtkRenderer * ren ) [virtual]

Subclasses of vtkConstrainedPointHandleRepresentation must implement these methods. These are the methods that the widget and its representation use to communicate with each other.

Reimplemented from vtkHandleRepresentation.

virtual void vtkConstrainedPointHandleRepresentation::BuildRepresentation ( ) [virtual]

Subclasses of vtkConstrainedPointHandleRepresentation must implement these methods. These are the methods that the widget and its representation use to communicate with each other.

Implements vtkWidgetRepresentation.

virtual void vtkConstrainedPointHandleRepresentation::StartWidgetInteraction ( double eventPos[2] ) [virtual]

Subclasses of vtkConstrainedPointHandleRepresentation must implement these methods. These are the methods that the widget and its representation use to communicate with each other.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkConstrainedPointHandleRepresentation::WidgetInteraction ( double eventPos[2] ) [virtual]

Subclasses of vtkConstrainedPointHandleRepresentation must implement these methods. These are the methods that the widget and its representation use to communicate with each other.

Reimplemented from vtkWidgetRepresentation.

virtual int vtkConstrainedPointHandleRepresentation::ComputeInteractionState	(	int	X,
		int	Y,
		int	modify
	)			`[virtual]`

Subclasses of vtkConstrainedPointHandleRepresentation must implement these methods. These are the methods that the widget and its representation use to communicate with each other.

Reimplemented from vtkWidgetRepresentation.

virtual void vtkConstrainedPointHandleRepresentation::SetDisplayPosition ( double pos[3] ) [virtual]

Method overridden from Superclass. computes the world co-ordinates using GetIntersectionPosition()

Reimplemented from vtkHandleRepresentation.

virtual void vtkConstrainedPointHandleRepresentation::GetActors ( vtkPropCollection * ) [virtual]
