vtkContextMapper2D Class Reference

#include <vtkContextMapper2D.h>

Inheritance diagram for vtkContextMapper2D:

Inheritance graph
[legend]

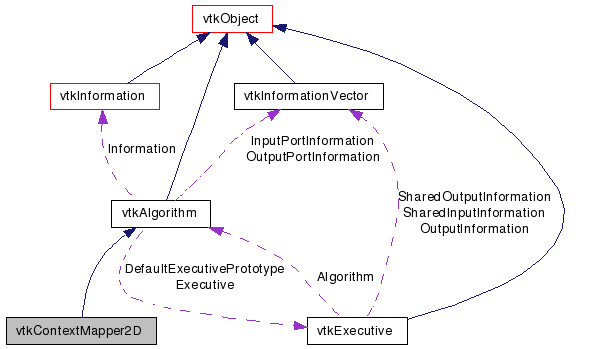

Collaboration diagram for vtkContextMapper2D:

Collaboration graph
[legend]

List of all members.


Detailed Description

Abstract class for 2D context mappers.

This class provides an abstract base for 2D context mappers. They currently only accept vtkTable objects as input.

Definition at line 35 of file vtkContextMapper2D.h.


Public Types

typedef vtkAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
vtkAbstractArrayGetInputAbstractArrayToProcess (int idx, vtkDataObject *input)
virtual void SetInput (vtkTable *input)
virtual vtkTableGetInput ()
vtkDataArrayGetInputArrayToProcess (int idx, vtkDataObject *input)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkContextMapper2DSafeDownCast (vtkObject *o)
static vtkContextMapper2DNew ()

Protected Member Functions

 vtkContextMapper2D ()
 ~vtkContextMapper2D ()
virtual int FillInputPortInformation (int port, vtkInformation *info)

Member Typedef Documentation

Reimplemented from vtkAlgorithm.

Definition at line 38 of file vtkContextMapper2D.h.


Constructor & Destructor Documentation

vtkContextMapper2D::vtkContextMapper2D (  )  [protected]

vtkContextMapper2D::~vtkContextMapper2D (  )  [protected]


Member Function Documentation

virtual const char* vtkContextMapper2D::GetClassName (  )  [virtual]

Reimplemented from vtkAlgorithm.

static int vtkContextMapper2D::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

virtual int vtkContextMapper2D::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

static vtkContextMapper2D* vtkContextMapper2D::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkAlgorithm.

virtual void vtkContextMapper2D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

static vtkContextMapper2D* vtkContextMapper2D::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual void vtkContextMapper2D::SetInput ( vtkTable input  )  [virtual]

Set/Get the input for this object - only accepts vtkTable as input.

virtual vtkTable* vtkContextMapper2D::GetInput (  )  [virtual]

Set/Get the input for this object - only accepts vtkTable as input.

vtkDataArray* vtkContextMapper2D::GetInputArrayToProcess ( int  idx,
vtkDataObject input
) [inline]

Make the arrays accessible to the plot objects.

Reimplemented from vtkAlgorithm.

Definition at line 50 of file vtkContextMapper2D.h.

vtkAbstractArray* vtkContextMapper2D::GetInputAbstractArrayToProcess ( int  idx,
vtkDataObject input
) [inline]

Filters that have multiple connections on one port can use this signature. This will override the connection id that the user set in SetInputArrayToProcess() with the connection id passed. This way, the user specifies one array to process and that information is used to obtain arrays for all the connection on the port with the appropriate connection id substituted.

Reimplemented from vtkAlgorithm.

Definition at line 57 of file vtkContextMapper2D.h.

virtual int vtkContextMapper2D::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Specify the types of input we can handle.

Reimplemented from vtkAlgorithm.


The documentation for this class was generated from the following file:
