vtkContourGrid Class Reference

#include <vtkContourGrid.h>

Inheritance diagram for vtkContourGrid:

[legend]

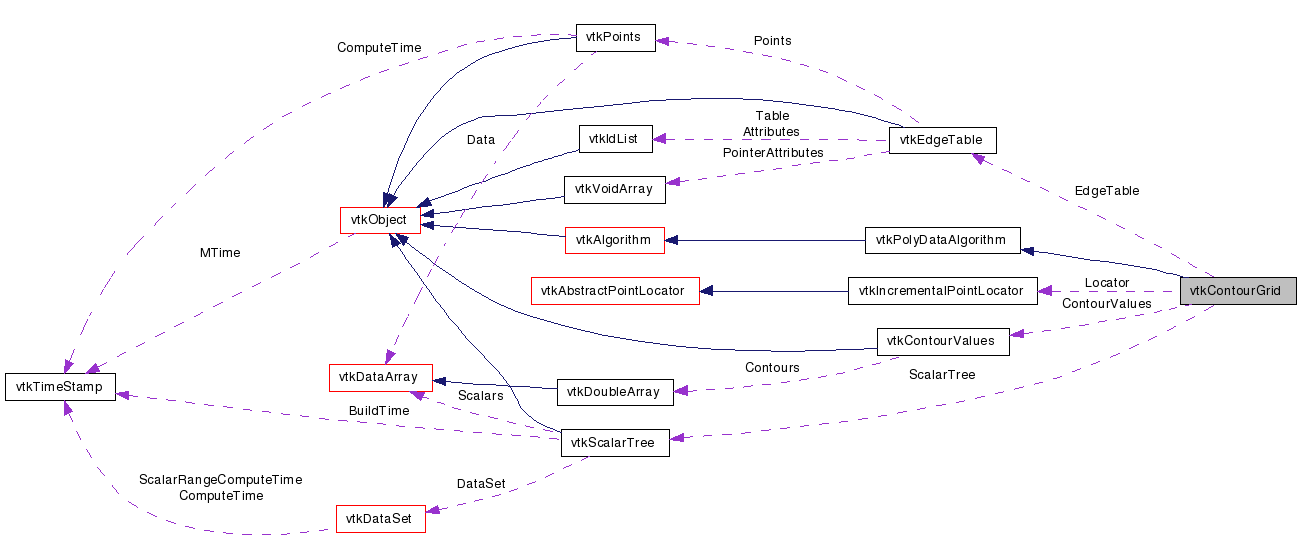

Collaboration diagram for vtkContourGrid:

[legend]

List of all members.

Detailed Description

generate isosurfaces/isolines from scalar values (specialized for unstructured grids)

vtkContourGrid is a filter that takes as input datasets of type vtkUnstructuredGrid and generates on output isosurfaces and/or isolines. The exact form of the output depends upon the dimensionality of the input data. Data consisting of 3D cells will generate isosurfaces, data consisting of 2D cells will generate isolines, and data with 1D or 0D cells will generate isopoints. Combinations of output type are possible if the input dimension is mixed.

To use this filter you must specify one or more contour values. You can either use the method SetValue() to specify each contour value, or use GenerateValues() to generate a series of evenly spaced contours. It is also possible to accelerate the operation of this filter (at the cost of extra memory) by using a vtkScalarTree. A scalar tree is used to quickly locate cells that contain a contour surface. This is especially effective if multiple contours are being extracted. If you want to use a scalar tree, invoke the method UseScalarTreeOn().

Warning:: For unstructured data or structured grids, normals and gradients are not computed. Use vtkPolyDataNormals to compute the surface normals of the resulting isosurface.

See also:: vtkMarchingContourFilter vtkKitwareContourFilter vtkMarchingCubes vtkSliceCubes vtkDividingCubes vtkMarchingSquares vtkImageMarchingCubes

Definition at line 59 of file vtkContourGrid.h.


Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
unsigned long	GetMTime ()
void	CreateDefaultLocator ()

void	SetValue (int i, double value)
double	GetValue (int i)
double *	GetValues ()
void	GetValues (double *contourValues)
void	SetNumberOfContours (int number)
int	GetNumberOfContours ()
void	GenerateValues (int numContours, double range[2])
void	GenerateValues (int numContours, double rangeStart, double rangeEnd)

virtual void	SetComputeNormals (int)
virtual int	GetComputeNormals ()
virtual void	ComputeNormalsOn ()
virtual void	ComputeNormalsOff ()

virtual void	SetComputeGradients (int)
virtual int	GetComputeGradients ()
virtual void	ComputeGradientsOn ()
virtual void	ComputeGradientsOff ()

virtual void	SetComputeScalars (int)
virtual int	GetComputeScalars ()
virtual void	ComputeScalarsOn ()
virtual void	ComputeScalarsOff ()

virtual void	SetUseScalarTree (int)
virtual int	GetUseScalarTree ()
virtual void	UseScalarTreeOn ()
virtual void	UseScalarTreeOff ()

void	SetLocator (vtkIncrementalPointLocator *locator)
virtual vtkIncrementalPointLocator *	GetLocator ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkContourGrid *	SafeDownCast (vtkObject *o)
static vtkContourGrid *	New ()
Protected Member Functions
	vtkContourGrid ()
	~vtkContourGrid ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
virtual int	FillInputPortInformation (int port, vtkInformation *info)
Protected Attributes
vtkContourValues *	ContourValues
int	ComputeNormals
int	ComputeGradients
int	ComputeScalars
vtkIncrementalPointLocator *	Locator
int	UseScalarTree
vtkScalarTree *	ScalarTree
vtkEdgeTable *	EdgeTable

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkContourGrid::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 62 of file vtkContourGrid.h.

Constructor & Destructor Documentation

vtkContourGrid::vtkContourGrid ( ) [protected]

vtkContourGrid::~vtkContourGrid ( ) [protected]

Member Function Documentation

virtual const char* vtkContourGrid::GetClassName ( ) [virtual]

Reimplemented from vtkPolyDataAlgorithm.

static int vtkContourGrid::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkContourGrid::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkContourGrid* vtkContourGrid::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

void vtkContourGrid::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

static vtkContourGrid* vtkContourGrid::New ( ) [static]

Construct object with initial range (0,1) and single contour value of 0.0.

Reimplemented from vtkPolyDataAlgorithm.

void vtkContourGrid::SetValue	(	int	i,
		double	value
	)			`[inline]`

Methods to set / get contour values.

Set a particular contour value at contour number i. The index i ranges between 0<=i<NumberOfContours.

Definition at line 155 of file vtkContourGrid.h.

double vtkContourGrid::GetValue ( int i ) [inline]

Get the ith contour value.

Definition at line 161 of file vtkContourGrid.h.

double * vtkContourGrid::GetValues ( ) [inline]

Get a pointer to an array of contour values. There will be GetNumberOfContours() values in the list.

Definition at line 168 of file vtkContourGrid.h.

void vtkContourGrid::GetValues ( double * contourValues ) [inline]

Fill a supplied list with contour values. There will be GetNumberOfContours() values in the list. Make sure you allocate enough memory to hold the list.

Definition at line 176 of file vtkContourGrid.h.

void vtkContourGrid::SetNumberOfContours ( int number ) [inline]

Set the number of contours to place into the list. You only really need to use this method to reduce list size. The method SetValue() will automatically increase list size as needed.

Definition at line 184 of file vtkContourGrid.h.

int vtkContourGrid::GetNumberOfContours ( ) [inline]

Get the number of contours in the list of contour values.

Definition at line 190 of file vtkContourGrid.h.

void vtkContourGrid::GenerateValues	(	int	numContours,
		double	range[2]
	)			`[inline]`

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 197 of file vtkContourGrid.h.

void vtkContourGrid::GenerateValues	(	int	numContours,
		double	rangeStart,
		double	rangeEnd
	)			`[inline]`

Generate numContours equally spaced contour values between specified range. Contour values will include min/max range values.

Definition at line 204 of file vtkContourGrid.h.

unsigned long vtkContourGrid::GetMTime ( ) [virtual]

Modified GetMTime Because we delegate to vtkContourValues

Reimplemented from vtkObject.

virtual void vtkContourGrid::SetComputeNormals ( int ) [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual int vtkContourGrid::GetComputeNormals ( ) [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkContourGrid::ComputeNormalsOn ( ) [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkContourGrid::ComputeNormalsOff ( ) [virtual]

Set/Get the computation of normals. Normal computation is fairly expensive in both time and storage. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkContourGrid::SetComputeGradients ( int ) [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual int vtkContourGrid::GetComputeGradients ( ) [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkContourGrid::ComputeGradientsOn ( ) [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkContourGrid::ComputeGradientsOff ( ) [virtual]

Set/Get the computation of gradients. Gradient computation is fairly expensive in both time and storage. Note that if ComputeNormals is on, gradients will have to be calculated, but will not be stored in the output dataset. If the output data will be processed by filters that modify topology or geometry, it may be wise to turn Normals and Gradients off.

virtual void vtkContourGrid::SetComputeScalars ( int ) [virtual]

Set/Get the computation of scalars.

virtual int vtkContourGrid::GetComputeScalars ( ) [virtual]

Set/Get the computation of scalars.

virtual void vtkContourGrid::ComputeScalarsOn ( ) [virtual]

Set/Get the computation of scalars.

virtual void vtkContourGrid::ComputeScalarsOff ( ) [virtual]

Set/Get the computation of scalars.

virtual void vtkContourGrid::SetUseScalarTree ( int ) [virtual]

Enable the use of a scalar tree to accelerate contour extraction.

virtual int vtkContourGrid::GetUseScalarTree ( ) [virtual]

Enable the use of a scalar tree to accelerate contour extraction.

virtual void vtkContourGrid::UseScalarTreeOn ( ) [virtual]

Enable the use of a scalar tree to accelerate contour extraction.

virtual void vtkContourGrid::UseScalarTreeOff ( ) [virtual]

Enable the use of a scalar tree to accelerate contour extraction.

void vtkContourGrid::SetLocator ( vtkIncrementalPointLocator * locator )

Set / get a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

virtual vtkIncrementalPointLocator* vtkContourGrid::GetLocator ( ) [virtual]

Set / get a spatial locator for merging points. By default, an instance of vtkMergePoints is used.

void vtkContourGrid::CreateDefaultLocator ( )

Create default locator. Used to create one when none is specified. The locator is used to merge coincident points.

virtual int vtkContourGrid::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkContourGrid::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkPolyDataAlgorithm.
