vtkDataReader Class Reference

#include <vtkDataReader.h>

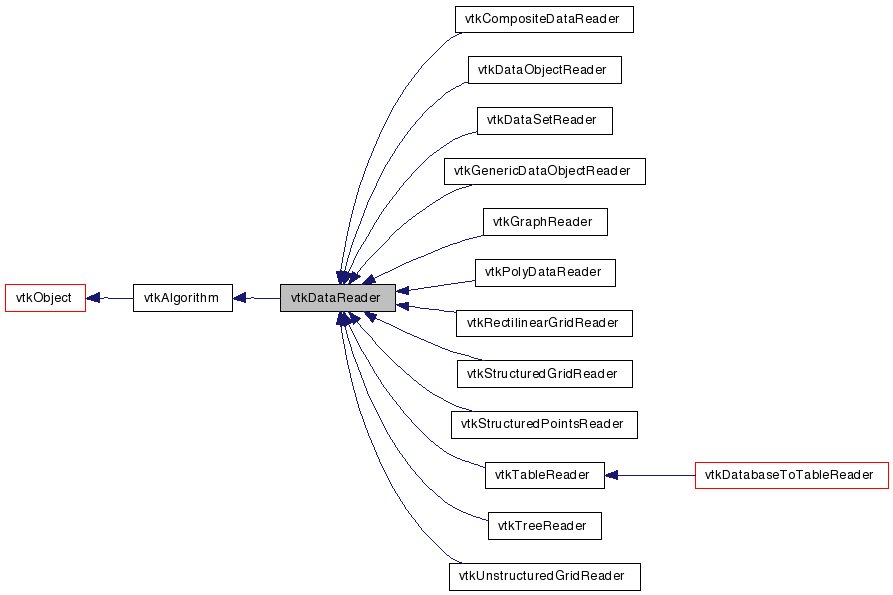

Inheritance diagram for vtkDataReader:

Inheritance graph
[legend]

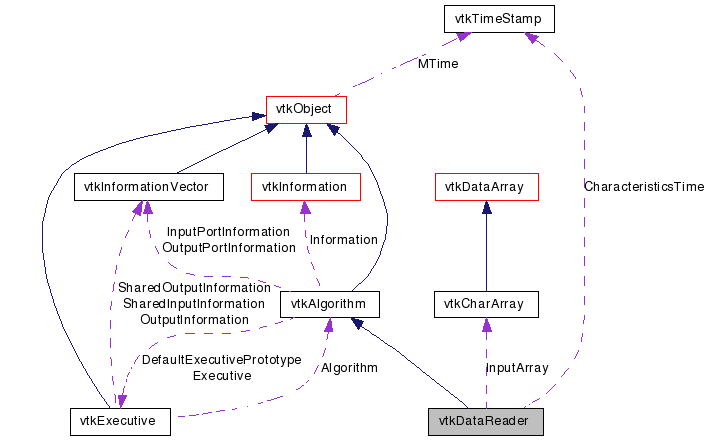

Collaboration diagram for vtkDataReader:

Collaboration graph
[legend]

List of all members.


Detailed Description

helper superclass for objects that read vtk data files

vtkDataReader is a helper superclass that reads the vtk data file header, dataset type, and attribute data (point and cell attributes such as scalars, vectors, normals, etc.) from a vtk data file. See text for the format of the various vtk file types.

See also:
vtkPolyDataReader vtkStructuredPointsReader vtkStructuredGridReader vtkUnstructuredGridReader vtkRectilinearGridReader

Definition at line 46 of file vtkDataReader.h.


Public Types

typedef vtkAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int OpenVTKFile ()
int ReadHeader ()
int ReadCellData (vtkDataSet *ds, int numCells)
int ReadPointData (vtkDataSet *ds, int numPts)
int ReadPoints (vtkPointSet *ps, int numPts)
int ReadPoints (vtkGraph *g, int numPts)
int ReadVertexData (vtkGraph *g, int numVertices)
int ReadEdgeData (vtkGraph *g, int numEdges)
int ReadRowData (vtkTable *t, int numEdges)
int ReadCells (int size, int *data)
int ReadCells (int size, int *data, int skip1, int read2, int skip3)
int ReadCoordinates (vtkRectilinearGrid *rg, int axes, int numCoords)
void CloseVTKFile ()
int ReadLine (char result[256])
int ReadString (char result[256])
char * LowerCase (char *str, const size_t len=256)
virtual int ReadMetaData (vtkInformation *)
virtual void SetFileName (const char *)
virtual char * GetFileName ()
int IsFileValid (const char *dstype)
int IsFileStructuredPoints ()
int IsFilePolyData ()
int IsFileStructuredGrid ()
int IsFileUnstructuredGrid ()
int IsFileRectilinearGrid ()
void SetInputString (const char *in)
virtual char * GetInputString ()
void SetInputString (const char *in, int len)
virtual int GetInputStringLength ()
void SetBinaryInputString (const char *, int len)
virtual void SetInputArray (vtkCharArray *)
virtual vtkCharArrayGetInputArray ()
virtual char * GetHeader ()
virtual void SetReadFromInputString (int)
virtual int GetReadFromInputString ()
virtual void ReadFromInputStringOn ()
virtual void ReadFromInputStringOff ()
virtual int GetFileType ()
int GetNumberOfScalarsInFile ()
int GetNumberOfVectorsInFile ()
int GetNumberOfTensorsInFile ()
int GetNumberOfNormalsInFile ()
int GetNumberOfTCoordsInFile ()
int GetNumberOfFieldDataInFile ()
const char * GetScalarsNameInFile (int i)
const char * GetVectorsNameInFile (int i)
const char * GetTensorsNameInFile (int i)
const char * GetNormalsNameInFile (int i)
const char * GetTCoordsNameInFile (int i)
const char * GetFieldDataNameInFile (int i)
virtual void SetScalarsName (const char *)
virtual char * GetScalarsName ()
virtual void SetVectorsName (const char *)
virtual char * GetVectorsName ()
virtual void SetTensorsName (const char *)
virtual char * GetTensorsName ()
virtual void SetNormalsName (const char *)
virtual char * GetNormalsName ()
virtual void SetTCoordsName (const char *)
virtual char * GetTCoordsName ()
virtual void SetLookupTableName (const char *)
virtual char * GetLookupTableName ()
virtual void SetFieldDataName (const char *)
virtual char * GetFieldDataName ()
virtual void SetReadAllScalars (int)
virtual int GetReadAllScalars ()
virtual void ReadAllScalarsOn ()
virtual void ReadAllScalarsOff ()
virtual void SetReadAllVectors (int)
virtual int GetReadAllVectors ()
virtual void ReadAllVectorsOn ()
virtual void ReadAllVectorsOff ()
virtual void SetReadAllNormals (int)
virtual int GetReadAllNormals ()
virtual void ReadAllNormalsOn ()
virtual void ReadAllNormalsOff ()
virtual void SetReadAllTensors (int)
virtual int GetReadAllTensors ()
virtual void ReadAllTensorsOn ()
virtual void ReadAllTensorsOff ()
virtual void SetReadAllColorScalars (int)
virtual int GetReadAllColorScalars ()
virtual void ReadAllColorScalarsOn ()
virtual void ReadAllColorScalarsOff ()
virtual void SetReadAllTCoords (int)
virtual int GetReadAllTCoords ()
virtual void ReadAllTCoordsOn ()
virtual void ReadAllTCoordsOff ()
virtual void SetReadAllFields (int)
virtual int GetReadAllFields ()
virtual void ReadAllFieldsOn ()
virtual void ReadAllFieldsOff ()
vtkAbstractArrayReadArray (const char *dataType, int numTuples, int numComp)
vtkFieldDataReadFieldData ()
int Read (char *)
int Read (unsigned char *)
int Read (short *)
int Read (unsigned short *)
int Read (int *)
int Read (unsigned int *)
int Read (long *)
int Read (unsigned long *)
int Read (float *)
int Read (double *)
istream * GetIStream ()

Static Public Member Functions

static vtkDataReaderNew ()
static int IsTypeOf (const char *type)
static vtkDataReaderSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkDataReader ()
 ~vtkDataReader ()
void SetScalarLut (const char *lut)
virtual char * GetScalarLut ()
int ReadScalarData (vtkDataSetAttributes *a, int num)
int ReadVectorData (vtkDataSetAttributes *a, int num)
int ReadNormalData (vtkDataSetAttributes *a, int num)
int ReadTensorData (vtkDataSetAttributes *a, int num)
int ReadCoScalarData (vtkDataSetAttributes *a, int num)
int ReadLutData (vtkDataSetAttributes *a)
int ReadTCoordsData (vtkDataSetAttributes *a, int num)
int ReadGlobalIds (vtkDataSetAttributes *a, int num)
int ReadPedigreeIds (vtkDataSetAttributes *a, int num)
int ReadDataSetData (vtkDataSet *ds)
void InitializeCharacteristics ()
int CharacterizeFile ()
void CheckFor (const char *name, char *line, int &num, char **&array, int &allocSize)
int DecodeString (char *resname, const char *name)
virtual int ProcessRequest (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestInformation (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

char * FileName
int FileType
istream * IS
char * ScalarsName
char * VectorsName
char * TensorsName
char * TCoordsName
char * NormalsName
char * LookupTableName
char * FieldDataName
char * ScalarLut
int ReadFromInputString
char * InputString
int InputStringLength
int InputStringPos
char * Header
int NumberOfScalarsInFile
char ** ScalarsNameInFile
int ScalarsNameAllocSize
int NumberOfVectorsInFile
char ** VectorsNameInFile
int VectorsNameAllocSize
int NumberOfTensorsInFile
char ** TensorsNameInFile
int TensorsNameAllocSize
int NumberOfTCoordsInFile
char ** TCoordsNameInFile
int TCoordsNameAllocSize
int NumberOfNormalsInFile
char ** NormalsNameInFile
int NormalsNameAllocSize
int NumberOfFieldDataInFile
char ** FieldDataNameInFile
int FieldDataNameAllocSize
vtkTimeStamp CharacteristicsTime
int ReadAllScalars
int ReadAllVectors
int ReadAllNormals
int ReadAllTensors
int ReadAllColorScalars
int ReadAllTCoords
int ReadAllFields
vtkCharArrayInputArray

Member Typedef Documentation


Constructor & Destructor Documentation

vtkDataReader::vtkDataReader (  )  [protected]

vtkDataReader::~vtkDataReader (  )  [protected]


Member Function Documentation

static vtkDataReader* vtkDataReader::New (  )  [static]

virtual const char* vtkDataReader::GetClassName (  )  [virtual]

static int vtkDataReader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkCompositeDataReader, vtkDatabaseToTableReader, vtkDataObjectReader, vtkDataSetReader, vtkGenericDataObjectReader, vtkGraphReader, vtkMySQLToTableReader, vtkPolyDataReader, vtkPostgreSQLToTableReader, vtkRectilinearGridReader, vtkSQLiteToTableReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkTableReader, vtkTreeReader, and vtkUnstructuredGridReader.

virtual int vtkDataReader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkCompositeDataReader, vtkDatabaseToTableReader, vtkDataObjectReader, vtkDataSetReader, vtkGenericDataObjectReader, vtkGraphReader, vtkMySQLToTableReader, vtkPolyDataReader, vtkPostgreSQLToTableReader, vtkRectilinearGridReader, vtkSQLiteToTableReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkTableReader, vtkTreeReader, and vtkUnstructuredGridReader.

static vtkDataReader* vtkDataReader::SafeDownCast ( vtkObject o  )  [static]

void vtkDataReader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

Reimplemented in vtkCompositeDataReader, vtkDatabaseToTableReader, vtkDataObjectReader, vtkDataSetReader, vtkGenericDataObjectReader, vtkGraphReader, vtkMySQLToTableReader, vtkPolyDataReader, vtkPostgreSQLToTableReader, vtkRectilinearGridReader, vtkSQLiteToTableReader, vtkStructuredGridReader, vtkStructuredPointsReader, vtkTableReader, vtkTreeReader, and vtkUnstructuredGridReader.

virtual void vtkDataReader::SetFileName ( const char *   )  [virtual]

Specify file name of vtk data file to read.

virtual char* vtkDataReader::GetFileName (  )  [virtual]

Specify file name of vtk data file to read.

int vtkDataReader::IsFileValid ( const char *  dstype  )

Is the file a valid vtk file of the passed dataset type ? The dataset type is passed as a lower case string.

int vtkDataReader::IsFileStructuredPoints (  )  [inline]

Is the file a valid vtk file of the passed dataset type ? The dataset type is passed as a lower case string.

Definition at line 63 of file vtkDataReader.h.

int vtkDataReader::IsFilePolyData (  )  [inline]

Is the file a valid vtk file of the passed dataset type ? The dataset type is passed as a lower case string.

Definition at line 65 of file vtkDataReader.h.

int vtkDataReader::IsFileStructuredGrid (  )  [inline]

Is the file a valid vtk file of the passed dataset type ? The dataset type is passed as a lower case string.

Definition at line 67 of file vtkDataReader.h.

int vtkDataReader::IsFileUnstructuredGrid (  )  [inline]

Is the file a valid vtk file of the passed dataset type ? The dataset type is passed as a lower case string.

Definition at line 69 of file vtkDataReader.h.

int vtkDataReader::IsFileRectilinearGrid (  )  [inline]

Is the file a valid vtk file of the passed dataset type ? The dataset type is passed as a lower case string.

Definition at line 71 of file vtkDataReader.h.

void vtkDataReader::SetInputString ( const char *  in  )

Specify the InputString for use when reading from a character array. Optionally include the length for binary strings. Note that a copy of the string is made and stored. If this causes exceedingly large memory consumption, consider using InputArray instead.

virtual char* vtkDataReader::GetInputString (  )  [virtual]

Specify the InputString for use when reading from a character array. Optionally include the length for binary strings. Note that a copy of the string is made and stored. If this causes exceedingly large memory consumption, consider using InputArray instead.

void vtkDataReader::SetInputString ( const char *  in,
int  len
)

Specify the InputString for use when reading from a character array. Optionally include the length for binary strings. Note that a copy of the string is made and stored. If this causes exceedingly large memory consumption, consider using InputArray instead.

virtual int vtkDataReader::GetInputStringLength (  )  [virtual]

Specify the InputString for use when reading from a character array. Optionally include the length for binary strings. Note that a copy of the string is made and stored. If this causes exceedingly large memory consumption, consider using InputArray instead.

void vtkDataReader::SetBinaryInputString ( const char *  ,
int  len
)

Specify the InputString for use when reading from a character array. Optionally include the length for binary strings. Note that a copy of the string is made and stored. If this causes exceedingly large memory consumption, consider using InputArray instead.

virtual void vtkDataReader::SetInputArray ( vtkCharArray  )  [virtual]

Specify the vtkCharArray to be used when reading from a string. If set, this array has precedence over InputString. Use this instead of InputString to avoid the extra memory copy. It should be noted that if the underlying char* is owned by the user ( vtkCharArray::SetArray(array, 1); ) and is deleted before the reader, bad things will happen during a pipeline update.

virtual vtkCharArray* vtkDataReader::GetInputArray (  )  [virtual]

Specify the vtkCharArray to be used when reading from a string. If set, this array has precedence over InputString. Use this instead of InputString to avoid the extra memory copy. It should be noted that if the underlying char* is owned by the user ( vtkCharArray::SetArray(array, 1); ) and is deleted before the reader, bad things will happen during a pipeline update.

virtual char* vtkDataReader::GetHeader (  )  [virtual]

Get the header from the vtk data file.

virtual void vtkDataReader::SetReadFromInputString ( int   )  [virtual]

Enable reading from an InputString or InputArray instead of the default, a file.

virtual int vtkDataReader::GetReadFromInputString (  )  [virtual]

Enable reading from an InputString or InputArray instead of the default, a file.

virtual void vtkDataReader::ReadFromInputStringOn (  )  [virtual]

Enable reading from an InputString or InputArray instead of the default, a file.

virtual void vtkDataReader::ReadFromInputStringOff (  )  [virtual]

Enable reading from an InputString or InputArray instead of the default, a file.

virtual int vtkDataReader::GetFileType (  )  [virtual]

Get the type of file (ASCII or BINARY). Returned value only valid after file has been read.

int vtkDataReader::GetNumberOfScalarsInFile (  )  [inline]

How many attributes of various types are in this file? This requires reading the file, so the filename must be set prior to invoking this operation. (Note: file characteristics are cached, so only a single read is necessary to return file characteristics.)

Definition at line 122 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfVectorsInFile (  )  [inline]

How many attributes of various types are in this file? This requires reading the file, so the filename must be set prior to invoking this operation. (Note: file characteristics are cached, so only a single read is necessary to return file characteristics.)

Definition at line 124 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfTensorsInFile (  )  [inline]

How many attributes of various types are in this file? This requires reading the file, so the filename must be set prior to invoking this operation. (Note: file characteristics are cached, so only a single read is necessary to return file characteristics.)

Definition at line 126 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfNormalsInFile (  )  [inline]

How many attributes of various types are in this file? This requires reading the file, so the filename must be set prior to invoking this operation. (Note: file characteristics are cached, so only a single read is necessary to return file characteristics.)

Definition at line 128 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfTCoordsInFile (  )  [inline]

How many attributes of various types are in this file? This requires reading the file, so the filename must be set prior to invoking this operation. (Note: file characteristics are cached, so only a single read is necessary to return file characteristics.)

Definition at line 130 of file vtkDataReader.h.

int vtkDataReader::GetNumberOfFieldDataInFile (  )  [inline]

How many attributes of various types are in this file? This requires reading the file, so the filename must be set prior to invoking this operation. (Note: file characteristics are cached, so only a single read is necessary to return file characteristics.)

Definition at line 132 of file vtkDataReader.h.

const char* vtkDataReader::GetScalarsNameInFile ( int  i  )

What is the name of the ith attribute of a certain type in this file? This requires reading the file, so the filename must be set prior to invoking this operation.

const char* vtkDataReader::GetVectorsNameInFile ( int  i  )

What is the name of the ith attribute of a certain type in this file? This requires reading the file, so the filename must be set prior to invoking this operation.

const char* vtkDataReader::GetTensorsNameInFile ( int  i  )

What is the name of the ith attribute of a certain type in this file? This requires reading the file, so the filename must be set prior to invoking this operation.

const char* vtkDataReader::GetNormalsNameInFile ( int  i  )

What is the name of the ith attribute of a certain type in this file? This requires reading the file, so the filename must be set prior to invoking this operation.

const char* vtkDataReader::GetTCoordsNameInFile ( int  i  )

What is the name of the ith attribute of a certain type in this file? This requires reading the file, so the filename must be set prior to invoking this operation.

const char* vtkDataReader::GetFieldDataNameInFile ( int  i  )

What is the name of the ith attribute of a certain type in this file? This requires reading the file, so the filename must be set prior to invoking this operation.

virtual void vtkDataReader::SetScalarsName ( const char *   )  [virtual]

Set the name of the scalar data to extract. If not specified, first scalar data encountered is extracted.

virtual char* vtkDataReader::GetScalarsName (  )  [virtual]

Set the name of the scalar data to extract. If not specified, first scalar data encountered is extracted.

virtual void vtkDataReader::SetVectorsName ( const char *   )  [virtual]

Set the name of the vector data to extract. If not specified, first vector data encountered is extracted.

virtual char* vtkDataReader::GetVectorsName (  )  [virtual]

Set the name of the vector data to extract. If not specified, first vector data encountered is extracted.

virtual void vtkDataReader::SetTensorsName ( const char *   )  [virtual]

Set the name of the tensor data to extract. If not specified, first tensor data encountered is extracted.

virtual char* vtkDataReader::GetTensorsName (  )  [virtual]

Set the name of the tensor data to extract. If not specified, first tensor data encountered is extracted.

virtual void vtkDataReader::SetNormalsName ( const char *   )  [virtual]

Set the name of the normal data to extract. If not specified, first normal data encountered is extracted.

virtual char* vtkDataReader::GetNormalsName (  )  [virtual]

Set the name of the normal data to extract. If not specified, first normal data encountered is extracted.

virtual void vtkDataReader::SetTCoordsName ( const char *   )  [virtual]

Set the name of the texture coordinate data to extract. If not specified, first texture coordinate data encountered is extracted.

virtual char* vtkDataReader::GetTCoordsName (  )  [virtual]

Set the name of the texture coordinate data to extract. If not specified, first texture coordinate data encountered is extracted.

virtual void vtkDataReader::SetLookupTableName ( const char *   )  [virtual]

Set the name of the lookup table data to extract. If not specified, uses lookup table named by scalar. Otherwise, this specification supersedes.

virtual char* vtkDataReader::GetLookupTableName (  )  [virtual]

Set the name of the lookup table data to extract. If not specified, uses lookup table named by scalar. Otherwise, this specification supersedes.

virtual void vtkDataReader::SetFieldDataName ( const char *   )  [virtual]

Set the name of the field data to extract. If not specified, uses first field data encountered in file.

virtual char* vtkDataReader::GetFieldDataName (  )  [virtual]

Set the name of the field data to extract. If not specified, uses first field data encountered in file.

virtual void vtkDataReader::SetReadAllScalars ( int   )  [virtual]

Enable reading all scalars.

virtual int vtkDataReader::GetReadAllScalars (  )  [virtual]

Enable reading all scalars.

virtual void vtkDataReader::ReadAllScalarsOn (  )  [virtual]

Enable reading all scalars.

virtual void vtkDataReader::ReadAllScalarsOff (  )  [virtual]

Enable reading all scalars.

virtual void vtkDataReader::SetReadAllVectors ( int   )  [virtual]

Enable reading all vectors.

virtual int vtkDataReader::GetReadAllVectors (  )  [virtual]

Enable reading all vectors.

virtual void vtkDataReader::ReadAllVectorsOn (  )  [virtual]

Enable reading all vectors.

virtual void vtkDataReader::ReadAllVectorsOff (  )  [virtual]

Enable reading all vectors.

virtual void vtkDataReader::SetReadAllNormals ( int   )  [virtual]

Enable reading all normals.

virtual int vtkDataReader::GetReadAllNormals (  )  [virtual]

Enable reading all normals.

virtual void vtkDataReader::ReadAllNormalsOn (  )  [virtual]

Enable reading all normals.

virtual void vtkDataReader::ReadAllNormalsOff (  )  [virtual]

Enable reading all normals.

virtual void vtkDataReader::SetReadAllTensors ( int   )  [virtual]

Enable reading all tensors.

virtual int vtkDataReader::GetReadAllTensors (  )  [virtual]

Enable reading all tensors.

virtual void vtkDataReader::ReadAllTensorsOn (  )  [virtual]

Enable reading all tensors.

virtual void vtkDataReader::ReadAllTensorsOff (  )  [virtual]

Enable reading all tensors.

virtual void vtkDataReader::SetReadAllColorScalars ( int   )  [virtual]

Enable reading all color scalars.

virtual int vtkDataReader::GetReadAllColorScalars (  )  [virtual]

Enable reading all color scalars.

virtual void vtkDataReader::ReadAllColorScalarsOn (  )  [virtual]

Enable reading all color scalars.

virtual void vtkDataReader::ReadAllColorScalarsOff (  )  [virtual]

Enable reading all color scalars.

virtual void vtkDataReader::SetReadAllTCoords ( int   )  [virtual]

Enable reading all tcoords.

virtual int vtkDataReader::GetReadAllTCoords (  )  [virtual]

Enable reading all tcoords.

virtual void vtkDataReader::ReadAllTCoordsOn (  )  [virtual]

Enable reading all tcoords.

virtual void vtkDataReader::ReadAllTCoordsOff (  )  [virtual]

Enable reading all tcoords.

virtual void vtkDataReader::SetReadAllFields ( int   )  [virtual]

Enable reading all fields.

virtual int vtkDataReader::GetReadAllFields (  )  [virtual]

Enable reading all fields.

virtual void vtkDataReader::ReadAllFieldsOn (  )  [virtual]

Enable reading all fields.

virtual void vtkDataReader::ReadAllFieldsOff (  )  [virtual]

Enable reading all fields.

int vtkDataReader::OpenVTKFile (  )

Open a vtk data file. Returns zero if error.

int vtkDataReader::ReadHeader (  )

Read the header of a vtk data file. Returns 0 if error.

int vtkDataReader::ReadCellData ( vtkDataSet ds,
int  numCells
)

Read the cell data of a vtk data file. The number of cells (from the dataset) must match the number of cells defined in cell attributes (unless no geometry was defined).

int vtkDataReader::ReadPointData ( vtkDataSet ds,
int  numPts
)

Read the point data of a vtk data file. The number of points (from the dataset) must match the number of points defined in point attributes (unless no geometry was defined).

int vtkDataReader::ReadPoints ( vtkPointSet ps,
int  numPts
)

Read point coordinates. Return 0 if error.

int vtkDataReader::ReadPoints ( vtkGraph g,
int  numPts
)

Read point coordinates. Return 0 if error.

int vtkDataReader::ReadVertexData ( vtkGraph g,
int  numVertices
)

Read the vertex data of a vtk data file. The number of vertices (from the graph) must match the number of vertices defined in vertex attributes (unless no geometry was defined).

int vtkDataReader::ReadEdgeData ( vtkGraph g,
int  numEdges
)

Read the edge data of a vtk data file. The number of edges (from the graph) must match the number of edges defined in edge attributes (unless no geometry was defined).

int vtkDataReader::ReadRowData ( vtkTable t,
int  numEdges
)

Read the row data of a vtk data file.

int vtkDataReader::ReadCells ( int  size,
int *  data
)

Read a bunch of "cells". Return 0 if error.

int vtkDataReader::ReadCells ( int  size,
int *  data,
int  skip1,
int  read2,
int  skip3
)

Read a piece of the cells (for streaming compliance)

int vtkDataReader::ReadCoordinates ( vtkRectilinearGrid rg,
int  axes,
int  numCoords
)

Read the coordinates for a rectilinear grid. The axes parameter specifies which coordinate axes (0,1,2) is being read.

vtkAbstractArray* vtkDataReader::ReadArray ( const char *  dataType,
int  numTuples,
int  numComp
)

Helper functions for reading data.

vtkFieldData* vtkDataReader::ReadFieldData (  )

Helper functions for reading data.

int vtkDataReader::Read ( char *   )

Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read ( unsigned char *   )

Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read ( short *   )

Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read ( unsigned short *   )

Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read ( int *   )

Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read ( unsigned int *   )

Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read ( long *   )

Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read ( unsigned long *   )

Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read ( float *   )

Internal function to read in a value. Returns zero if there was an error.

int vtkDataReader::Read ( double *   )

Internal function to read in a value. Returns zero if there was an error.

void vtkDataReader::CloseVTKFile (  )

Close the vtk file.

int vtkDataReader::ReadLine ( char  result[256]  )

Internal function to read in a line up to 256 characters. Returns zero if there was an error.

int vtkDataReader::ReadString ( char  result[256]  )

Internal function to read in a string up to 256 characters. Returns zero if there was an error.

char* vtkDataReader::LowerCase ( char *  str,
const size_t  len = 256
)

Helper method for reading in data.

istream* vtkDataReader::GetIStream (  )  [inline]

Return the istream being used to read in the data.

Definition at line 340 of file vtkDataReader.h.

virtual int vtkDataReader::ReadMetaData ( vtkInformation  )  [inline, virtual]

Read the meta information from the file. This needs to be public to it can be accessed by vtkDataSetReader.

Reimplemented in vtkRectilinearGridReader, vtkStructuredGridReader, and vtkStructuredPointsReader.

Definition at line 346 of file vtkDataReader.h.

void vtkDataReader::SetScalarLut ( const char *  lut  )  [protected]

virtual char* vtkDataReader::GetScalarLut (  )  [protected, virtual]

int vtkDataReader::ReadScalarData ( vtkDataSetAttributes a,
int  num
) [protected]

int vtkDataReader::ReadVectorData ( vtkDataSetAttributes a,
int  num
) [protected]

int vtkDataReader::ReadNormalData ( vtkDataSetAttributes a,
int  num
) [protected]

int vtkDataReader::ReadTensorData ( vtkDataSetAttributes a,
int  num
) [protected]

int vtkDataReader::ReadCoScalarData ( vtkDataSetAttributes a,
int  num
) [protected]

int vtkDataReader::ReadLutData ( vtkDataSetAttributes a  )  [protected]

int vtkDataReader::ReadTCoordsData ( vtkDataSetAttributes a,
int  num
) [protected]

int vtkDataReader::ReadGlobalIds ( vtkDataSetAttributes a,
int  num
) [protected]

int vtkDataReader::ReadPedigreeIds ( vtkDataSetAttributes a,
int  num
) [protected]

int vtkDataReader::ReadDataSetData ( vtkDataSet ds  )  [protected]

void vtkDataReader::InitializeCharacteristics (  )  [protected]

int vtkDataReader::CharacterizeFile (  )  [protected]

void vtkDataReader::CheckFor ( const char *  name,
char *  line,
int &  num,
char **&  array,
int &  allocSize
) [protected]

int vtkDataReader::DecodeString ( char *  resname,
const char *  name
) [protected]

Decode a string. This method is the inverse of vtkWriter::EncodeString. Returns the length of the result string.

virtual int vtkDataReader::ProcessRequest ( vtkInformation request,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [protected, virtual]

Upstream/Downstream requests form the generalized interface through which executives invoke a algorithm's functionality. Upstream requests correspond to information flow from the algorithm's outputs to its inputs. Downstream requests correspond to information flow from the algorithm's inputs to its outputs. A downstream request is defined by the contents of the request information object. The input to the request is stored in the input information vector passed to ProcessRequest. The results of an downstream request are stored in the output information vector passed to ProcessRequest. An upstream request is defined by the contents of the request information object. The input to the request is stored in the output information vector passed to ProcessRequest. The results of an upstream request are stored in the input information vector passed to ProcessRequest. It returns the boolean status of the pipeline (false means failure).

Reimplemented from vtkAlgorithm.

Reimplemented in vtkCompositeDataReader, vtkDataSetReader, vtkGenericDataObjectReader, and vtkGraphReader.

virtual int vtkDataReader::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

virtual int vtkDataReader::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]

virtual int vtkDataReader::RequestInformation ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [inline, protected, virtual]


Member Data Documentation

char* vtkDataReader::FileName [protected]

Definition at line 352 of file vtkDataReader.h.

int vtkDataReader::FileType [protected]

Definition at line 353 of file vtkDataReader.h.

istream* vtkDataReader::IS [protected]

Definition at line 354 of file vtkDataReader.h.

char* vtkDataReader::ScalarsName [protected]

Definition at line 356 of file vtkDataReader.h.

char* vtkDataReader::VectorsName [protected]

Definition at line 357 of file vtkDataReader.h.

char* vtkDataReader::TensorsName [protected]

Definition at line 358 of file vtkDataReader.h.

char* vtkDataReader::TCoordsName [protected]

Definition at line 359 of file vtkDataReader.h.

char* vtkDataReader::NormalsName [protected]

Definition at line 360 of file vtkDataReader.h.

char* vtkDataReader::LookupTableName [protected]

Definition at line 361 of file vtkDataReader.h.

char* vtkDataReader::FieldDataName [protected]

Definition at line 362 of file vtkDataReader.h.

char* vtkDataReader::ScalarLut [protected]

Definition at line 363 of file vtkDataReader.h.

Definition at line 365 of file vtkDataReader.h.

char* vtkDataReader::InputString [protected]

Definition at line 366 of file vtkDataReader.h.

Definition at line 367 of file vtkDataReader.h.

Definition at line 368 of file vtkDataReader.h.

char* vtkDataReader::Header [protected]

Definition at line 371 of file vtkDataReader.h.

Definition at line 388 of file vtkDataReader.h.

Definition at line 389 of file vtkDataReader.h.

Definition at line 390 of file vtkDataReader.h.

Definition at line 391 of file vtkDataReader.h.

Definition at line 392 of file vtkDataReader.h.

Definition at line 393 of file vtkDataReader.h.

Definition at line 394 of file vtkDataReader.h.

Definition at line 395 of file vtkDataReader.h.

Definition at line 396 of file vtkDataReader.h.

Definition at line 397 of file vtkDataReader.h.

Definition at line 398 of file vtkDataReader.h.

Definition at line 399 of file vtkDataReader.h.

Definition at line 400 of file vtkDataReader.h.

Definition at line 401 of file vtkDataReader.h.

Definition at line 402 of file vtkDataReader.h.

Definition at line 403 of file vtkDataReader.h.

Definition at line 404 of file vtkDataReader.h.

Definition at line 405 of file vtkDataReader.h.

Definition at line 406 of file vtkDataReader.h.

Definition at line 408 of file vtkDataReader.h.

Definition at line 409 of file vtkDataReader.h.

Definition at line 410 of file vtkDataReader.h.

Definition at line 411 of file vtkDataReader.h.

Definition at line 412 of file vtkDataReader.h.

Definition at line 413 of file vtkDataReader.h.

Definition at line 414 of file vtkDataReader.h.

Definition at line 421 of file vtkDataReader.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 11:33:09 2011 for VTK by  doxygen 1.5.6
