vtkDataTransferHelper Class Reference

#include <vtkDataTransferHelper.h>

Inheritance diagram for vtkDataTransferHelper:

[legend]

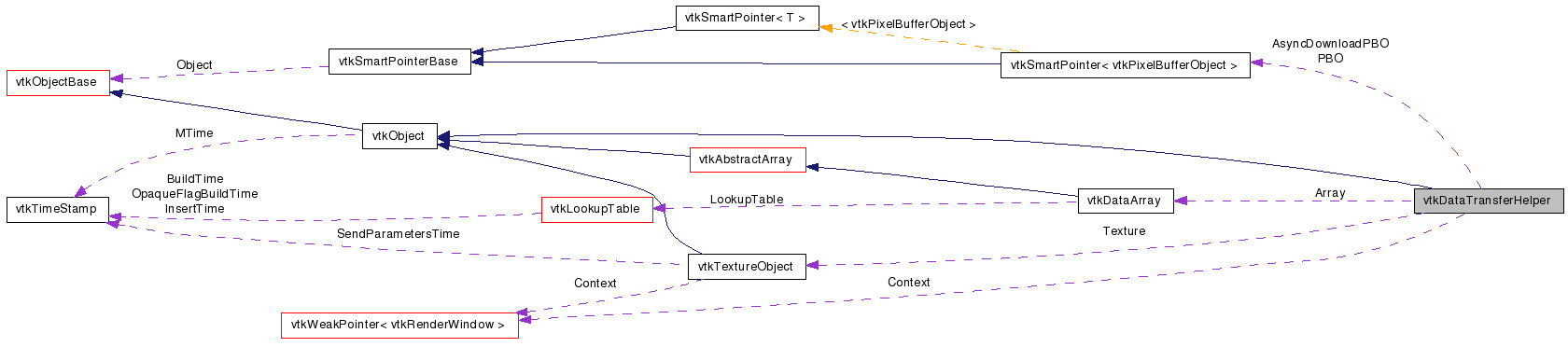

Collaboration diagram for vtkDataTransferHelper:

[legend]

List of all members.

---

Detailed Description

is a helper class that aids in transferring data between CPU memory and GPU memory.

vtkDataTransferHelper is a helper class that aids in transferring data between the CPU memory and the GPU memory. The data in GPU memory is stored as textures which that in CPU memory is stored as vtkDataArray. vtkDataTransferHelper provides API to transfer only a sub-extent of CPU structured data to/from the GPU.

See also:

vtkPixelBufferObject vtkTextureObject vtkOpenGLExtensionManager

Definition at line 43 of file vtkDataTransferHelper.h.

static bool	IsSupported (vtkRenderWindow *renWin)
	vtkDataTransferHelper ()
	~vtkDataTransferHelper ()
Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
bool	GetExtentIsValid (int *extent)
bool	GetCPUExtentIsValid ()
bool	GetGPUExtentIsValid ()
bool	GetTextureExtentIsValid ()
bool	Download ()
bool	GetShaderSupportsTextureInt ()
void	SetShaderSupportsTextureInt (bool value)
void	SetContext (vtkRenderWindow *context)
vtkRenderWindow *	GetContext ()
virtual void	SetCPUExtent (int, int, int, int, int, int)
virtual void	SetCPUExtent (int[6])
virtual int *	GetCPUExtent ()
virtual void	GetCPUExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetCPUExtent (int[6])
virtual void	SetGPUExtent (int, int, int, int, int, int)
virtual void	SetGPUExtent (int[6])
virtual int *	GetGPUExtent ()
virtual void	GetGPUExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetGPUExtent (int[6])
virtual void	SetTextureExtent (int, int, int, int, int, int)
virtual void	SetTextureExtent (int[6])
virtual int *	GetTextureExtent ()
virtual void	GetTextureExtent (int &, int &, int &, int &, int &, int &)
virtual void	GetTextureExtent (int[6])
virtual void	SetMinTextureDimension (int)
virtual int	GetMinTextureDimension ()
virtual vtkDataArray *	GetArray ()
void	SetArray (vtkDataArray *array)
virtual vtkTextureObject *	GetTexture ()
void	SetTexture (vtkTextureObject *texture)
bool	Upload (int components=0, int *componentList=NULL)
bool	DownloadAsync1 ()
bool	DownloadAsync2 ()
Static Public Member Functions
static vtkDataTransferHelper *	New ()
static int	IsTypeOf (const char *type)
static vtkDataTransferHelper *	SafeDownCast (vtkObject *o)
Protected Member Functions
bool	LoadRequiredExtensions (vtkOpenGLExtensionManager *)
vtkPixelBufferObject *	GetPBO ()
Protected Attributes
int	CPUExtent [6]
int	GPUExtent [6]
int	TextureExtent [6]
vtkWeakPointer< vtkRenderWindow >	Context
vtkTextureObject *	Texture
vtkDataArray *	Array
bool	ShaderSupportsTextureInt
int	MinTextureDimension
vtkSmartPointer < vtkPixelBufferObject >	AsyncDownloadPBO
vtkSmartPointer < vtkPixelBufferObject >	PBO

---

Member Typedef Documentation

typedef vtkObject vtkDataTransferHelper::Superclass

Reimplemented from vtkObject.

Definition at line 47 of file vtkDataTransferHelper.h.

---

Constructor & Destructor Documentation

vtkDataTransferHelper::vtkDataTransferHelper

(

)

[protected]

Returns if the context supports the required extensions.

vtkDataTransferHelper::~vtkDataTransferHelper

(

)

[protected]

Returns if the context supports the required extensions.

---

Member Function Documentation

static vtkDataTransferHelper* vtkDataTransferHelper::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkDataTransferHelper::GetClassName

(

)

[virtual]

Reimplemented from vtkObject.

static int vtkDataTransferHelper::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkDataTransferHelper::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkDataTransferHelper* vtkDataTransferHelper::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkObject.

void vtkDataTransferHelper::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkDataTransferHelper::SetContext

(

vtkRenderWindow *

context

)

Get/Set the context. Context must be a vtkOpenGLRenderWindow. This does not increase the reference count of the context to avoid reference loops. SetContext() may raise an error is the OpenGL context does not support the required OpenGL extensions.

vtkRenderWindow* vtkDataTransferHelper::GetContext

(

)

Get/Set the context. Context must be a vtkOpenGLRenderWindow. This does not increase the reference count of the context to avoid reference loops. SetContext() may raise an error is the OpenGL context does not support the required OpenGL extensions.

virtual void vtkDataTransferHelper::SetCPUExtent	(	int	,
		int	,
		int	,
		int	,
		int	,
		int
	)			[virtual]

Set the CPU data extent. The extent matches the vtkDataArray size. If the vtkDataArray comes from an vtkImageData and it is part of the point data, it is usually the vtkImageData extent. It can be on cell data too, but in this case it does not match the vtkImageData extent. If the vtkDataArray comes from a vtkDataSet, just set it to a one-dimenstional extent equal to the number of tuples. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual void vtkDataTransferHelper::SetCPUExtent

(

int

[6]

)

[virtual]

Set the CPU data extent. The extent matches the vtkDataArray size. If the vtkDataArray comes from an vtkImageData and it is part of the point data, it is usually the vtkImageData extent. It can be on cell data too, but in this case it does not match the vtkImageData extent. If the vtkDataArray comes from a vtkDataSet, just set it to a one-dimenstional extent equal to the number of tuples. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual int* vtkDataTransferHelper::GetCPUExtent

(

)

[virtual]

Set the CPU data extent. The extent matches the vtkDataArray size. If the vtkDataArray comes from an vtkImageData and it is part of the point data, it is usually the vtkImageData extent. It can be on cell data too, but in this case it does not match the vtkImageData extent. If the vtkDataArray comes from a vtkDataSet, just set it to a one-dimenstional extent equal to the number of tuples. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual void vtkDataTransferHelper::GetCPUExtent	(	int &	,
		int &	,
		int &	,
		int &	,
		int &	,
		int &
	)			[virtual]

Set the CPU data extent. The extent matches the vtkDataArray size. If the vtkDataArray comes from an vtkImageData and it is part of the point data, it is usually the vtkImageData extent. It can be on cell data too, but in this case it does not match the vtkImageData extent. If the vtkDataArray comes from a vtkDataSet, just set it to a one-dimenstional extent equal to the number of tuples. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual void vtkDataTransferHelper::GetCPUExtent

(

int

[6]

)

[virtual]

Set the CPU data extent. The extent matches the vtkDataArray size. If the vtkDataArray comes from an vtkImageData and it is part of the point data, it is usually the vtkImageData extent. It can be on cell data too, but in this case it does not match the vtkImageData extent. If the vtkDataArray comes from a vtkDataSet, just set it to a one-dimenstional extent equal to the number of tuples. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual void vtkDataTransferHelper::SetGPUExtent	(	int	,
		int	,
		int	,
		int	,
		int	,
		int
	)			[virtual]

Set the GPU data extent. This is the sub-extent to copy from or to the GPU. This extent matches the size of the data to transfer. GPUExtent and TextureExtent don't have to match (GPUExtent can be 1D whereas TextureExtent is 2D) but the number of elements have to match. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual void vtkDataTransferHelper::SetGPUExtent

(

int

[6]

)

[virtual]

Set the GPU data extent. This is the sub-extent to copy from or to the GPU. This extent matches the size of the data to transfer. GPUExtent and TextureExtent don't have to match (GPUExtent can be 1D whereas TextureExtent is 2D) but the number of elements have to match. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual int* vtkDataTransferHelper::GetGPUExtent

(

)

[virtual]

Set the GPU data extent. This is the sub-extent to copy from or to the GPU. This extent matches the size of the data to transfer. GPUExtent and TextureExtent don't have to match (GPUExtent can be 1D whereas TextureExtent is 2D) but the number of elements have to match. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual void vtkDataTransferHelper::GetGPUExtent	(	int &	,
		int &	,
		int &	,
		int &	,
		int &	,
		int &
	)			[virtual]

Set the GPU data extent. This is the sub-extent to copy from or to the GPU. This extent matches the size of the data to transfer. GPUExtent and TextureExtent don't have to match (GPUExtent can be 1D whereas TextureExtent is 2D) but the number of elements have to match. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual void vtkDataTransferHelper::GetGPUExtent

(

int

[6]

)

[virtual]

Set the GPU data extent. This is the sub-extent to copy from or to the GPU. This extent matches the size of the data to transfer. GPUExtent and TextureExtent don't have to match (GPUExtent can be 1D whereas TextureExtent is 2D) but the number of elements have to match. Initial value is (0,0,0,0,0,0), a valid one tuple array.

virtual void vtkDataTransferHelper::SetTextureExtent	(	int	,
		int	,
		int	,
		int	,
		int	,
		int
	)			[virtual]

Set the texture data extent. This is the extent of the texture image that will receive the data. This extent matches the size of the data to transfer. If it is set to an invalid extent, GPUExtent is used. See more comment on GPUExtent. Initial value is an invalid extent.

virtual void vtkDataTransferHelper::SetTextureExtent

(

int

[6]

)

[virtual]

Set the texture data extent. This is the extent of the texture image that will receive the data. This extent matches the size of the data to transfer. If it is set to an invalid extent, GPUExtent is used. See more comment on GPUExtent. Initial value is an invalid extent.

virtual int* vtkDataTransferHelper::GetTextureExtent

(

)

[virtual]

Set the texture data extent. This is the extent of the texture image that will receive the data. This extent matches the size of the data to transfer. If it is set to an invalid extent, GPUExtent is used. See more comment on GPUExtent. Initial value is an invalid extent.

virtual void vtkDataTransferHelper::GetTextureExtent	(	int &	,
		int &	,
		int &	,
		int &	,
		int &	,
		int &
	)			[virtual]

Set the texture data extent. This is the extent of the texture image that will receive the data. This extent matches the size of the data to transfer. If it is set to an invalid extent, GPUExtent is used. See more comment on GPUExtent. Initial value is an invalid extent.

virtual void vtkDataTransferHelper::GetTextureExtent

(

int

[6]

)

[virtual]

Set the texture data extent. This is the extent of the texture image that will receive the data. This extent matches the size of the data to transfer. If it is set to an invalid extent, GPUExtent is used. See more comment on GPUExtent. Initial value is an invalid extent.

bool vtkDataTransferHelper::GetExtentIsValid

(

int *

extent

)

Tells if the given extent (6 int) is valid. True if min extent<=max extent.

Precondition:

extent_exists: extent!=0

bool vtkDataTransferHelper::GetCPUExtentIsValid

(

)

Tells if CPUExtent is valid. True if min extent<=max extent.

bool vtkDataTransferHelper::GetGPUExtentIsValid

(

)

Tells if GPUExtent is valid. True if min extent<=max extent.

bool vtkDataTransferHelper::GetTextureExtentIsValid

(

)

Tells if TextureExtent is valid. True if min extent<=max extent.

virtual void vtkDataTransferHelper::SetMinTextureDimension

(

int

)

[virtual]

Define the minimal dimension of the texture regardless of the dimensions of the TextureExtent. Initial value is 1. A texture extent can have a given dimension 0D (one value), 1D, 2D or 3D. By default 0D and 1D are translated into a 1D texture, 2D is translated into a 2D texture, 3D is translated into a 3D texture. To make life easier when writting GLSL code and use only one type of sampler (ex: sampler2d), the default behavior can be changed by forcing a type of texture with this ivar. 1: default behavior. Initial value. 2: force 0D and 1D to be in a 2D texture 3: force 0D, 1D and 2D texture to be in a 3D texture.

virtual int vtkDataTransferHelper::GetMinTextureDimension

(

)

[virtual]

Define the minimal dimension of the texture regardless of the dimensions of the TextureExtent. Initial value is 1. A texture extent can have a given dimension 0D (one value), 1D, 2D or 3D. By default 0D and 1D are translated into a 1D texture, 2D is translated into a 2D texture, 3D is translated into a 3D texture. To make life easier when writting GLSL code and use only one type of sampler (ex: sampler2d), the default behavior can be changed by forcing a type of texture with this ivar. 1: default behavior. Initial value. 2: force 0D and 1D to be in a 2D texture 3: force 0D, 1D and 2D texture to be in a 3D texture.

virtual vtkDataArray* vtkDataTransferHelper::GetArray

(

)

[virtual]

Get/Set the CPU data buffer. Initial value is 0.

void vtkDataTransferHelper::SetArray

(

vtkDataArray *

array

)

Get/Set the CPU data buffer. Initial value is 0.

virtual vtkTextureObject* vtkDataTransferHelper::GetTexture

(

)

[virtual]

Get/Set the GPU data buffer. Initial value is 0.

void vtkDataTransferHelper::SetTexture

(

vtkTextureObject *

texture

)

Get/Set the GPU data buffer. Initial value is 0.

bool vtkDataTransferHelper::Upload	(	int	components = 0,
		int *	componentList = NULL
	)

Old comment. Upload Extent from CPU data buffer to GPU. The WholeExtent must match the Array size. New comment. Upload GPUExtent from CPU vtkDataArray to GPU texture. It is possible to send a subset of the components or to specify and order of components or both. If components=0, componentList is ignored and all components are passed, a texture cannot have more than 4 components.

Precondition:

array_exists: array!=0

array_not_empty: array->GetNumberOfTuples()>0

valid_cpu_extent: this->GetCPUExtentIsValid()

valid_cpu_extent_size: (CPUExtent[1]-CPUExtent[0]+1)*(CPUExtent[3]-CPUExtent[2]+1)*(CPUExten t[5]-CPUExtent[4]+1)==array->GetNumberOfTuples()

valid_gpu_extent: this->GetGPUExtentIsValid()

gpu_extent_in_cpu_extent: CPUExtent[0]<=GPUExtent[0] && GPUExtent[1]<=CPUExtent[1] && CPUExtent[2]<=GPUExtent[2] && GPUExtent[3]<=CPUExtent[3] && CPUExtent[4]<=GPUExtent[4] && GPUExtent[5]<=CPUExtent[5]

gpu_texture_size: !this->GetTextureExtentIsValid() || (GPUExtent[1]-GPUExtent[0]+1)*(GPUExtent[3]-GPUExtent[2]+1)*(GPUExten t[5]-GPUExtent[4]+1)==(TextureExtent[1]-TextureExtent[0]+1)*(TextureE xtent[3]-TextureExtent[2]+1)*(TextureExtent[5]-TextureExtent[4]+1)

texture_can_exist_or_not: texture==0 || texture!=0

valid_components: (components==0 && componentList==0 && array->GetNumberOfComponents()<=4) || (components>=1 && components<=array->GetNumberOfComponents() && components<=4 && componentList!=0)

bool vtkDataTransferHelper::Download

(

)

old comment: Download Extent from GPU data buffer to CPU. GPU data size must exactly match Extent. CPU data buffer will be resized to match WholeExtent in which only the Extent will be filled with the GPU data. new comment: Download GPUExtent from GPU texture to CPU vtkDataArray. If Array is not provided, it will be created with the size of CPUExtent. But only the tuples covered by GPUExtent will be download. In this case, if GPUExtent does not cover all GPUExtent, some of the vtkDataArray will be uninitialized. Reminder: A=>B <=> !A||B

Precondition:

texture_exists: texture!=0

array_not_empty: array==0 || array->GetNumberOfTuples()>0

valid_cpu_extent: this->GetCPUExtentIsValid()

valid_cpu_extent_size: array==0 || (CPUExtent[1]-CPUExtent[0]+1)*(CPUExtent[3]-CPUExtent[2]+1)*(CPUExten t[5]-CPUExtent[4]+1)==array->GetNumberOfTuples()

valid_gpu_extent: this->GetGPUExtentIsValid()

gpu_extent_in_cpu_extent: CPUExtent[0]<=GPUExtent[0] && GPUExtent[1]<=CPUExtent[1] && CPUExtent[2]<=GPUExtent[2] && GPUExtent[3]<=CPUExtent[3] && CPUExtent[4]<=GPUExtent[4] && GPUExtent[5]<=CPUExtent[5]

gpu_texture_size: !this->GetTextureExtentIsValid() || (GPUExtent[1]-GPUExtent[0]+1)*(GPUExtent[3]-GPUExtent[2]+1)*(GPUExten t[5]-GPUExtent[4]+1)==(TextureExtent[1]-TextureExtent[0]+1)*(TextureE xtent[3]-TextureExtent[2]+1)*(TextureExtent[5]-TextureExtent[4]+1)

valid_components: array==0 || array->GetNumberOfComponents()<=4

components_match: array==0 || (texture->GetComponents()==array->GetNumberOfComponents())

bool vtkDataTransferHelper::DownloadAsync1

(

)

Splits the download in two operations * Asynchronously download from texture memory to PBO (DownloadAsync1()). * Copy from pbo to user array (DownloadAsync2()).

bool vtkDataTransferHelper::DownloadAsync2

(

)

Splits the download in two operations * Asynchronously download from texture memory to PBO (DownloadAsync1()). * Copy from pbo to user array (DownloadAsync2()).

bool vtkDataTransferHelper::GetShaderSupportsTextureInt

(

)

void vtkDataTransferHelper::SetShaderSupportsTextureInt

(

bool

value

)

static bool vtkDataTransferHelper::IsSupported

(

vtkRenderWindow *

renWin

)

[static]

Returns if the context supports the required extensions.

bool vtkDataTransferHelper::LoadRequiredExtensions

(

vtkOpenGLExtensionManager *

)

[protected]

Load all necessary extensions.

vtkPixelBufferObject* vtkDataTransferHelper::GetPBO

(

)

[protected]

---

Member Data Documentation

int vtkDataTransferHelper::CPUExtent[6] [protected]

Definition at line 210 of file vtkDataTransferHelper.h.

int vtkDataTransferHelper::GPUExtent[6] [protected]

Definition at line 211 of file vtkDataTransferHelper.h.

int vtkDataTransferHelper::TextureExtent[6] [protected]

Definition at line 212 of file vtkDataTransferHelper.h.

vtkWeakPointer<vtkRenderWindow> vtkDataTransferHelper::Context [protected]

Definition at line 214 of file vtkDataTransferHelper.h.

vtkTextureObject* vtkDataTransferHelper::Texture [protected]

Definition at line 215 of file vtkDataTransferHelper.h.

vtkDataArray* vtkDataTransferHelper::Array [protected]

Definition at line 216 of file vtkDataTransferHelper.h.

bool vtkDataTransferHelper::ShaderSupportsTextureInt [protected]

Definition at line 217 of file vtkDataTransferHelper.h.

int vtkDataTransferHelper::MinTextureDimension [protected]

Definition at line 218 of file vtkDataTransferHelper.h.

vtkSmartPointer<vtkPixelBufferObject> vtkDataTransferHelper::AsyncDownloadPBO [protected]

Definition at line 220 of file vtkDataTransferHelper.h.

vtkSmartPointer<vtkPixelBufferObject> vtkDataTransferHelper::PBO [protected]

Definition at line 225 of file vtkDataTransferHelper.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkDataTransferHelper.h
