vtkDemandDrivenPipeline Class Reference

#include <vtkDemandDrivenPipeline.h>

Inheritance diagram for vtkDemandDrivenPipeline:

[legend]

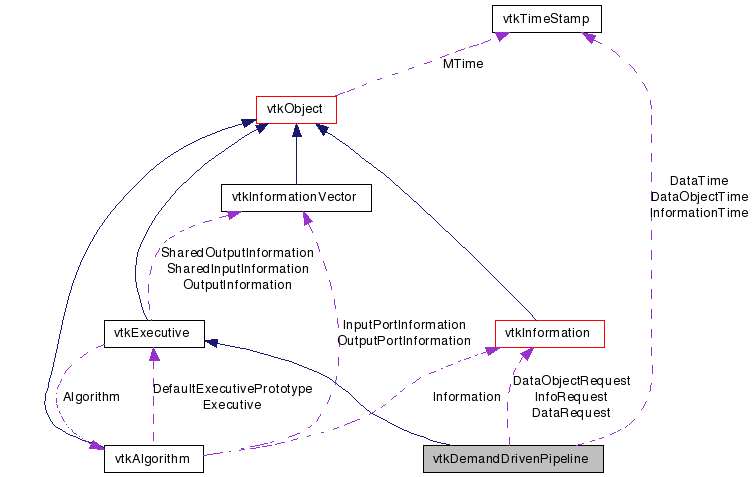

Collaboration diagram for vtkDemandDrivenPipeline:

[legend]

List of all members.

Detailed Description

Executive supporting on-demand execution.

vtkDemandDrivenPipeline is an executive that will execute an algorithm only when its outputs are out-of-date with respect to its inputs.

Events:: vtkCommand::StartEvent vtkCommand::EndEvent

Definition at line 42 of file vtkDemandDrivenPipeline.h.


Public Types
typedef vtkExecutive	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	SetReleaseDataFlag (int port, int n)
virtual int	GetReleaseDataFlag (int port)
virtual int	UpdatePipelineMTime ()
virtual int	UpdateDataObject ()
virtual int	UpdateInformation ()
virtual int	UpdateData (int outputPort)

virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inInfo, vtkInformationVector outInfo)

virtual int	ComputePipelineMTime (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec, int requestFromOutputPort, unsigned long *mtime)

virtual int	Update ()
virtual int	Update (int port)

virtual unsigned long	GetPipelineMTime ()
Static Public Member Functions
static vtkDemandDrivenPipeline *	New ()
static int	IsTypeOf (const char *type)
static vtkDemandDrivenPipeline *	SafeDownCast (vtkObject *o)
static vtkInformationRequestKey *	REQUEST_DATA_OBJECT ()
static vtkInformationRequestKey *	REQUEST_INFORMATION ()
static vtkInformationRequestKey *	REQUEST_DATA ()
static vtkInformationRequestKey *	REQUEST_DATA_NOT_GENERATED ()
static vtkInformationIntegerKey *	RELEASE_DATA ()
static vtkInformationIntegerKey *	DATA_NOT_GENERATED ()
static vtkDataObject *	NewDataObject (const char *type)
static vtkInformationIntegerKey *	REQUEST_REGENERATE_INFORMATION ()
Protected Member Functions
	vtkDemandDrivenPipeline ()
	~vtkDemandDrivenPipeline ()
virtual int	ExecuteDataObject (vtkInformation request, vtkInformationVector inInfo, vtkInformationVector outInfo)
virtual int	ExecuteInformation (vtkInformation request, vtkInformationVector inInfo, vtkInformationVector outInfo)
virtual int	ExecuteData (vtkInformation request, vtkInformationVector inInfo, vtkInformationVector outInfo)
virtual void	ResetPipelineInformation (int port, vtkInformation *)
virtual int	CheckDataObject (int port, vtkInformationVector *outInfo)
int	InputCountIsValid (vtkInformationVector **)
int	InputCountIsValid (int port, vtkInformationVector **)
int	InputTypeIsValid (vtkInformationVector **)
int	InputTypeIsValid (int port, vtkInformationVector **)
virtual int	InputTypeIsValid (int port, int index, vtkInformationVector **)
int	InputFieldsAreValid (vtkInformationVector **)
int	InputFieldsAreValid (int port, vtkInformationVector **)
virtual int	InputFieldsAreValid (int port, int index, vtkInformationVector **)
int	DataSetAttributeExists (vtkDataSetAttributes dsa, vtkInformation field)
int	FieldArrayExists (vtkFieldData data, vtkInformation field)
int	ArrayIsValid (vtkAbstractArray array, vtkInformation field)
int	InputIsOptional (int port)
int	InputIsRepeatable (int port)
virtual int	NeedToExecuteData (int outputPort, vtkInformationVector *inInfoVec, vtkInformationVector outInfoVec)
virtual void	ExecuteDataStart (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec)
virtual void	ExecuteDataEnd (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec)
virtual void	MarkOutputsGenerated (vtkInformation request, vtkInformationVector inInfoVec, vtkInformationVector outInfoVec)
Protected Attributes
unsigned long	PipelineMTime
vtkTimeStamp	DataObjectTime
vtkTimeStamp	InformationTime
vtkTimeStamp	DataTime
vtkInformation *	InfoRequest
vtkInformation *	DataObjectRequest
vtkInformation *	DataRequest
Friends
class	vtkCompositeDataPipeline

Member Typedef Documentation

typedef vtkExecutive vtkDemandDrivenPipeline::Superclass

Reimplemented from vtkExecutive.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkStreamingDemandDrivenPipeline, vtkThreadedStreamingPipeline, and vtkImageImportExecutive.

Definition at line 46 of file vtkDemandDrivenPipeline.h.

Constructor & Destructor Documentation

vtkDemandDrivenPipeline::vtkDemandDrivenPipeline ( ) [protected]

vtkDemandDrivenPipeline::~vtkDemandDrivenPipeline ( ) [protected]

Member Function Documentation

static vtkDemandDrivenPipeline* vtkDemandDrivenPipeline::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkStreamingDemandDrivenPipeline, vtkThreadedStreamingPipeline, and vtkImageImportExecutive.

virtual const char* vtkDemandDrivenPipeline::GetClassName ( ) [virtual]

Reimplemented from vtkExecutive.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkStreamingDemandDrivenPipeline, vtkThreadedStreamingPipeline, and vtkImageImportExecutive.

static int vtkDemandDrivenPipeline::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkExecutive.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkStreamingDemandDrivenPipeline, vtkThreadedStreamingPipeline, and vtkImageImportExecutive.

virtual int vtkDemandDrivenPipeline::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkExecutive.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkStreamingDemandDrivenPipeline, vtkThreadedStreamingPipeline, and vtkImageImportExecutive.

static vtkDemandDrivenPipeline* vtkDemandDrivenPipeline::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkExecutive.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkStreamingDemandDrivenPipeline, vtkThreadedStreamingPipeline, and vtkImageImportExecutive.

void vtkDemandDrivenPipeline::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExecutive.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, vtkStreamingDemandDrivenPipeline, and vtkThreadedStreamingPipeline.

virtual int vtkDemandDrivenPipeline::ProcessRequest	(	vtkInformation *	request,
		vtkInformationVector **	inInfo,
		vtkInformationVector *	outInfo
	)			`[virtual]`

Generalized interface for asking the executive to fullfill update requests.

Reimplemented from vtkExecutive.

Reimplemented in vtkCompositeDataPipeline, vtkStreamingDemandDrivenPipeline, vtkThreadedStreamingPipeline, and vtkImageImportExecutive.

virtual int vtkDemandDrivenPipeline::ComputePipelineMTime	(	vtkInformation *	request,
		vtkInformationVector **	inInfoVec,
		vtkInformationVector *	outInfoVec,
		int	requestFromOutputPort,
		unsigned long *	mtime
	)			`[virtual]`

Implement the pipeline modified time request.

Reimplemented from vtkExecutive.

virtual int vtkDemandDrivenPipeline::Update ( ) [virtual]

Bring the algorithm's outputs up-to-date. Returns 1 for success and 0 for failure.

Reimplemented from vtkExecutive.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, and vtkStreamingDemandDrivenPipeline.

virtual int vtkDemandDrivenPipeline::Update ( int port ) [virtual]

Bring the algorithm's outputs up-to-date. Returns 1 for success and 0 for failure.

Reimplemented from vtkExecutive.

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, and vtkStreamingDemandDrivenPipeline.

virtual unsigned long vtkDemandDrivenPipeline::GetPipelineMTime ( ) [virtual]

Get the PipelineMTime for this exective.

virtual int vtkDemandDrivenPipeline::SetReleaseDataFlag	(	int	port,
		int	n
	)			`[virtual]`

Set whether the given output port releases data when it is consumed. Returns 1 if the the value changes and 0 otherwise.

virtual int vtkDemandDrivenPipeline::GetReleaseDataFlag ( int port ) [virtual]

Get whether the given output port releases data when it is consumed.

virtual int vtkDemandDrivenPipeline::UpdatePipelineMTime ( ) [virtual]

Bring the PipelineMTime up to date.

virtual int vtkDemandDrivenPipeline::UpdateDataObject ( ) [virtual]

Bring the output data object's existence up to date. This does not actually produce data, but does create the data object that will store data produced during the UpdateData step.

Implements vtkExecutive.

virtual int vtkDemandDrivenPipeline::UpdateInformation ( ) [virtual]

Bring the output information up to date.

virtual int vtkDemandDrivenPipeline::UpdateData ( int outputPort ) [virtual]

Bring the output data up to date. This should be called only when information is up to date. Use the Update method if it is not known that the information is up to date.

static vtkInformationRequestKey* vtkDemandDrivenPipeline::REQUEST_DATA_OBJECT ( ) [static]

Key defining a request to make sure the output data objects exist.

static vtkInformationRequestKey* vtkDemandDrivenPipeline::REQUEST_INFORMATION ( ) [static]

Key defining a request to make sure the output information is up to date.

static vtkInformationRequestKey* vtkDemandDrivenPipeline::REQUEST_DATA ( ) [static]

Key defining a request to make sure the output data are up to date.

static vtkInformationRequestKey* vtkDemandDrivenPipeline::REQUEST_DATA_NOT_GENERATED ( ) [static]

Key defining a request to mark outputs that will NOT be generated during a REQUEST_DATA.

static vtkInformationIntegerKey* vtkDemandDrivenPipeline::RELEASE_DATA ( ) [static]

Key to specify in pipeline information the request that data be released after it is used.

static vtkInformationIntegerKey* vtkDemandDrivenPipeline::DATA_NOT_GENERATED ( ) [static]

Key to store a mark for an output that will not be generated. Algorithms use this to tell the executive that they will not generate certain outputs for a REQUEST_DATA.

static vtkDataObject* vtkDemandDrivenPipeline::NewDataObject ( const char * type ) [static]

Create (New) and return a data object of the given type. This is here for backwards compatibility. Use vtkDataObjectTypes::NewDataObject() instead.

static vtkInformationIntegerKey* vtkDemandDrivenPipeline::REQUEST_REGENERATE_INFORMATION ( ) [static]

Key to be used for REQUEST_INFORMATION and REQUEST_DATA_OBJECT passes when you modification time should not be taken into account.

virtual int vtkDemandDrivenPipeline::ExecuteDataObject	(	vtkInformation *	request,
		vtkInformationVector **	inInfo,
		vtkInformationVector *	outInfo
	)			`[protected, virtual]`

Reimplemented in vtkCompositeDataPipeline.

virtual int vtkDemandDrivenPipeline::ExecuteInformation	(	vtkInformation *	request,
		vtkInformationVector **	inInfo,
		vtkInformationVector *	outInfo
	)			`[protected, virtual]`

Reimplemented in vtkStreamingDemandDrivenPipeline.

virtual int vtkDemandDrivenPipeline::ExecuteData	(	vtkInformation *	request,
		vtkInformationVector **	inInfo,
		vtkInformationVector *	outInfo
	)			`[protected, virtual]`

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, and vtkCompositeDataPipeline.

virtual void vtkDemandDrivenPipeline::ResetPipelineInformation	(	int	port,
		vtkInformation *
	)			`[protected, virtual]`

Implements vtkExecutive.

Reimplemented in vtkCompositeDataPipeline, and vtkStreamingDemandDrivenPipeline.

virtual int vtkDemandDrivenPipeline::CheckDataObject	(	int	port,
		vtkInformationVector *	outInfo
	)			`[protected, virtual]`

int vtkDemandDrivenPipeline::InputCountIsValid ( vtkInformationVector ** ) [protected]

int vtkDemandDrivenPipeline::InputCountIsValid	(	int	port,
		vtkInformationVector **
	)			`[protected]`

int vtkDemandDrivenPipeline::InputTypeIsValid ( vtkInformationVector ** ) [protected]

int vtkDemandDrivenPipeline::InputTypeIsValid	(	int	port,
		vtkInformationVector **
	)			`[protected]`

virtual int vtkDemandDrivenPipeline::InputTypeIsValid	(	int	port,
		int	index,
		vtkInformationVector **
	)			`[protected, virtual]`

Reimplemented in vtkCompositeDataPipeline.

int vtkDemandDrivenPipeline::InputFieldsAreValid ( vtkInformationVector ** ) [protected]

int vtkDemandDrivenPipeline::InputFieldsAreValid	(	int	port,
		vtkInformationVector **
	)			`[protected]`

virtual int vtkDemandDrivenPipeline::InputFieldsAreValid	(	int	port,
		int	index,
		vtkInformationVector **
	)			`[protected, virtual]`

int vtkDemandDrivenPipeline::DataSetAttributeExists	(	vtkDataSetAttributes *	dsa,
		vtkInformation *	field
	)			`[protected]`

int vtkDemandDrivenPipeline::FieldArrayExists	(	vtkFieldData *	data,
		vtkInformation *	field
	)			`[protected]`

int vtkDemandDrivenPipeline::ArrayIsValid	(	vtkAbstractArray *	array,
		vtkInformation *	field
	)			`[protected]`

int vtkDemandDrivenPipeline::InputIsOptional ( int port ) [protected]

int vtkDemandDrivenPipeline::InputIsRepeatable ( int port ) [protected]

virtual int vtkDemandDrivenPipeline::NeedToExecuteData	(	int	outputPort,
		vtkInformationVector **	inInfoVec,
		vtkInformationVector *	outInfoVec
	)			`[protected, virtual]`

Reimplemented in vtkCachedStreamingDemandDrivenPipeline, vtkCompositeDataPipeline, and vtkStreamingDemandDrivenPipeline.

virtual void vtkDemandDrivenPipeline::ExecuteDataStart	(	vtkInformation *	request,
		vtkInformationVector **	inInfoVec,
		vtkInformationVector *	outInfoVec
	)			`[protected, virtual]`

Reimplemented in vtkCompositeDataPipeline, and vtkStreamingDemandDrivenPipeline.

virtual void vtkDemandDrivenPipeline::ExecuteDataEnd	(	vtkInformation *	request,
		vtkInformationVector **	inInfoVec,
		vtkInformationVector *	outInfoVec
	)			`[protected, virtual]`

Reimplemented in vtkStreamingDemandDrivenPipeline.

virtual void vtkDemandDrivenPipeline::MarkOutputsGenerated	(	vtkInformation *	request,
		vtkInformationVector **	inInfoVec,
		vtkInformationVector *	outInfoVec
	)			`[protected, virtual]`
