vtkDistanceRepresentation3D Class Reference

#include <vtkDistanceRepresentation3D.h>

Inheritance diagram for vtkDistanceRepresentation3D:

[legend]

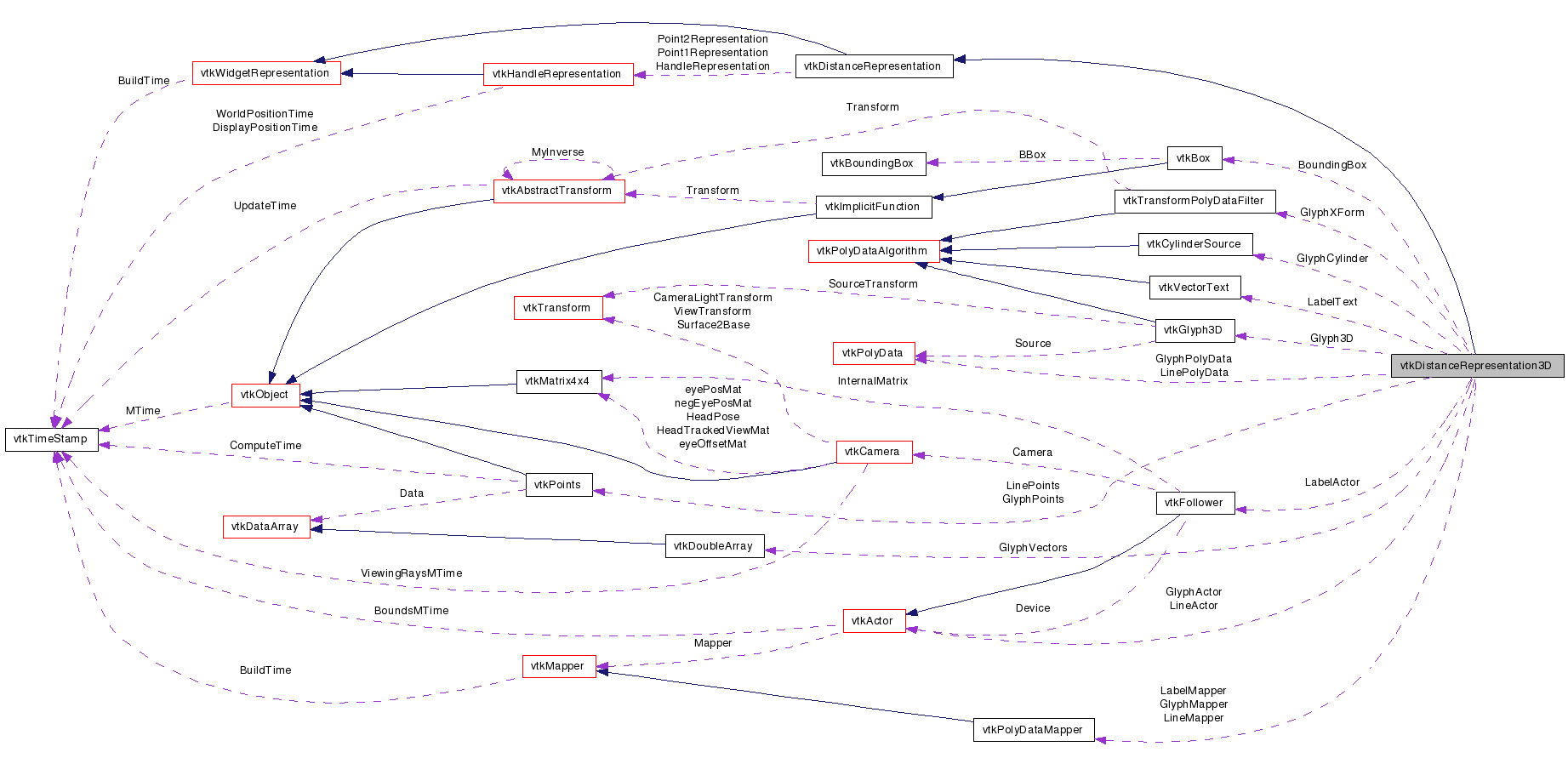

Collaboration diagram for vtkDistanceRepresentation3D:

[legend]

List of all members.

Detailed Description

represent the vtkDistanceWidget

The vtkDistanceRepresentation3D is a representation for the vtkDistanceWidget. This representation consists of a measuring line (axis) and two vtkHandleWidgets to place the end points of the line. Note that this particular widget draws its representation in 3D space, so the widget can be occluded.

See also:: vtkDistanceWidget vtkDistanceRepresentation vtkDistanceRepresentation2D

Tests:: vtkDistanceRepresentation3D (Tests)

Definition at line 50 of file vtkDistanceRepresentation3D.h.


typedef vtkDistanceRepresentation	Superclass
static int	IsTypeOf (const char *type)
static vtkDistanceRepresentation3D *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Member Functions
virtual vtkProperty *	GetLineProperty ()
void	SetPoint1DisplayPosition (double pos[3])
void	SetPoint2DisplayPosition (double pos[3])
void	GetPoint1DisplayPosition (double pos[3])
void	GetPoint2DisplayPosition (double pos[3])
virtual vtkProperty *	GetLabelProperty ()

virtual double	GetDistance ()

void	SetGlyphScale (double scale)
virtual double	GetGlyphScale ()

void	SetLabelPosition (double labelPosition)
virtual double	GetLabelPosition ()

virtual void	SetMaximumNumberOfRulerTicks (int)
virtual int	GetMaximumNumberOfRulerTicks ()

virtual vtkActor *	GetGlyphActor ()

virtual vtkFollower *	GetLabelActor ()

double *	GetPoint1WorldPosition ()
double *	GetPoint2WorldPosition ()
void	GetPoint1WorldPosition (double pos[3])
void	GetPoint2WorldPosition (double pos[3])
void	SetPoint1WorldPosition (double pos[3])
void	SetPoint2WorldPosition (double pos[3])

virtual void	BuildRepresentation ()
virtual double *	GetBounds ()

virtual void	ReleaseGraphicsResources (vtkWindow *w)
virtual int	RenderOpaqueGeometry (vtkViewport *viewport)
virtual int	RenderTranslucentPolygonalGeometry (vtkViewport *viewport)

void	SetLabelScale (double x, double y, double z)
virtual void	SetLabelScale (double scale[3])
virtual double *	GetLabelScale ()
Static Public Member Functions
static vtkDistanceRepresentation3D *	New ()
Protected Member Functions
	vtkDistanceRepresentation3D ()
	~vtkDistanceRepresentation3D ()
Protected Attributes
vtkPoints *	LinePoints
vtkPolyData *	LinePolyData
vtkPolyDataMapper *	LineMapper
vtkActor *	LineActor
vtkVectorText *	LabelText
vtkPolyDataMapper *	LabelMapper
vtkFollower *	LabelActor
bool	LabelScaleSpecified
vtkPoints *	GlyphPoints
vtkDoubleArray *	GlyphVectors
vtkPolyData *	GlyphPolyData
vtkCylinderSource *	GlyphCylinder
vtkTransformPolyDataFilter *	GlyphXForm
vtkGlyph3D *	Glyph3D
vtkPolyDataMapper *	GlyphMapper
vtkActor *	GlyphActor
double	GlyphScale
bool	GlyphScaleSpecified
double	Distance
vtkBox *	BoundingBox
int	MaximumNumberOfRulerTicks
double	LabelPosition

Member Typedef Documentation

typedef vtkDistanceRepresentation vtkDistanceRepresentation3D::Superclass

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

Definition at line 58 of file vtkDistanceRepresentation3D.h.

Constructor & Destructor Documentation

vtkDistanceRepresentation3D::vtkDistanceRepresentation3D ( ) [protected]

vtkDistanceRepresentation3D::~vtkDistanceRepresentation3D ( ) [protected]

Member Function Documentation

static vtkDistanceRepresentation3D* vtkDistanceRepresentation3D::New ( ) [static]

Instantiate class.

Reimplemented from vtkObject.

virtual const char* vtkDistanceRepresentation3D::GetClassName ( ) [virtual]

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

static int vtkDistanceRepresentation3D::IsTypeOf ( const char * type ) [static]

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

virtual int vtkDistanceRepresentation3D::IsA ( const char * type ) [virtual]

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

static vtkDistanceRepresentation3D* vtkDistanceRepresentation3D::SafeDownCast ( vtkObject * o ) [static]

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

void vtkDistanceRepresentation3D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Standard VTK methods.

Reimplemented from vtkDistanceRepresentation.

virtual double vtkDistanceRepresentation3D::GetDistance ( ) [inline, virtual]

Satisfy the superclasses API.

Implements vtkDistanceRepresentation.

Definition at line 64 of file vtkDistanceRepresentation3D.h.

void vtkDistanceRepresentation3D::SetGlyphScale ( double scale )

Scale the glyphs used as tick marks. By default it is 1/40th of the length.

virtual double vtkDistanceRepresentation3D::GetGlyphScale ( ) [virtual]

Scale the glyphs used as tick marks. By default it is 1/40th of the length.

virtual vtkProperty* vtkDistanceRepresentation3D::GetLineProperty ( ) [virtual]

Convenience method to get the line actor property.

void vtkDistanceRepresentation3D::SetLabelPosition ( double labelPosition )

Set/Get position of the label title in normalized coordinates [0,1]. 0 is at the start of the line whereas 1 is at the end.

virtual double vtkDistanceRepresentation3D::GetLabelPosition ( ) [virtual]

Set/Get position of the label title in normalized coordinates [0,1]. 0 is at the start of the line whereas 1 is at the end.

virtual void vtkDistanceRepresentation3D::SetMaximumNumberOfRulerTicks ( int ) [virtual]

Set/Get the maximum number of ticks in ruler mode.

virtual int vtkDistanceRepresentation3D::GetMaximumNumberOfRulerTicks ( ) [virtual]

Set/Get the maximum number of ticks in ruler mode.

virtual vtkActor* vtkDistanceRepresentation3D::GetGlyphActor ( ) [virtual]

Convenience method to get the glyph actor. Using this it is possible to control the appearance of the glyphs.

virtual vtkFollower* vtkDistanceRepresentation3D::GetLabelActor ( ) [virtual]

Convenience method Get the label actor. It is possible to control the appearance of the label.

double* vtkDistanceRepresentation3D::GetPoint1WorldPosition ( ) [virtual]
