vtkEnSight6Reader Class Reference

#include <vtkEnSight6Reader.h>

Inheritance diagram for vtkEnSight6Reader:

Inheritance graph
[legend]

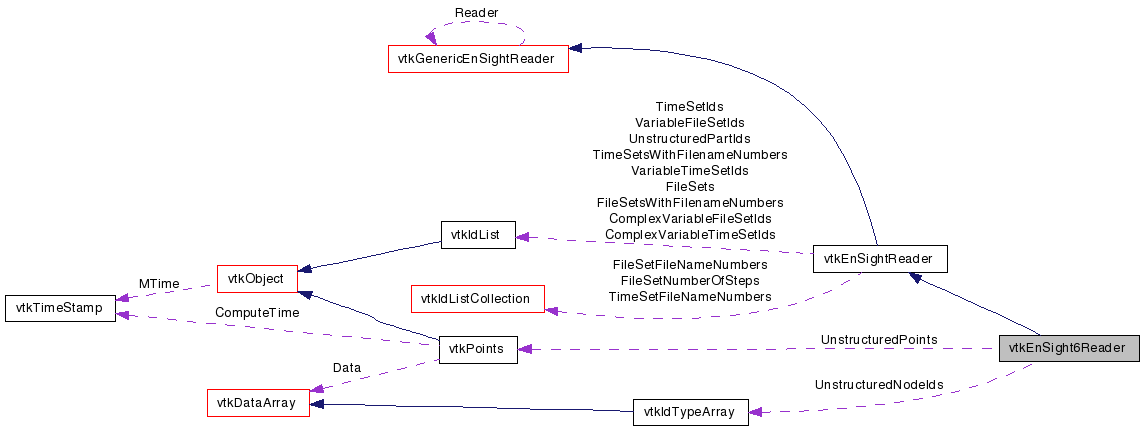

Collaboration diagram for vtkEnSight6Reader:

Collaboration graph
[legend]

List of all members.


Detailed Description

class to read EnSight6 files

vtkEnSight6Reader is a class to read EnSight6 files into vtk. Because the different parts of the EnSight data can be of various data types, this reader produces multiple outputs, one per part in the input file. All variable information is being stored in field data. The descriptions listed in the case file are used as the array names in the field data. For complex vector variables, the description is appended with _r (for the array of real values) and _i (for the array if imaginary values). Complex scalar variables are stored as a single array with 2 components, real and imaginary, listed in that order.

Warning:
You must manually call Update on this reader and then connect the rest of the pipeline because (due to the nature of the file format) it is not possible to know ahead of time how many outputs you will have or what types they will be. This reader can only handle static EnSight datasets (both static geometry and variables).

Definition at line 46 of file vtkEnSight6Reader.h.


Public Types

typedef vtkEnSightReader Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)

Static Public Member Functions

static vtkEnSight6ReaderNew ()
static int IsTypeOf (const char *type)
static vtkEnSight6ReaderSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkEnSight6Reader ()
 ~vtkEnSight6Reader ()
virtual int ReadGeometryFile (const char *fileName, int timeStep, vtkMultiBlockDataSet *output)
virtual int ReadMeasuredGeometryFile (const char *fileName, int timeStep, vtkMultiBlockDataSet *output)
virtual int ReadScalarsPerNode (const char *fileName, const char *description, int timeStep, vtkMultiBlockDataSet *output, int measured=0, int numberOfComponents=1, int component=0)
virtual int ReadVectorsPerNode (const char *fileName, const char *description, int timeStep, vtkMultiBlockDataSet *output, int measured=0)
virtual int ReadTensorsPerNode (const char *fileName, const char *description, int timeStep, vtkMultiBlockDataSet *output)
virtual int ReadScalarsPerElement (const char *fileName, const char *description, int timeStep, vtkMultiBlockDataSet *output, int numberOfComponents=1, int component=0)
virtual int ReadVectorsPerElement (const char *fileName, const char *description, int timeStep, vtkMultiBlockDataSet *output)
virtual int ReadTensorsPerElement (const char *fileName, const char *description, int timeStep, vtkMultiBlockDataSet *output)
virtual int CreateUnstructuredGridOutput (int partId, char line[256], const char *name, vtkMultiBlockDataSet *output)
virtual int CreateStructuredGridOutput (int partId, char line[256], const char *name, vtkMultiBlockDataSet *output)

Protected Attributes

int NumberOfUnstructuredPoints
vtkPointsUnstructuredPoints
vtkIdTypeArrayUnstructuredNodeIds

Member Typedef Documentation

Reimplemented from vtkEnSightReader.

Definition at line 50 of file vtkEnSight6Reader.h.


Constructor & Destructor Documentation

vtkEnSight6Reader::vtkEnSight6Reader (  )  [protected]

vtkEnSight6Reader::~vtkEnSight6Reader (  )  [protected]


Member Function Documentation

static vtkEnSight6Reader* vtkEnSight6Reader::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkGenericEnSightReader.

virtual const char* vtkEnSight6Reader::GetClassName (  )  [virtual]

Reimplemented from vtkEnSightReader.

static int vtkEnSight6Reader::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSight6Reader::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkEnSightReader.

static vtkEnSight6Reader* vtkEnSight6Reader::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkEnSightReader.

virtual void vtkEnSight6Reader::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadGeometryFile ( const char *  fileName,
int  timeStep,
vtkMultiBlockDataSet output
) [protected, virtual]

Read the geometry file. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadMeasuredGeometryFile ( const char *  fileName,
int  timeStep,
vtkMultiBlockDataSet output
) [protected, virtual]

Read the measured geometry file. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadScalarsPerNode ( const char *  fileName,
const char *  description,
int  timeStep,
vtkMultiBlockDataSet output,
int  measured = 0,
int  numberOfComponents = 1,
int  component = 0
) [protected, virtual]

Read scalars per node for this dataset. If an error occurred, 0 is returned; otherwise 1. If there will be more than one component in the scalars array, we assume that 0 is the first component added to the array.

Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadVectorsPerNode ( const char *  fileName,
const char *  description,
int  timeStep,
vtkMultiBlockDataSet output,
int  measured = 0
) [protected, virtual]

Read vectors per node for this dataset. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadTensorsPerNode ( const char *  fileName,
const char *  description,
int  timeStep,
vtkMultiBlockDataSet output
) [protected, virtual]

Read tensors per node for this dataset. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadScalarsPerElement ( const char *  fileName,
const char *  description,
int  timeStep,
vtkMultiBlockDataSet output,
int  numberOfComponents = 1,
int  component = 0
) [protected, virtual]

Read scalars per element for this dataset. If an error occurred, 0 is returned; otherwise 1. If there will be more than one component in the scalars array, we assume that 0 is the first component added to the array.

Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadVectorsPerElement ( const char *  fileName,
const char *  description,
int  timeStep,
vtkMultiBlockDataSet output
) [protected, virtual]

Read vectors per element for this dataset. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::ReadTensorsPerElement ( const char *  fileName,
const char *  description,
int  timeStep,
vtkMultiBlockDataSet output
) [protected, virtual]

Read tensors per element for this dataset. If an error occurred, 0 is returned; otherwise 1.

Implements vtkEnSightReader.

virtual int vtkEnSight6Reader::CreateUnstructuredGridOutput ( int  partId,
char  line[256],
const char *  name,
vtkMultiBlockDataSet output
) [protected, virtual]

Read an unstructured part (partId) from the geometry file and create a vtkUnstructuredGrid output. Return 0 if EOF reached.

virtual int vtkEnSight6Reader::CreateStructuredGridOutput ( int  partId,
char  line[256],
const char *  name,
vtkMultiBlockDataSet output
) [protected, virtual]

Read a structured part from the geometry file and create a vtkStructuredGridOutput. Return 0 if EOF reached.


Member Data Documentation

Definition at line 142 of file vtkEnSight6Reader.h.

Definition at line 143 of file vtkEnSight6Reader.h.

Definition at line 144 of file vtkEnSight6Reader.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 11:34:38 2011 for VTK by  doxygen 1.5.6
