vtkIdentColoredPainter Class Reference

#include <vtkIdentColoredPainter.h>

Inheritance diagram for vtkIdentColoredPainter:

Inheritance graph

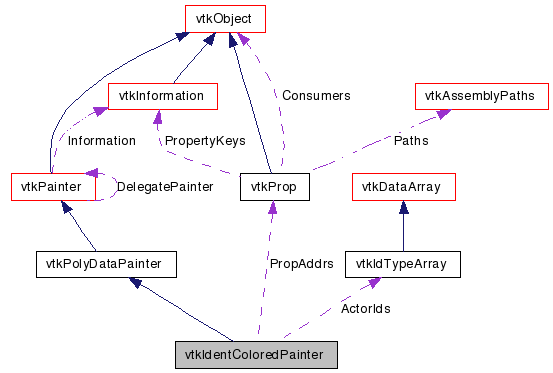

Collaboration diagram for vtkIdentColoredPainter:

Collaboration graph

List of all members.

Detailed Description

DEPRECATED A vtkPolyDataPainter that colors each polygon with a color coded integer.

DEPRECATED. Refer to vtkHardwareSelectionPolyDataPainter instead. This painter will color each polygon in a color that encodes an integer. Doing so allows us to determine what polygon is behind each pixel on the screen.

Two different modes exist. The first mode colors every polygon the same (SetToColorByConstant). By setting the constant with a processor rank this lets us find out which processor rendered each pixel after parallel depth compositing. Alternatively, by changing the constant in between actors this allows us to differentiate visible actors.

The second mode is to render each polygon in the actor with its own color (SetToColorByIncreasingIdent). Because color depth is limited to 24 bits while visualization data is often larger than 2^24 cells, the index which is increasing is implemented as a 72 bit number. You can customize this mode to color the pixels by three different 24 bit fields of the number. Rendering in three separate passes can then differentiate between 2^72 different cells.

See also:

Definition at line 54 of file vtkIdentColoredPainter.h.

Public Types

typedef vtkPolyDataPainter Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
void ResetCurrentId ()
void ColorByConstant (unsigned int constant)
void ColorByIncreasingIdent (unsigned int plane)
void ColorByActorId (vtkProp *ActorId)
void ColorByVertex ()
void MakeActorLookupTable (vtkProp **Props, vtkIdTypeArray *IdsForProps)
vtkPropGetActorFromId (vtkIdType id)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkIdentColoredPainterSafeDownCast (vtkObject *o)
static vtkIdentColoredPainterNew ()

Protected Types


Protected Member Functions

 vtkIdentColoredPainter ()
 ~vtkIdentColoredPainter ()
virtual void RenderInternal (vtkRenderer *renderer, vtkActor *actor, unsigned long typeflags, bool forceCompileOnly)
void DrawCells (int mode, vtkCellArray *connectivity, vtkIdType startCellId, vtkRenderer *renderer)
void IncrementCurrentId ()
void GetCurrentColor (unsigned char *RGB)

Protected Attributes

vtkIdType TotalCells
int ColorMode
unsigned int Plane
unsigned int CurrentIdPlane0
unsigned int CurrentIdPlane1
unsigned int CurrentIdPlane2
vtkProp ** PropAddrs

Member Typedef Documentation

Reimplemented from vtkPolyDataPainter.

Definition at line 57 of file vtkIdentColoredPainter.h.

Member Enumeration Documentation

anonymous enum [protected]


Definition at line 97 of file vtkIdentColoredPainter.h.

Constructor & Destructor Documentation

vtkIdentColoredPainter::vtkIdentColoredPainter (  )  [protected]

vtkIdentColoredPainter::~vtkIdentColoredPainter (  )  [protected]

Member Function Documentation

virtual const char* vtkIdentColoredPainter::GetClassName (  )  [virtual]

Reimplemented from vtkPolyDataPainter.

static int vtkIdentColoredPainter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataPainter.

virtual int vtkIdentColoredPainter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataPainter.

static vtkIdentColoredPainter* vtkIdentColoredPainter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPolyDataPainter.

virtual void vtkIdentColoredPainter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataPainter.

static vtkIdentColoredPainter* vtkIdentColoredPainter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

void vtkIdentColoredPainter::ResetCurrentId (  )

resets the current id to "first".

void vtkIdentColoredPainter::ColorByConstant ( unsigned int  constant  )

Use to color each cell by processor rank or by actor id.

void vtkIdentColoredPainter::ColorByIncreasingIdent ( unsigned int  plane  )

Use to color each cell with a different index. plane 0 = bits 23..0 of ident. plane 1 = bits 47..24 of ident. plane 2 = bits 71..48 of ident.

void vtkIdentColoredPainter::ColorByActorId ( vtkProp ActorId  )

Use the actor lookup table to lookup a color to render with.

void vtkIdentColoredPainter::ColorByVertex (  )

Use to color each vertex of each cell by its number.

void vtkIdentColoredPainter::MakeActorLookupTable ( vtkProp **  Props,
vtkIdTypeArray IdsForProps

Allows you to specify a mapping for selected actor ids.

vtkProp* vtkIdentColoredPainter::GetActorFromId ( vtkIdType  id  )

Allows you to get the id for selected actor.

virtual void vtkIdentColoredPainter::RenderInternal ( vtkRenderer renderer,
vtkActor actor,
unsigned long  typeflags,
bool  forceCompileOnly
) [protected, virtual]

Performs the actual rendering. Subclasses may override this method. default implementation merely call a Render on the DelegatePainter, if any. When RenderInternal() is called, it is assured that the DelegatePainter is in sync with this painter i.e. UpdateDelegatePainter() has been called.

Reimplemented from vtkPainter.

void vtkIdentColoredPainter::DrawCells ( int  mode,
vtkCellArray connectivity,
vtkIdType  startCellId,
vtkRenderer renderer
) [protected]

void vtkIdentColoredPainter::IncrementCurrentId (  )  [protected]

void vtkIdentColoredPainter::GetCurrentColor ( unsigned char *  RGB  )  [protected]

Member Data Documentation

Definition at line 94 of file vtkIdentColoredPainter.h.

Definition at line 99 of file vtkIdentColoredPainter.h.

unsigned int vtkIdentColoredPainter::Plane [protected]

Definition at line 102 of file vtkIdentColoredPainter.h.

unsigned int vtkIdentColoredPainter::CurrentIdPlane0 [protected]

Definition at line 103 of file vtkIdentColoredPainter.h.

unsigned int vtkIdentColoredPainter::CurrentIdPlane1 [protected]

Definition at line 104 of file vtkIdentColoredPainter.h.

unsigned int vtkIdentColoredPainter::CurrentIdPlane2 [protected]

Definition at line 105 of file vtkIdentColoredPainter.h.

Definition at line 110 of file vtkIdentColoredPainter.h.

Definition at line 111 of file vtkIdentColoredPainter.h.

The documentation for this class was generated from the following file:
