vtkImageOrthoPlanes Class Reference

#include <vtkImageOrthoPlanes.h>

Inheritance diagram for vtkImageOrthoPlanes:

[legend]

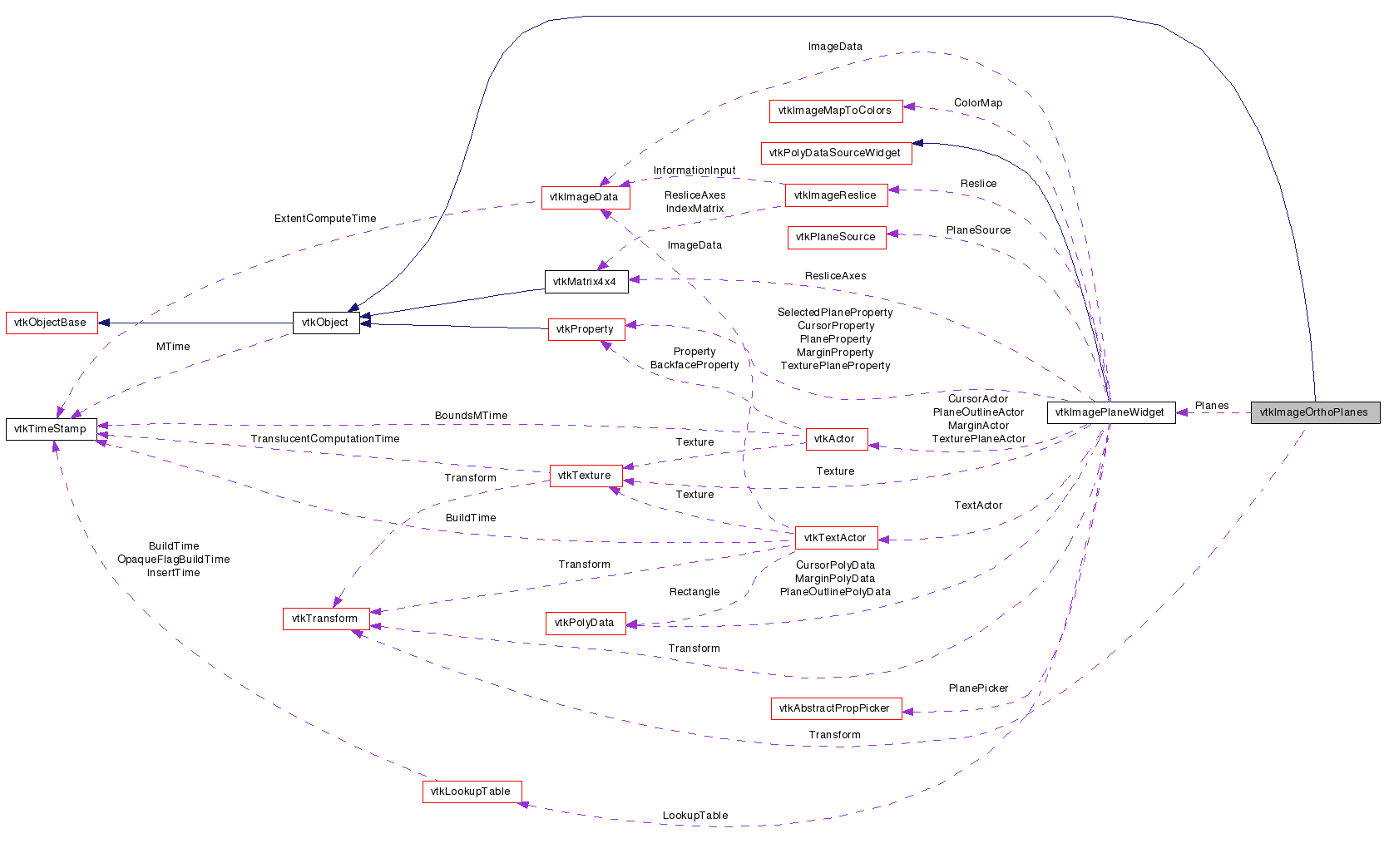

Collaboration diagram for vtkImageOrthoPlanes:

[legend]

List of all members.

---

Detailed Description

Connect three vtkImagePlaneWidgets together.

vtkImageOrthoPlanes is an event observer class that listens to the events from three vtkImagePlaneWidgets and keeps their orientations and scales synchronized.

See also:

vtkImagePlaneWidget

Thanks:

Thanks to Atamai Inc. for developing and contributing this class.

Tests:

vtkImageOrthoPlanes (Tests)

Definition at line 39 of file vtkImageOrthoPlanes.h.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
void	ResetPlanes ()
vtkTransform *	GetTransform ()
void	HandlePlaneEvent (vtkImagePlaneWidget *imagePlaneWidget)
void	SetPlane (int i, vtkImagePlaneWidget *imagePlaneWidget)
vtkImagePlaneWidget *	GetPlane (int i)
Static Public Member Functions
static vtkImageOrthoPlanes *	New ()
static int	IsTypeOf (const char *type)
static vtkImageOrthoPlanes *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImageOrthoPlanes ()
	~vtkImageOrthoPlanes ()
void	HandlePlaneRotation (vtkImagePlaneWidget *imagePlaneWidget, int indexOfModifiedPlane)
void	HandlePlanePush (vtkImagePlaneWidget *imagePlaneWidget, int indexOfModifiedPlane)
void	HandlePlaneTranslate (vtkImagePlaneWidget *imagePlaneWidget, int indexOfModifiedPlane)
void	HandlePlaneScale (vtkImagePlaneWidget *imagePlaneWidget, int indexOfModifiedPlane)
void	SetTransformMatrix (vtkMatrix4x4 *matrix, vtkImagePlaneWidget *currentImagePlane, int indexOfModifiedPlane)
void	GetBounds (double bounds[3])
Protected Attributes
double	Origin [3][3]
double	Point1 [3][3]
double	Point2 [3][3]
vtkTransform *	Transform
vtkImagePlaneWidget **	Planes
int	NumberOfPlanes
long *	ObserverTags

---

Member Typedef Documentation

typedef vtkObject vtkImageOrthoPlanes::Superclass

Reimplemented from vtkObject.

Definition at line 43 of file vtkImageOrthoPlanes.h.

---

Constructor & Destructor Documentation

vtkImageOrthoPlanes::vtkImageOrthoPlanes

(

)

[protected]

vtkImageOrthoPlanes::~vtkImageOrthoPlanes

(

)

[protected]

---

Member Function Documentation

static vtkImageOrthoPlanes* vtkImageOrthoPlanes::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual const char* vtkImageOrthoPlanes::GetClassName

(

)

[virtual]

Reimplemented from vtkObject.

static int vtkImageOrthoPlanes::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkImageOrthoPlanes::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkImageOrthoPlanes* vtkImageOrthoPlanes::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkObject.

void vtkImageOrthoPlanes::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

void vtkImageOrthoPlanes::SetPlane	(	int	i,
		vtkImagePlaneWidget *	imagePlaneWidget
	)

You must set three planes for the widget.

vtkImagePlaneWidget* vtkImageOrthoPlanes::GetPlane

(

int

i

)

You must set three planes for the widget.

void vtkImageOrthoPlanes::ResetPlanes

(

)

Reset the planes to original scale, rotation, and location.

vtkTransform* vtkImageOrthoPlanes::GetTransform

(

)

[inline]

Get the transform for the planes.

Definition at line 56 of file vtkImageOrthoPlanes.h.

void vtkImageOrthoPlanes::HandlePlaneEvent

(

vtkImagePlaneWidget *

imagePlaneWidget

)

A public method to be used only by the event callback.

void vtkImageOrthoPlanes::HandlePlaneRotation	(	vtkImagePlaneWidget *	imagePlaneWidget,
		int	indexOfModifiedPlane
	)			[protected]

void vtkImageOrthoPlanes::HandlePlanePush	(	vtkImagePlaneWidget *	imagePlaneWidget,
		int	indexOfModifiedPlane
	)			[protected]

void vtkImageOrthoPlanes::HandlePlaneTranslate	(	vtkImagePlaneWidget *	imagePlaneWidget,
		int	indexOfModifiedPlane
	)			[protected]

void vtkImageOrthoPlanes::HandlePlaneScale	(	vtkImagePlaneWidget *	imagePlaneWidget,
		int	indexOfModifiedPlane
	)			[protected]

void vtkImageOrthoPlanes::SetTransformMatrix	(	vtkMatrix4x4 *	matrix,
		vtkImagePlaneWidget *	currentImagePlane,
		int	indexOfModifiedPlane
	)			[protected]

void vtkImageOrthoPlanes::GetBounds

(

double

bounds[3]

)

[protected]

---

Member Data Documentation

double vtkImageOrthoPlanes::Origin[3][3] [protected]

Definition at line 81 of file vtkImageOrthoPlanes.h.

double vtkImageOrthoPlanes::Point1[3][3] [protected]

Definition at line 82 of file vtkImageOrthoPlanes.h.

double vtkImageOrthoPlanes::Point2[3][3] [protected]

Definition at line 83 of file vtkImageOrthoPlanes.h.

vtkTransform* vtkImageOrthoPlanes::Transform [protected]

Definition at line 87 of file vtkImageOrthoPlanes.h.

vtkImagePlaneWidget** vtkImageOrthoPlanes::Planes [protected]

Definition at line 90 of file vtkImageOrthoPlanes.h.

int vtkImageOrthoPlanes::NumberOfPlanes [protected]

Definition at line 93 of file vtkImageOrthoPlanes.h.

long* vtkImageOrthoPlanes::ObserverTags [protected]

Definition at line 96 of file vtkImageOrthoPlanes.h.

---

The documentation for this class was generated from the following file:

• dox/Widgets/vtkImageOrthoPlanes.h
