vtkImageStencilData Class Reference

#include <vtkImageStencilData.h>

Inheritance diagram for vtkImageStencilData:

Inheritance graph
[legend]

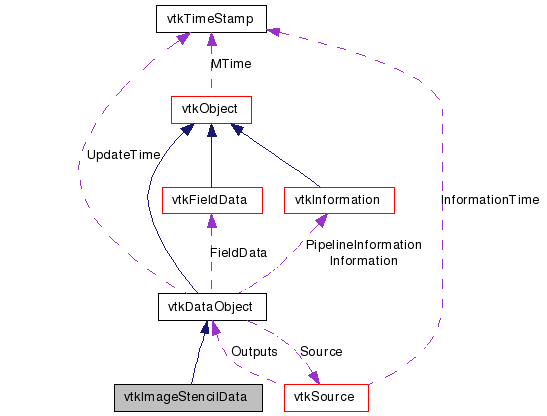

Collaboration diagram for vtkImageStencilData:

Collaboration graph
[legend]

List of all members.


Detailed Description

efficient description of an image stencil

vtkImageStencilData describes an image stencil in a manner which is efficient both in terms of speed and storage space. The stencil extents are stored for each x-row across the image (multiple extents per row if necessary) and can be retrieved via the GetNextExtent() method.

See also:
vtkImageStencilSource vtkImageStencil
Tests:
vtkImageStencilData (Tests)

Definition at line 35 of file vtkImageStencilData.h.


Public Types

typedef vtkDataObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void Initialize ()
void DeepCopy (vtkDataObject *o)
void ShallowCopy (vtkDataObject *f)
void InternalImageStencilDataCopy (vtkImageStencilData *s)
int GetDataObjectType ()
int GetExtentType ()
void InsertNextExtent (int r1, int r2, int yIdx, int zIdx)
void InsertAndMergeExtent (int r1, int r2, int yIdx, int zIdx)
void RemoveExtent (int r1, int r2, int yIdx, int zIdx)
void AllocateExtents ()
void Fill ()
virtual void Add (vtkImageStencilData *)
virtual void Subtract (vtkImageStencilData *)
virtual void Replace (vtkImageStencilData *)
virtual int Clip (int extent[6])
int GetNextExtent (int &r1, int &r2, int xMin, int xMax, int yIdx, int zIdx, int &iter)
virtual void SetSpacing (double, double, double)
virtual void SetSpacing (double[3])
virtual double * GetSpacing ()
virtual void GetSpacing (double &, double &, double &)
virtual void GetSpacing (double[3])
virtual void SetOrigin (double, double, double)
virtual void SetOrigin (double[3])
virtual double * GetOrigin ()
virtual void GetOrigin (double &, double &, double &)
virtual void GetOrigin (double[3])
void SetExtent (int extent[6])
void SetExtent (int x1, int x2, int y1, int y2, int z1, int z2)
virtual int * GetExtent ()
virtual void GetExtent (int &, int &, int &, int &, int &, int &)
virtual void GetExtent (int[6])
virtual void CopyInformationToPipeline (vtkInformation *request, vtkInformation *input, vtkInformation *output, int forceCopy)
virtual void CopyInformationFromPipeline (vtkInformation *request)

Static Public Member Functions

static vtkImageStencilDataNew ()
static int IsTypeOf (const char *type)
static vtkImageStencilDataSafeDownCast (vtkObject *o)
static vtkImageStencilDataGetData (vtkInformation *info)
static vtkImageStencilDataGetData (vtkInformationVector *v, int i=0)

Protected Member Functions

 vtkImageStencilData ()
 ~vtkImageStencilData ()
void CopyOriginAndSpacingFromPipeline ()
virtual void InternalAdd (vtkImageStencilData *)
void CollapseAdditionalIntersections (int r2, int idx, int *clist, int &clistlen)

Protected Attributes

int Extent [6]
double Spacing [3]
double Origin [3]
int NumberOfExtentEntries
int * ExtentListLengths
int ** ExtentLists

Friends

class vtkImageStencilIteratorFriendship

Member Typedef Documentation

Reimplemented from vtkDataObject.

Definition at line 39 of file vtkImageStencilData.h.


Constructor & Destructor Documentation

vtkImageStencilData::vtkImageStencilData (  )  [protected]

vtkImageStencilData::~vtkImageStencilData (  )  [protected]


Member Function Documentation

static vtkImageStencilData* vtkImageStencilData::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObject.

virtual const char* vtkImageStencilData::GetClassName (  )  [virtual]

Reimplemented from vtkDataObject.

static int vtkImageStencilData::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

virtual int vtkImageStencilData::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataObject.

static vtkImageStencilData* vtkImageStencilData::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkDataObject.

void vtkImageStencilData::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataObject.

void vtkImageStencilData::Initialize (  )  [virtual]

Restore data object to initial state,

Reimplemented from vtkDataObject.

void vtkImageStencilData::DeepCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy. These copy the data, but not any of the pipeline connections.

Reimplemented from vtkDataObject.

void vtkImageStencilData::ShallowCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy. These copy the data, but not any of the pipeline connections.

Reimplemented from vtkDataObject.

void vtkImageStencilData::InternalImageStencilDataCopy ( vtkImageStencilData s  )

int vtkImageStencilData::GetDataObjectType (  )  [inline, virtual]

Get the data type as an integer (this will return VTK_DATA_OBJECT for now, maybe a proper type constant will be reserved later).

Reimplemented from vtkDataObject.

Definition at line 49 of file vtkImageStencilData.h.

int vtkImageStencilData::GetExtentType (  )  [inline, virtual]

The extent type is 3D, just like vtkImageData.

Reimplemented from vtkDataObject.

Definition at line 52 of file vtkImageStencilData.h.

int vtkImageStencilData::GetNextExtent ( int &  r1,
int &  r2,
int  xMin,
int  xMax,
int  yIdx,
int  zIdx,
int &  iter
)

Given the total output x extent [xMin,xMax] and the current y, z indices, return each sub-extent [r1,r2] that lies within within the unclipped region in sequence. A value of '0' is returned if no more sub-extents are available. The variable 'iter' must be initialized to zero before the first call, unless you want the complementary sub-extents in which case you must initialize 'iter' to -1. The variable 'iter' is used internally to keep track of which sub-extent should be returned next.

void vtkImageStencilData::InsertNextExtent ( int  r1,
int  r2,
int  yIdx,
int  zIdx
)

This method is used by vtkImageStencilDataSource to add an x sub extent [r1,r2] for the x row (yIdx,zIdx). The specified sub extent must not intersect any other sub extents along the same x row. As well, r1 and r2 must both be within the total x extent [Extent[0],Extent[1]].

void vtkImageStencilData::InsertAndMergeExtent ( int  r1,
int  r2,
int  yIdx,
int  zIdx
)

Similar to InsertNextExtent, except that the extent (r1,r2) at yIdx, zIdx is merged with other extents, (if any) on that row. So a unique extent may not necessarily be added. For instance, if an extent [5,11] already exists adding an extent, [7,9] will not affect the stencil. Likewise adding [10, 13] will replace the existing extent with [5,13].

void vtkImageStencilData::RemoveExtent ( int  r1,
int  r2,
int  yIdx,
int  zIdx
)

Remove the extent from (r1,r2) at yIdx, zIdx

virtual void vtkImageStencilData::SetSpacing ( double  ,
double  ,
double
) [virtual]

Set the desired spacing for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

virtual void vtkImageStencilData::SetSpacing ( double  [3]  )  [virtual]

Set the desired spacing for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

virtual double* vtkImageStencilData::GetSpacing (  )  [virtual]

Set the desired spacing for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

virtual void vtkImageStencilData::GetSpacing ( double &  ,
double &  ,
double &
) [virtual]

Set the desired spacing for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

virtual void vtkImageStencilData::GetSpacing ( double  [3]  )  [virtual]

Set the desired spacing for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

virtual void vtkImageStencilData::SetOrigin ( double  ,
double  ,
double
) [virtual]

Set the desired origin for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

virtual void vtkImageStencilData::SetOrigin ( double  [3]  )  [virtual]

Set the desired origin for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

virtual double* vtkImageStencilData::GetOrigin (  )  [virtual]

Set the desired origin for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

virtual void vtkImageStencilData::GetOrigin ( double &  ,
double &  ,
double &
) [virtual]

Set the desired origin for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

virtual void vtkImageStencilData::GetOrigin ( double  [3]  )  [virtual]

Set the desired origin for the stencil. This must be called before the stencil is Updated, ideally in the ExecuteInformation method of the imaging filter that is using the stencil.

void vtkImageStencilData::SetExtent ( int  extent[6]  )

Set the extent of the data. This is should be called only by vtkImageStencilSource, as it is part of the basic pipeline functionality.

void vtkImageStencilData::SetExtent ( int  x1,
int  x2,
int  y1,
int  y2,
int  z1,
int  z2
)

Set the extent of the data. This is should be called only by vtkImageStencilSource, as it is part of the basic pipeline functionality.

virtual int* vtkImageStencilData::GetExtent (  )  [virtual]

Set the extent of the data. This is should be called only by vtkImageStencilSource, as it is part of the basic pipeline functionality.

virtual void vtkImageStencilData::GetExtent ( int &  ,
int &  ,
int &  ,
int &  ,
int &  ,
int &
) [virtual]

Set the extent of the data. This is should be called only by vtkImageStencilSource, as it is part of the basic pipeline functionality.

virtual void vtkImageStencilData::GetExtent ( int  [6]  )  [virtual]

Set the extent of the data. This is should be called only by vtkImageStencilSource, as it is part of the basic pipeline functionality.

void vtkImageStencilData::AllocateExtents (  )

Allocate space for the sub-extents. This is called by vtkImageStencilSource.

void vtkImageStencilData::Fill (  )

Fill the sub-extents.

virtual void vtkImageStencilData::CopyInformationToPipeline ( vtkInformation request,
vtkInformation input,
vtkInformation output,
int  forceCopy
) [virtual]

Override these to handle origin, spacing, scalar type, and scalar number of components. See vtkDataObject for details.

Reimplemented from vtkDataObject.

virtual void vtkImageStencilData::CopyInformationFromPipeline ( vtkInformation request  )  [virtual]

Override these to handle origin, spacing, scalar type, and scalar number of components. See vtkDataObject for details.

Reimplemented from vtkDataObject.

static vtkImageStencilData* vtkImageStencilData::GetData ( vtkInformation info  )  [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataObject.

static vtkImageStencilData* vtkImageStencilData::GetData ( vtkInformationVector v,
int  i = 0
) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataObject.

virtual void vtkImageStencilData::Add ( vtkImageStencilData  )  [virtual]

Add merges the stencil supplied as argument into Self.

virtual void vtkImageStencilData::Subtract ( vtkImageStencilData  )  [virtual]

Subtract removes the portion of the stencil, supplied as argument, that lies within Self from Self.

virtual void vtkImageStencilData::Replace ( vtkImageStencilData  )  [virtual]

Replaces the portion of the stencil, supplied as argument, that lies within Self from Self.

virtual int vtkImageStencilData::Clip ( int  extent[6]  )  [virtual]

Clip the stencil with the supplied extents. In other words, discard data outside the specified extents. Return 1 if something changed.

void vtkImageStencilData::CopyOriginAndSpacingFromPipeline (  )  [protected]

Get important info from pipeline.

virtual void vtkImageStencilData::InternalAdd ( vtkImageStencilData  )  [protected, virtual]

Merges portions of the stencil that are within Self's extents into itself.

void vtkImageStencilData::CollapseAdditionalIntersections ( int  r2,
int  idx,
int *  clist,
int &  clistlen
) [protected]


Friends And Related Function Documentation

friend class vtkImageStencilIteratorFriendship [friend]

Definition at line 183 of file vtkImageStencilData.h.


Member Data Documentation

double vtkImageStencilData::Spacing[3] [protected]

The Spacing and Origin of the data.

Definition at line 166 of file vtkImageStencilData.h.

double vtkImageStencilData::Origin[3] [protected]

The Spacing and Origin of the data.

Definition at line 167 of file vtkImageStencilData.h.

int vtkImageStencilData::Extent[6] [protected]

Definition at line 170 of file vtkImageStencilData.h.

The actual 'data' is stored here.

Definition at line 174 of file vtkImageStencilData.h.

The actual 'data' is stored here.

Definition at line 175 of file vtkImageStencilData.h.

The actual 'data' is stored here.

Definition at line 176 of file vtkImageStencilData.h.


The documentation for this class was generated from the following file:
