vtkImageVariance3D Class Reference

#include <vtkImageVariance3D.h>

Inheritance diagram for vtkImageVariance3D:

Inheritance graph
[legend]

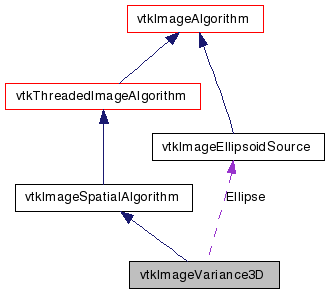

Collaboration diagram for vtkImageVariance3D:

Collaboration graph
[legend]

List of all members.


Detailed Description

Variance in a neighborhood.

vtkImageVariance3D replaces each pixel with a measurement of pixel variance in a elliptical neighborhood centered on that pixel. The value computed is not exactly the variance. The difference between the neighbor values and center value is computed and squared for each neighbor. These values are summed and divided by the total number of neighbors to produce the output value.

Tests:
vtkImageVariance3D (Tests)

Definition at line 37 of file vtkImageVariance3D.h.


Public Types

typedef vtkImageSpatialAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
void SetKernelSize (int size0, int size1, int size2)

Static Public Member Functions

static vtkImageVariance3DNew ()
static int IsTypeOf (const char *type)
static vtkImageVariance3DSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkImageVariance3D ()
 ~vtkImageVariance3D ()
virtual int RequestInformation (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
void ThreadedRequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector, vtkImageData ***inData, vtkImageData **outData, int extent[6], int id)
virtual int RequestData (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Protected Attributes

vtkImageEllipsoidSourceEllipse

Member Typedef Documentation

Reimplemented from vtkImageSpatialAlgorithm.

Definition at line 41 of file vtkImageVariance3D.h.


Constructor & Destructor Documentation

vtkImageVariance3D::vtkImageVariance3D (  )  [protected]

vtkImageVariance3D::~vtkImageVariance3D (  )  [protected]


Member Function Documentation

static vtkImageVariance3D* vtkImageVariance3D::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkImageSpatialAlgorithm.

virtual const char* vtkImageVariance3D::GetClassName (  )  [virtual]

Reimplemented from vtkImageSpatialAlgorithm.

static int vtkImageVariance3D::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageSpatialAlgorithm.

virtual int vtkImageVariance3D::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageSpatialAlgorithm.

static vtkImageVariance3D* vtkImageVariance3D::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageVariance3D::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageVariance3D::SetKernelSize ( int  size0,
int  size1,
int  size2
)

This method sets the size of the neighborhood. It also sets the default middle of the neighborhood and computes the Elliptical foot print.

virtual int vtkImageVariance3D::RequestInformation ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

Reimplemented from vtkImageSpatialAlgorithm.

void vtkImageVariance3D::ThreadedRequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector,
vtkImageData ***  inData,
vtkImageData **  outData,
int  extent[6],
int  threadId
) [protected, virtual]

If the subclass does not define an Execute method, then the task will be broken up, multiple threads will be spawned, and each thread will call this method. It is public so that the thread functions can call this method.

Reimplemented from vtkThreadedImageAlgorithm.

virtual int vtkImageVariance3D::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkThreadedImageAlgorithm.


Member Data Documentation

Definition at line 53 of file vtkImageVariance3D.h.


The documentation for this class was generated from the following file:
