vtkImplicitFunctionToImageStencil Class Reference

#include <vtkImplicitFunctionToImageStencil.h>

Inheritance diagram for vtkImplicitFunctionToImageStencil:

[legend]

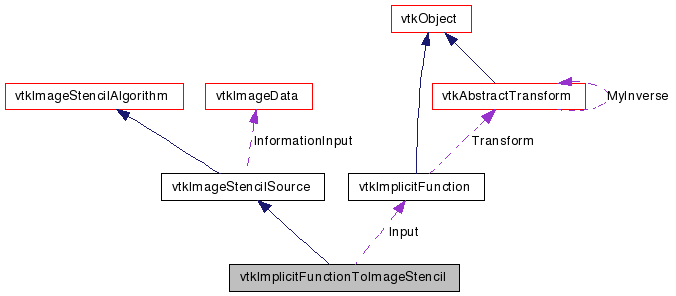

Collaboration diagram for vtkImplicitFunctionToImageStencil:

[legend]

List of all members.

Detailed Description

clip an image with a function

vtkImplicitFunctionToImageStencil will convert a vtkImplicitFunction into a stencil that can be used with vtkImageStencil or with other classes that apply a stencil to an image.

See also:: vtkImplicitFunction vtkImageStencil vtkPolyDataToImageStencil

Tests:: vtkImplicitFunctionToImageStencil (Tests)

Definition at line 36 of file vtkImplicitFunctionToImageStencil.h.


Public Types
typedef vtkImageStencilSource	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetInput (vtkImplicitFunction *)
virtual vtkImplicitFunction *	GetInput ()

virtual void	SetThreshold (double)
virtual double	GetThreshold ()
Static Public Member Functions
static vtkImplicitFunctionToImageStencil *	New ()
static int	IsTypeOf (const char *type)
static vtkImplicitFunctionToImageStencil *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkImplicitFunctionToImageStencil ()
	~vtkImplicitFunctionToImageStencil ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
vtkImplicitFunction *	Input
double	Threshold

Member Typedef Documentation

typedef vtkImageStencilSource vtkImplicitFunctionToImageStencil::Superclass

Reimplemented from vtkImageStencilSource.

Definition at line 40 of file vtkImplicitFunctionToImageStencil.h.

Constructor & Destructor Documentation

vtkImplicitFunctionToImageStencil::vtkImplicitFunctionToImageStencil ( ) [protected]

vtkImplicitFunctionToImageStencil::~vtkImplicitFunctionToImageStencil ( ) [protected]

Member Function Documentation

static vtkImplicitFunctionToImageStencil* vtkImplicitFunctionToImageStencil::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkImageStencilSource.

virtual const char* vtkImplicitFunctionToImageStencil::GetClassName ( ) [virtual]

Reimplemented from vtkImageStencilSource.

static int vtkImplicitFunctionToImageStencil::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageStencilSource.

virtual int vtkImplicitFunctionToImageStencil::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkImageStencilSource.

static vtkImplicitFunctionToImageStencil* vtkImplicitFunctionToImageStencil::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkImageStencilSource.

void vtkImplicitFunctionToImageStencil::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkImageStencilSource.

virtual void vtkImplicitFunctionToImageStencil::SetInput ( vtkImplicitFunction * ) [virtual]

Specify the implicit function to convert into a stencil.

virtual vtkImplicitFunction* vtkImplicitFunctionToImageStencil::GetInput ( ) [virtual]

Specify the implicit function to convert into a stencil.

virtual void vtkImplicitFunctionToImageStencil::SetThreshold ( double ) [virtual]

Set the threshold value for the implicit function.

virtual double vtkImplicitFunctionToImageStencil::GetThreshold ( ) [virtual]

Set the threshold value for the implicit function.
