vtkInteractorStyleJoystickCamera Class Reference

#include <vtkInteractorStyleJoystickCamera.h>

Inheritance diagram for vtkInteractorStyleJoystickCamera:

Inheritance graph
[legend]

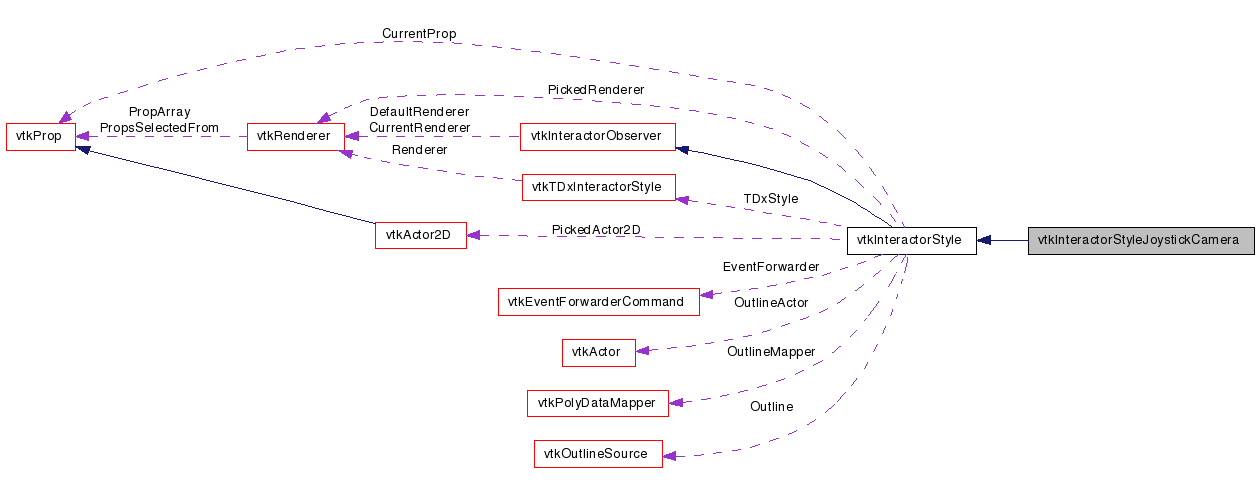

Collaboration diagram for vtkInteractorStyleJoystickCamera:

Collaboration graph
[legend]

List of all members.


Detailed Description

interactive manipulation of the camera

vtkInteractorStyleJoystickCamera allows the user to move (rotate, pan, etc.) the camera, the point of view for the scene. The position of the mouse relative to the center of the scene determines the speed at which the camera moves, and the speed of the mouse movement determines the acceleration of the camera, so the camera continues to move even if the mouse if not moving. For a 3-button mouse, the left button is for rotation, the right button for zooming, the middle button for panning, and ctrl + left button for spinning. (With fewer mouse buttons, ctrl + shift + left button is for zooming, and shift + left button is for panning.)

See also:
vtkInteractorStyleJoystickActor vtkInteractorStyleTrackballCamera vtkInteractorStyleTrackballActor
Events:
vtkCommand::InteractionEvent

Definition at line 43 of file vtkInteractorStyleJoystickCamera.h.


Public Types

typedef vtkInteractorStyle Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void Rotate ()
virtual void Spin ()
virtual void Pan ()
virtual void Dolly ()
virtual void OnMouseMove ()
virtual void OnLeftButtonDown ()
virtual void OnLeftButtonUp ()
virtual void OnMiddleButtonDown ()
virtual void OnMiddleButtonUp ()
virtual void OnRightButtonDown ()
virtual void OnRightButtonUp ()
virtual void OnMouseWheelForward ()
virtual void OnMouseWheelBackward ()

Static Public Member Functions

static
vtkInteractorStyleJoystickCamera
New ()
static int IsTypeOf (const char *type)
static
vtkInteractorStyleJoystickCamera
SafeDownCast (vtkObject *o)

Protected Member Functions

 vtkInteractorStyleJoystickCamera ()
 ~vtkInteractorStyleJoystickCamera ()
virtual void Dolly (double factor)

Member Typedef Documentation

Reimplemented from vtkInteractorStyle.

Definition at line 47 of file vtkInteractorStyleJoystickCamera.h.


Constructor & Destructor Documentation

vtkInteractorStyleJoystickCamera::vtkInteractorStyleJoystickCamera (  )  [protected]

vtkInteractorStyleJoystickCamera::~vtkInteractorStyleJoystickCamera (  )  [protected]


Member Function Documentation

static vtkInteractorStyleJoystickCamera* vtkInteractorStyleJoystickCamera::New (  )  [static]

This class must be supplied with a vtkRenderWindowInteractor wrapper or parent. This class should not normally be instantiated by application programmers.

Reimplemented from vtkInteractorStyle.

virtual const char* vtkInteractorStyleJoystickCamera::GetClassName (  )  [virtual]

Reimplemented from vtkInteractorStyle.

static int vtkInteractorStyleJoystickCamera::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyle.

virtual int vtkInteractorStyleJoystickCamera::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkInteractorStyle.

static vtkInteractorStyleJoystickCamera* vtkInteractorStyleJoystickCamera::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkInteractorStyle.

void vtkInteractorStyleJoystickCamera::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::OnMouseMove (  )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::OnLeftButtonDown (  )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::OnLeftButtonUp (  )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::OnMiddleButtonDown (  )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::OnMiddleButtonUp (  )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::OnRightButtonDown (  )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::OnRightButtonUp (  )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::OnMouseWheelForward (  )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::OnMouseWheelBackward (  )  [virtual]

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::Rotate (  )  [virtual]

These methods for the different interactions in different modes are overridden in subclasses to perform the correct motion. Since they might be called from OnTimer, they do not have mouse coord parameters (use interactor's GetEventPosition and GetLastEventPosition)

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::Spin (  )  [virtual]

These methods for the different interactions in different modes are overridden in subclasses to perform the correct motion. Since they might be called from OnTimer, they do not have mouse coord parameters (use interactor's GetEventPosition and GetLastEventPosition)

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::Pan (  )  [virtual]

These methods for the different interactions in different modes are overridden in subclasses to perform the correct motion. Since they might be called from OnTimer, they do not have mouse coord parameters (use interactor's GetEventPosition and GetLastEventPosition)

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::Dolly (  )  [virtual]

These methods for the different interactions in different modes are overridden in subclasses to perform the correct motion. Since they might be called from OnTimer, they do not have mouse coord parameters (use interactor's GetEventPosition and GetLastEventPosition)

Reimplemented from vtkInteractorStyle.

virtual void vtkInteractorStyleJoystickCamera::Dolly ( double  factor  )  [protected, virtual]


The documentation for this class was generated from the following file:
