vtkLabelHierarchyIterator Class Reference

#include <vtkLabelHierarchyIterator.h>

Inheritance diagram for vtkLabelHierarchyIterator:

[legend]

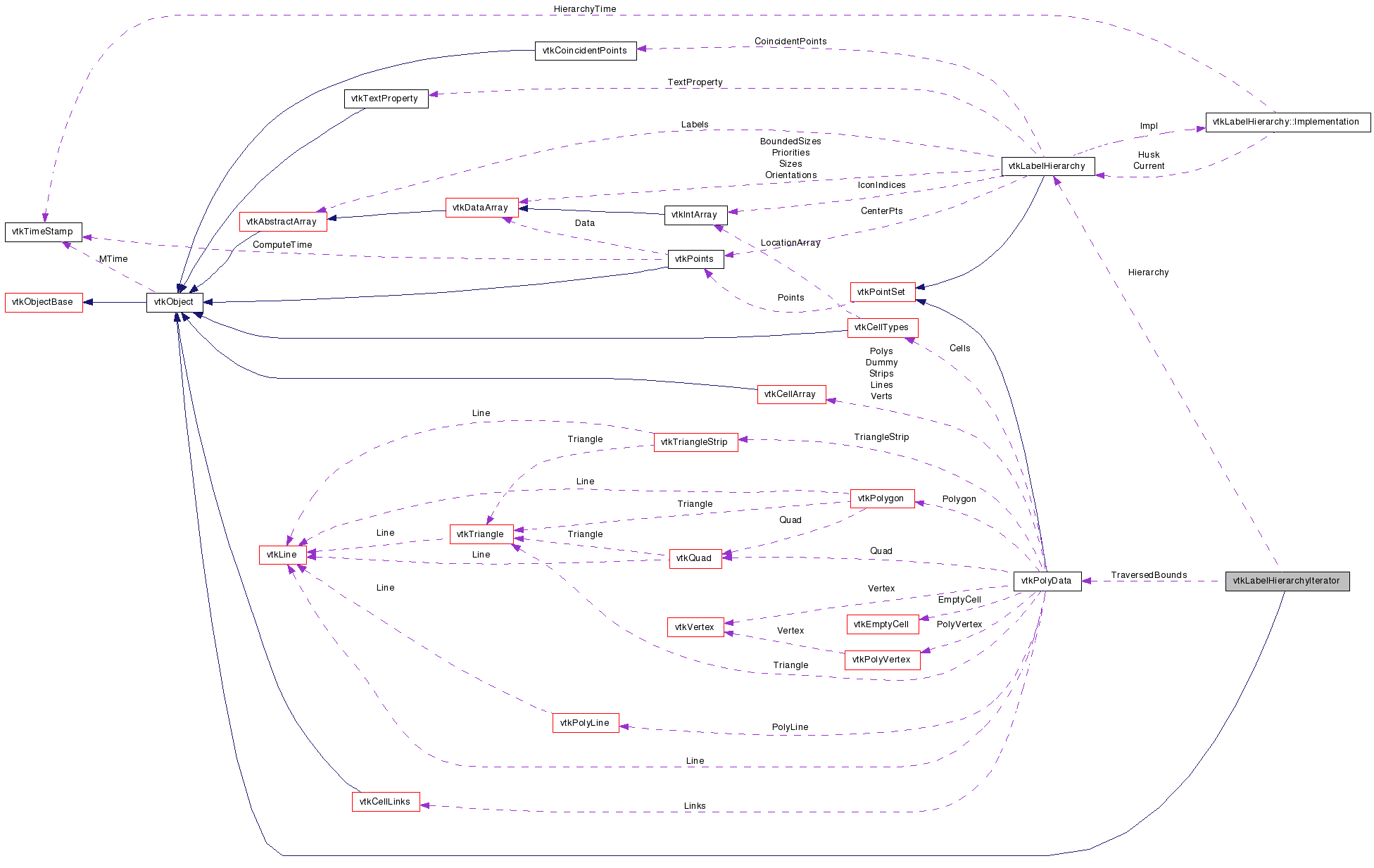

Collaboration diagram for vtkLabelHierarchyIterator:

[legend]

List of all members.

Detailed Description

iterator over vtkLabelHierarchy

Abstract superclass for iterators over vtkLabelHierarchy.

Definition at line 38 of file vtkLabelHierarchyIterator.h.


Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Begin (vtkIdTypeArray *)
virtual void	Next ()
virtual bool	IsAtEnd ()
virtual void	GetPoint (double x[3])
virtual void	GetSize (double sz[2])
virtual void	GetBoundedSize (double sz[2])
virtual int	GetType ()
virtual vtkStdString	GetLabel ()
virtual vtkUnicodeString	GetUnicodeLabel ()
virtual double	GetOrientation ()
virtual vtkIdType	GetLabelId ()
virtual void	SetTraversedBounds (vtkPolyData *)
virtual void	GetNodeGeometry (double ctr[3], double &size)=0
virtual void	BoxNode ()
virtual void	BoxAllNodes (vtkPolyData *)

virtual vtkLabelHierarchy *	GetHierarchy ()

virtual void	SetAllBounds (int)
virtual int	GetAllBounds ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkLabelHierarchyIterator *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkLabelHierarchyIterator ()
virtual	~vtkLabelHierarchyIterator ()
void	BoxNodeInternal3 (const double *ctr, double sz)
void	BoxNodeInternal2 (const double *ctr, double sz)
virtual void	SetHierarchy (vtkLabelHierarchy *h)
Protected Attributes
vtkLabelHierarchy *	Hierarchy
vtkPolyData *	TraversedBounds
double	BoundsFactor
int	AllBounds
int	AllBoundsRecorded

Member Typedef Documentation

typedef vtkObject vtkLabelHierarchyIterator::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkLabelHierarchyCompositeIterator.

Definition at line 41 of file vtkLabelHierarchyIterator.h.

Constructor & Destructor Documentation

vtkLabelHierarchyIterator::vtkLabelHierarchyIterator ( ) [protected]

virtual vtkLabelHierarchyIterator::~vtkLabelHierarchyIterator ( ) [protected, virtual]

Member Function Documentation

virtual const char* vtkLabelHierarchyIterator::GetClassName ( ) [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkLabelHierarchyCompositeIterator.

static int vtkLabelHierarchyIterator::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkLabelHierarchyCompositeIterator.

virtual int vtkLabelHierarchyIterator::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkLabelHierarchyCompositeIterator.

static vtkLabelHierarchyIterator* vtkLabelHierarchyIterator::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkObject.

Reimplemented in vtkLabelHierarchyCompositeIterator.

virtual void vtkLabelHierarchyIterator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkLabelHierarchyCompositeIterator.

virtual void vtkLabelHierarchyIterator::Begin ( vtkIdTypeArray * ) [inline, virtual]

Initializes the iterator. lastLabels is an array holding labels which should be traversed before any other labels in the hierarchy. This could include labels placed during a previous rendering or a label located under the mouse pointer. You may pass a null pointer.

Reimplemented in vtkLabelHierarchyCompositeIterator.

Definition at line 48 of file vtkLabelHierarchyIterator.h.

virtual void vtkLabelHierarchyIterator::Next ( ) [inline, virtual]

Advance the iterator.

Reimplemented in vtkLabelHierarchyCompositeIterator.

Definition at line 51 of file vtkLabelHierarchyIterator.h.

virtual bool vtkLabelHierarchyIterator::IsAtEnd ( ) [inline, virtual]

Returns true if the iterator is at the end.

Reimplemented in vtkLabelHierarchyCompositeIterator.

Definition at line 54 of file vtkLabelHierarchyIterator.h.

virtual void vtkLabelHierarchyIterator::GetPoint ( double x[3] ) [virtual]

Retrieves the current label location.

virtual void vtkLabelHierarchyIterator::GetSize ( double sz[2] ) [virtual]

Retrieves the current label size.

virtual void vtkLabelHierarchyIterator::GetBoundedSize ( double sz[2] ) [virtual]

Retrieves the current label maximum width in world coordinates.

virtual int vtkLabelHierarchyIterator::GetType ( ) [virtual]

Retrieves the current label type.

virtual vtkStdString vtkLabelHierarchyIterator::GetLabel ( ) [virtual]

Retrieves the current label string.

virtual vtkUnicodeString vtkLabelHierarchyIterator::GetUnicodeLabel ( ) [virtual]

Retrieves the current label as a unicode string.

virtual double vtkLabelHierarchyIterator::GetOrientation ( ) [virtual]

Retrieves the current label orientation.

virtual vtkIdType vtkLabelHierarchyIterator::GetLabelId ( ) [inline, virtual]

Retrieves the current label id.

Reimplemented in vtkLabelHierarchyCompositeIterator.

Definition at line 78 of file vtkLabelHierarchyIterator.h.

virtual vtkLabelHierarchy* vtkLabelHierarchyIterator::GetHierarchy ( ) [virtual]

Get the label hierarchy associated with the current label.

Reimplemented in vtkLabelHierarchyCompositeIterator.

virtual void vtkLabelHierarchyIterator::SetTraversedBounds ( vtkPolyData * ) [virtual]

Sets a polydata to fill with geometry representing the bounding boxes of the traversed octree nodes.

virtual void vtkLabelHierarchyIterator::GetNodeGeometry	(	double	ctr[3],
		double &	size
	)			`[pure virtual]`

Retrieve the coordinates of the center of the current hierarchy node and the size of the node. Nodes are n-cubes, so the size is the length of any edge of the cube. This is used by BoxNode().

Implemented in vtkLabelHierarchyCompositeIterator.

virtual void vtkLabelHierarchyIterator::BoxNode ( ) [virtual]

Add a representation to TraversedBounds for the current octree node. This should be called by subclasses inside Next(). Does nothing if TraversedBounds is NULL.

Reimplemented in vtkLabelHierarchyCompositeIterator.

virtual void vtkLabelHierarchyIterator::BoxAllNodes ( vtkPolyData * ) [virtual]

Add a representation for all existing octree nodes to the specified polydata. This is equivalent to setting TraversedBounds, iterating over the entire hierarchy, and then resetting TraversedBounds to its original value.

Reimplemented in vtkLabelHierarchyCompositeIterator.

virtual void vtkLabelHierarchyIterator::SetAllBounds ( int ) [virtual]

Set/get whether all nodes in the hierarchy should be added to the TraversedBounds polydata or only those traversed. When non-zero, all nodes will be added. By default, AllBounds is 0.

virtual int vtkLabelHierarchyIterator::GetAllBounds ( ) [virtual]

Set/get whether all nodes in the hierarchy should be added to the TraversedBounds polydata or only those traversed. When non-zero, all nodes will be added. By default, AllBounds is 0.
