vtkMesaScalarsToColorsPainter Class Reference

#include <vtkMesaScalarsToColorsPainter.h>

Inheritance diagram for vtkMesaScalarsToColorsPainter:

[legend]

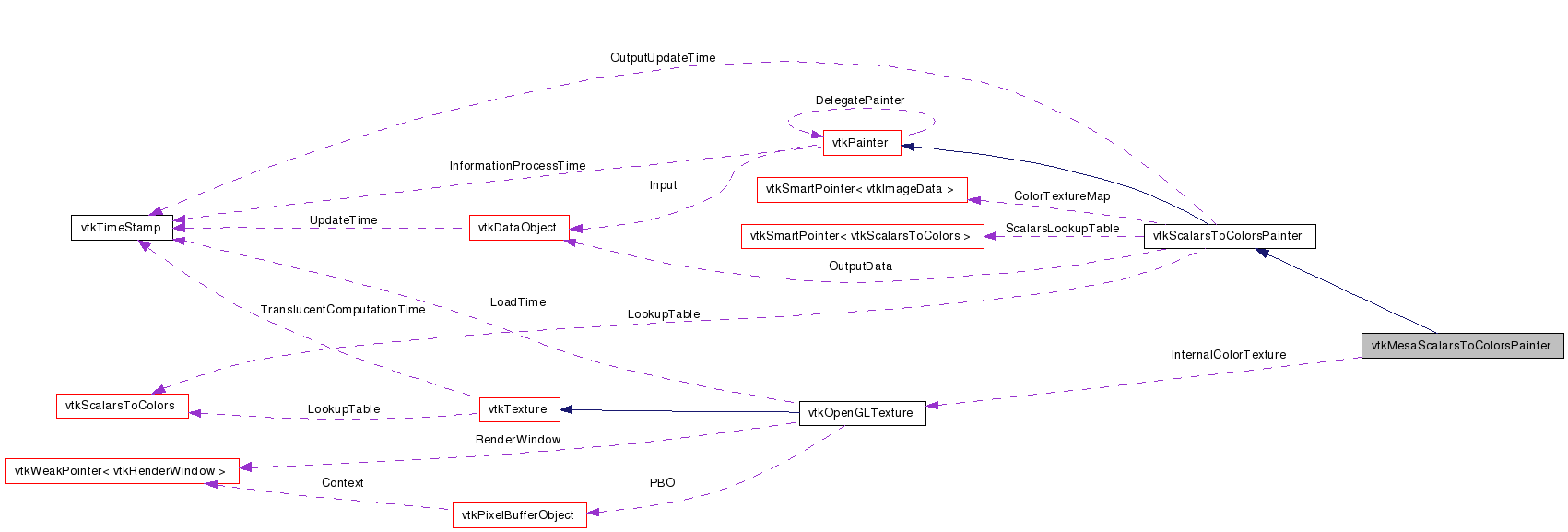

Collaboration diagram for vtkMesaScalarsToColorsPainter:

[legend]

List of all members.

Detailed Description

Definition at line 23 of file vtkMesaScalarsToColorsPainter.h.


Public Types
typedef vtkScalarsToColorsPainter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	ReleaseGraphicsResources (vtkWindow *)
virtual vtkIdType	GetTextureSizeLimit ()
Static Public Member Functions
static vtkMesaScalarsToColorsPainter *	New ()
static int	IsTypeOf (const char *type)
static vtkMesaScalarsToColorsPainter *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkMesaScalarsToColorsPainter ()
	~vtkMesaScalarsToColorsPainter ()
virtual void	RenderInternal (vtkRenderer renderer, vtkActor actor, unsigned long typeflags)
Protected Attributes
vtkOpenGLTexture *	InternalColorTexture

Member Typedef Documentation

typedef vtkScalarsToColorsPainter vtkMesaScalarsToColorsPainter::Superclass

Reimplemented from vtkScalarsToColorsPainter.

Definition at line 29 of file vtkMesaScalarsToColorsPainter.h.

Constructor & Destructor Documentation

vtkMesaScalarsToColorsPainter::vtkMesaScalarsToColorsPainter ( ) [protected]

vtkMesaScalarsToColorsPainter::~vtkMesaScalarsToColorsPainter ( ) [protected]

Member Function Documentation

static vtkMesaScalarsToColorsPainter* vtkMesaScalarsToColorsPainter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkScalarsToColorsPainter.

virtual const char* vtkMesaScalarsToColorsPainter::GetClassName ( ) [virtual]

Reimplemented from vtkScalarsToColorsPainter.

static int vtkMesaScalarsToColorsPainter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkScalarsToColorsPainter.

virtual int vtkMesaScalarsToColorsPainter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkScalarsToColorsPainter.

static vtkMesaScalarsToColorsPainter* vtkMesaScalarsToColorsPainter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkScalarsToColorsPainter.

void vtkMesaScalarsToColorsPainter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkScalarsToColorsPainter.

virtual void vtkMesaScalarsToColorsPainter::ReleaseGraphicsResources ( vtkWindow * ) [virtual]

Release any graphics resources that are being consumed by this painter. The parameter window could be used to determine which graphic resources to release. The call is propagated to the delegate painter, if any.

Reimplemented from vtkPainter.

virtual vtkIdType vtkMesaScalarsToColorsPainter::GetTextureSizeLimit ( ) [virtual]

Return the texture size limit. Subclasses need to override this to return the actual correct texture size limit. Here it is hardcoded to 1024.

Reimplemented from vtkScalarsToColorsPainter.
