vtkMNITagPointWriter Class Reference

#include <vtkMNITagPointWriter.h>

Inheritance diagram for vtkMNITagPointWriter:

[legend]

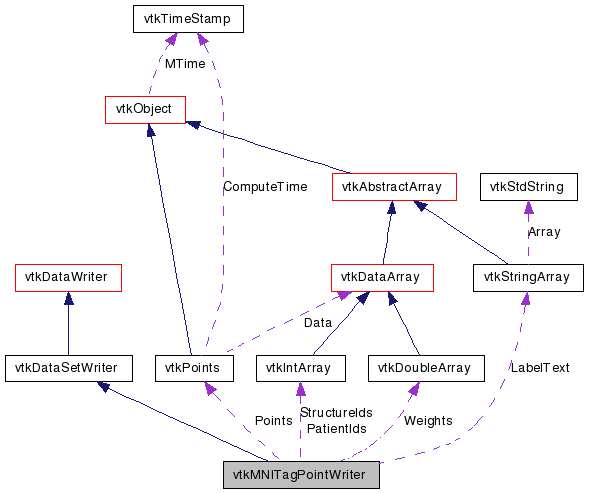

Collaboration diagram for vtkMNITagPointWriter:

[legend]

List of all members.

Detailed Description

A writer for MNI tag point files.

The MNI .tag file format is used to store tag points, for use in either registration or labelling of data volumes. This file format was developed at the McConnell Brain Imaging Centre at the Montreal Neurological Institute and is used by their software. Tag points can be stored for either one volume or two volumes, and this filter can take one or two inputs. Alternatively, the points to be written can be specified by calling SetPoints().

See also:: vtkMINCImageReader vtkMNIObjectReader vtkMNITransformReader

Thanks:: Thanks to David Gobbi for contributing this class to VTK.

Events:: vtkCommand::StartEvent vtkCommand::EndEvent

Tests:: vtkMNITagPointWriter (Tests)

Definition at line 82 of file vtkMNITagPointWriter.h.


Public Types
typedef vtkDataSetWriter	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual int	Write ()
virtual unsigned long	GetMTime ()

virtual const char *	GetFileExtensions ()

virtual const char *	GetDescriptiveName ()

virtual void	SetPoints (int port, vtkPoints *points)
virtual void	SetPoints (vtkPoints *points)
virtual vtkPoints *	GetPoints (int port)
virtual vtkPoints *	GetPoints ()

virtual void	SetLabelText (vtkStringArray *a)
virtual vtkStringArray *	GetLabelText ()

virtual void	SetWeights (vtkDoubleArray *a)
virtual vtkDoubleArray *	GetWeights ()

virtual void	SetStructureIds (vtkIntArray *a)
virtual vtkIntArray *	GetStructureIds ()

virtual void	SetPatientIds (vtkIntArray *a)
virtual vtkIntArray *	GetPatientIds ()

virtual void	SetComments (const char *)
virtual char *	GetComments ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkMNITagPointWriter *	SafeDownCast (vtkObject *o)
static vtkMNITagPointWriter *	New ()
Protected Member Functions
	vtkMNITagPointWriter ()
	~vtkMNITagPointWriter ()
virtual void	WriteData ()
virtual void	WriteData (vtkPointSet *inputs[2])
int	FillInputPortInformation (int port, vtkInformation *info)
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
vtkPoints *	Points [2]
vtkStringArray *	LabelText
vtkDoubleArray *	Weights
vtkIntArray *	StructureIds
vtkIntArray *	PatientIds
char *	Comments

Member Typedef Documentation

typedef vtkDataSetWriter vtkMNITagPointWriter::Superclass

Reimplemented from vtkDataSetWriter.

Definition at line 85 of file vtkMNITagPointWriter.h.

Constructor & Destructor Documentation

vtkMNITagPointWriter::vtkMNITagPointWriter ( ) [protected]

vtkMNITagPointWriter::~vtkMNITagPointWriter ( ) [protected]

Member Function Documentation

virtual const char* vtkMNITagPointWriter::GetClassName ( ) [virtual]

Reimplemented from vtkDataSetWriter.

static int vtkMNITagPointWriter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetWriter.

virtual int vtkMNITagPointWriter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSetWriter.

static vtkMNITagPointWriter* vtkMNITagPointWriter::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkDataSetWriter.

static vtkMNITagPointWriter* vtkMNITagPointWriter::New ( ) [static]

Created object with default header, ASCII format, and default names for scalars, vectors, tensors, normals, and texture coordinates.

Reimplemented from vtkDataSetWriter.

virtual void vtkMNITagPointWriter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSetWriter.

virtual const char* vtkMNITagPointWriter::GetFileExtensions ( ) [inline, virtual]

Get the entension for this file format.

Definition at line 92 of file vtkMNITagPointWriter.h.

virtual const char* vtkMNITagPointWriter::GetDescriptiveName ( ) [inline, virtual]

Get the name of this file format.

Definition at line 98 of file vtkMNITagPointWriter.h.

virtual void vtkMNITagPointWriter::SetPoints	(	int	port,
		vtkPoints *	points
	)			`[virtual]`

Set the points (unless you set them as inputs).

virtual void vtkMNITagPointWriter::SetPoints ( vtkPoints * points ) [inline, virtual]

Set the points (unless you set them as inputs).

Definition at line 105 of file vtkMNITagPointWriter.h.

virtual vtkPoints* vtkMNITagPointWriter::GetPoints ( int port ) [virtual]

Set the points (unless you set them as inputs).

virtual vtkPoints* vtkMNITagPointWriter::GetPoints ( ) [inline, virtual]

Set the points (unless you set them as inputs).

Definition at line 108 of file vtkMNITagPointWriter.h.

virtual void vtkMNITagPointWriter::SetLabelText ( vtkStringArray * a ) [virtual]

Set the labels (unless the input PointData has an array called LabelText). Labels are optional.

virtual vtkStringArray* vtkMNITagPointWriter::GetLabelText ( ) [virtual]

Set the labels (unless the input PointData has an array called LabelText). Labels are optional.

virtual void vtkMNITagPointWriter::SetWeights ( vtkDoubleArray * a ) [virtual]

Set the weights (unless the input PointData has an array called Weights). Weights are optional.

virtual vtkDoubleArray* vtkMNITagPointWriter::GetWeights ( ) [virtual]

Set the weights (unless the input PointData has an array called Weights). Weights are optional.

virtual void vtkMNITagPointWriter::SetStructureIds ( vtkIntArray * a ) [virtual]

Set the structure ids (unless the input PointData has an array called StructureIds). These are optional.

virtual vtkIntArray* vtkMNITagPointWriter::GetStructureIds ( ) [virtual]

Set the structure ids (unless the input PointData has an array called StructureIds). These are optional.

virtual void vtkMNITagPointWriter::SetPatientIds ( vtkIntArray * a ) [virtual]

Set the structure ids (unless the input PointData has an array called PatientIds). These are optional.

virtual vtkIntArray* vtkMNITagPointWriter::GetPatientIds ( ) [virtual]

Set the structure ids (unless the input PointData has an array called PatientIds). These are optional.

virtual void vtkMNITagPointWriter::SetComments ( const char * ) [virtual]

Set comments to be added to the file.

virtual char* vtkMNITagPointWriter::GetComments ( ) [virtual]

Set comments to be added to the file.

virtual int vtkMNITagPointWriter::Write ( ) [virtual]

Write the file.

Reimplemented from vtkWriter.

virtual unsigned long vtkMNITagPointWriter::GetMTime ( ) [virtual]

Get the MTime.

Reimplemented from vtkObject.

virtual void vtkMNITagPointWriter::WriteData ( ) [inline, protected, virtual]

Reimplemented from vtkDataSetWriter.

Definition at line 163 of file vtkMNITagPointWriter.h.

virtual void vtkMNITagPointWriter::WriteData ( vtkPointSet * inputs[2] ) [protected, virtual]

int vtkMNITagPointWriter::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			`[protected, virtual]`

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkDataSetWriter.
