vtkOpenGLHardwareSupport Class Reference

#include <vtkOpenGLHardwareSupport.h>

Inheritance diagram for vtkOpenGLHardwareSupport:

[legend]

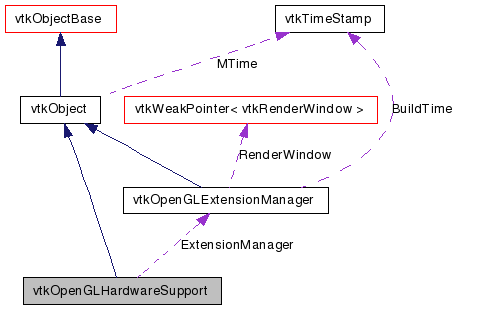

Collaboration diagram for vtkOpenGLHardwareSupport:

[legend]

List of all members.

---

Detailed Description

OpenGL rendering window.

vtkOpenGLHardwareSupport is an implementation of methods used to query OpenGL and the hardware of what kind of graphics support is available. When VTK supports more than one Graphics API an abstract super class vtkHardwareSupport should be implemented for this class to derive from.

Tests:

vtkOpenGLHardwareSupport (Tests)

Definition at line 35 of file vtkOpenGLHardwareSupport.h.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
int	GetNumberOfFixedTextureUnits ()
int	GetNumberOfTextureUnits ()
bool	GetSupportsMultiTexturing ()
virtual vtkOpenGLExtensionManager *	GetExtensionManager ()
void	SetExtensionManager (vtkOpenGLExtensionManager *extensionManager)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkOpenGLHardwareSupport *	SafeDownCast (vtkObject *o)
static vtkOpenGLHardwareSupport *	New ()
Protected Member Functions
	vtkOpenGLHardwareSupport ()
	~vtkOpenGLHardwareSupport ()

---

Member Typedef Documentation

typedef vtkObject vtkOpenGLHardwareSupport::Superclass

Reimplemented from vtkObject.

Definition at line 38 of file vtkOpenGLHardwareSupport.h.

---

Constructor & Destructor Documentation

vtkOpenGLHardwareSupport::vtkOpenGLHardwareSupport

(

)

[protected]

vtkOpenGLHardwareSupport::~vtkOpenGLHardwareSupport

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkOpenGLHardwareSupport::GetClassName

(

)

[virtual]

Reimplemented from vtkObject.

static int vtkOpenGLHardwareSupport::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkOpenGLHardwareSupport::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkOpenGLHardwareSupport* vtkOpenGLHardwareSupport::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkObject.

void vtkOpenGLHardwareSupport::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static vtkOpenGLHardwareSupport* vtkOpenGLHardwareSupport::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

int vtkOpenGLHardwareSupport::GetNumberOfFixedTextureUnits

(

)

Return the number of fixed-function texture units.

int vtkOpenGLHardwareSupport::GetNumberOfTextureUnits

(

)

Return the total number of texture image units accessible by a shader program.

bool vtkOpenGLHardwareSupport::GetSupportsMultiTexturing

(

)

Test if MultiTexturing is supported.

virtual vtkOpenGLExtensionManager* vtkOpenGLHardwareSupport::GetExtensionManager

(

)

[virtual]

Set/Get a reference to a vtkRenderWindow which is Required for most methods of this class to work.

void vtkOpenGLHardwareSupport::SetExtensionManager

(

vtkOpenGLExtensionManager *

extensionManager

)

Set/Get a reference to a vtkRenderWindow which is Required for most methods of this class to work.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkOpenGLHardwareSupport.h
