vtkPExtractArraysOverTime Class Reference

#include <vtkPExtractArraysOverTime.h>

Inheritance diagram for vtkPExtractArraysOverTime:

Inheritance graph

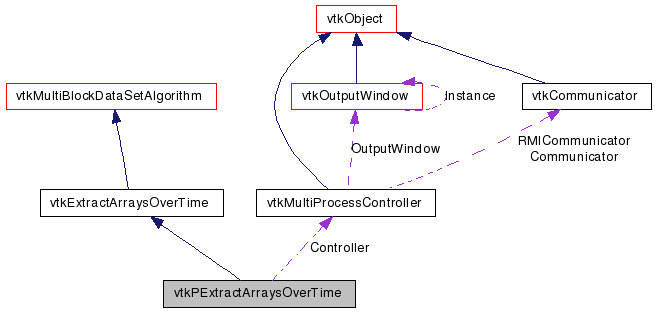

Collaboration diagram for vtkPExtractArraysOverTime:

Collaboration graph

List of all members.

Detailed Description

extract point or cell data over time (parallel)

vtkPExtractArraysOverTime is a parallelized version of vtkExtractArraysOverTime. vtkExtractArraysOverTime extract point or cell data given a selection. For every cell or point extracted, vtkExtractArraysOverTime create a vtkTable that is placed in an appropriately named block in an output multi-block dataset. For global-id based selections or location based selections, it's possible that over time the cell/point moves across processes. This filter ensures that such extractions spread across processes are combined correctly into a single vtkTable. This filter produces a valid output on the root node alone, all other nodes, simply have empty multi-block dataset with number of blocks matching the root (to ensure that all processes have the same structure).

See also:

Definition at line 42 of file vtkPExtractArraysOverTime.h.

Public Types

enum  Tags { EXCHANGE_DATA = 1972 }
typedef vtkExtractArraysOverTime Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetController (vtkMultiProcessController *)
virtual vtkMultiProcessControllerGetController ()

Static Public Member Functions

static vtkPExtractArraysOverTimeNew ()
static int IsTypeOf (const char *type)
static vtkPExtractArraysOverTimeSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPExtractArraysOverTime ()
 ~vtkPExtractArraysOverTime ()
virtual void PostExecute (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
void AddRemoteData (vtkMultiBlockDataSet *routput, vtkMultiBlockDataSet *output)
void MergeTables (vtkTable *routput, vtkTable *output)

Protected Attributes


Member Typedef Documentation

Reimplemented from vtkExtractArraysOverTime.

Definition at line 46 of file vtkPExtractArraysOverTime.h.

Member Enumeration Documentation


Definition at line 56 of file vtkPExtractArraysOverTime.h.

Constructor & Destructor Documentation

vtkPExtractArraysOverTime::vtkPExtractArraysOverTime (  )  [protected]

vtkPExtractArraysOverTime::~vtkPExtractArraysOverTime (  )  [protected]

Member Function Documentation

static vtkPExtractArraysOverTime* vtkPExtractArraysOverTime::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkExtractArraysOverTime.

virtual const char* vtkPExtractArraysOverTime::GetClassName (  )  [virtual]

Reimplemented from vtkExtractArraysOverTime.

static int vtkPExtractArraysOverTime::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkExtractArraysOverTime.

virtual int vtkPExtractArraysOverTime::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkExtractArraysOverTime.

static vtkPExtractArraysOverTime* vtkPExtractArraysOverTime::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkExtractArraysOverTime.

void vtkPExtractArraysOverTime::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExtractArraysOverTime.

virtual void vtkPExtractArraysOverTime::SetController ( vtkMultiProcessController  )  [virtual]

Set and get the controller.

virtual vtkMultiProcessController* vtkPExtractArraysOverTime::GetController (  )  [virtual]

Set and get the controller.

virtual void vtkPExtractArraysOverTime::PostExecute ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

Reimplemented from vtkExtractArraysOverTime.

void vtkPExtractArraysOverTime::AddRemoteData ( vtkMultiBlockDataSet routput,
vtkMultiBlockDataSet output
) [protected]

void vtkPExtractArraysOverTime::MergeTables ( vtkTable routput,
vtkTable output
) [protected]

Member Data Documentation

Definition at line 73 of file vtkPExtractArraysOverTime.h.

The documentation for this class was generated from the following file:
