vtkPieceRequestFilter Class Reference

#include <vtkPieceRequestFilter.h>

Inheritance diagram for vtkPieceRequestFilter:

Inheritance graph
[legend]

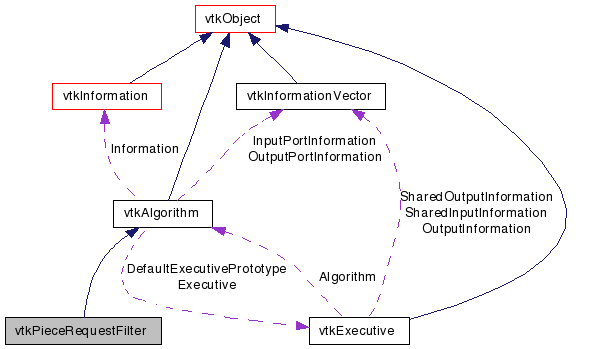

Collaboration diagram for vtkPieceRequestFilter:

Collaboration graph
[legend]

List of all members.


Detailed Description

Sets the piece request for upstream filters.

Sends the piece and number of pieces to upstream filters; passes the input to the output unmodified.

Definition at line 29 of file vtkPieceRequestFilter.h.


Public Types

typedef vtkAlgorithm Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual void SetNumberOfPieces (int)
virtual int GetNumberOfPieces ()
virtual void SetPiece (int)
virtual int GetPiece ()
vtkDataObjectGetOutput ()
vtkDataObjectGetOutput (int)
void SetInput (vtkDataObject *)
void SetInput (int, vtkDataObject *)
virtual int ProcessRequest (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)

Static Public Member Functions

static vtkPieceRequestFilterNew ()
static int IsTypeOf (const char *type)
static vtkPieceRequestFilterSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkPieceRequestFilter ()
 ~vtkPieceRequestFilter ()
virtual int RequestDataObject (vtkInformation *request, vtkInformationVector **inputVector, vtkInformationVector *outputVector)
virtual int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int FillOutputPortInformation (int port, vtkInformation *info)
virtual int FillInputPortInformation (int port, vtkInformation *info)

Protected Attributes

int NumberOfPieces
int Piece

Member Typedef Documentation

Reimplemented from vtkAlgorithm.

Definition at line 33 of file vtkPieceRequestFilter.h.


Constructor & Destructor Documentation

vtkPieceRequestFilter::vtkPieceRequestFilter (  )  [protected]

vtkPieceRequestFilter::~vtkPieceRequestFilter (  )  [inline, protected]

Definition at line 69 of file vtkPieceRequestFilter.h.


Member Function Documentation

static vtkPieceRequestFilter* vtkPieceRequestFilter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual const char* vtkPieceRequestFilter::GetClassName (  )  [virtual]

Reimplemented from vtkAlgorithm.

static int vtkPieceRequestFilter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

virtual int vtkPieceRequestFilter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

static vtkPieceRequestFilter* vtkPieceRequestFilter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkAlgorithm.

void vtkPieceRequestFilter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

virtual void vtkPieceRequestFilter::SetNumberOfPieces ( int   )  [virtual]

The total number of pieces.

virtual int vtkPieceRequestFilter::GetNumberOfPieces (  )  [virtual]

The total number of pieces.

virtual void vtkPieceRequestFilter::SetPiece ( int   )  [virtual]

The piece to extract.

virtual int vtkPieceRequestFilter::GetPiece (  )  [virtual]

The piece to extract.

vtkDataObject* vtkPieceRequestFilter::GetOutput (  )

Get the output data object for a port on this algorithm.

vtkDataObject* vtkPieceRequestFilter::GetOutput ( int   )

Get the output data object for a port on this algorithm.

void vtkPieceRequestFilter::SetInput ( vtkDataObject  )

Set an input of this algorithm.

void vtkPieceRequestFilter::SetInput ( int  ,
vtkDataObject
)

Set an input of this algorithm.

virtual int vtkPieceRequestFilter::ProcessRequest ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [virtual]

see vtkAlgorithm for details

Reimplemented from vtkAlgorithm.

virtual int vtkPieceRequestFilter::RequestDataObject ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

virtual int vtkPieceRequestFilter::RequestData ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

virtual int vtkPieceRequestFilter::RequestUpdateExtent ( vtkInformation ,
vtkInformationVector **  ,
vtkInformationVector
) [protected, virtual]

virtual int vtkPieceRequestFilter::FillOutputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

virtual int vtkPieceRequestFilter::FillInputPortInformation ( int  port,
vtkInformation info
) [protected, virtual]

Fill the input port information objects for this algorithm. This is invoked by the first call to GetInputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.


Member Data Documentation

Definition at line 86 of file vtkPieceRequestFilter.h.

Definition at line 87 of file vtkPieceRequestFilter.h.


The documentation for this class was generated from the following file:
