#include <vtkPointPlacer.h>
Most widgets in VTK have a need to translate of 2D display coordinates (as reported by the RenderWindowInteractor) to 3D world coordinates. This class is an abstraction of this functionality. A few subclasses are listed below:
1) vtkFocalPlanePointPlacer: This class converts 2D display positions to world positions such that they lie on the focal plane.
2) vtkPolygonalSurfacePointPlacer: Converts 2D display positions to world positions such that they lie on the surface of one or more specified polydatas.
3) vtkImageActorPointPlacer: Converts 2D display positions to world positions such that they lie on an ImageActor
4) vtkBoundedPlanePointPlacer: Converts 2D display positions to world positions such that they lie within a set of specified bounding planes.
5) vtkTerrainDataPointPlacer: Converts 2D display positions to world positions such that they lie on a height field.
Point placers provide an extensible framework to specify constraints on points. The methods ComputeWorldPosition, ValidateDisplayPosition and ValidateWorldPosition may be overridden to dictate whether a world or display position is allowed. These classes are currently used by the HandleWidget and the ContourWidget to allow various constraints to be enforced on the placement of their handles.
Definition at line 47 of file vtkPointPlacer.h.
typedef vtkObject | Superclass |
static int | IsTypeOf (const char *type) |
static vtkPointPlacer * | SafeDownCast (vtkObject *o) |
virtual const char * | GetClassName () |
virtual int | IsA (const char *type) |
void | PrintSelf (ostream &os, vtkIndent indent) |
Public Member Functions | |
virtual int | ValidateWorldPosition (double worldPos[3]) |
virtual int | ValidateDisplayPosition (vtkRenderer *, double displayPos[2]) |
virtual int | UpdateInternalState () |
virtual int | ComputeWorldPosition (vtkRenderer *ren, double displayPos[2], double worldPos[3], double worldOrient[9]) |
virtual int | ComputeWorldPosition (vtkRenderer *ren, double displayPos[2], double refWorldPos[3], double worldPos[3], double worldOrient[9]) |
virtual int | ValidateWorldPosition (double worldPos[3], double worldOrient[9]) |
virtual int | UpdateWorldPosition (vtkRenderer *ren, double worldPos[3], double worldOrient[9]) |
virtual void | SetPixelTolerance (int) |
virtual int | GetPixelTolerance () |
virtual void | SetWorldTolerance (double) |
virtual double | GetWorldTolerance () |
Static Public Member Functions | |
static vtkPointPlacer * | New () |
Protected Member Functions | |
vtkPointPlacer () | |
~vtkPointPlacer () | |
Protected Attributes | |
int | PixelTolerance |
double | WorldTolerance |
typedef vtkObject vtkPointPlacer::Superclass |
Standard methods for instances of this class.
Reimplemented from vtkObject.

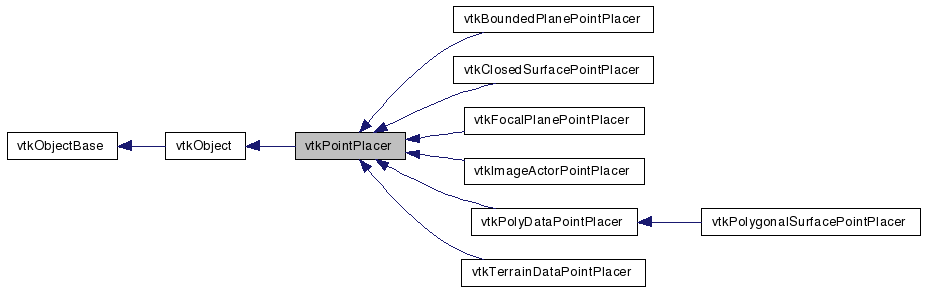

Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
Definition at line 55 of file vtkPointPlacer.h.
vtkPointPlacer::vtkPointPlacer | ( | ) | [protected] |
vtkPointPlacer::~vtkPointPlacer | ( | ) | [protected] |
static vtkPointPlacer* vtkPointPlacer::New | ( | ) | [static] |
Instantiate this class.
Reimplemented from vtkObject.
Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
virtual const char* vtkPointPlacer::GetClassName | ( | ) | [virtual] |
Standard methods for instances of this class.
Reimplemented from vtkObject.
Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
static int vtkPointPlacer::IsTypeOf | ( | const char * | type | ) | [static] |
Standard methods for instances of this class.
Reimplemented from vtkObject.
Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
virtual int vtkPointPlacer::IsA | ( | const char * | type | ) | [virtual] |
Standard methods for instances of this class.
Reimplemented from vtkObject.
Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
static vtkPointPlacer* vtkPointPlacer::SafeDownCast | ( | vtkObject * | o | ) | [static] |
Standard methods for instances of this class.
Reimplemented from vtkObject.
Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
void vtkPointPlacer::PrintSelf | ( | ostream & | os, | |
vtkIndent | indent | |||
) | [virtual] |
Standard methods for instances of this class.
Reimplemented from vtkObject.
Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
virtual int vtkPointPlacer::ComputeWorldPosition | ( | vtkRenderer * | ren, | |
double | displayPos[2], | |||
double | worldPos[3], | |||
double | worldOrient[9] | |||
) | [virtual] |
Given a renderer and a display position in pixel coordinates, compute the world position and orientation where this point will be placed. This method is typically used by the representation to place the point initially. A return value of 1 indicates that constraints of the placer are met.
Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
virtual int vtkPointPlacer::ComputeWorldPosition | ( | vtkRenderer * | ren, | |
double | displayPos[2], | |||
double | refWorldPos[3], | |||
double | worldPos[3], | |||
double | worldOrient[9] | |||
) | [virtual] |
Given a renderer, a display position, and a reference world position, compute the new world position and orientation of this point. This method is typically used by the representation to move the point. A return value of 1 indicates that constraints of the placer are met.
Reimplemented in vtkBoundedPlanePointPlacer, vtkFocalPlanePointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
virtual int vtkPointPlacer::ValidateWorldPosition | ( | double | worldPos[3] | ) | [virtual] |
Given a world position check the validity of this position according to the constraints of the placer.
Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
virtual int vtkPointPlacer::ValidateDisplayPosition | ( | vtkRenderer * | , | |
double | displayPos[2] | |||
) | [virtual] |
Given a display position, check the validity of this position.
Reimplemented in vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
virtual int vtkPointPlacer::ValidateWorldPosition | ( | double | worldPos[3], | |
double | worldOrient[9] | |||
) | [virtual] |
Given a world position and a world orientation, validate it according to the constraints of the placer.
Reimplemented in vtkBoundedPlanePointPlacer, vtkClosedSurfacePointPlacer, vtkFocalPlanePointPlacer, vtkImageActorPointPlacer, vtkPolyDataPointPlacer, vtkPolygonalSurfacePointPlacer, and vtkTerrainDataPointPlacer.
virtual int vtkPointPlacer::UpdateWorldPosition | ( | vtkRenderer * | ren, | |
double | worldPos[3], | |||
double | worldOrient[9] | |||
) | [virtual] |
Given a current renderer, world position and orientation, update them according to the constraints of the placer. This method is typically used when UpdateContour is called on the representation, which must be called after changes are made to the constraints in the placer. A return value of 1 indicates that the point has been updated. A return value of 0 indicates that the point could not be updated and was left alone. By default this is a no-op - leaving the point as is.
Reimplemented in vtkBoundedPlanePointPlacer, and vtkImageActorPointPlacer.
virtual int vtkPointPlacer::UpdateInternalState | ( | ) | [inline, virtual] |
Called by the representation to give the placer a chance to update itself.
Reimplemented in vtkImageActorPointPlacer.
Definition at line 113 of file vtkPointPlacer.h.
virtual void vtkPointPlacer::SetPixelTolerance | ( | int | ) | [virtual] |
Set/get the tolerance used when performing computations in display coordinates.
virtual int vtkPointPlacer::GetPixelTolerance | ( | ) | [virtual] |
Set/get the tolerance used when performing computations in display coordinates.
virtual void vtkPointPlacer::SetWorldTolerance | ( | double | ) | [virtual] |
Set/get the tolerance used when performing computations in world coordinates.
Reimplemented in vtkImageActorPointPlacer.
virtual double vtkPointPlacer::GetWorldTolerance | ( | ) | [virtual] |
Set/get the tolerance used when performing computations in world coordinates.
int vtkPointPlacer::PixelTolerance [protected] |
Definition at line 133 of file vtkPointPlacer.h.
double vtkPointPlacer::WorldTolerance [protected] |
Definition at line 134 of file vtkPointPlacer.h.
