vtkPolygonalHandleRepresentation3D Class Reference

#include <vtkPolygonalHandleRepresentation3D.h>

Inheritance diagram for vtkPolygonalHandleRepresentation3D:

[legend]

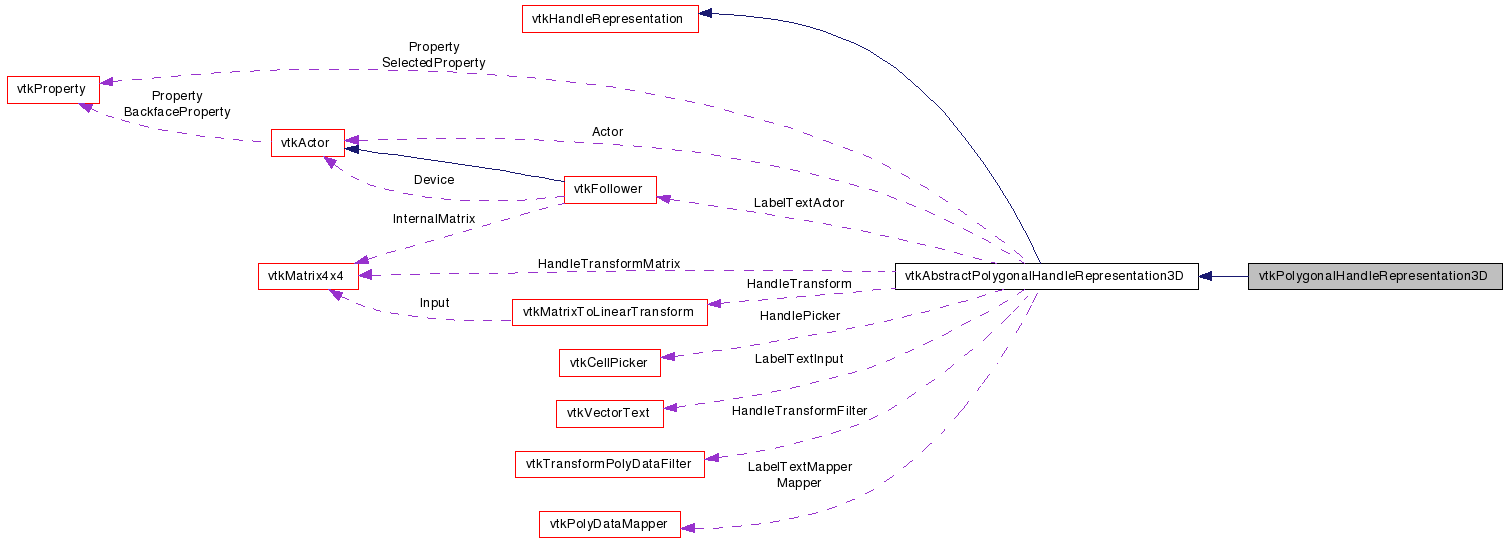

Collaboration diagram for vtkPolygonalHandleRepresentation3D:

[legend]

List of all members.

---

Detailed Description

represent a user defined handle geometry in 3D space

This class serves as the geometrical representation of a vtkHandleWidget. The handle can be represented by an arbitrary polygonal data (vtkPolyData), set via SetHandle(vtkPolyData *). The actual position of the handle will be initially assumed to be (0,0,0). You can specify an offset from this position if desired.

See also:

vtkPointHandleRepresentation3D vtkHandleRepresentation vtkHandleWidget

Tests:

vtkPolygonalHandleRepresentation3D (Tests)

Definition at line 35 of file vtkPolygonalHandleRepresentation3D.h.

typedef vtkAbstractPolygonalHandleRepresentation3D	Superclass
static int	IsTypeOf (const char *type)
static vtkPolygonalHandleRepresentation3D *	SafeDownCast (vtkObject *o)
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Public Member Functions
virtual void	SetWorldPosition (double p[3])
virtual void	SetOffset (double, double, double)
virtual void	SetOffset (double[3])
virtual double *	GetOffset ()
virtual void	GetOffset (double &, double &, double &)
virtual void	GetOffset (double[3])
Static Public Member Functions
static vtkPolygonalHandleRepresentation3D *	New ()
Protected Member Functions
	vtkPolygonalHandleRepresentation3D ()
	~vtkPolygonalHandleRepresentation3D ()
Protected Attributes
double	Offset [3]

---

Member Typedef Documentation

typedef vtkAbstractPolygonalHandleRepresentation3D vtkPolygonalHandleRepresentation3D::Superclass

Standard methods for instances of this class.

Reimplemented from vtkAbstractPolygonalHandleRepresentation3D.

Definition at line 45 of file vtkPolygonalHandleRepresentation3D.h.

---

Constructor & Destructor Documentation

vtkPolygonalHandleRepresentation3D::vtkPolygonalHandleRepresentation3D

(

)

[protected]

vtkPolygonalHandleRepresentation3D::~vtkPolygonalHandleRepresentation3D

(

)

[inline, protected]

Definition at line 61 of file vtkPolygonalHandleRepresentation3D.h.

---

Member Function Documentation

static vtkPolygonalHandleRepresentation3D* vtkPolygonalHandleRepresentation3D::New

(

)

[static]

Instantiate this class.

Reimplemented from vtkObject.

virtual const char* vtkPolygonalHandleRepresentation3D::GetClassName

(

)

[virtual]

Standard methods for instances of this class.

Reimplemented from vtkAbstractPolygonalHandleRepresentation3D.

static int vtkPolygonalHandleRepresentation3D::IsTypeOf

(

const char *

type

)

[static]

Standard methods for instances of this class.

Reimplemented from vtkAbstractPolygonalHandleRepresentation3D.

virtual int vtkPolygonalHandleRepresentation3D::IsA

(

const char *

type

)

[virtual]

Standard methods for instances of this class.

Reimplemented from vtkAbstractPolygonalHandleRepresentation3D.

static vtkPolygonalHandleRepresentation3D* vtkPolygonalHandleRepresentation3D::SafeDownCast

(

vtkObject *

o

)

[static]

Standard methods for instances of this class.

Reimplemented from vtkAbstractPolygonalHandleRepresentation3D.

void vtkPolygonalHandleRepresentation3D::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Standard methods for instances of this class.

Reimplemented from vtkAbstractPolygonalHandleRepresentation3D.

virtual void vtkPolygonalHandleRepresentation3D::SetWorldPosition

(

double

p[3]

)

[virtual]

Set the position of the point in world and display coordinates.

Reimplemented from vtkAbstractPolygonalHandleRepresentation3D.

virtual void vtkPolygonalHandleRepresentation3D::SetOffset	(	double	,
		double	,
		double
	)			[virtual]

Set/get the offset of the handle position with respect to the handle center, assumed to be the origin.

virtual void vtkPolygonalHandleRepresentation3D::SetOffset

(

double

[3]

)

[virtual]

Set/get the offset of the handle position with respect to the handle center, assumed to be the origin.

virtual double* vtkPolygonalHandleRepresentation3D::GetOffset

(

)

[virtual]

Set/get the offset of the handle position with respect to the handle center, assumed to be the origin.

virtual void vtkPolygonalHandleRepresentation3D::GetOffset	(	double &	,
		double &	,
		double &
	)			[virtual]

Set/get the offset of the handle position with respect to the handle center, assumed to be the origin.

virtual void vtkPolygonalHandleRepresentation3D::GetOffset

(

double

[3]

)

[virtual]

Set/get the offset of the handle position with respect to the handle center, assumed to be the origin.

---

Member Data Documentation

double vtkPolygonalHandleRepresentation3D::Offset[3] [protected]

Definition at line 61 of file vtkPolygonalHandleRepresentation3D.h.

---

The documentation for this class was generated from the following file:

• dox/Widgets/vtkPolygonalHandleRepresentation3D.h
