vtkQtAbstractModelAdapter Class Reference

#include <vtkQtAbstractModelAdapter.h>

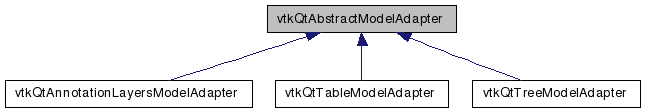

Inheritance diagram for vtkQtAbstractModelAdapter:

Detailed Description

Superclass for Qt model adapters.

vtkQtAbstractModelAdapter is the superclass for classes that adapt VTK objects to QAbstractItemModel. This class contains API for converting between QModelIndex and VTK ids, as well as some additional specialized functionality such as setting a column of data to use as the Qt header information.

See also:: vtkQtTableModelAdapter vtkQtTreeModelAdapter

Definition at line 44 of file vtkQtAbstractModelAdapter.h.


Public Types
enum	{ FULL_VIEW, DATA_VIEW }
Signals
void	modelChanged ()
Public Member Functions
	vtkQtAbstractModelAdapter (QObject *p)
void	reset ()

virtual void	SetVTKDataObject (vtkDataObject *data)=0
virtual vtkDataObject *	GetVTKDataObject () const =0

virtual vtkSelection *	QModelIndexListToVTKIndexSelection (const QModelIndexList qmil) const =0
virtual QItemSelection	VTKIndexSelectionToQItemSelection (vtkSelection *vtksel) const =0

virtual void	SetViewType (int type)
virtual int	GetViewType ()

virtual void	SetKeyColumn (int col)
virtual int	GetKeyColumn ()
virtual void	SetKeyColumnName (const char *name)=0

virtual void	SetColorColumn (int col)
virtual int	GetColorColumn ()
virtual void	SetColorColumnName (const char *name)=0

virtual void	SetDataColumnRange (int c1, int c2)
Protected Member Functions
virtual int	ModelColumnToFieldDataColumn (int col) const
Protected Attributes
int	ViewType
int	KeyColumn
int	ColorColumn
int	DataStartColumn
int	DataEndColumn

Member Enumeration Documentation

anonymous enum

Enumerator:

FULL_VIEW
DATA_VIEW

Definition at line 51 of file vtkQtAbstractModelAdapter.h.

Constructor & Destructor Documentation

vtkQtAbstractModelAdapter::vtkQtAbstractModelAdapter ( QObject * p ) [inline]

Definition at line 56 of file vtkQtAbstractModelAdapter.h.

Member Function Documentation

virtual void vtkQtAbstractModelAdapter::SetVTKDataObject ( vtkDataObject * data ) [pure virtual]

Set/Get the VTK data object as input to this adapter

Implemented in vtkQtAnnotationLayersModelAdapter, vtkQtTableModelAdapter, and vtkQtTreeModelAdapter.

virtual vtkDataObject* vtkQtAbstractModelAdapter::GetVTKDataObject ( ) const [pure virtual]

Set/Get the VTK data object as input to this adapter

Implemented in vtkQtAnnotationLayersModelAdapter, vtkQtTableModelAdapter, and vtkQtTreeModelAdapter.

virtual vtkSelection* vtkQtAbstractModelAdapter::QModelIndexListToVTKIndexSelection ( const QModelIndexList qmil ) const [pure virtual]

Selection conversion from VTK land to Qt land

Implemented in vtkQtAnnotationLayersModelAdapter, vtkQtTableModelAdapter, and vtkQtTreeModelAdapter.

virtual QItemSelection vtkQtAbstractModelAdapter::VTKIndexSelectionToQItemSelection ( vtkSelection * vtksel ) const [pure virtual]

Selection conversion from VTK land to Qt land

Implemented in vtkQtAnnotationLayersModelAdapter, vtkQtTableModelAdapter, and vtkQtTreeModelAdapter.

virtual void vtkQtAbstractModelAdapter::SetViewType ( int type ) [inline, virtual]

Set/Get the view type. FULL_VIEW gives access to all the data. DATA_VIEW gives access only to the data columns specified with SetDataColumnRange() The default is FULL_VIEW.

Definition at line 83 of file vtkQtAbstractModelAdapter.h.

virtual int vtkQtAbstractModelAdapter::GetViewType ( ) [inline, virtual]

Set/Get the view type. FULL_VIEW gives access to all the data. DATA_VIEW gives access only to the data columns specified with SetDataColumnRange() The default is FULL_VIEW.

Definition at line 84 of file vtkQtAbstractModelAdapter.h.

virtual void vtkQtAbstractModelAdapter::SetKeyColumn ( int col ) [inline, virtual]

Set/Get the key column. The key column is used as the row headers in a table view, and as the first column in a tree view. Set to -1 for no key column. The default is no key column.

Definition at line 91 of file vtkQtAbstractModelAdapter.h.

virtual int vtkQtAbstractModelAdapter::GetKeyColumn ( ) [inline, virtual]

Set/Get the key column. The key column is used as the row headers in a table view, and as the first column in a tree view. Set to -1 for no key column. The default is no key column.

Definition at line 92 of file vtkQtAbstractModelAdapter.h.

virtual void vtkQtAbstractModelAdapter::SetKeyColumnName ( const char * name ) [pure virtual]

Set/Get the key column. The key column is used as the row headers in a table view, and as the first column in a tree view. Set to -1 for no key column. The default is no key column.

Implemented in vtkQtAnnotationLayersModelAdapter, vtkQtTableModelAdapter, and vtkQtTreeModelAdapter.

virtual void vtkQtAbstractModelAdapter::SetColorColumn ( int col ) [inline, virtual]

Set/Get the column storing the rgba color values for each row. The color column is used as the row headers in a table view, and as the first column in a tree view. Set to -1 for no key column. The default is no key column.

Definition at line 101 of file vtkQtAbstractModelAdapter.h.

virtual int vtkQtAbstractModelAdapter::GetColorColumn ( ) [inline, virtual]

Set/Get the column storing the rgba color values for each row. The color column is used as the row headers in a table view, and as the first column in a tree view. Set to -1 for no key column. The default is no key column.

Definition at line 102 of file vtkQtAbstractModelAdapter.h.

virtual void vtkQtAbstractModelAdapter::SetColorColumnName ( const char * name ) [pure virtual]

Set/Get the column storing the rgba color values for each row. The color column is used as the row headers in a table view, and as the first column in a tree view. Set to -1 for no key column. The default is no key column.

Implemented in vtkQtAnnotationLayersModelAdapter, vtkQtTableModelAdapter, and vtkQtTreeModelAdapter.

virtual void vtkQtAbstractModelAdapter::SetDataColumnRange	(	int	c1,
		int	c2
	)			`[inline, virtual]`

Set the range of columns that specify the main data matrix. The data column range should not include the key column. The default is no data columns.

Definition at line 110 of file vtkQtAbstractModelAdapter.h.

void vtkQtAbstractModelAdapter::reset ( ) [inline]

Definition at line 117 of file vtkQtAbstractModelAdapter.h.

void vtkQtAbstractModelAdapter::modelChanged ( ) [signal]

virtual int vtkQtAbstractModelAdapter::ModelColumnToFieldDataColumn ( int col ) const [protected, virtual]

Map a column index in the QAbstractItemModel to a vtkTable column. If the argument is out of range or cannot be mapped then this method may return -1.
