vtkQtLineChart Class Reference

#include <vtkQtLineChart.h>

Inheritance diagram for vtkQtLineChart:

[legend]

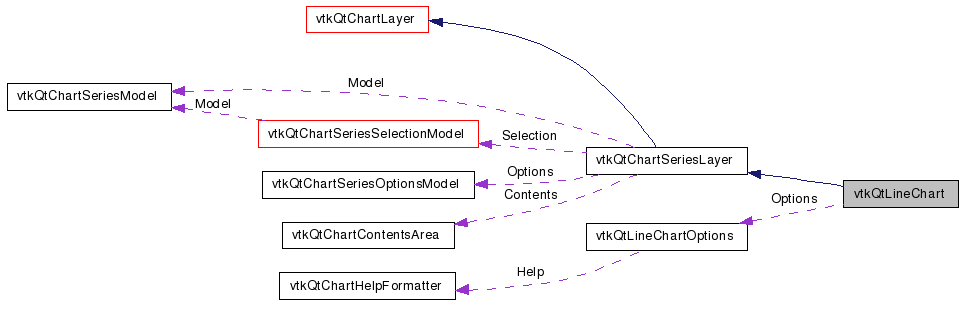

Collaboration diagram for vtkQtLineChart:

[legend]

List of all members.

Detailed Description

The vtkQtLineChart class is used to display a line chart.

Definition at line 37 of file vtkQtLineChart.h.


Public Types
enum	{ Type = vtkQtChart_LineChartType }
Public Slots
void	reset ()
	Refreshes the line chart data from the model.
Public Member Functions
	vtkQtLineChart ()
virtual	~vtkQtLineChart ()
Setup Methods
virtual void	setChartArea (vtkQtChartArea *area)
	Sets the chart area for the chart layer.
virtual void	setModel (vtkQtChartSeriesModel *model)
	Sets the chart series model.
Drawing Parameters
vtkQtLineChartOptions *	getOptions () const
	Gets the line chart drawing options.
void	setOptions (const vtkQtLineChartOptions &options)
	Sets the line chart drawing options.
virtual QPixmap	getSeriesIcon (int series) const
	Gets the line chart drawing options.
Layout Methods
virtual void	getLayerDomain (vtkQtChartLayerDomain &domain) const
	Notifies the chart layer that a resize interaction has finished.
virtual void	layoutChart (const QRectF &area)
	Notifies the chart layer that a resize interaction has finished.
virtual bool	getHelpText (const QPointF &point, QString &text)
	Notifies the chart layer that a resize interaction has finished.
virtual void	finishInteractiveResize ()
	Notifies the chart layer that a resize interaction has finished.
Selection Methods
virtual void	getSeriesAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of series at a given position.
virtual void	getPointsAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of points at a given position.
virtual void	getSeriesIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of series in a given area.
virtual void	getPointsIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of points in a given area.
QGraphicsItem Methods
virtual QRectF	boundingRect () const
virtual void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget)
Protected Slots
virtual void	handleOptionsChanged (vtkQtChartSeriesOptions *, int type, const QVariant &newvalue, const QVariant &oldvalue)
	Called when any of the series options are changed.
void	handleLayoutNeeded ()
	Called when this layer fires the layoutNeeded() signal is fired.

Member Enumeration Documentation

anonymous enum

Enumerator:

Type

Definition at line 42 of file vtkQtLineChart.h.

Constructor & Destructor Documentation

vtkQtLineChart::vtkQtLineChart ( )

virtual vtkQtLineChart::~vtkQtLineChart ( ) [virtual]

Member Function Documentation

virtual void vtkQtLineChart::setChartArea ( vtkQtChartArea * area ) [virtual]

Sets the chart area for the chart layer.

If the model is set before the chart layer is added to a chart area, series options will not be available. Setting the chart area will create the series options for the model in this case. Subclasses can extend this method to handle the new options.

Parameters:

area

The new chart area.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtLineChart::setModel ( vtkQtChartSeriesModel * model ) [virtual]

Sets the chart series model.

Parameters:

model

The new chart series model.

Reimplemented from vtkQtChartSeriesLayer.

vtkQtLineChartOptions* vtkQtLineChart::getOptions ( ) const [inline]

Gets the line chart drawing options.

Returns:: A pointer to the line chart drawing options.

Definition at line 61 of file vtkQtLineChart.h.

void vtkQtLineChart::setOptions ( const vtkQtLineChartOptions & options )

Sets the line chart drawing options.

This method sets all the options at once, which can prevent unnecessary view updates.

Parameters:

options

The new line chart drawing options.

virtual QPixmap vtkQtLineChart::getSeriesIcon ( int series ) const [virtual]

Gets the line chart drawing options.

Returns:: A pointer to the line chart drawing options.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtLineChart::getLayerDomain ( vtkQtChartLayerDomain & domain ) const [virtual]

Notifies the chart layer that a resize interaction has finished.

The chart search trees are not updated while the chart is in an interactive state. It is updated in this method if needed.

Reimplemented from vtkQtChartLayer.

virtual void vtkQtLineChart::layoutChart ( const QRectF & area ) [virtual]

Notifies the chart layer that a resize interaction has finished.

The chart search trees are not updated while the chart is in an interactive state. It is updated in this method if needed.

Implements vtkQtChartLayer.

virtual bool vtkQtLineChart::getHelpText	(	const QPointF &	point,
		QString &	text
	)			`[virtual]`

Notifies the chart layer that a resize interaction has finished.

The chart search trees are not updated while the chart is in an interactive state. It is updated in this method if needed.

Reimplemented from vtkQtChartLayer.

virtual void vtkQtLineChart::finishInteractiveResize ( ) [virtual]

Notifies the chart layer that a resize interaction has finished.

The chart search trees are not updated while the chart is in an interactive state. It is updated in this method if needed.

Reimplemented from vtkQtChartLayer.

virtual void vtkQtLineChart::getSeriesAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of series at a given position.

Parameters:

	point	The position in scene coordinates.
	selection	Used to return the list of series.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtLineChart::getPointsAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of points at a given position.

Parameters:

	point	The position in scene coordinates.
	selection	Used to return the list of points.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtLineChart::getSeriesIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of series in a given area.

Parameters:

	area	The rectangle in scene coordinates.
	selection	Used to return the list of series.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtLineChart::getPointsIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of points in a given area.

Parameters:

	area	The rectangle in scene coordinates.
	selection	Used to return the list of points.

Reimplemented from vtkQtChartSeriesLayer.

virtual QRectF vtkQtLineChart::boundingRect ( ) const [virtual]

virtual void vtkQtLineChart::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget
	)			`[virtual]`

void vtkQtLineChart::reset ( ) [slot]

Refreshes the line chart data from the model.

The currently displayed data is cleaned up. If a model is set, it is used to populate the line chart.

virtual void vtkQtLineChart::handleOptionsChanged	(	vtkQtChartSeriesOptions *	,
		int	type,
		const QVariant &	newvalue,
		const QVariant &	oldvalue
	)			`[protected, virtual, slot]`

Called when any of the series options are changed.

Default implementation fires the modelSeriesChanged() signal.

Parameters:

	options	The options that fired the dataChanged() signal.
	type	Type of the option that was changed.
	newValue	The new value for the option.
	oldValue	The previous value for the option, if any.

Reimplemented from vtkQtChartSeriesLayer.

void vtkQtLineChart::handleLayoutNeeded ( ) [protected, slot]

Called when this layer fires the layoutNeeded() signal is fired.

The documentation for this class was generated from the following file:

dox/GUISupport/Qt/Chart/vtkQtLineChart.h
