vtkQtListView Class Reference

#include <vtkQtListView.h>

Inheritance diagram for vtkQtListView:

Inheritance graph
[legend]

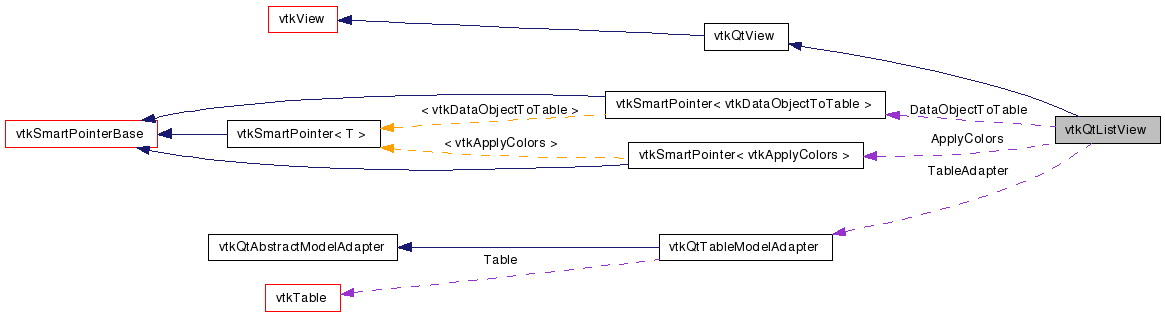

Collaboration diagram for vtkQtListView:

Collaboration graph
[legend]

List of all members.


Detailed Description

A VTK view based on a Qt List view.

vtkQtListView is a VTK view using an underlying QListView.

Thanks:
Thanks to Brian Wylie from Sandia National Laboratories for implementing this class

Definition at line 49 of file vtkQtListView.h.


Public Types

enum  {
  FIELD_DATA = 0, POINT_DATA = 1, CELL_DATA = 2, VERTEX_DATA = 3,
  EDGE_DATA = 4, ROW_DATA = 5
}
typedef vtkQtView Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
virtual QWidget * GetWidget ()
void SetEnableDragDrop (bool)
void SetAlternatingRowColors (bool)
void SetDecorationStrategy (int)
void SetVisibleColumn (int col)
void SetFilterRegExp (const QRegExp &pattern)
virtual void ApplyViewTheme (vtkViewTheme *theme)
virtual void Update ()
virtual int GetFieldType ()
void SetFieldType (int)
void SetColorArrayName (const char *name)
const char * GetColorArrayName ()
void SetColorByArray (bool vis)
bool GetColorByArray ()
virtual void ColorByArrayOn ()
virtual void ColorByArrayOff ()
void SetIconSheet (QImage sheet)
void SetIconSize (int w, int h)
void SetIconSheetSize (int w, int h)
void SetIconArrayName (const char *name)

Static Public Member Functions

static vtkQtListViewNew ()
static int IsTypeOf (const char *type)
static vtkQtListViewSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkQtListView ()
 ~vtkQtListView ()
virtual void AddRepresentationInternal (vtkDataRepresentation *rep)
virtual void RemoveRepresentationInternal (vtkDataRepresentation *rep)

Member Typedef Documentation

Reimplemented from vtkQtView.

Definition at line 55 of file vtkQtListView.h.


Member Enumeration Documentation

anonymous enum

Enumerator:
FIELD_DATA
POINT_DATA
CELL_DATA
VERTEX_DATA
EDGE_DATA
ROW_DATA

Definition at line 63 of file vtkQtListView.h.


Constructor & Destructor Documentation

vtkQtListView::vtkQtListView (  )  [protected]

vtkQtListView::~vtkQtListView (  )  [protected]


Member Function Documentation

static vtkQtListView* vtkQtListView::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkView.

virtual const char* vtkQtListView::GetClassName (  )  [virtual]

Reimplemented from vtkQtView.

static int vtkQtListView::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkQtView.

virtual int vtkQtListView::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkQtView.

static vtkQtListView* vtkQtListView::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkQtView.

void vtkQtListView::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkQtView.

virtual QWidget* vtkQtListView::GetWidget (  )  [virtual]

Get the main container of this view (a QWidget). The application typically places the view with a call to GetWidget(): something like this this->ui->box->layout()->addWidget(this->View->GetWidget());

Implements vtkQtView.

virtual int vtkQtListView::GetFieldType (  )  [virtual]

The field type to copy into the output table. Should be one of FIELD_DATA, POINT_DATA, CELL_DATA, VERTEX_DATA, EDGE_DATA.

void vtkQtListView::SetFieldType ( int   )

The field type to copy into the output table. Should be one of FIELD_DATA, POINT_DATA, CELL_DATA, VERTEX_DATA, EDGE_DATA.

void vtkQtListView::SetEnableDragDrop ( bool   )

Enable drag and drop on this widget

void vtkQtListView::SetAlternatingRowColors ( bool   )

Have the view alternate its row colors

void vtkQtListView::SetDecorationStrategy ( int   )

The strategy for how to decorate rows. Should be one of vtkQtTableModelAdapter::COLORS, vtkQtTableModelAdapter::ICONS, or vtkQtTableModelAdapter::NONE. Default is NONE.

void vtkQtListView::SetColorArrayName ( const char *  name  )

The array to use for coloring items in view. Default is "color".

const char* vtkQtListView::GetColorArrayName (  )

The array to use for coloring items in view. Default is "color".

void vtkQtListView::SetColorByArray ( bool  vis  )

Whether to color vertices. Default is off.

bool vtkQtListView::GetColorByArray (  )

Whether to color vertices. Default is off.

virtual void vtkQtListView::ColorByArrayOn (  )  [virtual]

Whether to color vertices. Default is off.

virtual void vtkQtListView::ColorByArrayOff (  )  [virtual]

Whether to color vertices. Default is off.

void vtkQtListView::SetVisibleColumn ( int  col  )

The column to display

void vtkQtListView::SetFilterRegExp ( const QRegExp &  pattern  )

The column used to filter on

void vtkQtListView::SetIconSheet ( QImage  sheet  )

Set the icon ivars. Only used if the decoration strategy is set to ICONS.

void vtkQtListView::SetIconSize ( int  w,
int  h
)

Set the icon ivars. Only used if the decoration strategy is set to ICONS.

void vtkQtListView::SetIconSheetSize ( int  w,
int  h
)

Set the icon ivars. Only used if the decoration strategy is set to ICONS.

void vtkQtListView::SetIconArrayName ( const char *  name  )

Set the icon ivars. Only used if the decoration strategy is set to ICONS.

virtual void vtkQtListView::ApplyViewTheme ( vtkViewTheme theme  )  [virtual]

virtual void vtkQtListView::Update (  )  [virtual]

Updates the view.

Reimplemented from vtkView.

virtual void vtkQtListView::AddRepresentationInternal ( vtkDataRepresentation rep  )  [protected, virtual]

virtual void vtkQtListView::RemoveRepresentationInternal ( vtkDataRepresentation rep  )  [protected, virtual]


The documentation for this class was generated from the following file:
