vtkQtRecordView Class Reference

#include <vtkQtRecordView.h>

Inheritance diagram for vtkQtRecordView:

[legend]

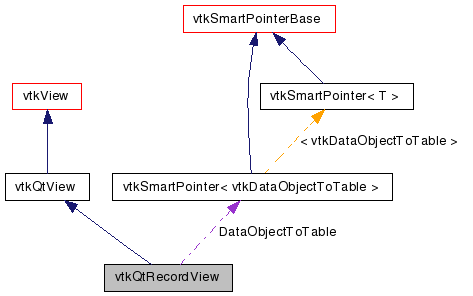

Collaboration diagram for vtkQtRecordView:

[legend]

List of all members.

---

Detailed Description

Superclass for QAbstractItemView-based views.

This superclass provides all the plumbing to integrate a QAbstractItemView into the VTK view framework, including reporting selection changes and detecting selection changes from linked views.

Thanks:

Thanks to Brian Wylie from Sandia National Laboratories for implementing this class

Definition at line 44 of file vtkQtRecordView.h.

Public Types
enum	{   FIELD_DATA = 0, POINT_DATA = 1, CELL_DATA = 2, VERTEX_DATA = 3,   EDGE_DATA = 4, ROW_DATA = 5 }
typedef vtkQtView	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual QWidget *	GetWidget ()
virtual int	GetCurrentRow ()
virtual char *	GetText ()
virtual void	Update ()
virtual int	GetFieldType ()
void	SetFieldType (int)
Static Public Member Functions
static vtkQtRecordView *	New ()
static int	IsTypeOf (const char *type)
static vtkQtRecordView *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkQtRecordView ()
	~vtkQtRecordView ()
virtual void	AddRepresentationInternal (vtkDataRepresentation *rep)
virtual void	RemoveRepresentationInternal (vtkDataRepresentation *rep)
Protected Attributes
vtkSmartPointer < vtkDataObjectToTable >	DataObjectToTable
QPointer< QTextEdit >	TextWidget
char *	Text
int	FieldType
int	CurrentRow

---

Member Typedef Documentation

typedef vtkQtView vtkQtRecordView::Superclass

Reimplemented from vtkQtView.

Definition at line 50 of file vtkQtRecordView.h.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

FIELD_DATA
POINT_DATA
CELL_DATA
VERTEX_DATA
EDGE_DATA
ROW_DATA

Definition at line 58 of file vtkQtRecordView.h.

---

Constructor & Destructor Documentation

vtkQtRecordView::vtkQtRecordView

(

)

[protected]

vtkQtRecordView::~vtkQtRecordView

(

)

[protected]

---

Member Function Documentation

static vtkQtRecordView* vtkQtRecordView::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkView.

virtual const char* vtkQtRecordView::GetClassName

(

)

[virtual]

Reimplemented from vtkQtView.

static int vtkQtRecordView::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkQtView.

virtual int vtkQtRecordView::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkQtView.

static vtkQtRecordView* vtkQtRecordView::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkQtView.

void vtkQtRecordView::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkQtView.

virtual QWidget* vtkQtRecordView::GetWidget

(

)

[virtual]

Get the main container of this view (a QWidget). The application typically places the view with a call to GetWidget(): something like this this->ui->box->layout()->addWidget(this->View->GetWidget());

Implements vtkQtView.

virtual int vtkQtRecordView::GetFieldType

(

)

[virtual]

The field type to copy into the output table. Should be one of FIELD_DATA, POINT_DATA, CELL_DATA, VERTEX_DATA, EDGE_DATA.

void vtkQtRecordView::SetFieldType

(

int

)

The field type to copy into the output table. Should be one of FIELD_DATA, POINT_DATA, CELL_DATA, VERTEX_DATA, EDGE_DATA.

virtual int vtkQtRecordView::GetCurrentRow

(

)

[virtual]

virtual char* vtkQtRecordView::GetText

(

)

[virtual]

virtual void vtkQtRecordView::Update

(

)

[virtual]

Updates the view.

Reimplemented from vtkView.

virtual void vtkQtRecordView::AddRepresentationInternal

(

vtkDataRepresentation *

rep

)

[protected, virtual]

virtual void vtkQtRecordView::RemoveRepresentationInternal

(

vtkDataRepresentation *

rep

)

[protected, virtual]

---

Member Data Documentation

vtkSmartPointer<vtkDataObjectToTable> vtkQtRecordView::DataObjectToTable [protected]

Definition at line 89 of file vtkQtRecordView.h.

QPointer<QTextEdit> vtkQtRecordView::TextWidget [protected]

Definition at line 91 of file vtkQtRecordView.h.

char* vtkQtRecordView::Text [protected]

Definition at line 93 of file vtkQtRecordView.h.

int vtkQtRecordView::FieldType [protected]

Definition at line 94 of file vtkQtRecordView.h.

int vtkQtRecordView::CurrentRow [protected]

Definition at line 95 of file vtkQtRecordView.h.

---

The documentation for this class was generated from the following file:

• dox/GUISupport/Qt/vtkQtRecordView.h
