vtkQtStackedChart Class Reference

#include <vtkQtStackedChart.h>

Inheritance diagram for vtkQtStackedChart:

[legend]

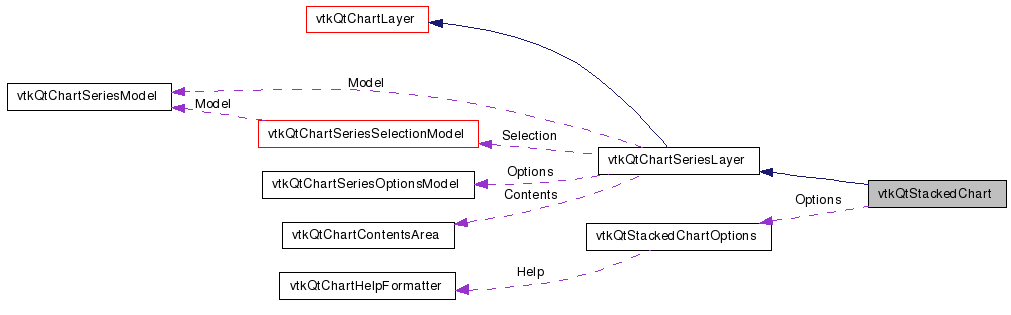

Collaboration diagram for vtkQtStackedChart:

[legend]

List of all members.

Detailed Description

The vtkQtStackedChart class is used to display a stacked chart.

Definition at line 37 of file vtkQtStackedChart.h.


Public Slots
void	reset ()
	Refreshes the stacked chart data from the model.
Public Member Functions
	vtkQtStackedChart ()
virtual	~vtkQtStackedChart ()
Setup Methods
virtual void	setChartArea (vtkQtChartArea *area)
	Sets the chart area for the chart layer.
virtual void	setModel (vtkQtChartSeriesModel *model)
	Sets the chart series model.
Drawing Parameters
vtkQtStackedChartOptions *	getOptions () const
	Gets the stacked chart drawing options.
void	setOptions (const vtkQtStackedChartOptions &options)
	Sets the stacked chart drawing options.
virtual QPixmap	getSeriesIcon (int series) const
	Gets the stacked chart drawing options.
Layout Methods
virtual void	getLayerDomain (vtkQtChartLayerDomain &domain) const
	Notifies the chart layer that a resize interaction has finished.
virtual void	layoutChart (const QRectF &area)
	Notifies the chart layer that a resize interaction has finished.
virtual bool	getHelpText (const QPointF &point, QString &text)
	Notifies the chart layer that a resize interaction has finished.
virtual void	finishInteractiveResize ()
	Notifies the chart layer that a resize interaction has finished.
Selection Methods
virtual void	getSeriesAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of series at a given position.
virtual void	getPointsAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of points at a given position.
virtual void	getSeriesIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of series in a given area.
virtual void	getPointsIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of points in a given area.
QGraphicsItem Methods
virtual QRectF	boundingRect () const
virtual void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget=0)
Protected Slots
virtual void	handleOptionsChanged (vtkQtChartSeriesOptions *, int type, const QVariant &newvalue, const QVariant &oldvalue)
	Called when any of the series options are changed.

Constructor & Destructor Documentation

vtkQtStackedChart::vtkQtStackedChart ( )

virtual vtkQtStackedChart::~vtkQtStackedChart ( ) [virtual]

Member Function Documentation

virtual void vtkQtStackedChart::setChartArea ( vtkQtChartArea * area ) [virtual]

Sets the chart area for the chart layer.

If the model is set before the chart layer is added to a chart area, series options will not be available. Setting the chart area will create the series options for the model in this case. Subclasses can extend this method to handle the new options.

Parameters:

area

The new chart area.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStackedChart::setModel ( vtkQtChartSeriesModel * model ) [virtual]

Sets the chart series model.

Parameters:

model

The new chart series model.

Reimplemented from vtkQtChartSeriesLayer.

vtkQtStackedChartOptions* vtkQtStackedChart::getOptions ( ) const [inline]

Gets the stacked chart drawing options.

Returns:: A pointer to the stacked chart drawing options.

Definition at line 58 of file vtkQtStackedChart.h.

void vtkQtStackedChart::setOptions ( const vtkQtStackedChartOptions & options )

Sets the stacked chart drawing options.

This method sets all the options at once, which can prevent unnecessary view updates.

Parameters:

options

The new stacked chart drawing options.

virtual QPixmap vtkQtStackedChart::getSeriesIcon ( int series ) const [virtual]

Gets the stacked chart drawing options.

Returns:: A pointer to the stacked chart drawing options.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStackedChart::getLayerDomain ( vtkQtChartLayerDomain & domain ) const [virtual]

Notifies the chart layer that a resize interaction has finished.

The chart quad tree is not updated while the chart is in an interactive state. It is updated in this method if needed.

Reimplemented from vtkQtChartLayer.

virtual void vtkQtStackedChart::layoutChart ( const QRectF & area ) [virtual]

Notifies the chart layer that a resize interaction has finished.

The chart quad tree is not updated while the chart is in an interactive state. It is updated in this method if needed.

Implements vtkQtChartLayer.

virtual bool vtkQtStackedChart::getHelpText	(	const QPointF &	point,
		QString &	text
	)			`[virtual]`

Notifies the chart layer that a resize interaction has finished.

The chart quad tree is not updated while the chart is in an interactive state. It is updated in this method if needed.

Reimplemented from vtkQtChartLayer.

virtual void vtkQtStackedChart::finishInteractiveResize ( ) [virtual]

Notifies the chart layer that a resize interaction has finished.

The chart quad tree is not updated while the chart is in an interactive state. It is updated in this method if needed.

Reimplemented from vtkQtChartLayer.

virtual void vtkQtStackedChart::getSeriesAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of series at a given position.

Parameters:

	point	The position in scene coordinates.
	selection	Used to return the list of series.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStackedChart::getPointsAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of points at a given position.

Parameters:

	point	The position in scene coordinates.
	selection	Used to return the list of points.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStackedChart::getSeriesIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of series in a given area.

Parameters:

	area	The rectangle in scene coordinates.
	selection	Used to return the list of series.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStackedChart::getPointsIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of points in a given area.

Parameters:

	area	The rectangle in scene coordinates.
	selection	Used to return the list of points.

Reimplemented from vtkQtChartSeriesLayer.

virtual QRectF vtkQtStackedChart::boundingRect ( ) const [virtual]

virtual void vtkQtStackedChart::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget = `0`
	)			`[virtual]`

void vtkQtStackedChart::reset ( ) [slot]

Refreshes the stacked chart data from the model.

The currently displayed data is cleaned up. If a model is set, it is used to populate the stacked chart.

virtual void vtkQtStackedChart::handleOptionsChanged	(	vtkQtChartSeriesOptions *	,
		int	type,
		const QVariant &	newvalue,
		const QVariant &	oldvalue
	)			`[protected, virtual, slot]`

Called when any of the series options are changed.

Default implementation fires the modelSeriesChanged() signal.

Parameters:

	options	The options that fired the dataChanged() signal.
	type	Type of the option that was changed.
	newValue	The new value for the option.
	oldValue	The previous value for the option, if any.

Reimplemented from vtkQtChartSeriesLayer.

The documentation for this class was generated from the following file:

dox/GUISupport/Qt/Chart/vtkQtStackedChart.h
