vtkQtStatisticalBoxChart Class Reference

#include <vtkQtStatisticalBoxChart.h>

Inheritance diagram for vtkQtStatisticalBoxChart:

[legend]

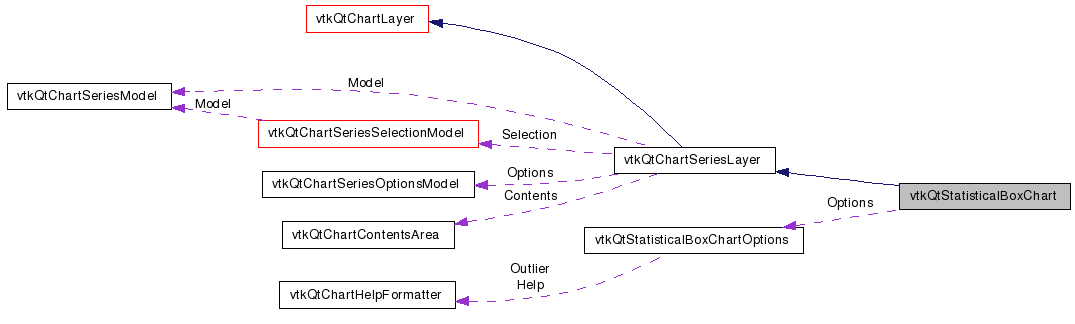

Collaboration diagram for vtkQtStatisticalBoxChart:

[legend]

List of all members.

Detailed Description

The vtkQtStatisticalBoxChart class is used to display a statistical box chart.

Definition at line 36 of file vtkQtStatisticalBoxChart.h.


Public Slots
void	reset ()
	Refreshes the statistical box chart data from the model.
Public Member Functions
	vtkQtStatisticalBoxChart ()
virtual	~vtkQtStatisticalBoxChart ()
Setup Methods
virtual void	setChartArea (vtkQtChartArea *area)
	Sets the chart area for the chart layer.
virtual void	setModel (vtkQtChartSeriesModel *model)
	Sets the chart series model.
Drawing Parameters
vtkQtStatisticalBoxChartOptions *	getOptions () const
	Gets the box chart drawing options.
void	setOptions (const vtkQtStatisticalBoxChartOptions &options)
	Sets the box chart drawing options.
virtual QPixmap	getSeriesIcon (int series) const
	Gets the box chart drawing options.
Layout Methods
virtual void	getLayerDomain (vtkQtChartLayerDomain &domain) const
	Notifies the chart layer that a resize interaction has finished.
virtual void	layoutChart (const QRectF &area)
	Notifies the chart layer that a resize interaction has finished.
virtual bool	getHelpText (const QPointF &point, QString &text)
	Notifies the chart layer that a resize interaction has finished.
virtual void	finishInteractiveResize ()
	Notifies the chart layer that a resize interaction has finished.
Selection Methods
virtual void	getSeriesAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of series at a given position.
virtual void	getPointsAt (const QPointF &point, vtkQtChartSeriesSelection &selection) const
	Gets the list of points at a given position.
virtual void	getSeriesIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of series in a given area.
virtual void	getPointsIn (const QRectF &area, vtkQtChartSeriesSelection &selection) const
	Gets the list of points in a given area.
QGraphicsItem Methods
virtual QRectF	boundingRect () const
virtual void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget=0)
Protected Slots
virtual void	handleOptionsChanged (vtkQtChartSeriesOptions *, int type, const QVariant &newvalue, const QVariant &oldvalue)
	Called when any of the series options are changed.
Protected Member Functions
virtual void	setupOptions (vtkQtChartSeriesOptions *options)
	Sets up the default values for the series options object.

Constructor & Destructor Documentation

vtkQtStatisticalBoxChart::vtkQtStatisticalBoxChart ( )

virtual vtkQtStatisticalBoxChart::~vtkQtStatisticalBoxChart ( ) [virtual]

Member Function Documentation

virtual void vtkQtStatisticalBoxChart::setChartArea ( vtkQtChartArea * area ) [virtual]

Sets the chart area for the chart layer.

If the model is set before the chart layer is added to a chart area, series options will not be available. Setting the chart area will create the series options for the model in this case. Subclasses can extend this method to handle the new options.

Parameters:

area

The new chart area.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStatisticalBoxChart::setModel ( vtkQtChartSeriesModel * model ) [virtual]

Sets the chart series model.

Parameters:

model

The new chart series model.

Reimplemented from vtkQtChartSeriesLayer.

vtkQtStatisticalBoxChartOptions* vtkQtStatisticalBoxChart::getOptions ( ) const [inline]

Gets the box chart drawing options.

Returns:: A pointer to the box chart drawing options.

Definition at line 57 of file vtkQtStatisticalBoxChart.h.

void vtkQtStatisticalBoxChart::setOptions ( const vtkQtStatisticalBoxChartOptions & options )

Sets the box chart drawing options.

This method sets all the options at once, which can prevent unnecessary view updates.

Parameters:

options

The new box chart drawing options.

virtual QPixmap vtkQtStatisticalBoxChart::getSeriesIcon ( int series ) const [virtual]

Gets the box chart drawing options.

Returns:: A pointer to the box chart drawing options.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStatisticalBoxChart::getLayerDomain ( vtkQtChartLayerDomain & domain ) const [virtual]

Notifies the chart layer that a resize interaction has finished.

The chart search tree is not updated while the chart is in an interactive state. It is updated in this method if needed.

Reimplemented from vtkQtChartLayer.

virtual void vtkQtStatisticalBoxChart::layoutChart ( const QRectF & area ) [virtual]

Notifies the chart layer that a resize interaction has finished.

The chart search tree is not updated while the chart is in an interactive state. It is updated in this method if needed.

Implements vtkQtChartLayer.

virtual bool vtkQtStatisticalBoxChart::getHelpText	(	const QPointF &	point,
		QString &	text
	)			`[virtual]`

Notifies the chart layer that a resize interaction has finished.

The chart search tree is not updated while the chart is in an interactive state. It is updated in this method if needed.

Reimplemented from vtkQtChartLayer.

virtual void vtkQtStatisticalBoxChart::finishInteractiveResize ( ) [virtual]

Notifies the chart layer that a resize interaction has finished.

The chart search tree is not updated while the chart is in an interactive state. It is updated in this method if needed.

Reimplemented from vtkQtChartLayer.

virtual void vtkQtStatisticalBoxChart::getSeriesAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of series at a given position.

Parameters:

	point	The position in scene coordinates.
	selection	Used to return the list of series.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStatisticalBoxChart::getPointsAt	(	const QPointF &	point,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of points at a given position.

Parameters:

	point	The position in scene coordinates.
	selection	Used to return the list of points.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStatisticalBoxChart::getSeriesIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of series in a given area.

Parameters:

	area	The rectangle in scene coordinates.
	selection	Used to return the list of series.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStatisticalBoxChart::getPointsIn	(	const QRectF &	area,
		vtkQtChartSeriesSelection &	selection
	)			const `[virtual]`

Gets the list of points in a given area.

Parameters:

	area	The rectangle in scene coordinates.
	selection	Used to return the list of points.

Reimplemented from vtkQtChartSeriesLayer.

virtual QRectF vtkQtStatisticalBoxChart::boundingRect ( ) const [virtual]

virtual void vtkQtStatisticalBoxChart::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget = `0`
	)			`[virtual]`

void vtkQtStatisticalBoxChart::reset ( ) [slot]

Refreshes the statistical box chart data from the model.

The currently displayed data is cleaned up. If a model is set, it is used to populate the statistical box chart.

virtual void vtkQtStatisticalBoxChart::handleOptionsChanged	(	vtkQtChartSeriesOptions *	,
		int	type,
		const QVariant &	newvalue,
		const QVariant &	oldvalue
	)			`[protected, virtual, slot]`

Called when any of the series options are changed.

Default implementation fires the modelSeriesChanged() signal.

Parameters:

	options	The options that fired the dataChanged() signal.
	type	Type of the option that was changed.
	newValue	The new value for the option.
	oldValue	The previous value for the option, if any.

Reimplemented from vtkQtChartSeriesLayer.

virtual void vtkQtStatisticalBoxChart::setupOptions ( vtkQtChartSeriesOptions * options ) [protected, virtual]

Sets up the default values for the series options object.

The style manager should be used to help set up the series options. Subclass must call this method every time a new series options is set up.

Parameters:

options

The newly created series options.

Reimplemented from vtkQtChartSeriesLayer.

The documentation for this class was generated from the following file:

dox/GUISupport/Qt/Chart/vtkQtStatisticalBoxChart.h
