vtkQtTreeView Class Reference

#include <vtkQtTreeView.h>

Inheritance diagram for vtkQtTreeView:

[legend]

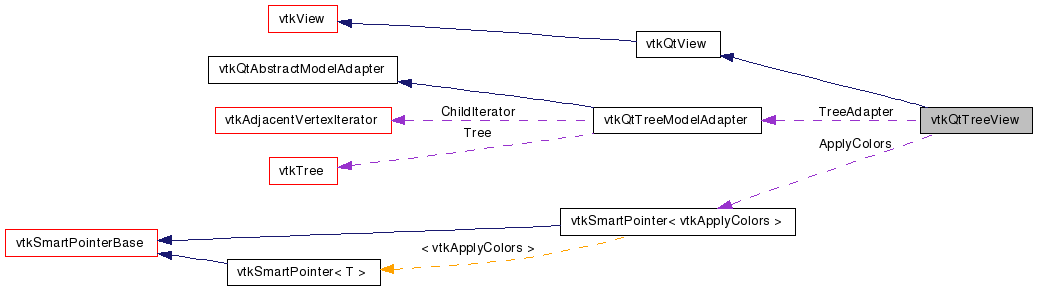

Collaboration diagram for vtkQtTreeView:

[legend]

List of all members.

---

Detailed Description

A VTK view based on a Qt tree view.

vtkQtTreeView is a VTK view using an underlying QTreeView.

Thanks:

Thanks to Brian Wylie from Sandia National Laboratories for implementing this class

Examples:

vtkQtTreeView (Examples)

Definition at line 56 of file vtkQtTreeView.h.

Public Types
typedef vtkQtView	Superclass
Signals
void	expanded (const QModelIndex &)
void	collapsed (const QModelIndex &)
void	updatePreviewWidget (const QModelIndex &)
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual QWidget *	GetWidget ()
void	SetShowHeaders (bool)
void	SetAlternatingRowColors (bool)
void	SetEnableDragDrop (bool)
void	SetShowRootNode (bool)
void	HideColumn (int i)
void	ShowColumn (int i)
void	HideAllButFirstColumn ()
void	SetFilterColumn (int i)
void	SetFilterRegExp (const QRegExp &pattern)
void	SetFilterTreeLevel (int level)
void	Collapse (const QModelIndex &index)
void	CollapseAll ()
void	Expand (const QModelIndex &index)
void	ExpandAll ()
void	ExpandToDepth (int depth)
void	ResizeColumnToContents (int column)
void	SetUseColumnView (int state)
virtual void	Update ()
void	SetItemDelegate (QAbstractItemDelegate *delegate)
virtual void	ApplyViewTheme (vtkViewTheme *theme)
void	SetColorArrayName (const char *name)
const char *	GetColorArrayName ()
void	SetColorByArray (bool vis)
bool	GetColorByArray ()
virtual void	ColorByArrayOn ()
virtual void	ColorByArrayOff ()
Static Public Member Functions
static vtkQtTreeView *	New ()
static int	IsTypeOf (const char *type)
static vtkQtTreeView *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkQtTreeView ()
	~vtkQtTreeView ()
virtual void	AddRepresentationInternal (vtkDataRepresentation *rep)
virtual void	RemoveRepresentationInternal (vtkDataRepresentation *rep)

---

Member Typedef Documentation

typedef vtkQtView vtkQtTreeView::Superclass

Reimplemented from vtkQtView.

Definition at line 67 of file vtkQtTreeView.h.

---

Constructor & Destructor Documentation

vtkQtTreeView::vtkQtTreeView

(

)

[protected]

vtkQtTreeView::~vtkQtTreeView

(

)

[protected]

---

Member Function Documentation

void vtkQtTreeView::expanded

(

const QModelIndex &

)

[signal]

void vtkQtTreeView::collapsed

(

const QModelIndex &

)

[signal]

void vtkQtTreeView::updatePreviewWidget

(

const QModelIndex &

)

[signal]

static vtkQtTreeView* vtkQtTreeView::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkView.

virtual const char* vtkQtTreeView::GetClassName

(

)

[virtual]

Reimplemented from vtkQtView.

static int vtkQtTreeView::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkQtView.

virtual int vtkQtTreeView::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkQtView.

static vtkQtTreeView* vtkQtTreeView::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkQtView.

void vtkQtTreeView::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkQtView.

virtual QWidget* vtkQtTreeView::GetWidget

(

)

[virtual]

Get the main container of this view (a QWidget). The application typically places the view with a call to GetWidget(): something like this this->ui->box->layout()->addWidget(this->View->GetWidget());

Implements vtkQtView.

void vtkQtTreeView::SetShowHeaders

(

bool

)

Have the view show/hide its column headers (default is ON)

void vtkQtTreeView::SetAlternatingRowColors

(

bool

)

Have the view alternate its row colors (default is OFF)

void vtkQtTreeView::SetEnableDragDrop

(

bool

)

Have the view alternate its row colors (default is OFF)

void vtkQtTreeView::SetShowRootNode

(

bool

)

Show the root node of the tree (default is OFF)

void vtkQtTreeView::HideColumn

(

int

i

)

Hide the column of the given index from being shown in the view

void vtkQtTreeView::ShowColumn

(

int

i

)

Show the column of the given index in the view

void vtkQtTreeView::HideAllButFirstColumn

(

)

Hide all but the first column in the view

void vtkQtTreeView::SetFilterColumn

(

int

i

)

The column used to filter on

void vtkQtTreeView::SetFilterRegExp

(

const QRegExp &

pattern

)

The column used to filter on

void vtkQtTreeView::SetFilterTreeLevel

(

int

level

)

The column used to filter on

void vtkQtTreeView::Collapse

(

const QModelIndex &

index

)

Collapses the model item specified by the index.

void vtkQtTreeView::CollapseAll

(

)

Collapses all expanded items.

void vtkQtTreeView::Expand

(

const QModelIndex &

index

)

Expands the model item specified by the index.

void vtkQtTreeView::ExpandAll

(

)

Expands all expandable items. Warning: if the model contains a large number of items, this function will take some time to execute.

void vtkQtTreeView::ExpandToDepth

(

int

depth

)

Expands all expandable items to the given depth.

void vtkQtTreeView::ResizeColumnToContents

(

int

column

)

Resizes the column given to the size of its contents.

void vtkQtTreeView::SetUseColumnView

(

int

state

)

Set whether to use a QColumnView (QTreeView is the default)

virtual void vtkQtTreeView::Update

(

)

[virtual]

Updates the view.

Reimplemented from vtkView.

void vtkQtTreeView::SetItemDelegate

(

QAbstractItemDelegate *

delegate

)

Set item delegate to something custom

void vtkQtTreeView::SetColorArrayName

(

const char *

name

)

The array to use for coloring items in view. Default is "color".

const char* vtkQtTreeView::GetColorArrayName

(

)

The array to use for coloring items in view. Default is "color".

void vtkQtTreeView::SetColorByArray

(

bool

vis

)

Whether to color vertices. Default is off.

bool vtkQtTreeView::GetColorByArray

(

)

Whether to color vertices. Default is off.

virtual void vtkQtTreeView::ColorByArrayOn

(

)

[virtual]

Whether to color vertices. Default is off.

virtual void vtkQtTreeView::ColorByArrayOff

(

)

[virtual]

Whether to color vertices. Default is off.

virtual void vtkQtTreeView::ApplyViewTheme

(

vtkViewTheme *

theme

)

[virtual]

virtual void vtkQtTreeView::AddRepresentationInternal

(

vtkDataRepresentation *

rep

)

[protected, virtual]

virtual void vtkQtTreeView::RemoveRepresentationInternal

(

vtkDataRepresentation *

rep

)

[protected, virtual]

---

The documentation for this class was generated from the following file:

• dox/GUISupport/Qt/vtkQtTreeView.h
