vtkRAdapter Class Reference

#include <vtkRAdapter.h>

Inheritance diagram for vtkRAdapter:

Inheritance graph
[legend]

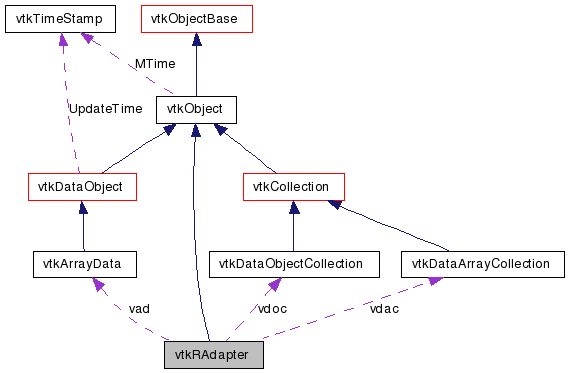

Collaboration diagram for vtkRAdapter:

Collaboration graph
[legend]

List of all members.


Detailed Description

This is a utility class to convert VTK array data and VTK tables to and from Gnu R S expression (SEXP) data structures. It is used with the R .Call interface and the embedded R interpreter.

This class creates deep copies of input data. Created R SEXP variables created by these functions can be freed by the R garbage collector by calling UNPROTECT(1). The conversions are performed for double and integer data types.

VTK data structures created by this class from R types are stored in array collections and freed when the class destructor is called. Use the Register() method on a returned object to increase its reference count by one, in order keep the object around after this classes destructor has been called. The code calling Register() must eventually call Delete() on the object to free memory.

See also:
vtkRinterface vtkRcalculatorFilter
Thanks:
Developed by Thomas Otahal at Sandia National Laboratories.

Definition at line 62 of file vtkRAdapter.h.


Public Types

typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
vtkDataArrayRToVTKDataArray (SEXP variable)
vtkArrayRToVTKArray (SEXP variable)
SEXP VTKDataArrayToR (vtkDataArray *da)
SEXP VTKArrayToR (vtkArray *da)
SEXP VTKTableToR (vtkTable *table)
vtkTableRToVTKTable (SEXP variable)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkRAdapterSafeDownCast (vtkObject *o)
static vtkRAdapterNew ()

Protected Member Functions

 vtkRAdapter ()
 ~vtkRAdapter ()

Member Typedef Documentation

Reimplemented from vtkObject.

Definition at line 67 of file vtkRAdapter.h.


Constructor & Destructor Documentation

vtkRAdapter::vtkRAdapter (  )  [protected]

vtkRAdapter::~vtkRAdapter (  )  [protected]


Member Function Documentation

virtual const char* vtkRAdapter::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

static int vtkRAdapter::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

virtual int vtkRAdapter::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

static vtkRAdapter* vtkRAdapter::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

void vtkRAdapter::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

static vtkRAdapter* vtkRAdapter::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

vtkDataArray* vtkRAdapter::RToVTKDataArray ( SEXP  variable  )

Create a vtkDataArray copy of GNU R input matrix vaiable (deep copy, allocates memory) Input is a R matrix or vector of doubles or integers

vtkArray* vtkRAdapter::RToVTKArray ( SEXP  variable  )

Create a vtkArray copy of the GNU R input variable multi-dimensional array (deep copy, allocates memory) Input is a R multi-dimensional array of doubles or integers

SEXP vtkRAdapter::VTKDataArrayToR ( vtkDataArray da  )

Create a GNU R matrix copy of the input vtkDataArray da (deep copy, allocates memory)

SEXP vtkRAdapter::VTKArrayToR ( vtkArray da  )

Create a GNU R multi-dimensional array copy of the input vtkArray da (deep copy, allocates memory)

SEXP vtkRAdapter::VTKTableToR ( vtkTable table  )

Create a GNU R matrix copy of the input vtkTable table (deep copy, allocates memory)

vtkTable* vtkRAdapter::RToVTKTable ( SEXP  variable  )

Create a vtkTable copy of the GNU R input matrix variable (deep copy, allocates memory) Input is R list of equal length vectors or a matrix.


The documentation for this class was generated from the following file:
