vtkRemoveHiddenData Class Reference

#include <vtkRemoveHiddenData.h>

Inheritance diagram for vtkRemoveHiddenData:

[legend]

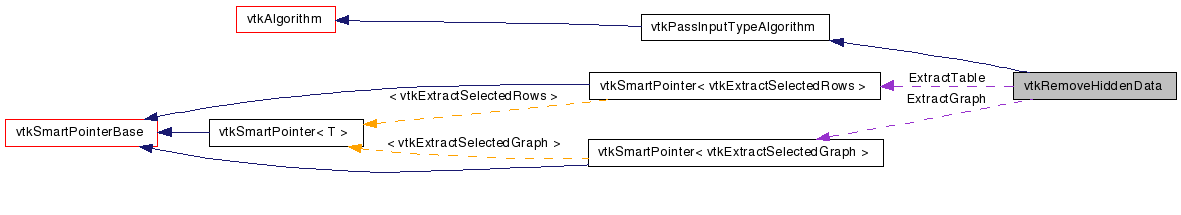

Collaboration diagram for vtkRemoveHiddenData:

[legend]

List of all members.

---

Detailed Description

Removes the rows/edges/vertices of input data flagged by ann.

Output only those rows/vertices/edges of the input vtkDataObject that are visible, as defined by the vtkAnnotation::HIDE() flag of the input vtkAnnotationLayers. Inputs: Port 0 - vtkDataObject Port 1 - vtkAnnotationLayers (optional)

Definition at line 43 of file vtkRemoveHiddenData.h.

Public Types
typedef vtkPassInputTypeAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
Static Public Member Functions
static vtkRemoveHiddenData *	New ()
static int	IsTypeOf (const char *type)
static vtkRemoveHiddenData *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkRemoveHiddenData ()
	~vtkRemoveHiddenData ()
int	FillInputPortInformation (int port, vtkInformation *info)
int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

---

Member Typedef Documentation

typedef vtkPassInputTypeAlgorithm vtkRemoveHiddenData::Superclass

Reimplemented from vtkPassInputTypeAlgorithm.

Definition at line 47 of file vtkRemoveHiddenData.h.

---

Constructor & Destructor Documentation

vtkRemoveHiddenData::vtkRemoveHiddenData

(

)

[protected]

vtkRemoveHiddenData::~vtkRemoveHiddenData

(

)

[protected]

---

Member Function Documentation

static vtkRemoveHiddenData* vtkRemoveHiddenData::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkPassInputTypeAlgorithm.

virtual const char* vtkRemoveHiddenData::GetClassName

(

)

[virtual]

Reimplemented from vtkPassInputTypeAlgorithm.

static int vtkRemoveHiddenData::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPassInputTypeAlgorithm.

virtual int vtkRemoveHiddenData::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPassInputTypeAlgorithm.

static vtkRemoveHiddenData* vtkRemoveHiddenData::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkPassInputTypeAlgorithm.

void vtkRemoveHiddenData::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPassInputTypeAlgorithm.

int vtkRemoveHiddenData::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)			[protected, virtual]

Convert the vtkGraph into vtkPolyData.

Reimplemented from vtkPassInputTypeAlgorithm.

int vtkRemoveHiddenData::FillInputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Set the input type of the algorithm to vtkGraph.

Reimplemented from vtkPassInputTypeAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/Infovis/vtkRemoveHiddenData.h
