vtkScalarBarRepresentation Class Reference

#include <vtkScalarBarRepresentation.h>

Inheritance diagram for vtkScalarBarRepresentation:

Inheritance graph
[legend]

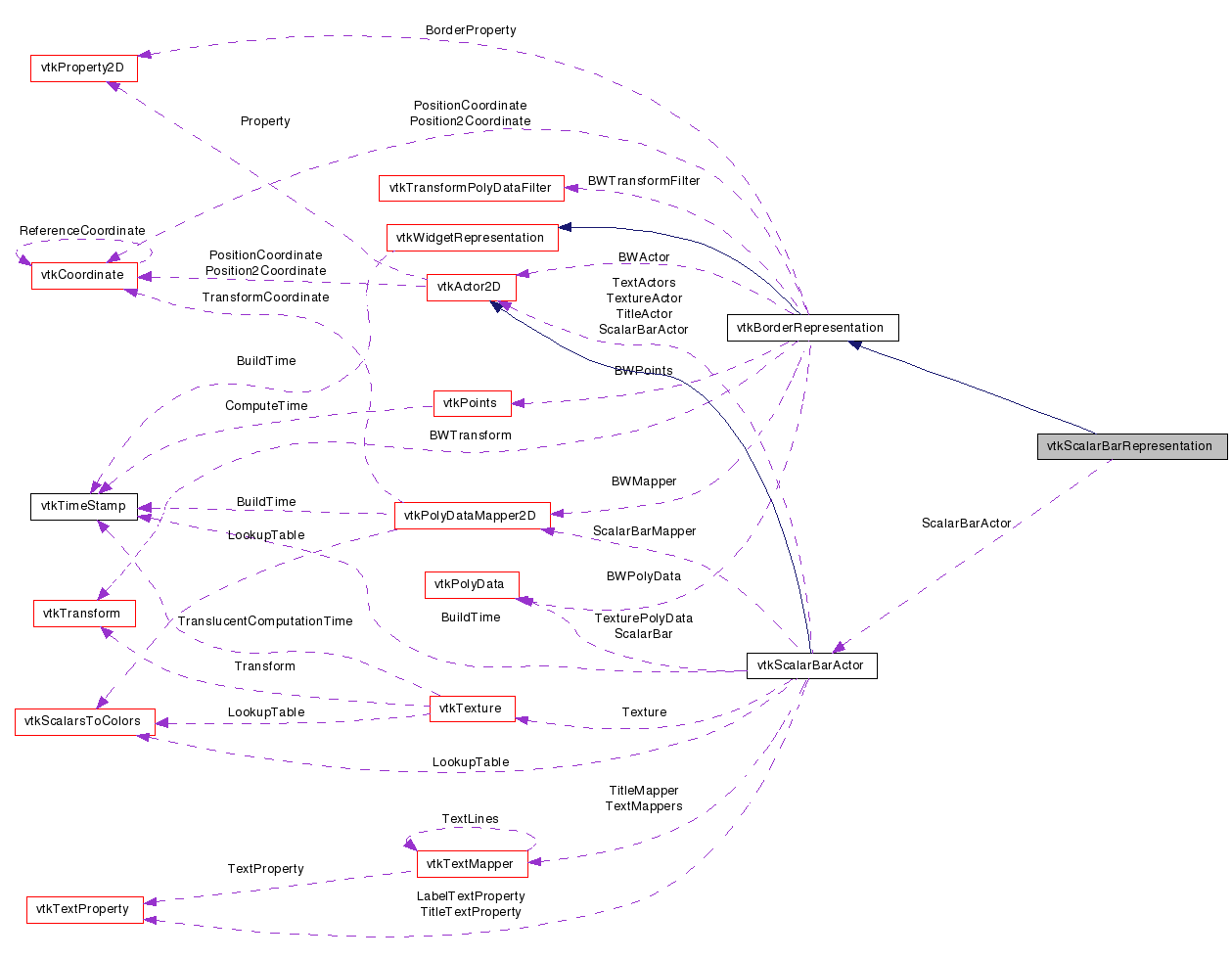

Collaboration diagram for vtkScalarBarRepresentation:

Collaboration graph
[legend]

List of all members.


Detailed Description

represent scalar bar for vtkScalarBarWidget

This class represents a scalar bar for a vtkScalarBarWidget. This class provides support for interactively placing a scalar bar on the 2D overlay plane. The scalar bar is defined by an instance of vtkScalarBarActor.

One specialty of this class is that if the scalar bar is moved near enough to an edge, it's orientation is flipped to match that edge.

See also:
vtkScalarBarWidget vtkWidgetRepresentation vtkScalarBarActor

Definition at line 49 of file vtkScalarBarRepresentation.h.


Public Types

typedef vtkBorderRepresentation Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkScalarBarActorGetScalarBarActor ()
virtual void SetScalarBarActor (vtkScalarBarActor *)
virtual void BuildRepresentation ()
virtual void WidgetInteraction (double eventPos[2])
virtual void GetSize (double size[2])
virtual void GetActors2D (vtkPropCollection *collection)
virtual void ReleaseGraphicsResources (vtkWindow *window)
virtual int RenderOverlay (vtkViewport *)
virtual int RenderOpaqueGeometry (vtkViewport *)
virtual int RenderTranslucentPolygonalGeometry (vtkViewport *)
virtual int HasTranslucentPolygonalGeometry ()
void SetOrientation (int orient)
int GetOrientation ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkScalarBarRepresentationSafeDownCast (vtkObject *o)
static vtkScalarBarRepresentationNew ()

Protected Member Functions

 vtkScalarBarRepresentation ()
 ~vtkScalarBarRepresentation ()

Protected Attributes

vtkScalarBarActorScalarBarActor

Member Typedef Documentation

Define standard methods.

Reimplemented from vtkBorderRepresentation.

Definition at line 52 of file vtkScalarBarRepresentation.h.


Constructor & Destructor Documentation

vtkScalarBarRepresentation::vtkScalarBarRepresentation (  )  [protected]

vtkScalarBarRepresentation::~vtkScalarBarRepresentation (  )  [protected]


Member Function Documentation

virtual const char* vtkScalarBarRepresentation::GetClassName (  )  [virtual]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

static int vtkScalarBarRepresentation::IsTypeOf ( const char *  type  )  [static]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

virtual int vtkScalarBarRepresentation::IsA ( const char *  type  )  [virtual]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

static vtkScalarBarRepresentation* vtkScalarBarRepresentation::SafeDownCast ( vtkObject o  )  [static]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

virtual void vtkScalarBarRepresentation::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Define standard methods.

Reimplemented from vtkBorderRepresentation.

static vtkScalarBarRepresentation* vtkScalarBarRepresentation::New (  )  [static]

Instantiate this class.

Reimplemented from vtkBorderRepresentation.

virtual vtkScalarBarActor* vtkScalarBarRepresentation::GetScalarBarActor (  )  [virtual]

The prop that is placed in the renderer.

virtual void vtkScalarBarRepresentation::SetScalarBarActor ( vtkScalarBarActor  )  [virtual]

The prop that is placed in the renderer.

virtual void vtkScalarBarRepresentation::BuildRepresentation (  )  [virtual]

Satisfy the superclass' API.

Reimplemented from vtkBorderRepresentation.

virtual void vtkScalarBarRepresentation::WidgetInteraction ( double  eventPos[2]  )  [virtual]

Satisfy the superclass' API.

Reimplemented from vtkBorderRepresentation.

virtual void vtkScalarBarRepresentation::GetSize ( double  size[2]  )  [inline, virtual]

Satisfy the superclass' API.

Reimplemented from vtkBorderRepresentation.

Definition at line 66 of file vtkScalarBarRepresentation.h.

virtual void vtkScalarBarRepresentation::GetActors2D ( vtkPropCollection collection  )  [virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual void vtkScalarBarRepresentation::ReleaseGraphicsResources ( vtkWindow window  )  [virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual int vtkScalarBarRepresentation::RenderOverlay ( vtkViewport  )  [virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual int vtkScalarBarRepresentation::RenderOpaqueGeometry ( vtkViewport  )  [virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual int vtkScalarBarRepresentation::RenderTranslucentPolygonalGeometry ( vtkViewport  )  [virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

virtual int vtkScalarBarRepresentation::HasTranslucentPolygonalGeometry (  )  [virtual]

These methods are necessary to make this representation behave as a vtkProp.

Reimplemented from vtkBorderRepresentation.

void vtkScalarBarRepresentation::SetOrientation ( int  orient  )

Get/Set the orientation.

int vtkScalarBarRepresentation::GetOrientation (  )

Get/Set the orientation.


Member Data Documentation

Definition at line 91 of file vtkScalarBarRepresentation.h.


The documentation for this class was generated from the following file:
