vtkStreamGraph Class Reference

#include <vtkStreamGraph.h>

Inheritance diagram for vtkStreamGraph:

[legend]

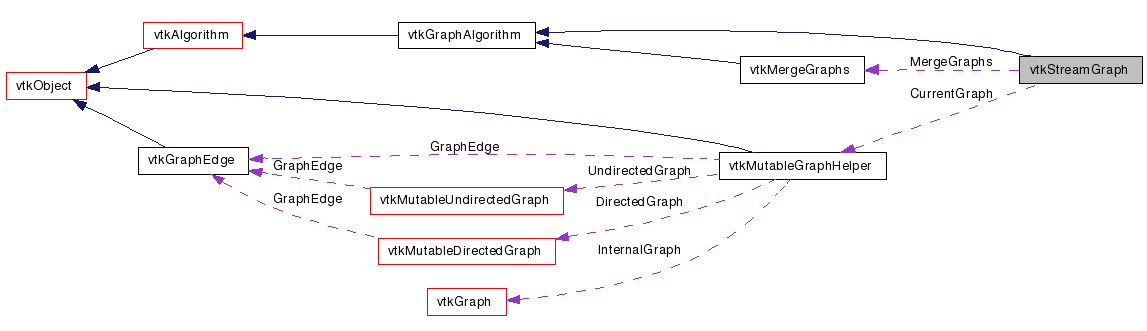

Collaboration diagram for vtkStreamGraph:

[legend]

List of all members.

Detailed Description

combines two graphs

vtkStreamGraph iteratively collects information from the input graph and combines it in the output graph. It internally maintains a graph instance that is incrementally updated every time the filter is called.

Each update, vtkMergeGraphs is used to combine this filter's input with the internal graph.

If you can use an edge window array to filter out old edges based on a moving threshold.

Events:: vtkCommand::ProgressEvent

Tests:: vtkStreamGraph (Tests)

Definition at line 53 of file vtkStreamGraph.h.


Public Types
typedef vtkGraphAlgorithm	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetUseEdgeWindow (bool)
virtual bool	GetUseEdgeWindow ()
virtual void	UseEdgeWindowOn ()
virtual void	UseEdgeWindowOff ()

virtual void	SetEdgeWindowArrayName (const char *)
virtual char *	GetEdgeWindowArrayName ()

virtual void	SetEdgeWindow (double)
virtual double	GetEdgeWindow ()
Static Public Member Functions
static vtkStreamGraph *	New ()
static int	IsTypeOf (const char *type)
static vtkStreamGraph *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkStreamGraph ()
	~vtkStreamGraph ()
virtual int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
vtkMutableGraphHelper *	CurrentGraph
vtkMergeGraphs *	MergeGraphs
bool	UseEdgeWindow
double	EdgeWindow
char *	EdgeWindowArrayName

Member Typedef Documentation

typedef vtkGraphAlgorithm vtkStreamGraph::Superclass

Reimplemented from vtkGraphAlgorithm.

Definition at line 57 of file vtkStreamGraph.h.

Constructor & Destructor Documentation

vtkStreamGraph::vtkStreamGraph ( ) [protected]

vtkStreamGraph::~vtkStreamGraph ( ) [protected]

Member Function Documentation

static vtkStreamGraph* vtkStreamGraph::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkGraphAlgorithm.

virtual const char* vtkStreamGraph::GetClassName ( ) [virtual]

Reimplemented from vtkGraphAlgorithm.

static int vtkStreamGraph::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGraphAlgorithm.

virtual int vtkStreamGraph::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkGraphAlgorithm.

static vtkStreamGraph* vtkStreamGraph::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkGraphAlgorithm.

void vtkStreamGraph::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkGraphAlgorithm.

virtual void vtkStreamGraph::SetUseEdgeWindow ( bool ) [virtual]

Whether to use an edge window array. The default is to not use a window array.

virtual bool vtkStreamGraph::GetUseEdgeWindow ( ) [virtual]

Whether to use an edge window array. The default is to not use a window array.

virtual void vtkStreamGraph::UseEdgeWindowOn ( ) [virtual]

Whether to use an edge window array. The default is to not use a window array.

virtual void vtkStreamGraph::UseEdgeWindowOff ( ) [virtual]

Whether to use an edge window array. The default is to not use a window array.

virtual void vtkStreamGraph::SetEdgeWindowArrayName ( const char * ) [virtual]

The edge window array. The default array name is "time".

virtual char* vtkStreamGraph::GetEdgeWindowArrayName ( ) [virtual]

The edge window array. The default array name is "time".

virtual void vtkStreamGraph::SetEdgeWindow ( double ) [virtual]

The time window amount. Edges with values lower than the maximum value minus this window will be removed from the graph. The default edge window is 10000.

virtual double vtkStreamGraph::GetEdgeWindow ( ) [virtual]

The time window amount. Edges with values lower than the maximum value minus this window will be removed from the graph. The default edge window is 10000.

virtual int vtkStreamGraph::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)			`[protected, virtual]`
