vtkStructuredGrid Class Reference

#include <vtkStructuredGrid.h>

Inheritance diagram for vtkStructuredGrid:

Inheritance graph
[legend]

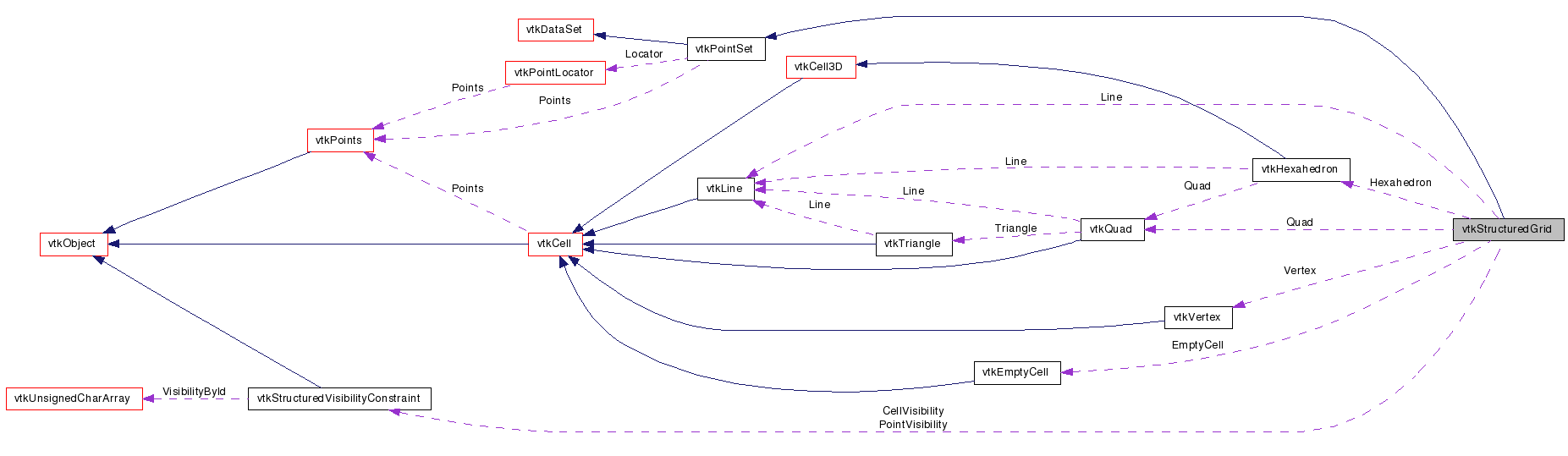

Collaboration diagram for vtkStructuredGrid:

Collaboration graph
[legend]

List of all members.


Detailed Description

topologically regular array of data

vtkStructuredGrid is a data object that is a concrete implementation of vtkDataSet. vtkStructuredGrid represents a geometric structure that is a topologically regular array of points. The topology is that of a cube that has been subdivided into a regular array of smaller cubes. Each point/cell can be addressed with i-j-k indices. Examples include finite difference grids.

The order and number of points must match that specified by the dimensions of the grid. The point order increases in i fastest (from 0<=i<dims[0]), then j (0<=j<dims[1]), then k (0<=k<dims[2]) where dims[] are the dimensions of the grid in the i-j-k topological directions. The number of points is dims[0]*dims[1]*dims[2]. The same is true for the cells of the grid. The order and number of cells must match that specified by the dimensions of the grid. The cell order increases in i fastest (from 0<=i<(dims[0]-1)), then j (0<=j<(dims[1]-1)), then k (0<=k<(dims[2]-1)) The number of cells is (dims[0]-1)*(dims[1]-1)*(dims[2]-1).

A unusual feature of vtkStructuredGrid is the ability to blank, or "turn-off" points and cells in the dataset. This is controlled by defining a "blanking array" whose values (0,1) specify whether a point should be blanked or not.

Examples:
vtkStructuredGrid (Examples)
Tests:
vtkStructuredGrid (Tests)

Definition at line 62 of file vtkStructuredGrid.h.


Public Types

typedef vtkPointSet Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
void PrintSelf (ostream &os, vtkIndent indent)
int GetDataObjectType ()
void CopyStructure (vtkDataSet *ds)
int GetDataDimension ()
unsigned long GetActualMemorySize ()
int GetExtentType ()
vtkUnsignedCharArrayGetPointVisibilityArray ()
void SetPointVisibilityArray (vtkUnsignedCharArray *pointVisibility)
vtkUnsignedCharArrayGetCellVisibilityArray ()
void SetCellVisibilityArray (vtkUnsignedCharArray *pointVisibility)
unsigned char IsPointVisible (vtkIdType ptId)
unsigned char IsCellVisible (vtkIdType cellId)
unsigned char GetPointBlanking ()
unsigned char GetCellBlanking ()
virtual void Crop ()
void GetPoint (int i, int j, int k, double p[3], bool adjustForExtent=true)
vtkIdType GetNumberOfPoints ()
double * GetPoint (vtkIdType ptId)
void GetPoint (vtkIdType ptId, double p[3])
vtkCellGetCell (vtkIdType cellId)
void GetCell (vtkIdType cellId, vtkGenericCell *cell)
void GetCellBounds (vtkIdType cellId, double bounds[6])
int GetCellType (vtkIdType cellId)
vtkIdType GetNumberOfCells ()
void GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)
void GetPointCells (vtkIdType ptId, vtkIdList *cellIds)
void Initialize ()
int GetMaxCellSize ()
void GetCellNeighbors (vtkIdType cellId, vtkIdList *ptIds, vtkIdList *cellIds)
virtual void GetScalarRange (double range[2])
double * GetScalarRange ()
void SetDimensions (int i, int j, int k)
void SetDimensions (int dim[3])
virtual int * GetDimensions ()
virtual void GetDimensions (int dim[3])
void SetExtent (int extent[6])
void SetExtent (int x1, int x2, int y1, int y2, int z1, int z2)
virtual int * GetExtent ()
virtual void GetExtent (int &, int &, int &, int &, int &, int &)
virtual void GetExtent (int[6])
void ShallowCopy (vtkDataObject *src)
void DeepCopy (vtkDataObject *src)
void BlankPoint (vtkIdType ptId)
void UnBlankPoint (vtkIdType ptId)
void BlankCell (vtkIdType ptId)
void UnBlankCell (vtkIdType ptId)

Static Public Member Functions

static vtkStructuredGridNew ()
static int IsTypeOf (const char *type)
static vtkStructuredGridSafeDownCast (vtkObject *o)
static vtkStructuredGridGetData (vtkInformation *info)
static vtkStructuredGridGetData (vtkInformationVector *v, int i=0)

Protected Member Functions

 vtkStructuredGrid ()
 ~vtkStructuredGrid ()
void SetPointVisibility (vtkStructuredVisibilityConstraint *pointVisibility)
virtual
vtkStructuredVisibilityConstraint
GetPointVisibility ()
void SetCellVisibility (vtkStructuredVisibilityConstraint *cellVisibility)
virtual
vtkStructuredVisibilityConstraint
GetCellVisibility ()

Protected Attributes

vtkVertexVertex
vtkLineLine
vtkQuadQuad
vtkHexahedronHexahedron
vtkEmptyCellEmptyCell
int Dimensions [3]
int DataDescription
int Extent [6]
vtkStructuredVisibilityConstraintPointVisibility
vtkStructuredVisibilityConstraintCellVisibility

Member Typedef Documentation

Reimplemented from vtkPointSet.

Definition at line 67 of file vtkStructuredGrid.h.


Constructor & Destructor Documentation

vtkStructuredGrid::vtkStructuredGrid (  )  [protected]

vtkStructuredGrid::~vtkStructuredGrid (  )  [protected]


Member Function Documentation

static vtkStructuredGrid* vtkStructuredGrid::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObject.

virtual const char* vtkStructuredGrid::GetClassName (  )  [virtual]

Reimplemented from vtkPointSet.

static int vtkStructuredGrid::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointSet.

virtual int vtkStructuredGrid::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPointSet.

static vtkStructuredGrid* vtkStructuredGrid::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkPointSet.

void vtkStructuredGrid::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPointSet.

int vtkStructuredGrid::GetDataObjectType (  )  [inline, virtual]

Return what type of dataset this is.

Reimplemented from vtkDataSet.

Definition at line 71 of file vtkStructuredGrid.h.

void vtkStructuredGrid::CopyStructure ( vtkDataSet ds  )  [virtual]

Copy the geometric and topological structure of an input poly data object.

Reimplemented from vtkPointSet.

vtkIdType vtkStructuredGrid::GetNumberOfPoints (  )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkPointSet.

Definition at line 79 of file vtkStructuredGrid.h.

double* vtkStructuredGrid::GetPoint ( vtkIdType  ptId  )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkPointSet.

Definition at line 80 of file vtkStructuredGrid.h.

void vtkStructuredGrid::GetPoint ( vtkIdType  ptId,
double  p[3]
) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkPointSet.

Definition at line 81 of file vtkStructuredGrid.h.

vtkCell* vtkStructuredGrid::GetCell ( vtkIdType  cellId  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

void vtkStructuredGrid::GetCell ( vtkIdType  cellId,
vtkGenericCell cell
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

void vtkStructuredGrid::GetCellBounds ( vtkIdType  cellId,
double  bounds[6]
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

int vtkStructuredGrid::GetCellType ( vtkIdType  cellId  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

vtkIdType vtkStructuredGrid::GetNumberOfCells (  )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 254 of file vtkStructuredGrid.h.

void vtkStructuredGrid::GetCellPoints ( vtkIdType  cellId,
vtkIdList ptIds
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

void vtkStructuredGrid::GetPointCells ( vtkIdType  ptId,
vtkIdList cellIds
) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 89 of file vtkStructuredGrid.h.

void vtkStructuredGrid::Initialize (  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkPointSet.

int vtkStructuredGrid::GetMaxCellSize (  )  [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 94 of file vtkStructuredGrid.h.

void vtkStructuredGrid::GetCellNeighbors ( vtkIdType  cellId,
vtkIdList ptIds,
vtkIdList cellIds
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

virtual void vtkStructuredGrid::GetScalarRange ( double  range[2]  )  [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

double* vtkStructuredGrid::GetScalarRange (  )  [inline]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

Definition at line 98 of file vtkStructuredGrid.h.

void vtkStructuredGrid::SetDimensions ( int  i,
int  j,
int  k
)

following methods are specific to structured grid

void vtkStructuredGrid::SetDimensions ( int  dim[3]  )

following methods are specific to structured grid

virtual int* vtkStructuredGrid::GetDimensions (  )  [virtual]

Get dimensions of this structured points dataset.

virtual void vtkStructuredGrid::GetDimensions ( int  dim[3]  )  [virtual]

Get dimensions of this structured points dataset.

int vtkStructuredGrid::GetDataDimension (  )  [inline]

Return the dimensionality of the data.

Definition at line 276 of file vtkStructuredGrid.h.

void vtkStructuredGrid::SetExtent ( int  extent[6]  )

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

void vtkStructuredGrid::SetExtent ( int  x1,
int  x2,
int  y1,
int  y2,
int  z1,
int  z2
)

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual int* vtkStructuredGrid::GetExtent (  )  [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkStructuredGrid::GetExtent ( int &  ,
int &  ,
int &  ,
int &  ,
int &  ,
int &
) [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

virtual void vtkStructuredGrid::GetExtent ( int  [6]  )  [virtual]

Different ways to set the extent of the data array. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z).

unsigned long vtkStructuredGrid::GetActualMemorySize (  )  [virtual]

Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE.

Reimplemented from vtkPointSet.

void vtkStructuredGrid::ShallowCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkPointSet.

void vtkStructuredGrid::DeepCopy ( vtkDataObject src  )  [virtual]

Shallow and Deep copy.

Reimplemented from vtkPointSet.

int vtkStructuredGrid::GetExtentType (  )  [inline, virtual]

The extent type is a 3D extent

Reimplemented from vtkDataObject.

Definition at line 139 of file vtkStructuredGrid.h.

void vtkStructuredGrid::BlankPoint ( vtkIdType  ptId  )

Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them. These methods should be called only after the dimensions of the grid are set.

void vtkStructuredGrid::UnBlankPoint ( vtkIdType  ptId  )

Methods for supporting blanking of cells. Blanking turns on or off points in the structured grid, and hence the cells connected to them. These methods should be called only after the dimensions of the grid are set.

void vtkStructuredGrid::BlankCell ( vtkIdType  ptId  )

Methods for supporting blanking of cells. Blanking turns on or off cells in the structured grid, and hence the cells connected to them. These methods should be called only after the dimensions of the grid are set.

void vtkStructuredGrid::UnBlankCell ( vtkIdType  ptId  )

Methods for supporting blanking of cells. Blanking turns on or off cells in the structured grid, and hence the cells connected to them. These methods should be called only after the dimensions of the grid are set.

vtkUnsignedCharArray* vtkStructuredGrid::GetPointVisibilityArray (  )

Get the array that defines the blanking (visibility) of each point.

void vtkStructuredGrid::SetPointVisibilityArray ( vtkUnsignedCharArray pointVisibility  )

Set an array that defines the (blanking) visibility of the points in the grid. Make sure that length of the visibility array matches the number of points in the grid.

vtkUnsignedCharArray* vtkStructuredGrid::GetCellVisibilityArray (  )

Get the array that defines the blanking (visibility) of each cell.

void vtkStructuredGrid::SetCellVisibilityArray ( vtkUnsignedCharArray pointVisibility  )

Set an array that defines the (blanking) visibility of the cells in the grid. Make sure that length of the visibility array matches the number of points in the grid.

unsigned char vtkStructuredGrid::IsPointVisible ( vtkIdType  ptId  )

Return non-zero value if specified point is visible. These methods should be called only after the dimensions of the grid are set.

unsigned char vtkStructuredGrid::IsCellVisible ( vtkIdType  cellId  )

Return non-zero value if specified point is visible. These methods should be called only after the dimensions of the grid are set.

unsigned char vtkStructuredGrid::GetPointBlanking (  )

Returns 1 if there is any visibility constraint on the points, 0 otherwise.

unsigned char vtkStructuredGrid::GetCellBlanking (  )

Returns 1 if there is any visibility constraint on the cells, 0 otherwise.

virtual void vtkStructuredGrid::Crop (  )  [virtual]

Reallocates and copies to set the Extent to the UpdateExtent. This is used internally when the exact extent is requested, and the source generated more than the update extent.

Reimplemented from vtkDataObject.

static vtkStructuredGrid* vtkStructuredGrid::GetData ( vtkInformation info  )  [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkPointSet.

static vtkStructuredGrid* vtkStructuredGrid::GetData ( vtkInformationVector v,
int  i = 0
) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkPointSet.

void vtkStructuredGrid::GetPoint ( int  i,
int  j,
int  k,
double  p[3],
bool  adjustForExtent = true
)

Get a point in the grid. If adjustForExtent is true, (i,j,k) is interpreted as a position relative to the beginning of the extent. If adjustForExtent is false, (i,j,k) is interpreted literally and the (i,j,k) point of the grid is returned regardless of the extent beginning. The point coordinate is returned in 'p'. The default adjustForExtent is true.

void vtkStructuredGrid::SetPointVisibility ( vtkStructuredVisibilityConstraint pointVisibility  )  [protected]

virtual vtkStructuredVisibilityConstraint* vtkStructuredGrid::GetPointVisibility (  )  [protected, virtual]

void vtkStructuredGrid::SetCellVisibility ( vtkStructuredVisibilityConstraint cellVisibility  )  [protected]

virtual vtkStructuredVisibilityConstraint* vtkStructuredGrid::GetCellVisibility (  )  [protected, virtual]


Member Data Documentation

Definition at line 217 of file vtkStructuredGrid.h.

Definition at line 218 of file vtkStructuredGrid.h.

Definition at line 219 of file vtkStructuredGrid.h.

Definition at line 220 of file vtkStructuredGrid.h.

Definition at line 221 of file vtkStructuredGrid.h.

int vtkStructuredGrid::Dimensions[3] [protected]

Definition at line 223 of file vtkStructuredGrid.h.

Definition at line 224 of file vtkStructuredGrid.h.

int vtkStructuredGrid::Extent[6] [protected]

Definition at line 226 of file vtkStructuredGrid.h.

Definition at line 228 of file vtkStructuredGrid.h.

Definition at line 231 of file vtkStructuredGrid.h.


The documentation for this class was generated from the following file:

Generated on Wed Aug 24 12:09:35 2011 for VTK by  doxygen 1.5.6
