vtkTDxInteractorStyle Class Reference

#include <vtkTDxInteractorStyle.h>

Inheritance diagram for vtkTDxInteractorStyle:

[legend]

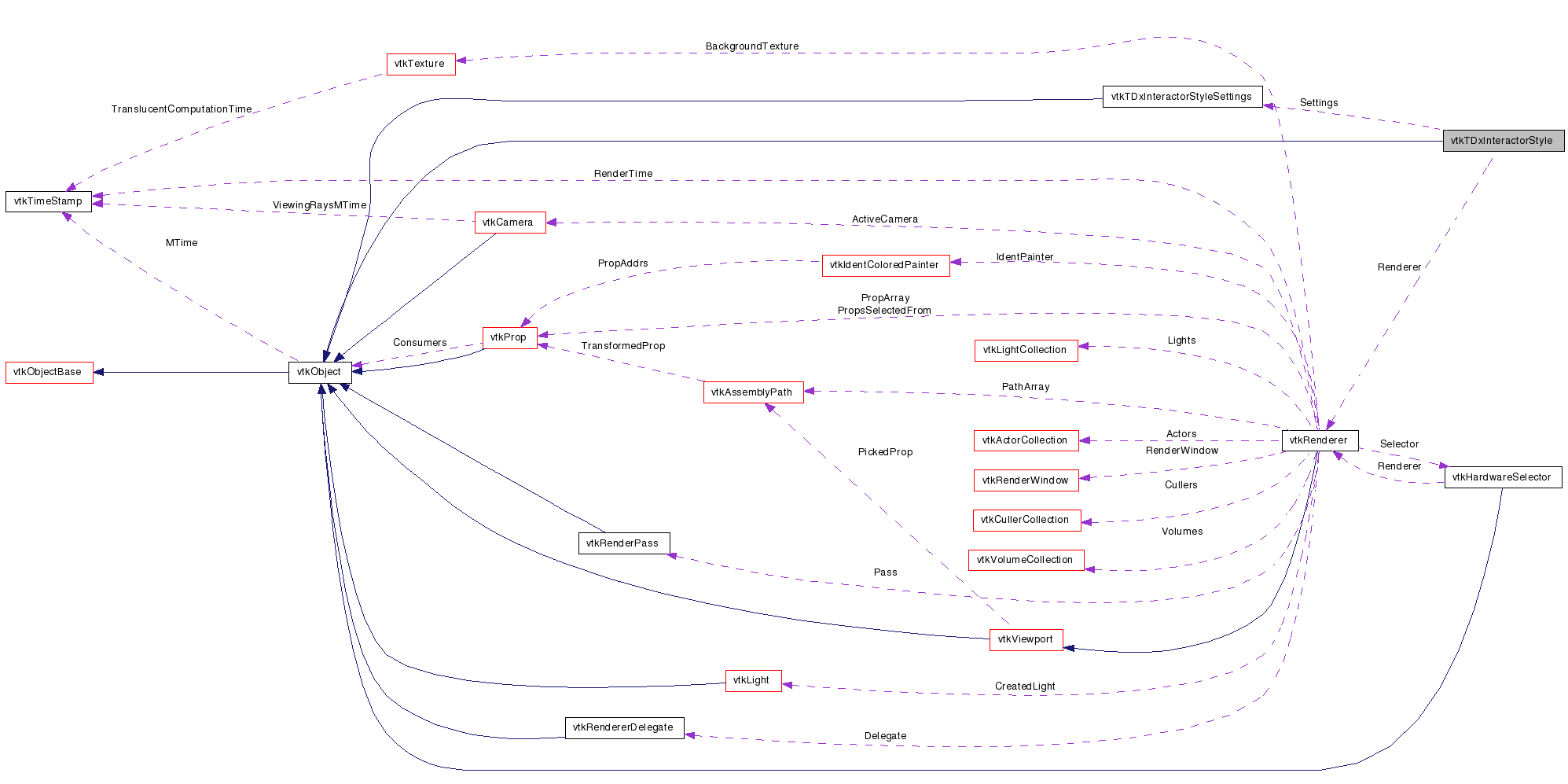

Collaboration diagram for vtkTDxInteractorStyle:

[legend]

List of all members.

---

Detailed Description

provide 3DConnexion device event-driven interface to the rendering window

vtkTDxInteractorStyle is an abstract class defining an event-driven interface to support 3DConnexion device events send by vtkRenderWindowInteractor. vtkRenderWindowInteractor forwards events in a platform independent form to vtkInteractorStyle which can then delegate some processing to vtkTDxInteractorStyle.

See also:

vtkInteractorStyle vtkRenderWindowInteractor vtkTDxInteractorStyleCamera

Examples:

vtkTDxInteractorStyle (Examples)

Definition at line 43 of file vtkTDxInteractorStyle.h.

Public Types
typedef vtkObject	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	OnMotionEvent (vtkTDxMotionEventInfo *motionInfo)
virtual void	OnButtonPressedEvent (int button)
virtual void	OnButtonReleasedEvent (int button)
virtual void	ProcessEvent (vtkRenderer *renderer, unsigned long event, void *calldata)
virtual vtkTDxInteractorStyleSettings *	GetSettings ()
virtual void	SetSettings (vtkTDxInteractorStyleSettings *settings)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkTDxInteractorStyle *	SafeDownCast (vtkObject *o)
Protected Member Functions
	vtkTDxInteractorStyle ()
virtual	~vtkTDxInteractorStyle ()
Protected Attributes
vtkTDxInteractorStyleSettings *	Settings
vtkRenderer *	Renderer

---

Member Typedef Documentation

typedef vtkObject vtkTDxInteractorStyle::Superclass

Reimplemented from vtkObject.

Reimplemented in vtkTDxInteractorStyleCamera, and vtkTDxInteractorStyleGeo.

Definition at line 46 of file vtkTDxInteractorStyle.h.

---

Constructor & Destructor Documentation

vtkTDxInteractorStyle::vtkTDxInteractorStyle

(

)

[protected]

virtual vtkTDxInteractorStyle::~vtkTDxInteractorStyle

(

)

[protected, virtual]

---

Member Function Documentation

virtual const char* vtkTDxInteractorStyle::GetClassName

(

)

[virtual]

Reimplemented from vtkObject.

Reimplemented in vtkTDxInteractorStyleCamera, and vtkTDxInteractorStyleGeo.

static int vtkTDxInteractorStyle::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkTDxInteractorStyleCamera, and vtkTDxInteractorStyleGeo.

virtual int vtkTDxInteractorStyle::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkTDxInteractorStyleCamera, and vtkTDxInteractorStyleGeo.

static vtkTDxInteractorStyle* vtkTDxInteractorStyle::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkObject.

Reimplemented in vtkTDxInteractorStyleCamera, and vtkTDxInteractorStyleGeo.

void vtkTDxInteractorStyle::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkTDxInteractorStyleCamera, and vtkTDxInteractorStyleGeo.

virtual void vtkTDxInteractorStyle::OnMotionEvent

(

vtkTDxMotionEventInfo *

motionInfo

)

[virtual]

Action on motion event. Default implementation is empty.

Precondition:

: motionInfo_exist: motionInfo!=0

Reimplemented in vtkTDxInteractorStyleCamera, and vtkTDxInteractorStyleGeo.

virtual void vtkTDxInteractorStyle::OnButtonPressedEvent

(

int

button

)

[virtual]

Action on button pressed event. Default implementation is empty.

virtual void vtkTDxInteractorStyle::OnButtonReleasedEvent

(

int

button

)

[virtual]

Action on button released event. Default implementation is empty.

virtual void vtkTDxInteractorStyle::ProcessEvent	(	vtkRenderer *	renderer,
		unsigned long	event,
		void *	calldata
	)			[virtual]

Dispatch the events TDxMotionEvent, TDxButtonPressEvent and TDxButtonReleaseEvent to OnMotionEvent(), OnButtonPressedEvent() and OnButtonReleasedEvent() respectively. It is called by the vtkInteractorStyle. This method is virtual for convenient but you should really override the On*Event() methods only.

Precondition:

renderer can be null.

virtual vtkTDxInteractorStyleSettings* vtkTDxInteractorStyle::GetSettings

(

)

[virtual]

3Dconnexion device settings. (sensitivity, individual axis filters). Initial object is not null.

virtual void vtkTDxInteractorStyle::SetSettings

(

vtkTDxInteractorStyleSettings *

settings

)

[virtual]

3Dconnexion device settings. (sensitivity, individual axis filters). Initial object is not null.

---

Member Data Documentation

vtkTDxInteractorStyleSettings* vtkTDxInteractorStyle::Settings [protected]

Definition at line 86 of file vtkTDxInteractorStyle.h.

vtkRenderer* vtkTDxInteractorStyle::Renderer [protected]

Definition at line 88 of file vtkTDxInteractorStyle.h.

---

The documentation for this class was generated from the following file:

• dox/Rendering/vtkTDxInteractorStyle.h
