vtkUnstructuredGridHomogeneousRayIntegrator Class Reference

#include <vtkUnstructuredGridHomogeneousRayIntegrator.h>

Inheritance diagram for vtkUnstructuredGridHomogeneousRayIntegrator:

[legend]

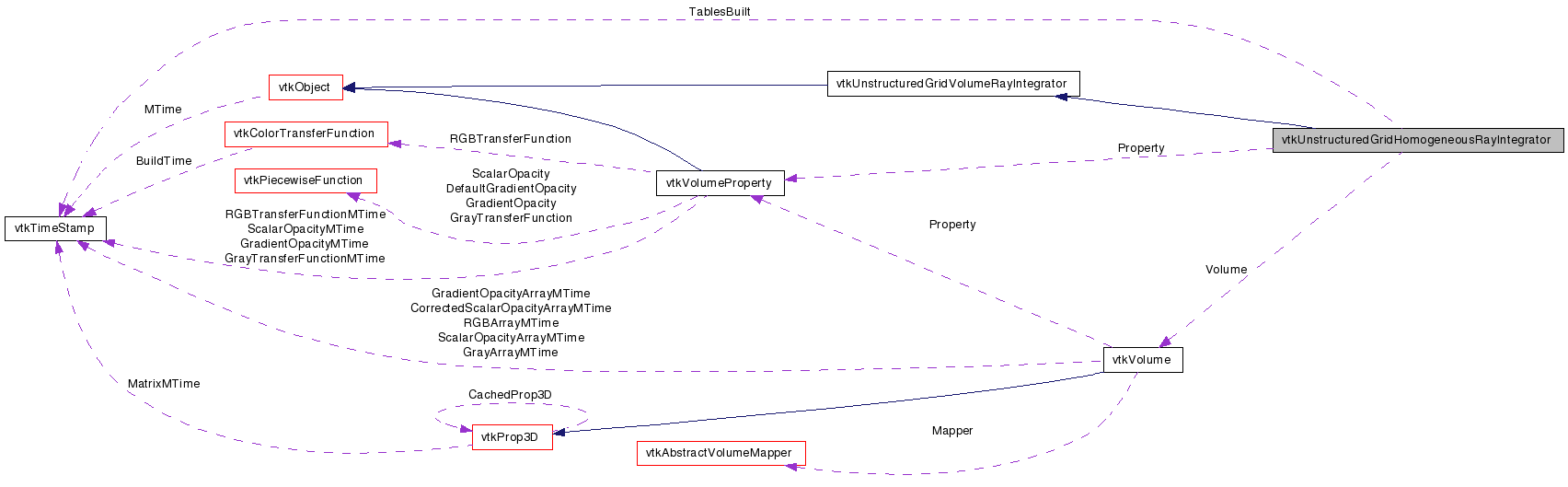

Collaboration diagram for vtkUnstructuredGridHomogeneousRayIntegrator:

[legend]

List of all members.

Detailed Description

performs peicewise constant ray integration.

vtkUnstructuredGridHomogeneousRayIntegrator performs homogeneous ray integration. This is a good method to use when volume rendering scalars that are defined on cells.

Tests:: vtkUnstructuredGridHomogeneousRayIntegrator (Tests)

Definition at line 46 of file vtkUnstructuredGridHomogeneousRayIntegrator.h.


Public Types
typedef vtkUnstructuredGridVolumeRayIntegrator	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	Initialize (vtkVolume volume, vtkDataArray scalars)
virtual void	Integrate (vtkDoubleArray intersectionLengths, vtkDataArray nearIntersections, vtkDataArray *farIntersections, float color[4])

virtual void	SetTransferFunctionTableSize (int)
virtual int	GetTransferFunctionTableSize ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkUnstructuredGridHomogeneousRayIntegrator *	SafeDownCast (vtkObject *o)
static vtkUnstructuredGridHomogeneousRayIntegrator *	New ()
Protected Member Functions
	vtkUnstructuredGridHomogeneousRayIntegrator ()
	~vtkUnstructuredGridHomogeneousRayIntegrator ()
virtual void	GetTransferFunctionTables (vtkDataArray *scalars)
Protected Attributes
vtkVolume *	Volume
vtkVolumeProperty *	Property
int	NumComponents
float **	ColorTable
float **	AttenuationTable
double *	TableShift
double *	TableScale
vtkTimeStamp	TablesBuilt
int	UseAverageColor
int	TransferFunctionTableSize

Member Typedef Documentation

typedef vtkUnstructuredGridVolumeRayIntegrator vtkUnstructuredGridHomogeneousRayIntegrator::Superclass

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

Definition at line 50 of file vtkUnstructuredGridHomogeneousRayIntegrator.h.

Constructor & Destructor Documentation

vtkUnstructuredGridHomogeneousRayIntegrator::vtkUnstructuredGridHomogeneousRayIntegrator ( ) [protected]

vtkUnstructuredGridHomogeneousRayIntegrator::~vtkUnstructuredGridHomogeneousRayIntegrator ( ) [protected]

Member Function Documentation

virtual const char* vtkUnstructuredGridHomogeneousRayIntegrator::GetClassName ( ) [virtual]

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

static int vtkUnstructuredGridHomogeneousRayIntegrator::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

virtual int vtkUnstructuredGridHomogeneousRayIntegrator::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

static vtkUnstructuredGridHomogeneousRayIntegrator* vtkUnstructuredGridHomogeneousRayIntegrator::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

static vtkUnstructuredGridHomogeneousRayIntegrator* vtkUnstructuredGridHomogeneousRayIntegrator::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual void vtkUnstructuredGridHomogeneousRayIntegrator::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

virtual void vtkUnstructuredGridHomogeneousRayIntegrator::Initialize	(	vtkVolume *	volume,
		vtkDataArray *	scalars
	)			`[virtual]`

Set up the integrator with the given properties and scalars.

Implements vtkUnstructuredGridVolumeRayIntegrator.

virtual void vtkUnstructuredGridHomogeneousRayIntegrator::Integrate	(	vtkDoubleArray *	intersectionLengths,
		vtkDataArray *	nearIntersections,
		vtkDataArray *	farIntersections,
		float	color[4]
	)			`[virtual]`

Given a set of intersections (defined by the three arrays), compute the peicewise integration of the array in front to back order. /c intersectionLengths holds the lengths of each peicewise segment. /c nearIntersections and /c farIntersections hold the scalar values at the front and back of each segment. /c color should contain the RGBA value of the volume in front of the segments passed in, and the result will be placed back into /c color.

Implements vtkUnstructuredGridVolumeRayIntegrator.

virtual void vtkUnstructuredGridHomogeneousRayIntegrator::SetTransferFunctionTableSize ( int ) [virtual]

For quick lookup, the transfer function is sampled into a table. This parameter sets how big of a table to use. By default, 1024 entries are used.

virtual int vtkUnstructuredGridHomogeneousRayIntegrator::GetTransferFunctionTableSize ( ) [virtual]

For quick lookup, the transfer function is sampled into a table. This parameter sets how big of a table to use. By default, 1024 entries are used.

virtual void vtkUnstructuredGridHomogeneousRayIntegrator::GetTransferFunctionTables ( vtkDataArray * scalars ) [protected, virtual]
