vtkUnstructuredGridPreIntegration Class Reference

#include <vtkUnstructuredGridPreIntegration.h>

Inheritance diagram for vtkUnstructuredGridPreIntegration:

Inheritance graph
[legend]

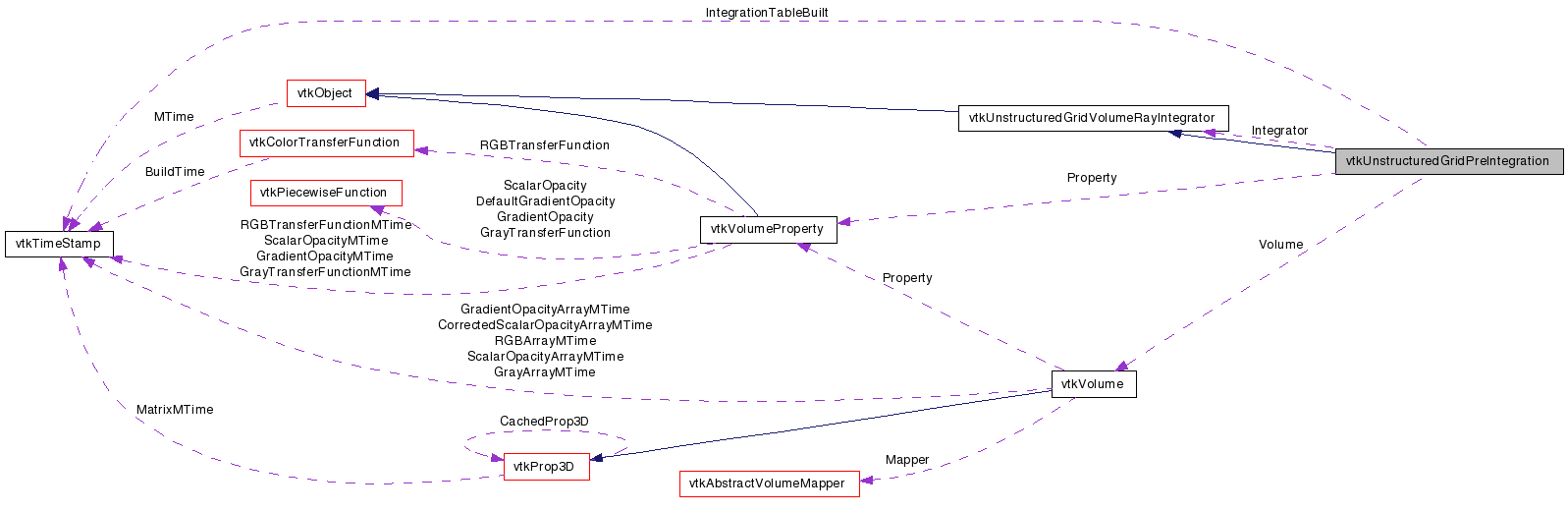

Collaboration diagram for vtkUnstructuredGridPreIntegration:

Collaboration graph
[legend]

List of all members.


Detailed Description

performs ray integration with pre-integration tables.

vtkUnstructuredGridPreIntegration performs ray integration by looking into a precomputed table. The result should be equivalent to that computed by vtkUnstructuredGridLinearRayIntegrator and vtkUnstructuredGridPartialPreIntegration, but faster than either one. The pre-integration algorithm was first introduced by Roettger, Kraus, and Ertl in "Hardware-Accelerated Volume And Isosurface Rendering Based On Cell-Projection."

Due to table size limitations, a table can only be indexed by independent scalars. Thus, dependent scalars are not supported.

Tests:
vtkUnstructuredGridPreIntegration (Tests)

Definition at line 53 of file vtkUnstructuredGridPreIntegration.h.


Public Types

typedef
vtkUnstructuredGridVolumeRayIntegrator
Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual void Initialize (vtkVolume *volume, vtkDataArray *scalars)
virtual void Integrate (vtkDoubleArray *intersectionLengths, vtkDataArray *nearIntersections, vtkDataArray *farIntersections, float color[4])
virtual float * GetPreIntegrationTable (int component=0)
virtual
vtkUnstructuredGridVolumeRayIntegrator
GetIntegrator ()
virtual void SetIntegrator (vtkUnstructuredGridVolumeRayIntegrator *)
virtual void SetIntegrationTableScalarResolution (int)
virtual int GetIntegrationTableScalarResolution ()
virtual void SetIntegrationTableLengthResolution (int)
virtual int GetIntegrationTableLengthResolution ()
virtual double GetIntegrationTableScalarShift (int component=0)
virtual double GetIntegrationTableScalarScale (int component=0)
virtual double GetIntegrationTableLengthScale ()
virtual int GetIncrementalPreIntegration ()
virtual void SetIncrementalPreIntegration (int)
virtual void IncrementalPreIntegrationOn ()
virtual void IncrementalPreIntegrationOff ()
float * GetTableEntry (double scalar_front, double scalar_back, double lenth, int component=0)
float * GetIndexedTableEntry (int scalar_front_index, int scalar_back_index, int length_index, int component=0)

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkUnstructuredGridPreIntegration
SafeDownCast (vtkObject *o)
static
vtkUnstructuredGridPreIntegration
New ()

Protected Member Functions

 vtkUnstructuredGridPreIntegration ()
 ~vtkUnstructuredGridPreIntegration ()
virtual void BuildPreIntegrationTables (vtkDataArray *scalars)

Protected Attributes

vtkUnstructuredGridVolumeRayIntegratorIntegrator
vtkVolumeVolume
vtkVolumePropertyProperty
double MaxLength
int NumComponents
float ** IntegrationTable
double * IntegrationTableScalarShift
double * IntegrationTableScalarScale
double IntegrationTableLengthScale
vtkTimeStamp IntegrationTableBuilt
int IntegrationTableScalarResolution
int IntegrationTableLengthResolution
int IncrementalPreIntegration

Member Typedef Documentation

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

Definition at line 57 of file vtkUnstructuredGridPreIntegration.h.


Constructor & Destructor Documentation

vtkUnstructuredGridPreIntegration::vtkUnstructuredGridPreIntegration (  )  [protected]

vtkUnstructuredGridPreIntegration::~vtkUnstructuredGridPreIntegration (  )  [protected]


Member Function Documentation

virtual const char* vtkUnstructuredGridPreIntegration::GetClassName (  )  [virtual]

static int vtkUnstructuredGridPreIntegration::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

virtual int vtkUnstructuredGridPreIntegration::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

static vtkUnstructuredGridPreIntegration* vtkUnstructuredGridPreIntegration::SafeDownCast ( vtkObject o  )  [static]

static vtkUnstructuredGridPreIntegration* vtkUnstructuredGridPreIntegration::New (  )  [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

virtual void vtkUnstructuredGridPreIntegration::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkUnstructuredGridVolumeRayIntegrator.

virtual void vtkUnstructuredGridPreIntegration::Initialize ( vtkVolume volume,
vtkDataArray scalars
) [virtual]

Set up the integrator with the given properties and scalars.

Implements vtkUnstructuredGridVolumeRayIntegrator.

virtual void vtkUnstructuredGridPreIntegration::Integrate ( vtkDoubleArray intersectionLengths,
vtkDataArray nearIntersections,
vtkDataArray farIntersections,
float  color[4]
) [virtual]

Given a set of intersections (defined by the three arrays), compute the peicewise integration of the array in front to back order. /c intersectionLengths holds the lengths of each peicewise segment. /c nearIntersections and /c farIntersections hold the scalar values at the front and back of each segment. /c color should contain the RGBA value of the volume in front of the segments passed in, and the result will be placed back into /c color.

Implements vtkUnstructuredGridVolumeRayIntegrator.

virtual vtkUnstructuredGridVolumeRayIntegrator* vtkUnstructuredGridPreIntegration::GetIntegrator (  )  [virtual]

The class used to fill the pre integration table. By default, a vtkUnstructuredGridPartialPreIntegration is built.

virtual void vtkUnstructuredGridPreIntegration::SetIntegrator ( vtkUnstructuredGridVolumeRayIntegrator  )  [virtual]

The class used to fill the pre integration table. By default, a vtkUnstructuredGridPartialPreIntegration is built.

virtual void vtkUnstructuredGridPreIntegration::SetIntegrationTableScalarResolution ( int   )  [virtual]

Set/Get the size of the integration table built.

virtual int vtkUnstructuredGridPreIntegration::GetIntegrationTableScalarResolution (  )  [virtual]

Set/Get the size of the integration table built.

virtual void vtkUnstructuredGridPreIntegration::SetIntegrationTableLengthResolution ( int   )  [virtual]

Set/Get the size of the integration table built.

virtual int vtkUnstructuredGridPreIntegration::GetIntegrationTableLengthResolution (  )  [virtual]

Set/Get the size of the integration table built.

virtual double vtkUnstructuredGridPreIntegration::GetIntegrationTableScalarShift ( int  component = 0  )  [virtual]

Get how an integration table is indexed.

virtual double vtkUnstructuredGridPreIntegration::GetIntegrationTableScalarScale ( int  component = 0  )  [virtual]

Get how an integration table is indexed.

virtual double vtkUnstructuredGridPreIntegration::GetIntegrationTableLengthScale (  )  [virtual]

Get how an integration table is indexed.

virtual int vtkUnstructuredGridPreIntegration::GetIncrementalPreIntegration (  )  [virtual]

Get/set whether to use incremental pre-integration (by default it's on). Incremental pre-integration is much faster but can introduce error due to numerical imprecision. Under most circumstances, the error is not noticeable.

virtual void vtkUnstructuredGridPreIntegration::SetIncrementalPreIntegration ( int   )  [virtual]

Get/set whether to use incremental pre-integration (by default it's on). Incremental pre-integration is much faster but can introduce error due to numerical imprecision. Under most circumstances, the error is not noticeable.

virtual void vtkUnstructuredGridPreIntegration::IncrementalPreIntegrationOn (  )  [virtual]

Get/set whether to use incremental pre-integration (by default it's on). Incremental pre-integration is much faster but can introduce error due to numerical imprecision. Under most circumstances, the error is not noticeable.

virtual void vtkUnstructuredGridPreIntegration::IncrementalPreIntegrationOff (  )  [virtual]

Get/set whether to use incremental pre-integration (by default it's on). Incremental pre-integration is much faster but can introduce error due to numerical imprecision. Under most circumstances, the error is not noticeable.

virtual float* vtkUnstructuredGridPreIntegration::GetPreIntegrationTable ( int  component = 0  )  [virtual]

Get the partial pre-integration table for the given scalar component. The tables are built when Initialize is called. A segment of length d with a front scalar of sf and a back scalar of sb is referenced in the resulting table as 4 * ((l * IntegrationTableLengthScale) * IntegrationTableScalarResolution * IntegrationTableScalarResolution + (sb * IntegrationTableScalarScale + IntegrationTableScalarShift) * IntegrationTableScalarResolution + (sf * IntegrationTableScalarScale + IntegrationTableScalarShift)).

float * vtkUnstructuredGridPreIntegration::GetTableEntry ( double  scalar_front,
double  scalar_back,
double  lenth,
int  component = 0
) [inline]

Get an entry (RGBA) in one of the pre-integration tables. The tables are built when Intialize is called.

Definition at line 181 of file vtkUnstructuredGridPreIntegration.h.

float * vtkUnstructuredGridPreIntegration::GetIndexedTableEntry ( int  scalar_front_index,
int  scalar_back_index,
int  length_index,
int  component = 0
) [inline]

Like GetTableEntry, except the inputs are scaled indices into the table rather than than the actual scalar and length values. Use GetTableEntry unless you are really sure you know what you are doing.

Definition at line 155 of file vtkUnstructuredGridPreIntegration.h.

virtual void vtkUnstructuredGridPreIntegration::BuildPreIntegrationTables ( vtkDataArray scalars  )  [protected, virtual]


Member Data Documentation

Definition at line 130 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 132 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 133 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 134 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 136 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 137 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 138 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 139 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 140 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 141 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 143 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 144 of file vtkUnstructuredGridPreIntegration.h.

Definition at line 146 of file vtkUnstructuredGridPreIntegration.h.


The documentation for this class was generated from the following file:
