vtkVisibilitySort Class Reference

#include <vtkVisibilitySort.h>

Inheritance diagram for vtkVisibilitySort:

Inheritance graph
[legend]

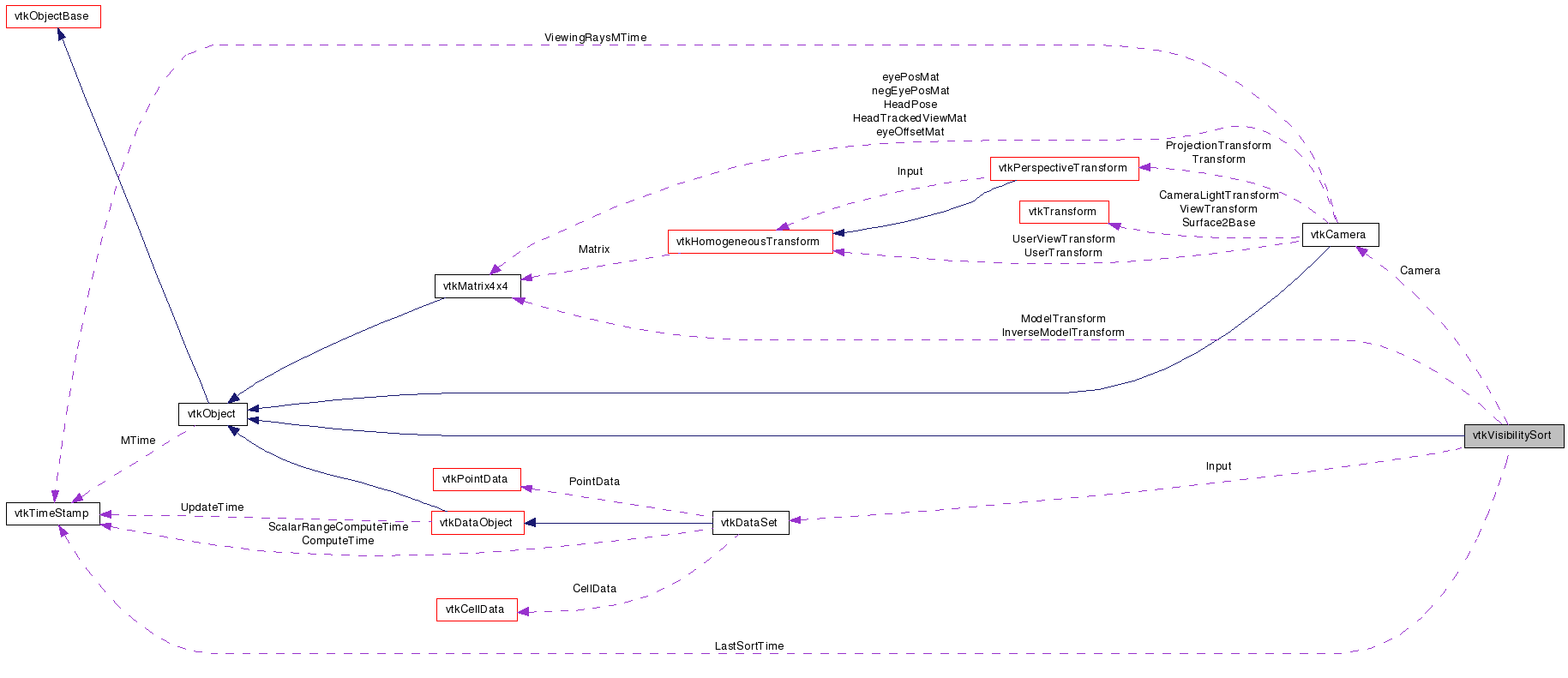

Collaboration diagram for vtkVisibilitySort:

Collaboration graph
[legend]

List of all members.


Detailed Description

Abstract class that can sort cell data along a viewpoint.

vtkVisibilitySort encapsulates a method for depth sorting the cells of a vtkDataSet for a given viewpoint. It should be noted that subclasses are not required to give an absolutely correct sorting. Many types of unstructured grids may have sorting cycles, meaning that there is no possible correct sorting. Some subclasses also only give an approximate sorting in the interest of speed.

Attention:
The Input field of this class tends to causes reference cycles. To help break these cycles, garbage collection is enabled on this object and the input parameter is traced. For this to work, though, an object in the loop holding the visibility sort should also report that to the garbage collector.

Definition at line 55 of file vtkVisibilitySort.h.


Public Types

enum  { BACK_TO_FRONT, FRONT_TO_BACK }
typedef vtkObject Superclass

Public Member Functions

virtual const char * GetClassName ()
virtual int IsA (const char *type)
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual vtkMatrix4x4GetInverseModelTransform ()
virtual void InitTraversal ()=0
virtual vtkIdTypeArrayGetNextCells ()=0
virtual void SetMaxCellsReturned (int)
virtual int GetMaxCellsReturned ()
virtual void SetModelTransform (vtkMatrix4x4 *mat)
virtual vtkMatrix4x4GetModelTransform ()
virtual void SetCamera (vtkCamera *camera)
virtual vtkCameraGetCamera ()
virtual void SetInput (vtkDataSet *data)
virtual vtkDataSetGetInput ()
virtual int GetDirection ()
virtual void SetDirection (int)
void SetDirectionToBackToFront ()
void SetDirectionToFrontToBack ()
virtual void Register (vtkObjectBase *o)
virtual void UnRegister (vtkObjectBase *o)

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkVisibilitySortSafeDownCast (vtkObject *o)

Protected Member Functions

 vtkVisibilitySort ()
virtual ~vtkVisibilitySort ()
virtual void ReportReferences (vtkGarbageCollector *collector)

Protected Attributes

vtkTimeStamp LastSortTime
vtkMatrix4x4ModelTransform
vtkMatrix4x4InverseModelTransform
vtkCameraCamera
vtkDataSetInput
int MaxCellsReturned
int Direction

Member Typedef Documentation

Reimplemented from vtkObject.

Reimplemented in vtkCellCenterDepthSort.

Definition at line 58 of file vtkVisibilitySort.h.


Member Enumeration Documentation

anonymous enum

Enumerator:
BACK_TO_FRONT
FRONT_TO_BACK

Definition at line 114 of file vtkVisibilitySort.h.


Constructor & Destructor Documentation

vtkVisibilitySort::vtkVisibilitySort (  )  [protected]

virtual vtkVisibilitySort::~vtkVisibilitySort (  )  [protected, virtual]


Member Function Documentation

virtual const char* vtkVisibilitySort::GetClassName (  )  [virtual]

Reimplemented from vtkObject.

Reimplemented in vtkCellCenterDepthSort.

static int vtkVisibilitySort::IsTypeOf ( const char *  name  )  [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkCellCenterDepthSort.

virtual int vtkVisibilitySort::IsA ( const char *  name  )  [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkObject.

Reimplemented in vtkCellCenterDepthSort.

static vtkVisibilitySort* vtkVisibilitySort::SafeDownCast ( vtkObject o  )  [static]

Reimplemented from vtkObject.

Reimplemented in vtkCellCenterDepthSort.

virtual void vtkVisibilitySort::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkObject.

Reimplemented in vtkCellCenterDepthSort.

virtual void vtkVisibilitySort::InitTraversal (  )  [pure virtual]

To facilitate incremental sorting algorithms, the cells are retrieved in an iteration process. That is, call InitTraversal to start the iteration and call GetNextCells to get the cell IDs in order. However, for efficiencies sake, GetNextCells returns an ordered list of several id's in once call (but not necessarily all). GetNextCells will return NULL once the entire sorted list is output. The vtkIdTypeArray returned from GetNextCells is a cached array, so do not delete it. At the same note, do not expect the array to be valid after subsequent calls to GetNextCells.

Implemented in vtkCellCenterDepthSort.

virtual vtkIdTypeArray* vtkVisibilitySort::GetNextCells (  )  [pure virtual]

To facilitate incremental sorting algorithms, the cells are retrieved in an iteration process. That is, call InitTraversal to start the iteration and call GetNextCells to get the cell IDs in order. However, for efficiencies sake, GetNextCells returns an ordered list of several id's in once call (but not necessarily all). GetNextCells will return NULL once the entire sorted list is output. The vtkIdTypeArray returned from GetNextCells is a cached array, so do not delete it. At the same note, do not expect the array to be valid after subsequent calls to GetNextCells.

Implemented in vtkCellCenterDepthSort.

virtual void vtkVisibilitySort::SetMaxCellsReturned ( int   )  [virtual]

Set/Get the maximum number of cells that GetNextCells will return in one invocation.

virtual int vtkVisibilitySort::GetMaxCellsReturned (  )  [virtual]

Set/Get the maximum number of cells that GetNextCells will return in one invocation.

virtual void vtkVisibilitySort::SetModelTransform ( vtkMatrix4x4 mat  )  [virtual]

Set/Get the matrix that transforms from object space to world space. Generally, you get this matrix from a call to GetMatrix of a vtkProp3D (vtkActor).

virtual vtkMatrix4x4* vtkVisibilitySort::GetModelTransform (  )  [virtual]

Set/Get the matrix that transforms from object space to world space. Generally, you get this matrix from a call to GetMatrix of a vtkProp3D (vtkActor).

virtual vtkMatrix4x4* vtkVisibilitySort::GetInverseModelTransform (  )  [virtual]

virtual void vtkVisibilitySort::SetCamera ( vtkCamera camera  )  [virtual]

Set/Get the camera that specifies the viewing parameters.

virtual vtkCamera* vtkVisibilitySort::GetCamera (  )  [virtual]

Set/Get the camera that specifies the viewing parameters.

virtual void vtkVisibilitySort::SetInput ( vtkDataSet data  )  [virtual]

Set/Get the data set containing the cells to sort.

virtual vtkDataSet* vtkVisibilitySort::GetInput (  )  [virtual]

Set/Get the data set containing the cells to sort.

virtual int vtkVisibilitySort::GetDirection (  )  [virtual]

Set/Get the sorting direction. Be default, the direction is set to back to front.

virtual void vtkVisibilitySort::SetDirection ( int   )  [virtual]

Set/Get the sorting direction. Be default, the direction is set to back to front.

void vtkVisibilitySort::SetDirectionToBackToFront (  )  [inline]

Set/Get the sorting direction. Be default, the direction is set to back to front.

Definition at line 109 of file vtkVisibilitySort.h.

void vtkVisibilitySort::SetDirectionToFrontToBack (  )  [inline]

Set/Get the sorting direction. Be default, the direction is set to back to front.

Definition at line 110 of file vtkVisibilitySort.h.

virtual void vtkVisibilitySort::Register ( vtkObjectBase o  )  [virtual]

Overwritten to enable garbage collection.

Reimplemented from vtkObjectBase.

virtual void vtkVisibilitySort::UnRegister ( vtkObjectBase o  )  [virtual]

Overwritten to enable garbage collection.

Reimplemented from vtkObjectBase.

virtual void vtkVisibilitySort::ReportReferences ( vtkGarbageCollector collector  )  [protected, virtual]

Reimplemented from vtkObjectBase.


Member Data Documentation

Definition at line 127 of file vtkVisibilitySort.h.

Definition at line 129 of file vtkVisibilitySort.h.

Definition at line 130 of file vtkVisibilitySort.h.

Definition at line 131 of file vtkVisibilitySort.h.

Definition at line 132 of file vtkVisibilitySort.h.

Definition at line 134 of file vtkVisibilitySort.h.

Definition at line 136 of file vtkVisibilitySort.h.


The documentation for this class was generated from the following file:
