vtkXMLDataParser Class Reference

#include <vtkXMLDataParser.h>

Inheritance diagram for vtkXMLDataParser:

[legend]

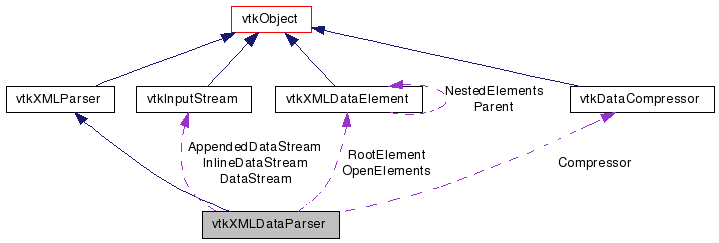

Collaboration diagram for vtkXMLDataParser:

[legend]

List of all members.

Detailed Description

Used by vtkXMLReader to parse VTK XML files.

vtkXMLDataParser provides a subclass of vtkXMLParser that constructs a representation of an XML data format's file using vtkXMLDataElement to represent each XML element. This representation is then used by vtkXMLReader and its subclasses to traverse the structure of the file and extract data.

See also:: vtkXMLDataElement

Events:: vtkCommand::ProgressEvent

Definition at line 40 of file vtkXMLDataParser.h.


Public Types
enum	{ BigEndian, LittleEndian }
typedef vtkXMLParser	Superclass
typedef vtkIdType	OffsetType
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkXMLDataElement *	GetRootElement ()
unsigned long	GetWordTypeSize (int wordType)
virtual int	Parse ()
virtual void	CharacterDataHandler (const char *data, int length)

OffsetType	ReadInlineData (vtkXMLDataElement element, int isAscii, void buffer, OffsetType startWord, OffsetType numWords, int wordType)
OffsetType	ReadInlineData (vtkXMLDataElement element, int isAscii, char buffer, OffsetType startWord, OffsetType numWords)

OffsetType	ReadAppendedData (OffsetType offset, void *buffer, OffsetType startWord, OffsetType numWords, int wordType)
OffsetType	ReadAppendedData (OffsetType offset, char *buffer, OffsetType startWord, OffsetType numWords)

OffsetType	ReadAsciiData (void *buffer, OffsetType startWord, OffsetType numWords, int wordType)

OffsetType	ReadBinaryData (void *buffer, OffsetType startWord, OffsetType maxWords, int wordType)

virtual void	SetCompressor (vtkDataCompressor *)
virtual vtkDataCompressor *	GetCompressor ()

virtual int	GetAbort ()
virtual void	SetAbort (int)

virtual float	GetProgress ()
virtual void	SetProgress (float)

virtual void	SetAttributesEncoding (int)
virtual int	GetAttributesEncoding ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLDataParser *	SafeDownCast (vtkObject *o)
static vtkXMLDataParser *	New ()
Protected Member Functions
	vtkXMLDataParser ()
	~vtkXMLDataParser ()
virtual int	Parse (const char *)
virtual int	Parse (const char *, unsigned int)
virtual void	StartElement (const char name, const char *atts)
virtual void	EndElement (const char *)
int	ParsingComplete ()
int	CheckPrimaryAttributes ()
void	FindAppendedDataPosition ()
OffsetType	FindInlineDataPosition (OffsetType start)
int	ParseBuffer (const char *buffer, unsigned int count)
void	AddElement (vtkXMLDataElement *element)
void	PushOpenElement (vtkXMLDataElement *element)
vtkXMLDataElement *	PopOpenElement ()
void	FreeAllElements ()
void	PerformByteSwap (void *data, OffsetType numWords, int wordSize)
void	ReadCompressionHeader ()
unsigned int	FindBlockSize (unsigned int block)
int	ReadBlock (unsigned int block, unsigned char *buffer)
unsigned char *	ReadBlock (unsigned int block)
OffsetType	ReadUncompressedData (unsigned char *data, OffsetType startWord, OffsetType numWords, int wordSize)
OffsetType	ReadCompressedData (unsigned char *data, OffsetType startWord, OffsetType numWords, int wordSize)
void	SeekInlineDataPosition (vtkXMLDataElement *element)
int	ParseAsciiData (int wordType)
void	FreeAsciiBuffer ()
void	UpdateProgress (float progress)
Protected Attributes
vtkXMLDataElement *	RootElement
vtkXMLDataElement **	OpenElements
unsigned int	NumberOfOpenElements
unsigned int	OpenElementsSize
OffsetType	AppendedDataPosition
int	AppendedDataMatched
int	ByteOrder
vtkInputStream *	DataStream
vtkInputStream *	InlineDataStream
vtkInputStream *	AppendedDataStream
vtkDataCompressor *	Compressor
unsigned int	NumberOfBlocks
unsigned int	BlockUncompressedSize
unsigned int	PartialLastBlockUncompressedSize
HeaderType *	BlockCompressedSizes
OffsetType *	BlockStartOffsets
unsigned char *	AsciiDataBuffer
OffsetType	AsciiDataBufferLength
int	AsciiDataWordType
OffsetType	AsciiDataPosition
float	Progress
int	Abort
int	AttributesEncoding

Member Typedef Documentation

typedef vtkXMLParser vtkXMLDataParser::Superclass

Reimplemented from vtkXMLParser.

Definition at line 43 of file vtkXMLDataParser.h.

typedef vtkIdType vtkXMLDataParser::OffsetType

A type used for data sizes and offsets for stream i/o. Using vtkIdType should satisfy most users. This could be streamoff if it is deemed portable. It could also be split into OffsetType (streamoff) and PositionType (streampos).

Definition at line 58 of file vtkXMLDataParser.h.

Member Enumeration Documentation

anonymous enum

Enumerate big and little endian byte order settings.

Enumerator:

BigEndian
LittleEndian

Definition at line 52 of file vtkXMLDataParser.h.

Constructor & Destructor Documentation

vtkXMLDataParser::vtkXMLDataParser ( ) [protected]

vtkXMLDataParser::~vtkXMLDataParser ( ) [protected]

Member Function Documentation

virtual const char* vtkXMLDataParser::GetClassName ( ) [virtual]

Reimplemented from vtkXMLParser.

static int vtkXMLDataParser::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLParser.

virtual int vtkXMLDataParser::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLParser.

static vtkXMLDataParser* vtkXMLDataParser::SafeDownCast ( vtkObject * o ) [static]

Reimplemented from vtkXMLParser.

void vtkXMLDataParser::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLParser.

static vtkXMLDataParser* vtkXMLDataParser::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkXMLParser.

vtkXMLDataElement* vtkXMLDataParser::GetRootElement ( )

Get the root element from the XML document.

OffsetType vtkXMLDataParser::ReadInlineData	(	vtkXMLDataElement *	element,
		int	isAscii,
		void *	buffer,
		OffsetType	startWord,
		OffsetType	numWords,
		int	wordType
	)

Read inline data from inside the given element. Returns the number of words read.

OffsetType vtkXMLDataParser::ReadInlineData	(	vtkXMLDataElement *	element,
		int	isAscii,
		char *	buffer,
		OffsetType	startWord,
		OffsetType	numWords
	)			`[inline]`

Read inline data from inside the given element. Returns the number of words read.

Definition at line 66 of file vtkXMLDataParser.h.

OffsetType vtkXMLDataParser::ReadAppendedData	(	OffsetType	offset,
		void *	buffer,
		OffsetType	startWord,
		OffsetType	numWords,
		int	wordType
	)

Read from an appended data section starting at the given appended data offset. Returns the number of words read.

OffsetType vtkXMLDataParser::ReadAppendedData	(	OffsetType	offset,
		char *	buffer,
		OffsetType	startWord,
		OffsetType	numWords
	)			`[inline]`

Read from an appended data section starting at the given appended data offset. Returns the number of words read.

Definition at line 79 of file vtkXMLDataParser.h.

OffsetType vtkXMLDataParser::ReadAsciiData	(	void *	buffer,
		OffsetType	startWord,
		OffsetType	numWords,
		int	wordType
	)

Read from an ascii data section starting at the current position in the stream. Returns the number of words read.

OffsetType vtkXMLDataParser::ReadBinaryData	(	void *	buffer,
		OffsetType	startWord,
		OffsetType	maxWords,
		int	wordType
	)

Read from a data section starting at the current position in the stream. Returns the number of words read.

virtual void vtkXMLDataParser::SetCompressor ( vtkDataCompressor * ) [virtual]

Get/Set the compressor used to decompress binary and appended data after reading from the file.

virtual vtkDataCompressor* vtkXMLDataParser::GetCompressor ( ) [virtual]

Get/Set the compressor used to decompress binary and appended data after reading from the file.

unsigned long vtkXMLDataParser::GetWordTypeSize ( int wordType )

Get the size of a word of the given type.

virtual int vtkXMLDataParser::Parse ( ) [virtual]

Parse the XML input and check that the file is safe to read. Returns 1 for okay, 0 for error.

Reimplemented from vtkXMLParser.

virtual int vtkXMLDataParser::GetAbort ( ) [virtual]

Get/Set flag to abort reading of data. This may be set by a progress event observer.

virtual void vtkXMLDataParser::SetAbort ( int ) [virtual]

Get/Set flag to abort reading of data. This may be set by a progress event observer.

virtual float vtkXMLDataParser::GetProgress ( ) [virtual]

Get/Set progress of reading data. This may be checked by a progress event observer.

virtual void vtkXMLDataParser::SetProgress ( float ) [virtual]

Get/Set progress of reading data. This may be checked by a progress event observer.

virtual void vtkXMLDataParser::SetAttributesEncoding ( int ) [virtual]

Get/Set the character encoding that will be used to set the attributes's encoding type of each vtkXMLDataElement created by this parser (i.e., the data element attributes will use that encoding internally). If set to VTK_ENCODING_NONE (default), the attribute encoding type will not be changed and will default to the vtkXMLDataElement default encoding type (see vtkXMLDataElement::AttributeEncoding).

virtual int vtkXMLDataParser::GetAttributesEncoding ( ) [virtual]

Get/Set the character encoding that will be used to set the attributes's encoding type of each vtkXMLDataElement created by this parser (i.e., the data element attributes will use that encoding internally). If set to VTK_ENCODING_NONE (default), the attribute encoding type will not be changed and will default to the vtkXMLDataElement default encoding type (see vtkXMLDataElement::AttributeEncoding).

void vtkXMLDataParser::CharacterDataHandler	(	const char *	data,
		int	length
	)			`[inline, virtual]`

If you need the text inside XMLElements, turn IgnoreCharacterData off. This method will then be called when the file is parsed, and the text will be stored in each XMLDataElement. VTK XML Readers store the information elsewhere, so the default is to ignore it.

Reimplemented from vtkXMLParser.

Definition at line 266 of file vtkXMLDataParser.h.

virtual int vtkXMLDataParser::Parse ( const char * inputString ) [protected, virtual]

Parse the XML message. If length is specified, parse only the first "length" characters

Reimplemented from vtkXMLParser.

virtual int vtkXMLDataParser::Parse	(	const char *	inputString,
		unsigned	length
	)			`[protected, virtual]`

Parse the XML message. If length is specified, parse only the first "length" characters

Reimplemented from vtkXMLParser.

virtual void vtkXMLDataParser::StartElement	(	const char *	name,
		const char **	atts
	)			`[protected, virtual]`

Reimplemented from vtkXMLParser.

virtual void vtkXMLDataParser::EndElement ( const char * ) [protected, virtual]

Reimplemented from vtkXMLParser.

int vtkXMLDataParser::ParsingComplete ( ) [protected, virtual]

Reimplemented from vtkXMLParser.

int vtkXMLDataParser::CheckPrimaryAttributes ( ) [protected]

void vtkXMLDataParser::FindAppendedDataPosition ( ) [protected]

OffsetType vtkXMLDataParser::FindInlineDataPosition ( OffsetType start ) [protected]

int vtkXMLDataParser::ParseBuffer	(	const char *	buffer,
		unsigned int	count
	)			`[protected, virtual]`

Reimplemented from vtkXMLParser.

void vtkXMLDataParser::AddElement ( vtkXMLDataElement * element ) [protected]

void vtkXMLDataParser::PushOpenElement ( vtkXMLDataElement * element ) [protected]

vtkXMLDataElement* vtkXMLDataParser::PopOpenElement ( ) [protected]

void vtkXMLDataParser::FreeAllElements ( ) [protected]

void vtkXMLDataParser::PerformByteSwap	(	void *	data,
		OffsetType	numWords,
		int	wordSize
	)			`[protected]`

void vtkXMLDataParser::ReadCompressionHeader ( ) [protected]

unsigned int vtkXMLDataParser::FindBlockSize ( unsigned int block ) [protected]

int vtkXMLDataParser::ReadBlock	(	unsigned int	block,
		unsigned char *	buffer
	)			`[protected]`

unsigned char* vtkXMLDataParser::ReadBlock ( unsigned int block ) [protected]

OffsetType vtkXMLDataParser::ReadUncompressedData	(	unsigned char *	data,
		OffsetType	startWord,
		OffsetType	numWords,
		int	wordSize
	)			`[protected]`

OffsetType vtkXMLDataParser::ReadCompressedData	(	unsigned char *	data,
		OffsetType	startWord,
		OffsetType	numWords,
		int	wordSize
	)			`[protected]`

void vtkXMLDataParser::SeekInlineDataPosition ( vtkXMLDataElement * element ) [protected]

int vtkXMLDataParser::ParseAsciiData ( int wordType ) [protected]

void vtkXMLDataParser::FreeAsciiBuffer ( ) [protected]

void vtkXMLDataParser::UpdateProgress ( float progress ) [protected]

Member Data Documentation

vtkXMLDataElement* vtkXMLDataParser::RootElement [protected]

Definition at line 196 of file vtkXMLDataParser.h.

vtkXMLDataElement** vtkXMLDataParser::OpenElements [protected]

Definition at line 199 of file vtkXMLDataParser.h.

unsigned int vtkXMLDataParser::NumberOfOpenElements [protected]

Definition at line 200 of file vtkXMLDataParser.h.

unsigned int vtkXMLDataParser::OpenElementsSize [protected]

Definition at line 201 of file vtkXMLDataParser.h.

OffsetType vtkXMLDataParser::AppendedDataPosition [protected]

Definition at line 204 of file vtkXMLDataParser.h.

int vtkXMLDataParser::AppendedDataMatched [protected]

Definition at line 207 of file vtkXMLDataParser.h.

int vtkXMLDataParser::ByteOrder [protected]

Definition at line 210 of file vtkXMLDataParser.h.

vtkInputStream* vtkXMLDataParser::DataStream [protected]

Definition at line 214 of file vtkXMLDataParser.h.

vtkInputStream* vtkXMLDataParser::InlineDataStream [protected]

Definition at line 218 of file vtkXMLDataParser.h.

vtkInputStream* vtkXMLDataParser::AppendedDataStream [protected]

Definition at line 221 of file vtkXMLDataParser.h.

vtkDataCompressor* vtkXMLDataParser::Compressor [protected]

Definition at line 238 of file vtkXMLDataParser.h.

unsigned int vtkXMLDataParser::NumberOfBlocks [protected]

Definition at line 239 of file vtkXMLDataParser.h.

unsigned int vtkXMLDataParser::BlockUncompressedSize [protected]

Definition at line 240 of file vtkXMLDataParser.h.

unsigned int vtkXMLDataParser::PartialLastBlockUncompressedSize [protected]

Definition at line 241 of file vtkXMLDataParser.h.

HeaderType* vtkXMLDataParser::BlockCompressedSizes [protected]

Definition at line 242 of file vtkXMLDataParser.h.

OffsetType* vtkXMLDataParser::BlockStartOffsets [protected]

Definition at line 243 of file vtkXMLDataParser.h.

unsigned char* vtkXMLDataParser::AsciiDataBuffer [protected]

Definition at line 246 of file vtkXMLDataParser.h.

OffsetType vtkXMLDataParser::AsciiDataBufferLength [protected]

Definition at line 247 of file vtkXMLDataParser.h.

int vtkXMLDataParser::AsciiDataWordType [protected]

Definition at line 248 of file vtkXMLDataParser.h.

OffsetType vtkXMLDataParser::AsciiDataPosition [protected]

Definition at line 249 of file vtkXMLDataParser.h.

float vtkXMLDataParser::Progress [protected]

Definition at line 252 of file vtkXMLDataParser.h.

int vtkXMLDataParser::Abort [protected]

Definition at line 255 of file vtkXMLDataParser.h.

int vtkXMLDataParser::AttributesEncoding [protected]

Definition at line 257 of file vtkXMLDataParser.h.

The documentation for this class was generated from the following file:

dox/IO/vtkXMLDataParser.h

vtkXMLDataParser Class Reference

Detailed Description

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
