vtkXMLPRectilinearGridReader Class Reference

#include <vtkXMLPRectilinearGridReader.h>

Inheritance diagram for vtkXMLPRectilinearGridReader:

[legend]

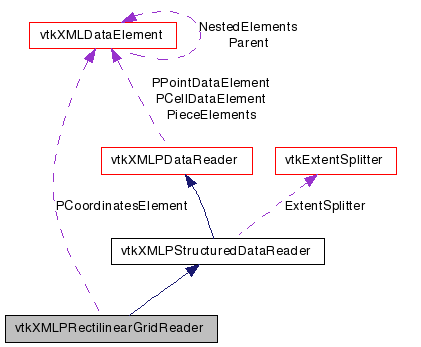

Collaboration diagram for vtkXMLPRectilinearGridReader:

[legend]

List of all members.

---

Detailed Description

Read PVTK XML RectilinearGrid files.

vtkXMLPRectilinearGridReader reads the PVTK XML RectilinearGrid file format. This reads the parallel format's summary file and then uses vtkXMLRectilinearGridReader to read data from the individual RectilinearGrid piece files. Streaming is supported. The standard extension for this reader's file format is "pvtr".

See also:

vtkXMLRectilinearGridReader

Definition at line 35 of file vtkXMLPRectilinearGridReader.h.

Public Types
typedef vtkXMLPStructuredDataReader	Superclass
Public Member Functions
virtual const char *	GetClassName ()
virtual int	IsA (const char *type)
void	PrintSelf (ostream &os, vtkIndent indent)
vtkRectilinearGrid *	GetOutput ()
vtkRectilinearGrid *	GetOutput (int idx)
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkXMLPRectilinearGridReader *	SafeDownCast (vtkObject *o)
static vtkXMLPRectilinearGridReader *	New ()
Protected Member Functions
	vtkXMLPRectilinearGridReader ()
	~vtkXMLPRectilinearGridReader ()
vtkRectilinearGrid *	GetPieceInput (int index)
void	SetupEmptyOutput ()
const char *	GetDataSetName ()
void	SetOutputExtent (int *extent)
void	GetPieceInputExtent (int index, int *extent)
int	ReadPrimaryElement (vtkXMLDataElement *ePrimary)
void	SetupOutputData ()
int	ReadPieceData ()
vtkXMLDataReader *	CreatePieceReader ()
void	CopySubCoordinates (int *inBounds, int *outBounds, int *subBounds, vtkDataArray *inArray, vtkDataArray *outArray)
virtual int	FillOutputPortInformation (int, vtkInformation *)
Protected Attributes
vtkXMLDataElement *	PCoordinatesElement

---

Member Typedef Documentation

typedef vtkXMLPStructuredDataReader vtkXMLPRectilinearGridReader::Superclass

Reimplemented from vtkXMLPStructuredDataReader.

Definition at line 38 of file vtkXMLPRectilinearGridReader.h.

---

Constructor & Destructor Documentation

vtkXMLPRectilinearGridReader::vtkXMLPRectilinearGridReader

(

)

[protected]

vtkXMLPRectilinearGridReader::~vtkXMLPRectilinearGridReader

(

)

[protected]

---

Member Function Documentation

virtual const char* vtkXMLPRectilinearGridReader::GetClassName

(

)

[virtual]

Reimplemented from vtkXMLPStructuredDataReader.

static int vtkXMLPRectilinearGridReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataReader.

virtual int vtkXMLPRectilinearGridReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkXMLPStructuredDataReader.

static vtkXMLPRectilinearGridReader* vtkXMLPRectilinearGridReader::SafeDownCast

(

vtkObject *

o

)

[static]

Reimplemented from vtkXMLPStructuredDataReader.

void vtkXMLPRectilinearGridReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)			[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkXMLPStructuredDataReader.

static vtkXMLPRectilinearGridReader* vtkXMLPRectilinearGridReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

vtkRectilinearGrid* vtkXMLPRectilinearGridReader::GetOutput

(

)

Get the reader's output.

vtkRectilinearGrid* vtkXMLPRectilinearGridReader::GetOutput

(

int

idx

)

Get the reader's output.

vtkRectilinearGrid* vtkXMLPRectilinearGridReader::GetPieceInput

(

int

index

)

[protected]

void vtkXMLPRectilinearGridReader::SetupEmptyOutput

(

)

[protected, virtual]

Implements vtkXMLReader.

const char* vtkXMLPRectilinearGridReader::GetDataSetName

(

)

[protected, virtual]

Implements vtkXMLReader.

void vtkXMLPRectilinearGridReader::SetOutputExtent

(

int *

extent

)

[protected, virtual]

Implements vtkXMLPStructuredDataReader.

void vtkXMLPRectilinearGridReader::GetPieceInputExtent	(	int	index,
		int *	extent
	)			[protected, virtual]

Implements vtkXMLPStructuredDataReader.

int vtkXMLPRectilinearGridReader::ReadPrimaryElement

(

vtkXMLDataElement *

ePrimary

)

[protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

void vtkXMLPRectilinearGridReader::SetupOutputData

(

)

[protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

int vtkXMLPRectilinearGridReader::ReadPieceData

(

)

[protected, virtual]

Reimplemented from vtkXMLPStructuredDataReader.

vtkXMLDataReader* vtkXMLPRectilinearGridReader::CreatePieceReader

(

)

[protected, virtual]

Implements vtkXMLPDataReader.

void vtkXMLPRectilinearGridReader::CopySubCoordinates	(	int *	inBounds,
		int *	outBounds,
		int *	subBounds,
		vtkDataArray *	inArray,
		vtkDataArray *	outArray
	)			[protected]

virtual int vtkXMLPRectilinearGridReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)			[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

---

Member Data Documentation

vtkXMLDataElement* vtkXMLPRectilinearGridReader::PCoordinatesElement [protected]

Definition at line 67 of file vtkXMLPRectilinearGridReader.h.

---

The documentation for this class was generated from the following file:

• dox/IO/vtkXMLPRectilinearGridReader.h
