reads in delimited ascii or unicode text files and outputs a vtkTable data structure. More...

#include <vtkDelimitedTextReader.h>

Inheritance diagram for vtkDelimitedTextReader:

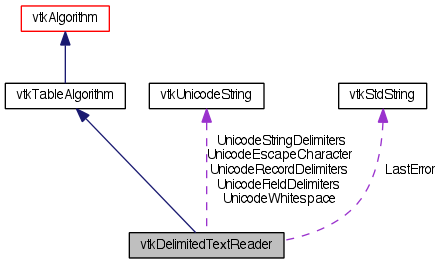

Collaboration diagram for vtkDelimitedTextReader:

Public Types
typedef vtkTableAlgorithm	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkDelimitedTextReader *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
void	SetUTF8FieldDelimiters (const char *delimiters)
const char *	GetUTF8FieldDelimiters ()
void	SetUnicodeFieldDelimiters (const vtkUnicodeString &delimiters)
vtkUnicodeString	GetUnicodeFieldDelimiters ()
void	SetUTF8StringDelimiters (const char *delimiters)
const char *	GetUTF8StringDelimiters ()
void	SetUnicodeStringDelimiters (const vtkUnicodeString &delimiters)
vtkUnicodeString	GetUnicodeStringDelimiters ()
vtkStdString	GetLastError ()

virtual char *	GetFileName ()
virtual void	SetFileName (const char *)

virtual char *	GetUnicodeCharacterSet ()
virtual void	SetUnicodeCharacterSet (const char *)

void	SetUTF8RecordDelimiters (const char *delimiters)
const char *	GetUTF8RecordDelimiters ()
void	SetUnicodeRecordDelimiters (const vtkUnicodeString &delimiters)
vtkUnicodeString	GetUnicodeRecordDelimiters ()

virtual void	SetFieldDelimiterCharacters (const char *)
virtual char *	GetFieldDelimiterCharacters ()

virtual char	GetStringDelimiter ()
virtual void	SetStringDelimiter (char)

virtual void	SetUseStringDelimiter (bool)
virtual bool	GetUseStringDelimiter ()
virtual void	UseStringDelimiterOn ()
virtual void	UseStringDelimiterOff ()

virtual bool	GetHaveHeaders ()
virtual void	SetHaveHeaders (bool)

virtual void	SetMergeConsecutiveDelimiters (bool)
virtual bool	GetMergeConsecutiveDelimiters ()
virtual void	MergeConsecutiveDelimitersOn ()
virtual void	MergeConsecutiveDelimitersOff ()

virtual vtkIdType	GetMaxRecords ()
virtual void	SetMaxRecords (vtkIdType)

virtual void	SetDetectNumericColumns (bool)
virtual bool	GetDetectNumericColumns ()
virtual void	DetectNumericColumnsOn ()
virtual void	DetectNumericColumnsOff ()

virtual void	SetForceDouble (bool)
virtual bool	GetForceDouble ()
virtual void	ForceDoubleOn ()
virtual void	ForceDoubleOff ()

virtual void	SetTrimWhitespacePriorToNumericConversion (bool)
virtual bool	GetTrimWhitespacePriorToNumericConversion ()
virtual void	TrimWhitespacePriorToNumericConversionOn ()
virtual void	TrimWhitespacePriorToNumericConversionOff ()

virtual void	SetDefaultIntegerValue (int)
virtual int	GetDefaultIntegerValue ()

virtual void	SetDefaultDoubleValue (double)
virtual double	GetDefaultDoubleValue ()

virtual void	SetPedigreeIdArrayName (const char *)
virtual char *	GetPedigreeIdArrayName ()

virtual void	SetGeneratePedigreeIds (bool)
virtual bool	GetGeneratePedigreeIds ()
virtual void	GeneratePedigreeIdsOn ()
virtual void	GeneratePedigreeIdsOff ()

virtual void	SetOutputPedigreeIds (bool)
virtual bool	GetOutputPedigreeIds ()
virtual void	OutputPedigreeIdsOn ()
virtual void	OutputPedigreeIdsOff ()

virtual void	SetReplacementCharacter (vtkTypeUInt32)
virtual vtkTypeUInt32	GetReplacementCharacter ()
Static Public Member Functions
static vtkDelimitedTextReader *	New ()
static int	IsTypeOf (const char *type)
static vtkDelimitedTextReader *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkDelimitedTextReader ()
	~vtkDelimitedTextReader ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
Protected Attributes
char *	FileName
char *	UnicodeCharacterSet
vtkIdType	MaxRecords
vtkUnicodeString	UnicodeRecordDelimiters
vtkUnicodeString	UnicodeFieldDelimiters
vtkUnicodeString	UnicodeStringDelimiters
vtkUnicodeString	UnicodeWhitespace
vtkUnicodeString	UnicodeEscapeCharacter
bool	DetectNumericColumns
bool	ForceDouble
bool	TrimWhitespacePriorToNumericConversion
int	DefaultIntegerValue
double	DefaultDoubleValue
char *	FieldDelimiterCharacters
char	StringDelimiter
bool	UseStringDelimiter
bool	HaveHeaders
bool	UnicodeOutputArrays
bool	MergeConsecutiveDelimiters
char *	PedigreeIdArrayName
bool	GeneratePedigreeIds
bool	OutputPedigreeIds
vtkStdString	LastError
vtkTypeUInt32	ReplacementCharacter

Detailed Description

reads in delimited ascii or unicode text files and outputs a vtkTable data structure.

vtkDelimitedTextReader is an interface for pulling in data from a flat, delimited ascii or unicode text file (delimiter can be any character).

The behavior of the reader with respect to ascii or unicode input is controlled by the SetUnicodeCharacterSet() method. By default (without calling SetUnicodeCharacterSet()), the reader will expect to read ascii text and will output vtkStdString columns. Use the Set and Get methods to set delimiters that do not contain UTF8 in the name when operating the reader in default ascii mode. If the SetUnicodeCharacterSet() method is called, the reader will output vtkUnicodeString columns in the output table. In addition, it is necessary to use the Set and Get methods that contain UTF8 in the name to specify delimiters when operating in unicode mode.

There is also a special character set US-ASCII-WITH-FALLBACK that will treat the input text as ASCII no matter what. If and when it encounters a character with its 8th bit set it will replace that character with the code point ReplacementCharacter. You may use this if you have text that belongs to a code page like LATIN9 or ISO-8859-1 or friends: mostly ASCII but not entirely. Eventually this class will acquire the ability to read gracefully text from any code page, making this option obsolete.

This class emits ProgressEvent for every 100 lines it reads.

Thanks:: Thanks to Andy Wilson, Brian Wylie, Tim Shead, and Thomas Otahal from Sandia National Laboratories for implementing this class.

Warning:: This reader assumes that the first line in the file (whether that's headers or the first document) contains at least as many fields as any other line in the file.

Examples:: vtkDelimitedTextReader (Examples)

Tests:: vtkDelimitedTextReader (Tests)

Definition at line 77 of file vtkDelimitedTextReader.h.

Member Typedef Documentation

typedef vtkTableAlgorithm vtkDelimitedTextReader::Superclass

Reimplemented from vtkTableAlgorithm.

Definition at line 81 of file vtkDelimitedTextReader.h.

Constructor & Destructor Documentation

vtkDelimitedTextReader::vtkDelimitedTextReader ( ) [protected]

vtkDelimitedTextReader::~vtkDelimitedTextReader ( ) [protected]

Member Function Documentation

static vtkDelimitedTextReader* vtkDelimitedTextReader::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkTableAlgorithm.

static int vtkDelimitedTextReader::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkTableAlgorithm.

virtual int vtkDelimitedTextReader::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkTableAlgorithm.

static vtkDelimitedTextReader* vtkDelimitedTextReader::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkTableAlgorithm.

virtual vtkObjectBase* vtkDelimitedTextReader::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkTableAlgorithm.

vtkDelimitedTextReader* vtkDelimitedTextReader::NewInstance ( ) const

Reimplemented from vtkTableAlgorithm.

void vtkDelimitedTextReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkTableAlgorithm.

virtual char* vtkDelimitedTextReader::GetFileName ( ) [virtual]

Specifies the delimited text file to be loaded.

virtual void vtkDelimitedTextReader::SetFileName ( const char * ) [virtual]

Specifies the delimited text file to be loaded.

virtual char* vtkDelimitedTextReader::GetUnicodeCharacterSet ( ) [virtual]

Specifies the character set used in the input file. Valid character set names will be drawn from the list maintained by the Internet Assigned Name Authority at http://www.iana.org/assignments/character-sets Where multiple aliases are provided for a character set, the preferred MIME name will be used. vtkUnicodeDelimitedTextReader currently supports "US-ASCII", "UTF-8", "UTF-16", "UTF-16BE", and "UTF-16LE" character sets.

virtual void vtkDelimitedTextReader::SetUnicodeCharacterSet ( const char * ) [virtual]

Specifies the character set used in the input file. Valid character set names will be drawn from the list maintained by the Internet Assigned Name Authority at http://www.iana.org/assignments/character-sets Where multiple aliases are provided for a character set, the preferred MIME name will be used. vtkUnicodeDelimitedTextReader currently supports "US-ASCII", "UTF-8", "UTF-16", "UTF-16BE", and "UTF-16LE" character sets.

void vtkDelimitedTextReader::SetUTF8RecordDelimiters ( const char * delimiters )

Specify the character(s) that will be used to separate records. The order of characters in the string does not matter. Defaults to "\r\n".

const char* vtkDelimitedTextReader::GetUTF8RecordDelimiters ( )

Specify the character(s) that will be used to separate records. The order of characters in the string does not matter. Defaults to "\r\n".

void vtkDelimitedTextReader::SetUnicodeRecordDelimiters ( const vtkUnicodeString & delimiters )

Specify the character(s) that will be used to separate records. The order of characters in the string does not matter. Defaults to "\r\n".

vtkUnicodeString vtkDelimitedTextReader::GetUnicodeRecordDelimiters ( )

Specify the character(s) that will be used to separate records. The order of characters in the string does not matter. Defaults to "\r\n".

virtual void vtkDelimitedTextReader::SetFieldDelimiterCharacters ( const char * ) [virtual]

Specify the character(s) that will be used to separate fields. For example, set this to "," for a comma-separated value file. Set it to ".:;" for a file where columns can be separated by a period, colon or semicolon. The order of the characters in the string does not matter. Defaults to a comma.

virtual char* vtkDelimitedTextReader::GetFieldDelimiterCharacters ( ) [virtual]

Specify the character(s) that will be used to separate fields. For example, set this to "," for a comma-separated value file. Set it to ".:;" for a file where columns can be separated by a period, colon or semicolon. The order of the characters in the string does not matter. Defaults to a comma.

void vtkDelimitedTextReader::SetUTF8FieldDelimiters ( const char * delimiters )

const char* vtkDelimitedTextReader::GetUTF8FieldDelimiters ( )

void vtkDelimitedTextReader::SetUnicodeFieldDelimiters ( const vtkUnicodeString & delimiters )

vtkUnicodeString vtkDelimitedTextReader::GetUnicodeFieldDelimiters ( )

virtual char vtkDelimitedTextReader::GetStringDelimiter ( ) [virtual]

Get/set the character that will begin and end strings. Microsoft Excel, for example, will export the following format: "First Field","Second Field","Field, With, Commas","Fourth Field" The third field has a comma in it. By using a string delimiter, this will be correctly read. The delimiter defaults to '"'.

virtual void vtkDelimitedTextReader::SetStringDelimiter ( char ) [virtual]

Get/set the character that will begin and end strings. Microsoft Excel, for example, will export the following format: "First Field","Second Field","Field, With, Commas","Fourth Field" The third field has a comma in it. By using a string delimiter, this will be correctly read. The delimiter defaults to '"'.

void vtkDelimitedTextReader::SetUTF8StringDelimiters ( const char * delimiters )

const char* vtkDelimitedTextReader::GetUTF8StringDelimiters ( )

void vtkDelimitedTextReader::SetUnicodeStringDelimiters ( const vtkUnicodeString & delimiters )

vtkUnicodeString vtkDelimitedTextReader::GetUnicodeStringDelimiters ( )

virtual void vtkDelimitedTextReader::SetUseStringDelimiter ( bool ) [virtual]

Set/get whether to use the string delimiter. Defaults to on.

virtual bool vtkDelimitedTextReader::GetUseStringDelimiter ( ) [virtual]

Set/get whether to use the string delimiter. Defaults to on.

virtual void vtkDelimitedTextReader::UseStringDelimiterOn ( ) [virtual]

Set/get whether to use the string delimiter. Defaults to on.

virtual void vtkDelimitedTextReader::UseStringDelimiterOff ( ) [virtual]

Set/get whether to use the string delimiter. Defaults to on.

virtual bool vtkDelimitedTextReader::GetHaveHeaders ( ) [virtual]

Set/get whether to treat the first line of the file as headers.

virtual void vtkDelimitedTextReader::SetHaveHeaders ( bool ) [virtual]

Set/get whether to treat the first line of the file as headers.

virtual void vtkDelimitedTextReader::SetMergeConsecutiveDelimiters ( bool ) [virtual]

Set/get whether to merge successive delimiters. Use this if (for example) your fields are separated by spaces but you don't know exactly how many.

virtual bool vtkDelimitedTextReader::GetMergeConsecutiveDelimiters ( ) [virtual]

Set/get whether to merge successive delimiters. Use this if (for example) your fields are separated by spaces but you don't know exactly how many.

virtual void vtkDelimitedTextReader::MergeConsecutiveDelimitersOn ( ) [virtual]

Set/get whether to merge successive delimiters. Use this if (for example) your fields are separated by spaces but you don't know exactly how many.

virtual void vtkDelimitedTextReader::MergeConsecutiveDelimitersOff ( ) [virtual]

Set/get whether to merge successive delimiters. Use this if (for example) your fields are separated by spaces but you don't know exactly how many.

virtual vtkIdType vtkDelimitedTextReader::GetMaxRecords ( ) [virtual]

Specifies the maximum number of records to read from the file. Limiting the number of records to read is useful for previewing the contents of a file.

virtual void vtkDelimitedTextReader::SetMaxRecords ( vtkIdType ) [virtual]

Specifies the maximum number of records to read from the file. Limiting the number of records to read is useful for previewing the contents of a file.

virtual void vtkDelimitedTextReader::SetDetectNumericColumns ( bool ) [virtual]

When set to true, the reader will detect numeric columns and create vtkDoubleArray or vtkIntArray for those instead of vtkStringArray. Default is off.

virtual bool vtkDelimitedTextReader::GetDetectNumericColumns ( ) [virtual]

When set to true, the reader will detect numeric columns and create vtkDoubleArray or vtkIntArray for those instead of vtkStringArray. Default is off.

virtual void vtkDelimitedTextReader::DetectNumericColumnsOn ( ) [virtual]

When set to true, the reader will detect numeric columns and create vtkDoubleArray or vtkIntArray for those instead of vtkStringArray. Default is off.

virtual void vtkDelimitedTextReader::DetectNumericColumnsOff ( ) [virtual]

When set to true, the reader will detect numeric columns and create vtkDoubleArray or vtkIntArray for those instead of vtkStringArray. Default is off.

virtual void vtkDelimitedTextReader::SetForceDouble ( bool ) [virtual]

When set to true and DetectNumericColumns is also true, forces all numeric columns to vtkDoubleArray even if they contain only integer values. Default is off.

virtual bool vtkDelimitedTextReader::GetForceDouble ( ) [virtual]

When set to true and DetectNumericColumns is also true, forces all numeric columns to vtkDoubleArray even if they contain only integer values. Default is off.

virtual void vtkDelimitedTextReader::ForceDoubleOn ( ) [virtual]

When set to true and DetectNumericColumns is also true, forces all numeric columns to vtkDoubleArray even if they contain only integer values. Default is off.

virtual void vtkDelimitedTextReader::ForceDoubleOff ( ) [virtual]

When set to true and DetectNumericColumns is also true, forces all numeric columns to vtkDoubleArray even if they contain only integer values. Default is off.

virtual void vtkDelimitedTextReader::SetTrimWhitespacePriorToNumericConversion ( bool ) [virtual]

When DetectNumericColumns is set to true, whether to trim whitespace from strings prior to conversion to a numeric. Default is false to preserve backward compatibility. vtkVariant handles whitespace inconsistently, so trim it before we try to convert it. For example: vtkVariant(" 2.0").ToDouble() == 2.0 <-- leading whitespace is not a problem vtkVariant(" 2.0 ").ToDouble() == NaN <-- trailing whitespace is a problem vtkVariant(" infinity ").ToDouble() == NaN <-- any whitespace is a problem In these cases, trimming the whitespace gives us the result we expect: 2.0 and INF respectively.

virtual bool vtkDelimitedTextReader::GetTrimWhitespacePriorToNumericConversion ( ) [virtual]

When DetectNumericColumns is set to true, whether to trim whitespace from strings prior to conversion to a numeric. Default is false to preserve backward compatibility. vtkVariant handles whitespace inconsistently, so trim it before we try to convert it. For example: vtkVariant(" 2.0").ToDouble() == 2.0 <-- leading whitespace is not a problem vtkVariant(" 2.0 ").ToDouble() == NaN <-- trailing whitespace is a problem vtkVariant(" infinity ").ToDouble() == NaN <-- any whitespace is a problem In these cases, trimming the whitespace gives us the result we expect: 2.0 and INF respectively.

virtual void vtkDelimitedTextReader::TrimWhitespacePriorToNumericConversionOn ( ) [virtual]

When DetectNumericColumns is set to true, whether to trim whitespace from strings prior to conversion to a numeric. Default is false to preserve backward compatibility. vtkVariant handles whitespace inconsistently, so trim it before we try to convert it. For example: vtkVariant(" 2.0").ToDouble() == 2.0 <-- leading whitespace is not a problem vtkVariant(" 2.0 ").ToDouble() == NaN <-- trailing whitespace is a problem vtkVariant(" infinity ").ToDouble() == NaN <-- any whitespace is a problem In these cases, trimming the whitespace gives us the result we expect: 2.0 and INF respectively.

virtual void vtkDelimitedTextReader::TrimWhitespacePriorToNumericConversionOff ( ) [virtual]

When DetectNumericColumns is set to true, whether to trim whitespace from strings prior to conversion to a numeric. Default is false to preserve backward compatibility. vtkVariant handles whitespace inconsistently, so trim it before we try to convert it. For example: vtkVariant(" 2.0").ToDouble() == 2.0 <-- leading whitespace is not a problem vtkVariant(" 2.0 ").ToDouble() == NaN <-- trailing whitespace is a problem vtkVariant(" infinity ").ToDouble() == NaN <-- any whitespace is a problem In these cases, trimming the whitespace gives us the result we expect: 2.0 and INF respectively.

virtual void vtkDelimitedTextReader::SetDefaultIntegerValue ( int ) [virtual]

When DetectNumericColumns is set to true, the reader use this value to populate the vtkIntArray where empty strings are found. Default is 0.

virtual int vtkDelimitedTextReader::GetDefaultIntegerValue ( ) [virtual]

When DetectNumericColumns is set to true, the reader use this value to populate the vtkIntArray where empty strings are found. Default is 0.

virtual void vtkDelimitedTextReader::SetDefaultDoubleValue ( double ) [virtual]

When DetectNumericColumns is set to true, the reader use this value to populate the vtkDoubleArray where empty strings are found. Default is 0.0

virtual double vtkDelimitedTextReader::GetDefaultDoubleValue ( ) [virtual]

When DetectNumericColumns is set to true, the reader use this value to populate the vtkDoubleArray where empty strings are found. Default is 0.0

virtual void vtkDelimitedTextReader::SetPedigreeIdArrayName ( const char * ) [virtual]

The name of the array for generating or assigning pedigree ids (default "id").

virtual char* vtkDelimitedTextReader::GetPedigreeIdArrayName ( ) [virtual]

The name of the array for generating or assigning pedigree ids (default "id").

virtual void vtkDelimitedTextReader::SetGeneratePedigreeIds ( bool ) [virtual]

If on (default), generates pedigree ids automatically. If off, assign one of the arrays to be the pedigree id.

virtual bool vtkDelimitedTextReader::GetGeneratePedigreeIds ( ) [virtual]

If on (default), generates pedigree ids automatically. If off, assign one of the arrays to be the pedigree id.

virtual void vtkDelimitedTextReader::GeneratePedigreeIdsOn ( ) [virtual]

If on (default), generates pedigree ids automatically. If off, assign one of the arrays to be the pedigree id.

virtual void vtkDelimitedTextReader::GeneratePedigreeIdsOff ( ) [virtual]

If on (default), generates pedigree ids automatically. If off, assign one of the arrays to be the pedigree id.

virtual void vtkDelimitedTextReader::SetOutputPedigreeIds ( bool ) [virtual]

If on, assigns pedigree ids to output. Defaults to off.

virtual bool vtkDelimitedTextReader::GetOutputPedigreeIds ( ) [virtual]

If on, assigns pedigree ids to output. Defaults to off.

virtual void vtkDelimitedTextReader::OutputPedigreeIdsOn ( ) [virtual]

If on, assigns pedigree ids to output. Defaults to off.

virtual void vtkDelimitedTextReader::OutputPedigreeIdsOff ( ) [virtual]

If on, assigns pedigree ids to output. Defaults to off.

vtkStdString vtkDelimitedTextReader::GetLastError ( )

Returns a human-readable description of the most recent error, if any. Otherwise, returns an empty string. Note that the result is only valid after calling Update().

virtual void vtkDelimitedTextReader::SetReplacementCharacter ( vtkTypeUInt32 ) [virtual]

Fallback character for use in the US-ASCII-WITH-FALLBACK character set. Any characters that have their 8th bit set will be replaced with this code point. Defaults to 'x'.

virtual vtkTypeUInt32 vtkDelimitedTextReader::GetReplacementCharacter ( ) [virtual]

Fallback character for use in the US-ASCII-WITH-FALLBACK character set. Any characters that have their 8th bit set will be replaced with this code point. Defaults to 'x'.

int vtkDelimitedTextReader::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)		`[protected, virtual]`
