vtkDemandDrivenPipeline Class Reference

Executive supporting on-demand execution. More...

#include <vtkDemandDrivenPipeline.h>

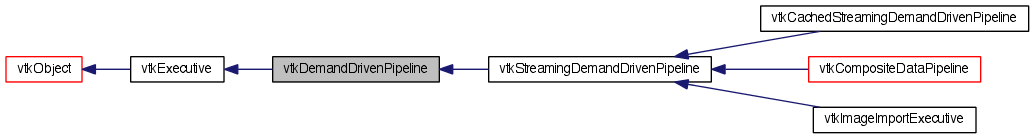

Inheritance diagram for vtkDemandDrivenPipeline:
Inheritance graph
[legend]

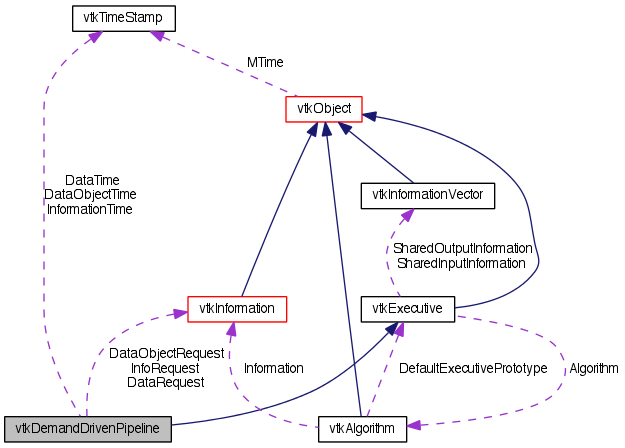

Collaboration diagram for vtkDemandDrivenPipeline:
Collaboration graph
[legend]

List of all members.

Public Types

typedef vtkExecutive Superclass

Public Member Functions

virtual int IsA (const char *type)
vtkDemandDrivenPipelineNewInstance () const
void PrintSelf (ostream &os, vtkIndent indent)
virtual int SetReleaseDataFlag (int port, int n)
virtual int GetReleaseDataFlag (int port)
virtual int UpdatePipelineMTime ()
virtual int UpdateDataObject ()
virtual int UpdateInformation ()
virtual int UpdateData (int outputPort)
virtual int ProcessRequest (vtkInformation *request, vtkInformationVector **inInfo, vtkInformationVector *outInfo)
virtual int ComputePipelineMTime (vtkInformation *request, vtkInformationVector **inInfoVec, vtkInformationVector *outInfoVec, int requestFromOutputPort, unsigned long *mtime)
virtual int Update ()
virtual int Update (int port)
virtual unsigned long GetPipelineMTime ()

Static Public Member Functions

static vtkDemandDrivenPipelineNew ()
static int IsTypeOf (const char *type)
static vtkDemandDrivenPipelineSafeDownCast (vtkObjectBase *o)
static vtkInformationRequestKeyREQUEST_DATA_OBJECT ()
static vtkInformationRequestKeyREQUEST_INFORMATION ()
static vtkInformationRequestKeyREQUEST_DATA ()
static vtkInformationRequestKeyREQUEST_DATA_NOT_GENERATED ()
static vtkInformationIntegerKeyRELEASE_DATA ()
static vtkInformationIntegerKeyDATA_NOT_GENERATED ()
static vtkDataObjectNewDataObject (const char *type)
static vtkInformationIntegerKeyREQUEST_REGENERATE_INFORMATION ()

Protected Member Functions

virtual vtkObjectBaseNewInstanceInternal () const
 vtkDemandDrivenPipeline ()
 ~vtkDemandDrivenPipeline ()
virtual int ExecuteDataObject (vtkInformation *request, vtkInformationVector **inInfo, vtkInformationVector *outInfo)
virtual int ExecuteInformation (vtkInformation *request, vtkInformationVector **inInfo, vtkInformationVector *outInfo)
virtual int ExecuteData (vtkInformation *request, vtkInformationVector **inInfo, vtkInformationVector *outInfo)
virtual void ResetPipelineInformation (int, vtkInformation *)
virtual int CheckDataObject (int port, vtkInformationVector *outInfo)
int InputCountIsValid (vtkInformationVector **)
int InputCountIsValid (int port, vtkInformationVector **)
int InputTypeIsValid (vtkInformationVector **)
int InputTypeIsValid (int port, vtkInformationVector **)
virtual int InputTypeIsValid (int port, int index, vtkInformationVector **)
int InputFieldsAreValid (vtkInformationVector **)
int InputFieldsAreValid (int port, vtkInformationVector **)
virtual int InputFieldsAreValid (int port, int index, vtkInformationVector **)
int DataSetAttributeExists (vtkDataSetAttributes *dsa, vtkInformation *field)
int FieldArrayExists (vtkFieldData *data, vtkInformation *field)
int ArrayIsValid (vtkAbstractArray *array, vtkInformation *field)
int InputIsOptional (int port)
int InputIsRepeatable (int port)
virtual int NeedToExecuteData (int outputPort, vtkInformationVector **inInfoVec, vtkInformationVector *outInfoVec)
virtual void ExecuteDataStart (vtkInformation *request, vtkInformationVector **inInfoVec, vtkInformationVector *outInfoVec)
virtual void ExecuteDataEnd (vtkInformation *request, vtkInformationVector **inInfoVec, vtkInformationVector *outInfoVec)
virtual void MarkOutputsGenerated (vtkInformation *request, vtkInformationVector **inInfoVec, vtkInformationVector *outInfoVec)

Protected Attributes

unsigned long PipelineMTime
vtkTimeStamp DataObjectTime
vtkTimeStamp InformationTime
vtkTimeStamp DataTime
vtkInformationInfoRequest
vtkInformationDataObjectRequest
vtkInformationDataRequest

Friends

class vtkCompositeDataPipeline

Detailed Description

Executive supporting on-demand execution.

vtkDemandDrivenPipeline is an executive that will execute an algorithm only when its outputs are out-of-date with respect to its inputs.

Events:
vtkCommand::StartEvent vtkCommand::EndEvent
Tests:
vtkDemandDrivenPipeline (Tests)

Definition at line 46 of file vtkDemandDrivenPipeline.h.


Member Typedef Documentation


Constructor & Destructor Documentation


Member Function Documentation

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkObject.

Reimplemented in vtkCompositeDataPipeline, vtkThreadedStreamingPipeline, vtkStreamingDemandDrivenPipeline, vtkCachedStreamingDemandDrivenPipeline, and vtkImageImportExecutive.

static int vtkDemandDrivenPipeline::IsTypeOf ( const char *  name) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkExecutive.

Reimplemented in vtkCompositeDataPipeline, vtkThreadedStreamingPipeline, vtkStreamingDemandDrivenPipeline, vtkCachedStreamingDemandDrivenPipeline, and vtkImageImportExecutive.

virtual int vtkDemandDrivenPipeline::IsA ( const char *  name) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkExecutive.

Reimplemented in vtkCompositeDataPipeline, vtkThreadedStreamingPipeline, vtkStreamingDemandDrivenPipeline, vtkCachedStreamingDemandDrivenPipeline, and vtkImageImportExecutive.

virtual vtkObjectBase* vtkDemandDrivenPipeline::NewInstanceInternal ( ) const [protected, virtual]
void vtkDemandDrivenPipeline::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkExecutive.

Reimplemented in vtkCompositeDataPipeline, vtkThreadedStreamingPipeline, vtkStreamingDemandDrivenPipeline, and vtkCachedStreamingDemandDrivenPipeline.

virtual int vtkDemandDrivenPipeline::ProcessRequest ( vtkInformation request,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [virtual]

Generalized interface for asking the executive to fulfill update requests.

Reimplemented from vtkExecutive.

Reimplemented in vtkThreadedStreamingPipeline, vtkStreamingDemandDrivenPipeline, and vtkImageImportExecutive.

virtual int vtkDemandDrivenPipeline::ComputePipelineMTime ( vtkInformation request,
vtkInformationVector **  inInfoVec,
vtkInformationVector outInfoVec,
int  requestFromOutputPort,
unsigned long *  mtime
) [virtual]

Implement the pipeline modified time request.

Reimplemented from vtkExecutive.

virtual int vtkDemandDrivenPipeline::Update ( ) [virtual]

Bring the algorithm's outputs up-to-date. Returns 1 for success and 0 for failure.

Reimplemented from vtkExecutive.

Reimplemented in vtkStreamingDemandDrivenPipeline, and vtkCachedStreamingDemandDrivenPipeline.

virtual int vtkDemandDrivenPipeline::Update ( int  port) [virtual]

Bring the algorithm's outputs up-to-date. Returns 1 for success and 0 for failure.

Reimplemented from vtkExecutive.

Reimplemented in vtkStreamingDemandDrivenPipeline, and vtkCachedStreamingDemandDrivenPipeline.

virtual unsigned long vtkDemandDrivenPipeline::GetPipelineMTime ( ) [virtual]

Get the PipelineMTime for this exective.

virtual int vtkDemandDrivenPipeline::SetReleaseDataFlag ( int  port,
int  n
) [virtual]

Set whether the given output port releases data when it is consumed. Returns 1 if the the value changes and 0 otherwise.

Get whether the given output port releases data when it is consumed.

Bring the PipelineMTime up to date.

Bring the output data object's existence up to date. This does not actually produce data, but does create the data object that will store data produced during the UpdateData step.

Implements vtkExecutive.

Bring the output information up to date.

Reimplemented from vtkExecutive.

virtual int vtkDemandDrivenPipeline::UpdateData ( int  outputPort) [virtual]

Bring the output data up to date. This should be called only when information is up to date. Use the Update method if it is not known that the information is up to date.

Key defining a request to make sure the output data objects exist.

Key defining a request to make sure the output information is up to date.

Key defining a request to make sure the output data are up to date.

Key defining a request to mark outputs that will NOT be generated during a REQUEST_DATA.

Key to specify in pipeline information the request that data be released after it is used.

Key to store a mark for an output that will not be generated. Algorithms use this to tell the executive that they will not generate certain outputs for a REQUEST_DATA.

static vtkDataObject* vtkDemandDrivenPipeline::NewDataObject ( const char *  type) [static]

Create (New) and return a data object of the given type. This is here for backwards compatibility. Use vtkDataObjectTypes::NewDataObject() instead.

Key to be used for REQUEST_INFORMATION and REQUEST_DATA_OBJECT passes when you modification time should not be taken into account.

virtual int vtkDemandDrivenPipeline::ExecuteDataObject ( vtkInformation request,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [protected, virtual]

Reimplemented in vtkCompositeDataPipeline.

virtual int vtkDemandDrivenPipeline::ExecuteInformation ( vtkInformation request,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [protected, virtual]
virtual int vtkDemandDrivenPipeline::ExecuteData ( vtkInformation request,
vtkInformationVector **  inInfo,
vtkInformationVector outInfo
) [protected, virtual]
virtual void vtkDemandDrivenPipeline::ResetPipelineInformation ( int  ,
vtkInformation
) [protected, virtual]
virtual int vtkDemandDrivenPipeline::CheckDataObject ( int  port,
vtkInformationVector outInfo
) [protected, virtual]
virtual int vtkDemandDrivenPipeline::InputTypeIsValid ( int  port,
int  index,
vtkInformationVector **
) [protected, virtual]

Reimplemented in vtkCompositeDataPipeline.

virtual int vtkDemandDrivenPipeline::InputFieldsAreValid ( int  port,
int  index,
vtkInformationVector **
) [protected, virtual]
virtual int vtkDemandDrivenPipeline::NeedToExecuteData ( int  outputPort,
vtkInformationVector **  inInfoVec,
vtkInformationVector outInfoVec
) [protected, virtual]
virtual void vtkDemandDrivenPipeline::ExecuteDataStart ( vtkInformation request,
vtkInformationVector **  inInfoVec,
vtkInformationVector outInfoVec
) [protected, virtual]
virtual void vtkDemandDrivenPipeline::ExecuteDataEnd ( vtkInformation request,
vtkInformationVector **  inInfoVec,
vtkInformationVector outInfoVec
) [protected, virtual]
virtual void vtkDemandDrivenPipeline::MarkOutputsGenerated ( vtkInformation request,
vtkInformationVector **  inInfoVec,
vtkInformationVector outInfoVec
) [protected, virtual]

Friends And Related Function Documentation

friend class vtkCompositeDataPipeline [friend]

Definition at line 207 of file vtkDemandDrivenPipeline.h.


Member Data Documentation

unsigned long vtkDemandDrivenPipeline::PipelineMTime [protected]

Definition at line 199 of file vtkDemandDrivenPipeline.h.

Definition at line 202 of file vtkDemandDrivenPipeline.h.

Definition at line 203 of file vtkDemandDrivenPipeline.h.

Definition at line 204 of file vtkDemandDrivenPipeline.h.

Definition at line 211 of file vtkDemandDrivenPipeline.h.

Reimplemented in vtkCompositeDataPipeline.

Definition at line 212 of file vtkDemandDrivenPipeline.h.

Reimplemented in vtkCompositeDataPipeline.

Definition at line 213 of file vtkDemandDrivenPipeline.h.


The documentation for this class was generated from the following file:
