vtkExtractPolyDataGeometry Class Reference

extract vtkPolyData cells that lies either entirely inside or outside of a specified implicit function More...

#include <vtkExtractPolyDataGeometry.h>

Inheritance diagram for vtkExtractPolyDataGeometry:
Inheritance graph
[legend]

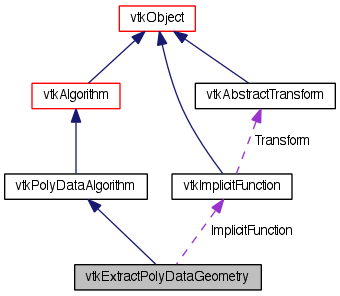

Collaboration diagram for vtkExtractPolyDataGeometry:
Collaboration graph
[legend]

List of all members.

Public Types

typedef vtkPolyDataAlgorithm Superclass

Public Member Functions

virtual int IsA (const char *type)
vtkExtractPolyDataGeometryNewInstance () const
void PrintSelf (ostream &os, vtkIndent indent)
unsigned long GetMTime ()
virtual void SetImplicitFunction (vtkImplicitFunction *)
virtual vtkImplicitFunctionGetImplicitFunction ()
virtual void SetExtractInside (int)
virtual int GetExtractInside ()
virtual void ExtractInsideOn ()
virtual void ExtractInsideOff ()
virtual void SetExtractBoundaryCells (int)
virtual int GetExtractBoundaryCells ()
virtual void ExtractBoundaryCellsOn ()
virtual void ExtractBoundaryCellsOff ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static vtkExtractPolyDataGeometrySafeDownCast (vtkObjectBase *o)
static vtkExtractPolyDataGeometryNew ()

Protected Member Functions

virtual vtkObjectBaseNewInstanceInternal () const
 vtkExtractPolyDataGeometry (vtkImplicitFunction *f=NULL)
 ~vtkExtractPolyDataGeometry ()
int RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)

Protected Attributes

vtkImplicitFunctionImplicitFunction
int ExtractInside
int ExtractBoundaryCells

Detailed Description

extract vtkPolyData cells that lies either entirely inside or outside of a specified implicit function

vtkExtractPolyDataGeometry extracts from its input vtkPolyData all cells that are either completely inside or outside of a specified implicit function. This filter is specialized to vtkPolyData. On output the filter generates vtkPolyData.

To use this filter you must specify an implicit function. You must also specify whether to extract cells laying inside or outside of the implicit function. (The inside of an implicit function is the negative values region.) An option exists to extract cells that are neither inside nor outside (i.e., boundary).

A more general version of this filter is available for arbitrary vtkDataSet input (see vtkExtractGeometry).

See also:
vtkExtractGeometry vtkClipPolyData
Tests:
vtkExtractPolyDataGeometry (Tests)

Definition at line 48 of file vtkExtractPolyDataGeometry.h.


Member Typedef Documentation

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 51 of file vtkExtractPolyDataGeometry.h.


Constructor & Destructor Documentation


Member Function Documentation

static int vtkExtractPolyDataGeometry::IsTypeOf ( const char *  name) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkExtractPolyDataGeometry::IsA ( const char *  name) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented from vtkPolyDataAlgorithm.

virtual vtkObjectBase* vtkExtractPolyDataGeometry::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.

Reimplemented from vtkPolyDataAlgorithm.

void vtkExtractPolyDataGeometry::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

Construct object with ExtractInside turned on.

Reimplemented from vtkPolyDataAlgorithm.

unsigned long vtkExtractPolyDataGeometry::GetMTime ( ) [virtual]

Return the MTime taking into account changes to the implicit function

Reimplemented from vtkObject.

Specify the implicit function for inside/outside checks.

Specify the implicit function for inside/outside checks.

virtual void vtkExtractPolyDataGeometry::SetExtractInside ( int  ) [virtual]

Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0).

Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0).

virtual void vtkExtractPolyDataGeometry::ExtractInsideOn ( ) [virtual]

Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0).

Boolean controls whether to extract cells that are inside of implicit function (ExtractInside == 1) or outside of implicit function (ExtractInside == 0).

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

Boolean controls whether to extract cells that are partially inside. By default, ExtractBoundaryCells is off.

int vtkExtractPolyDataGeometry::RequestData ( vtkInformation request,
vtkInformationVector **  inputVector,
vtkInformationVector outputVector
) [protected, virtual]

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.


Member Data Documentation

Definition at line 90 of file vtkExtractPolyDataGeometry.h.

Definition at line 91 of file vtkExtractPolyDataGeometry.h.

Definition at line 92 of file vtkExtractPolyDataGeometry.h.
