vtkGenericInterpolatedVelocityField Class Reference

Interface for obtaining interpolated velocity values. More...

#include <vtkGenericInterpolatedVelocityField.h>

Inheritance diagram for vtkGenericInterpolatedVelocityField:
Inheritance graph
[legend]

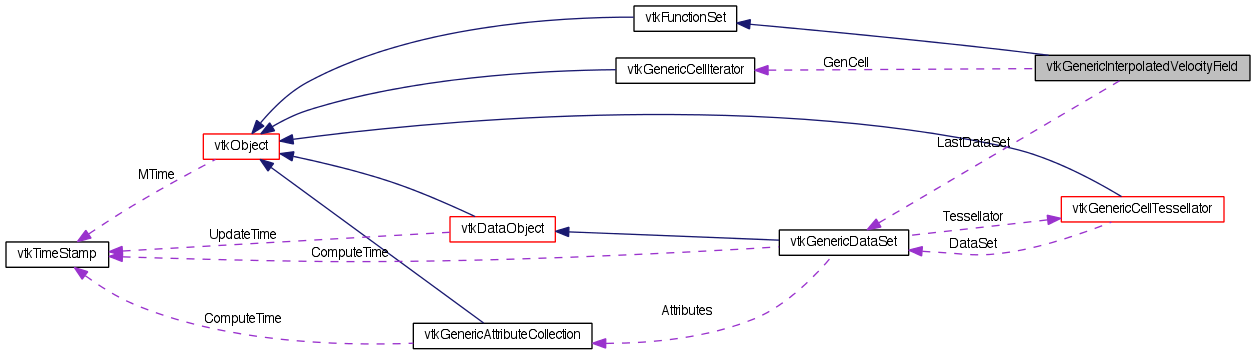

Collaboration diagram for vtkGenericInterpolatedVelocityField:
Collaboration graph
[legend]

List of all members.

Public Types

typedef vtkFunctionSet Superclass

Public Member Functions

virtual int IsA (const char *type)
vtkGenericInterpolatedVelocityFieldNewInstance () const
virtual void PrintSelf (ostream &os, vtkIndent indent)
virtual int FunctionValues (double *x, double *f)
virtual void AddDataSet (vtkGenericDataSet *dataset)
void ClearLastCell ()
vtkGenericAdaptorCellGetLastCell ()
int GetLastLocalCoordinates (double pcoords[3])
virtual void CopyParameters (vtkGenericInterpolatedVelocityField *from)
virtual int GetCaching ()
virtual void SetCaching (int)
virtual void CachingOn ()
virtual void CachingOff ()
virtual int GetCacheHit ()
virtual int GetCacheMiss ()
virtual char * GetVectorsSelection ()
void SelectVectors (const char *fieldName)
virtual vtkGenericDataSetGetLastDataSet ()

Static Public Member Functions

static int IsTypeOf (const char *type)
static
vtkGenericInterpolatedVelocityField
SafeDownCast (vtkObjectBase *o)
static
vtkGenericInterpolatedVelocityField
New ()

Protected Member Functions

virtual vtkObjectBaseNewInstanceInternal () const
 vtkGenericInterpolatedVelocityField ()
 ~vtkGenericInterpolatedVelocityField ()
virtual void SetVectorsSelection (const char *)
int FunctionValues (vtkGenericDataSet *ds, double *x, double *f)

Protected Attributes

vtkGenericCellIteratorGenCell
double LastPCoords [3]
int CacheHit
int CacheMiss
int Caching
vtkGenericDataSetLastDataSet
char * VectorsSelection
vtkGenericInterpolatedVelocityFieldDataSetsType * DataSets

Static Protected Attributes

static const double TOLERANCE_SCALE

Detailed Description

Interface for obtaining interpolated velocity values.

vtkGenericInterpolatedVelocityField acts as a continuous velocity field by performing cell interpolation on the underlying vtkDataSet. This is a concrete sub-class of vtkFunctionSet with NumberOfIndependentVariables = 4 (x,y,z,t) and NumberOfFunctions = 3 (u,v,w). Normally, every time an evaluation is performed, the cell which contains the point (x,y,z) has to be found by calling FindCell. This is a computationally expansive operation. In certain cases, the cell search can be avoided or shortened by providing a guess for the cell iterator. For example, in streamline integration, the next evaluation is usually in the same or a neighbour cell. For this reason, vtkGenericInterpolatedVelocityField stores the last cell iterator. If caching is turned on, it uses this iterator as the starting point.

Warning:
vtkGenericInterpolatedVelocityField is not thread safe. A new instance should be created by each thread.
See also:
vtkFunctionSet vtkGenericStreamTracer

Definition at line 53 of file vtkGenericInterpolatedVelocityField.h.


Member Typedef Documentation

Reimplemented from vtkFunctionSet.

Definition at line 56 of file vtkGenericInterpolatedVelocityField.h.


Constructor & Destructor Documentation


Member Function Documentation

static int vtkGenericInterpolatedVelocityField::IsTypeOf ( const char *  name) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkFunctionSet.

virtual int vtkGenericInterpolatedVelocityField::IsA ( const char *  name) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkFunctionSet.

Reimplemented from vtkFunctionSet.

Reimplemented from vtkFunctionSet.

Reimplemented from vtkFunctionSet.

virtual void vtkGenericInterpolatedVelocityField::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkFunctionSet.

Construct a vtkGenericInterpolatedVelocityField with no initial data set. Caching is on. LastCellId is set to -1.

Reimplemented from vtkObject.

Evaluate the velocity field, f, at (x, y, z, t). For now, t is ignored.

Implements vtkFunctionSet.

Add a dataset used for the implicit function evaluation. If more than one dataset is added, the evaluation point is searched in all until a match is found. THIS FUNCTION DOES NOT CHANGE THE REFERENCE COUNT OF dataset FOR THREAD SAFETY REASONS.

Set the last cell id to -1 so that the next search does not start from the previous cell

Return the cell cached from last evaluation.

Returns the interpolation weights cached from last evaluation if the cached cell is valid (returns 1). Otherwise, it does not change w and returns 0.

Turn caching on/off.

Turn caching on/off.

Turn caching on/off.

Turn caching on/off.

Caching statistics.

Caching statistics.

If you want to work with an arbitrary vector array, then set its name here. By default this in NULL and the filter will use the active vector array.

void vtkGenericInterpolatedVelocityField::SelectVectors ( const char *  fieldName) [inline]

If you want to work with an arbitrary vector array, then set its name here. By default this in NULL and the filter will use the active vector array.

Definition at line 103 of file vtkGenericInterpolatedVelocityField.h.

Returns the last dataset that was visited. Can be used as a first guess as to where the next point will be as well as to avoid searching through all datasets to get more information about the point.

Copy the user set parameters from source. This copies the Caching parameters. Sub-classes can add more after chaining.

virtual void vtkGenericInterpolatedVelocityField::SetVectorsSelection ( const char *  ) [protected, virtual]

Member Data Documentation

Definition at line 123 of file vtkGenericInterpolatedVelocityField.h.

Definition at line 125 of file vtkGenericInterpolatedVelocityField.h.

Definition at line 126 of file vtkGenericInterpolatedVelocityField.h.

Definition at line 127 of file vtkGenericInterpolatedVelocityField.h.

Definition at line 128 of file vtkGenericInterpolatedVelocityField.h.

Definition at line 130 of file vtkGenericInterpolatedVelocityField.h.

Definition at line 132 of file vtkGenericInterpolatedVelocityField.h.

vtkGenericInterpolatedVelocityFieldDataSetsType* vtkGenericInterpolatedVelocityField::DataSets [protected]

Definition at line 135 of file vtkGenericInterpolatedVelocityField.h.

Definition at line 139 of file vtkGenericInterpolatedVelocityField.h.


The documentation for this class was generated from the following file:
