Sphere patch with Lat/Long scalar array. More...

#include <vtkGlobeSource.h>

Inheritance diagram for vtkGlobeSource:

Collaboration diagram for vtkGlobeSource:

Public Types
typedef vtkPolyDataAlgorithm	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkGlobeSource *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)

virtual void	SetOrigin (double, double, double)
virtual void	SetOrigin (double[3])

virtual void	SetStartLongitude (double)
virtual void	SetEndLongitude (double)
virtual void	SetStartLatitude (double)
virtual void	SetEndLatitude (double)

virtual void	SetLongitudeResolution (int)
virtual int	GetLongitudeResolution ()

virtual void	SetLatitudeResolution (int)
virtual int	GetLatitudeResolution ()

virtual void	SetRadius (double)
virtual double	GetRadius ()

virtual void	SetAutoCalculateCurtainHeight (bool)
virtual bool	GetAutoCalculateCurtainHeight ()
virtual void	AutoCalculateCurtainHeightOn ()
virtual void	AutoCalculateCurtainHeightOff ()

virtual void	SetCurtainHeight (double)
virtual double	GetCurtainHeight ()

virtual void	SetQuadrilateralTessellation (int)
virtual int	GetQuadrilateralTessellation ()
virtual void	QuadrilateralTessellationOn ()
virtual void	QuadrilateralTessellationOff ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkGlobeSource *	SafeDownCast (vtkObjectBase *o)
static vtkGlobeSource *	New ()

static void	ComputeGlobePoint (double theta, double phi, double radius, double point, double normal=0)

static void	ComputeLatitudeLongitude (double *x, double &theta, double &phi)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkGlobeSource ()
	~vtkGlobeSource ()
int	RequestData (vtkInformation , vtkInformationVector , vtkInformationVector )
int	RequestInformation (vtkInformation , vtkInformationVector , vtkInformationVector )
void	AddPoint (double theta, double phi, double radius, vtkPoints newPoints, vtkFloatArray newNormals, vtkFloatArray newLongitudeArray, vtkFloatArray newLatitudeArray, vtkDoubleArray *newLatLongArray)
Protected Attributes
double	Origin [3]
double	Radius
bool	AutoCalculateCurtainHeight
double	CurtainHeight
int	LongitudeResolution
int	LatitudeResolution
double	StartLongitude
double	EndLongitude
double	StartLatitude
double	EndLatitude
int	QuadrilateralTessellation

Detailed Description

Sphere patch with Lat/Long scalar array.

vtkGlobeSource will generate any "rectangular" patch of the globe given its Longitude-Latitude extent. It adds two point scalar arrays Longitude and Latitude to the output. These arrays can be transformed to generate texture coordinates for any texture map. This source is imperfect near the poles as implmented. It should really reduce the longitude resolution as the triangles become slivers.

Tests:: vtkGlobeSource (Tests)

Definition at line 49 of file vtkGlobeSource.h.

Member Typedef Documentation

typedef vtkPolyDataAlgorithm vtkGlobeSource::Superclass

Reimplemented from vtkPolyDataAlgorithm.

Definition at line 52 of file vtkGlobeSource.h.

Constructor & Destructor Documentation

vtkGlobeSource::vtkGlobeSource ( ) [protected]

vtkGlobeSource::~vtkGlobeSource ( ) [inline, protected]

Definition at line 135 of file vtkGlobeSource.h.

Member Function Documentation

static int vtkGlobeSource::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

virtual int vtkGlobeSource::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkPolyDataAlgorithm.

static vtkGlobeSource* vtkGlobeSource::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkPolyDataAlgorithm.

virtual vtkObjectBase* vtkGlobeSource::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkPolyDataAlgorithm.

vtkGlobeSource* vtkGlobeSource::NewInstance ( ) const

Reimplemented from vtkPolyDataAlgorithm.

void vtkGlobeSource::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkPolyDataAlgorithm.

virtual void vtkGlobeSource::SetOrigin	(	double	,
		double	,
		double
	)		`[virtual]`

This world point will be shifted to 0,0,0. Used to avoid picking bug caused by rendering errors with large offsets.

virtual void vtkGlobeSource::SetOrigin ( double [3] ) [virtual]

This world point will be shifted to 0,0,0. Used to avoid picking bug caused by rendering errors with large offsets.

virtual void vtkGlobeSource::SetStartLongitude ( double ) [virtual]

Longitude Latitude clamps.

virtual void vtkGlobeSource::SetEndLongitude ( double ) [virtual]

Longitude Latitude clamps.

virtual void vtkGlobeSource::SetStartLatitude ( double ) [virtual]

Longitude Latitude clamps.

virtual void vtkGlobeSource::SetEndLatitude ( double ) [virtual]

Longitude Latitude clamps.

virtual void vtkGlobeSource::SetLongitudeResolution ( int ) [virtual]

Set the number of points in the longitude direction (ranging from StartLongitude to EndLongitude).

virtual int vtkGlobeSource::GetLongitudeResolution ( ) [virtual]

Set the number of points in the longitude direction (ranging from StartLongitude to EndLongitude).

virtual void vtkGlobeSource::SetLatitudeResolution ( int ) [virtual]

Set the number of points in the latitude direction (ranging from StartLatitude to EndLatitude).

virtual int vtkGlobeSource::GetLatitudeResolution ( ) [virtual]

Set the number of points in the latitude direction (ranging from StartLatitude to EndLatitude).

virtual void vtkGlobeSource::SetRadius ( double ) [virtual]

Set radius of sphere. Default is 6356750.0

virtual double vtkGlobeSource::GetRadius ( ) [virtual]

Set radius of sphere. Default is 6356750.0

virtual void vtkGlobeSource::SetAutoCalculateCurtainHeight ( bool ) [virtual]

virtual bool vtkGlobeSource::GetAutoCalculateCurtainHeight ( ) [virtual]

virtual void vtkGlobeSource::AutoCalculateCurtainHeightOn ( ) [virtual]

virtual void vtkGlobeSource::AutoCalculateCurtainHeightOff ( ) [virtual]

virtual void vtkGlobeSource::SetCurtainHeight ( double ) [virtual]

Set/Get curtain height.

virtual double vtkGlobeSource::GetCurtainHeight ( ) [virtual]

Set/Get curtain height.

virtual void vtkGlobeSource::SetQuadrilateralTessellation ( int ) [virtual]

Cause the sphere to be tessellated with edges along the latitude and longitude lines. If off, triangles are generated at non-polar regions, which results in edges that are not parallel to latitude and longitude lines. If on, quadrilaterals are generated everywhere except at the poles. This can be useful for generating a wireframe sphere with natural latitude and longitude lines.

virtual int vtkGlobeSource::GetQuadrilateralTessellation ( ) [virtual]

Cause the sphere to be tessellated with edges along the latitude and longitude lines. If off, triangles are generated at non-polar regions, which results in edges that are not parallel to latitude and longitude lines. If on, quadrilaterals are generated everywhere except at the poles. This can be useful for generating a wireframe sphere with natural latitude and longitude lines.

virtual void vtkGlobeSource::QuadrilateralTessellationOn ( ) [virtual]

Cause the sphere to be tessellated with edges along the latitude and longitude lines. If off, triangles are generated at non-polar regions, which results in edges that are not parallel to latitude and longitude lines. If on, quadrilaterals are generated everywhere except at the poles. This can be useful for generating a wireframe sphere with natural latitude and longitude lines.

virtual void vtkGlobeSource::QuadrilateralTessellationOff ( ) [virtual]

Cause the sphere to be tessellated with edges along the latitude and longitude lines. If off, triangles are generated at non-polar regions, which results in edges that are not parallel to latitude and longitude lines. If on, quadrilaterals are generated everywhere except at the poles. This can be useful for generating a wireframe sphere with natural latitude and longitude lines.

static vtkGlobeSource* vtkGlobeSource::New ( ) [static]

Construct sphere with radius=0.5 and default resolution 8 in both latitude and longitude directions. longitude ranges from (-180,180) and latitude (-90,90) degrees.

Reimplemented from vtkPolyDataAlgorithm.

static void vtkGlobeSource::ComputeGlobePoint	(	double	theta,
		double	phi,
		double	radius,
		double *	point,
		double *	normal = `0`
	)		`[static]`

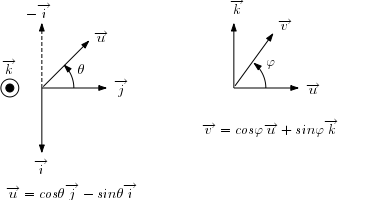

Calculates the normal and point on a sphere with a specified radius at the spherical coordinates theta and phi.

static void vtkGlobeSource::ComputeLatitudeLongitude	(	double *	x,
		double &	theta,
		double &	phi
	)		`[static]`

Calculates the spherical coordinates theta and phi based on the point on a sphere.

int vtkGlobeSource::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector
	)		`[protected, virtual]`

This is called by the superclass. This is the method you should override.

Reimplemented from vtkPolyDataAlgorithm.

int vtkGlobeSource::RequestInformation	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)		`[protected, virtual]`

Reimplemented from vtkPolyDataAlgorithm.

void vtkGlobeSource::AddPoint	(	double	theta,
		double	phi,
		double	radius,
		vtkPoints *	newPoints,
		vtkFloatArray *	newNormals,
		vtkFloatArray *	newLongitudeArray,
		vtkFloatArray *	newLatitudeArray,
		vtkDoubleArray *	newLatLongArray
	)		`[protected]`
