vtkImageData Class Reference

topologically and geometrically regular array of data More...

#include <vtkImageData.h>

Inheritance diagram for vtkImageData:
Inheritance graph
[legend]

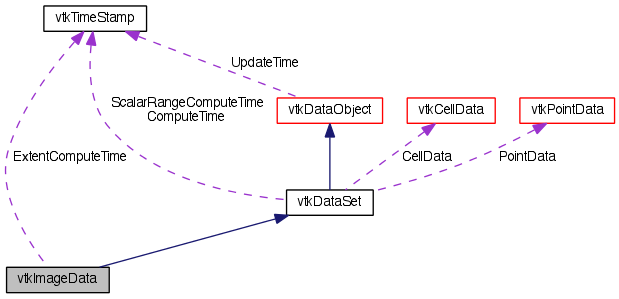

Collaboration diagram for vtkImageData:
Collaboration graph
[legend]

List of all members.

Public Types

typedef vtkDataSet Superclass

Public Member Functions

virtual int IsA (const char *type)
vtkImageDataNewInstance () const
void PrintSelf (ostream &os, vtkIndent indent)
virtual void CopyStructure (vtkDataSet *ds)
virtual int GetDataObjectType ()
virtual void Initialize ()
virtual void SetDimensions (int i, int j, int k)
virtual void SetDimensions (const int dims[3])
virtual int GetDataDimension ()
virtual void AllocateScalars (int dataType, int numComponents)
virtual void AllocateScalars (vtkInformation *pipeline_info)
virtual void Crop (const int *updateExtent)
virtual unsigned long GetActualMemorySize ()
int GetScalarType ()
const char * GetScalarTypeAsString ()
virtual void CopyInformationFromPipeline (vtkInformation *information)
virtual void PrepareForNewData ()
void GetArrayIncrements (vtkDataArray *array, vtkIdType increments[3])
void ComputeInternalExtent (int *intExt, int *tgtExt, int *bnds)
virtual int GetExtentType ()
virtual vtkIdType GetNumberOfCells ()
virtual vtkIdType GetNumberOfPoints ()
virtual doubleGetPoint (vtkIdType ptId)
virtual void GetPoint (vtkIdType id, double x[3])
virtual vtkCellGetCell (vtkIdType cellId)
virtual void GetCell (vtkIdType cellId, vtkGenericCell *cell)
virtual void GetCellBounds (vtkIdType cellId, double bounds[6])
virtual vtkIdType FindPoint (double x, double y, double z)
virtual vtkIdType FindPoint (double x[3])
virtual vtkIdType FindCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
virtual vtkIdType FindCell (double x[3], vtkCell *cell, vtkGenericCell *gencell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
virtual vtkCellFindAndGetCell (double x[3], vtkCell *cell, vtkIdType cellId, double tol2, int &subId, double pcoords[3], double *weights)
virtual int GetCellType (vtkIdType cellId)
virtual void GetCellPoints (vtkIdType cellId, vtkIdList *ptIds)
virtual void GetPointCells (vtkIdType ptId, vtkIdList *cellIds)
virtual void ComputeBounds ()
virtual int GetMaxCellSize ()
virtual intGetDimensions ()
virtual void GetDimensions (int dims[3])
virtual int ComputeStructuredCoordinates (const double x[3], int ijk[3], double pcoords[3])
virtual void GetVoxelGradient (int i, int j, int k, vtkDataArray *s, vtkDataArray *g)
virtual void GetPointGradient (int i, int j, int k, vtkDataArray *s, double g[3])
virtual vtkIdType ComputePointId (int ijk[3])
virtual vtkIdType ComputeCellId (int ijk[3])
virtual void SetAxisUpdateExtent (int axis, int min, int max, const int *updateExtent, int *axisUpdateExtent)
virtual void GetAxisUpdateExtent (int axis, int &min, int &max, const int *updateExtent)
virtual void SetExtent (int extent[6])
virtual void SetExtent (int x1, int x2, int y1, int y2, int z1, int z2)
virtual intGetExtent ()
virtual void GetExtent (int &, int &, int &, int &, int &, int &)
virtual void GetExtent (int[6])
virtual double GetScalarTypeMin (vtkInformation *meta_data)
virtual double GetScalarTypeMin ()
virtual double GetScalarTypeMax (vtkInformation *meta_data)
virtual double GetScalarTypeMax ()
virtual int GetScalarSize (vtkInformation *meta_data)
virtual int GetScalarSize ()
virtual vtkIdTypeGetIncrements ()
virtual void GetIncrements (vtkIdType &incX, vtkIdType &incY, vtkIdType &incZ)
virtual void GetIncrements (vtkIdType inc[3])
virtual vtkIdTypeGetIncrements (vtkDataArray *scalars)
virtual void GetIncrements (vtkDataArray *scalars, vtkIdType &incX, vtkIdType &incY, vtkIdType &incZ)
virtual void GetIncrements (vtkDataArray *scalars, vtkIdType inc[3])
virtual void GetContinuousIncrements (int extent[6], vtkIdType &incX, vtkIdType &incY, vtkIdType &incZ)
virtual void GetContinuousIncrements (vtkDataArray *scalars, int extent[6], vtkIdType &incX, vtkIdType &incY, vtkIdType &incZ)
virtual void * GetScalarPointerForExtent (int extent[6])
virtual void * GetScalarPointer (int coordinates[3])
virtual void * GetScalarPointer (int x, int y, int z)
virtual void * GetScalarPointer ()
virtual float GetScalarComponentAsFloat (int x, int y, int z, int component)
virtual void SetScalarComponentFromFloat (int x, int y, int z, int component, float v)
virtual double GetScalarComponentAsDouble (int x, int y, int z, int component)
virtual void SetScalarComponentFromDouble (int x, int y, int z, int component, double v)
virtual void CopyAndCastFrom (vtkImageData *inData, int extent[6])
virtual void CopyAndCastFrom (vtkImageData *inData, int x0, int x1, int y0, int y1, int z0, int z1)
virtual void SetSpacing (double, double, double)
virtual void SetSpacing (double[3])
virtual doubleGetSpacing ()
virtual void GetSpacing (double &, double &, double &)
virtual void GetSpacing (double[3])
virtual void SetOrigin (double, double, double)
virtual void SetOrigin (double[3])
virtual doubleGetOrigin ()
virtual void GetOrigin (double &, double &, double &)
virtual void GetOrigin (double[3])
virtual void ShallowCopy (vtkDataObject *src)
virtual void DeepCopy (vtkDataObject *src)
void * GetArrayPointerForExtent (vtkDataArray *array, int extent[6])
void * GetArrayPointer (vtkDataArray *array, int coordinates[3])

Static Public Member Functions

static vtkImageDataNew ()
static int IsTypeOf (const char *type)
static vtkImageDataSafeDownCast (vtkObjectBase *o)
static int ComputeStructuredCoordinates (const double x[3], int ijk[3], double pcoords[3], const int *extent, const double *spacing, const double *origin, const double *bounds)
static void SetScalarType (int, vtkInformation *meta_data)
static int GetScalarType (vtkInformation *meta_data)
static bool HasScalarType (vtkInformation *meta_data)
static vtkImageDataGetData (vtkInformation *info)
static vtkImageDataGetData (vtkInformationVector *v, int i=0)

Protected Member Functions

virtual vtkObjectBaseNewInstanceInternal () const
 vtkImageData ()
 ~vtkImageData ()
void ComputeIncrements ()
void ComputeIncrements (int numberOfComponents)
void ComputeIncrements (vtkDataArray *scalars)
void ComputeIncrements (vtkIdType inc[3])
void ComputeIncrements (int numberOfComponents, vtkIdType inc[3])
void ComputeIncrements (vtkDataArray *scalars, vtkIdType inc[3])
void CopyOriginAndSpacingFromPipeline (vtkInformation *info)
void SetDataDescription (int desc)
int GetDataDescription ()

Protected Attributes

int Dimensions [3]
vtkIdType Increments [3]
double Origin [3]
double Spacing [3]
int Extent [6]
vtkTimeStamp ExtentComputeTime

Friends

class vtkUniformGrid
static void SetNumberOfScalarComponents (int n, vtkInformation *meta_data)
static int GetNumberOfScalarComponents (vtkInformation *meta_data)
static bool HasNumberOfScalarComponents (vtkInformation *meta_data)
int GetNumberOfScalarComponents ()

Detailed Description

topologically and geometrically regular array of data

vtkImageData is a data object that is a concrete implementation of vtkDataSet. vtkImageData represents a geometric structure that is a topological and geometrical regular array of points. Examples include volumes (voxel data) and pixmaps.

Examples:
vtkImageData (Examples)
Tests:
vtkImageData (Tests)

Definition at line 44 of file vtkImageData.h.


Member Typedef Documentation

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid, and vtkStructuredPoints.

Definition at line 49 of file vtkImageData.h.


Constructor & Destructor Documentation

vtkImageData::vtkImageData ( ) [protected]
vtkImageData::~vtkImageData ( ) [protected]

Member Function Documentation

static vtkImageData* vtkImageData::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataObject.

Reimplemented in vtkUniformGrid, and vtkStructuredPoints.

static int vtkImageData::IsTypeOf ( const char *  name) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid, and vtkStructuredPoints.

virtual int vtkImageData::IsA ( const char *  name) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid, and vtkStructuredPoints.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid, and vtkStructuredPoints.

virtual vtkObjectBase* vtkImageData::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid, and vtkStructuredPoints.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid, and vtkStructuredPoints.

void vtkImageData::PrintSelf ( ostream &  os,
vtkIndent  indent
) [virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual void vtkImageData::CopyStructure ( vtkDataSet ds) [virtual]

Copy the geometric and topological structure of an input image data object.

Implements vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual int vtkImageData::GetDataObjectType ( ) [inline, virtual]

Return what type of dataset this is.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid, and vtkStructuredPoints.

Definition at line 57 of file vtkImageData.h.

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 459 of file vtkImageData.h.

double * vtkImageData::GetPoint ( vtkIdType  ptId) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Definition at line 452 of file vtkImageData.h.

virtual void vtkImageData::GetPoint ( vtkIdType  id,
double  x[3]
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

virtual vtkCell* vtkImageData::GetCell ( vtkIdType  cellId) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual void vtkImageData::GetCell ( vtkIdType  cellId,
vtkGenericCell cell
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual void vtkImageData::GetCellBounds ( vtkIdType  cellId,
double  bounds[6]
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

virtual vtkIdType vtkImageData::FindPoint ( double  x,
double  y,
double  z
) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

Definition at line 68 of file vtkImageData.h.

virtual vtkIdType vtkImageData::FindPoint ( double  x[3]) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

virtual vtkIdType vtkImageData::FindCell ( double  x[3],
vtkCell cell,
vtkIdType  cellId,
double  tol2,
int subId,
double  pcoords[3],
double weights
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual vtkIdType vtkImageData::FindCell ( double  x[3],
vtkCell cell,
vtkGenericCell gencell,
vtkIdType  cellId,
double  tol2,
int subId,
double  pcoords[3],
double weights
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual vtkCell* vtkImageData::FindAndGetCell ( double  x[3],
vtkCell cell,
vtkIdType  cellId,
double  tol2,
int subId,
double  pcoords[3],
double weights
) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual int vtkImageData::GetCellType ( vtkIdType  cellId) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual void vtkImageData::GetCellPoints ( vtkIdType  cellId,
vtkIdList ptIds
) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Reimplemented in vtkUniformGrid.

Definition at line 84 of file vtkImageData.h.

virtual void vtkImageData::GetPointCells ( vtkIdType  ptId,
vtkIdList cellIds
) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Reimplemented in vtkUniformGrid.

Definition at line 87 of file vtkImageData.h.

virtual void vtkImageData::ComputeBounds ( ) [virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Reimplemented from vtkDataSet.

virtual int vtkImageData::GetMaxCellSize ( ) [inline, virtual]

Standard vtkDataSet API methods. See vtkDataSet for more information.

Implements vtkDataSet.

Reimplemented in vtkUniformGrid.

Definition at line 90 of file vtkImageData.h.

virtual void vtkImageData::Initialize ( ) [virtual]

Restore data object to initial state.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual void vtkImageData::SetDimensions ( int  i,
int  j,
int  k
) [virtual]
Deprecated:
{This is for backward compatibility only - use SetExtent().} Same as SetExtent(0, i-1, 0, j-1, 0, k-1)
virtual void vtkImageData::SetDimensions ( const int  dims[3]) [virtual]
Deprecated:
{This is for backward compatibility only - use SetExtent().} Same as SetExtent(0, dims[0]-1, 0, dims[1]-1, 0, dims[2]-1)
virtual int* vtkImageData::GetDimensions ( ) [virtual]

Get dimensions of this structured points dataset. It is the number of points on each axis. Dimensions are computed from Extents during this call.

virtual void vtkImageData::GetDimensions ( int  dims[3]) [virtual]

Get dimensions of this structured points dataset. It is the number of points on each axis. Dimensions are computed from Extents during this call.

virtual int vtkImageData::ComputeStructuredCoordinates ( const double  x[3],
int  ijk[3],
double  pcoords[3]
) [virtual]

Convenience function computes the structured coordinates for a point x[3]. The voxel is specified by the array ijk[3], and the parametric coordinates in the cell are specified with pcoords[3]. The function returns a 0 if the point x is outside of the volume, and a 1 if inside the volume.

static int vtkImageData::ComputeStructuredCoordinates ( const double  x[3],
int  ijk[3],
double  pcoords[3],
const int extent,
const double spacing,
const double origin,
const double bounds
) [static]
virtual void vtkImageData::GetVoxelGradient ( int  i,
int  j,
int  k,
vtkDataArray s,
vtkDataArray g
) [virtual]

Given structured coordinates (i,j,k) for a voxel cell, compute the eight gradient values for the voxel corners. The order in which the gradient vectors are arranged corresponds to the ordering of the voxel points. Gradient vector is computed by central differences (except on edges of volume where forward difference is used). The scalars s are the scalars from which the gradient is to be computed. This method will treat only 3D structured point datasets (i.e., volumes).

virtual void vtkImageData::GetPointGradient ( int  i,
int  j,
int  k,
vtkDataArray s,
double  g[3]
) [virtual]

Given structured coordinates (i,j,k) for a point in a structured point dataset, compute the gradient vector from the scalar data at that point. The scalars s are the scalars from which the gradient is to be computed. This method will treat structured point datasets of any dimension.

int vtkImageData::GetDataDimension ( ) [inline, virtual]

Return the dimensionality of the data.

Definition at line 471 of file vtkImageData.h.

virtual vtkIdType vtkImageData::ComputePointId ( int  ijk[3]) [inline, virtual]

Given a location in structured coordinates (i-j-k), return the point id.

Definition at line 157 of file vtkImageData.h.

virtual vtkIdType vtkImageData::ComputeCellId ( int  ijk[3]) [inline, virtual]

Given a location in structured coordinates (i-j-k), return the cell id.

Definition at line 164 of file vtkImageData.h.

virtual void vtkImageData::SetAxisUpdateExtent ( int  axis,
int  min,
int  max,
const int updateExtent,
int axisUpdateExtent
) [virtual]

Set / Get the extent on just one axis

virtual void vtkImageData::GetAxisUpdateExtent ( int  axis,
int min,
int max,
const int updateExtent
) [virtual]

Set / Get the extent on just one axis

virtual void vtkImageData::SetExtent ( int  extent[6]) [virtual]

Set/Get the extent. On each axis, the extent is defined by the index of the first point and the index of the last point. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z). The dataset extent does not have to start at (0,0,0). (0,0,0) is just the extent of the origin. The first point (the one with Id=0) is at extent (Extent[0],Extent[2],Extent[4]). As for any dataset, a data array on point data starts at Id=0.

virtual void vtkImageData::SetExtent ( int  x1,
int  x2,
int  y1,
int  y2,
int  z1,
int  z2
) [virtual]

Set/Get the extent. On each axis, the extent is defined by the index of the first point and the index of the last point. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z). The dataset extent does not have to start at (0,0,0). (0,0,0) is just the extent of the origin. The first point (the one with Id=0) is at extent (Extent[0],Extent[2],Extent[4]). As for any dataset, a data array on point data starts at Id=0.

virtual int* vtkImageData::GetExtent ( ) [virtual]

Set/Get the extent. On each axis, the extent is defined by the index of the first point and the index of the last point. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z). The dataset extent does not have to start at (0,0,0). (0,0,0) is just the extent of the origin. The first point (the one with Id=0) is at extent (Extent[0],Extent[2],Extent[4]). As for any dataset, a data array on point data starts at Id=0.

virtual void vtkImageData::GetExtent ( int ,
int ,
int ,
int ,
int ,
int
) [virtual]

Set/Get the extent. On each axis, the extent is defined by the index of the first point and the index of the last point. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z). The dataset extent does not have to start at (0,0,0). (0,0,0) is just the extent of the origin. The first point (the one with Id=0) is at extent (Extent[0],Extent[2],Extent[4]). As for any dataset, a data array on point data starts at Id=0.

virtual void vtkImageData::GetExtent ( int  [6]) [virtual]

Set/Get the extent. On each axis, the extent is defined by the index of the first point and the index of the last point. The extent should be set before the "Scalars" are set or allocated. The Extent is stored in the order (X, Y, Z). The dataset extent does not have to start at (0,0,0). (0,0,0) is just the extent of the origin. The first point (the one with Id=0) is at extent (Extent[0],Extent[2],Extent[4]). As for any dataset, a data array on point data starts at Id=0.

virtual double vtkImageData::GetScalarTypeMin ( vtkInformation meta_data) [virtual]

These returns the minimum and maximum values the ScalarType can hold without overflowing.

virtual double vtkImageData::GetScalarTypeMin ( ) [virtual]

These returns the minimum and maximum values the ScalarType can hold without overflowing.

virtual double vtkImageData::GetScalarTypeMax ( vtkInformation meta_data) [virtual]

These returns the minimum and maximum values the ScalarType can hold without overflowing.

virtual double vtkImageData::GetScalarTypeMax ( ) [virtual]

These returns the minimum and maximum values the ScalarType can hold without overflowing.

virtual int vtkImageData::GetScalarSize ( vtkInformation meta_data) [virtual]

Get the size of the scalar type in bytes.

virtual int vtkImageData::GetScalarSize ( ) [virtual]

Get the size of the scalar type in bytes.

virtual vtkIdType* vtkImageData::GetIncrements ( ) [virtual]

Different ways to get the increments for moving around the data. GetIncrements() calls ComputeIncrements() to ensure the increments are up to date. The first three methods compute the increments based on the active scalar field while the next three, the scalar field is passed in.

virtual void vtkImageData::GetIncrements ( vtkIdType incX,
vtkIdType incY,
vtkIdType incZ
) [virtual]

Different ways to get the increments for moving around the data. GetIncrements() calls ComputeIncrements() to ensure the increments are up to date. The first three methods compute the increments based on the active scalar field while the next three, the scalar field is passed in.

virtual void vtkImageData::GetIncrements ( vtkIdType  inc[3]) [virtual]

Different ways to get the increments for moving around the data. GetIncrements() calls ComputeIncrements() to ensure the increments are up to date. The first three methods compute the increments based on the active scalar field while the next three, the scalar field is passed in.

virtual vtkIdType* vtkImageData::GetIncrements ( vtkDataArray scalars) [virtual]

Different ways to get the increments for moving around the data. GetIncrements() calls ComputeIncrements() to ensure the increments are up to date. The first three methods compute the increments based on the active scalar field while the next three, the scalar field is passed in.

virtual void vtkImageData::GetIncrements ( vtkDataArray scalars,
vtkIdType incX,
vtkIdType incY,
vtkIdType incZ
) [virtual]

Different ways to get the increments for moving around the data. GetIncrements() calls ComputeIncrements() to ensure the increments are up to date. The first three methods compute the increments based on the active scalar field while the next three, the scalar field is passed in.

virtual void vtkImageData::GetIncrements ( vtkDataArray scalars,
vtkIdType  inc[3]
) [virtual]

Different ways to get the increments for moving around the data. GetIncrements() calls ComputeIncrements() to ensure the increments are up to date. The first three methods compute the increments based on the active scalar field while the next three, the scalar field is passed in.

virtual void vtkImageData::GetContinuousIncrements ( int  extent[6],
vtkIdType incX,
vtkIdType incY,
vtkIdType incZ
) [virtual]

Different ways to get the increments for moving around the data. incX is always returned with 0. incY is returned with the increment needed to move from the end of one X scanline of data to the start of the next line. incZ is filled in with the increment needed to move from the end of one image to the start of the next. The proper way to use these values is to for a loop over Z, Y, X, C, incrementing the pointer by 1 after each component. When the end of the component is reached, the pointer is set to the beginning of the next pixel, thus incX is properly set to 0. The first form of GetContinuousIncrements uses the active scalar field while the second form allows the scalar array to be passed in.

virtual void vtkImageData::GetContinuousIncrements ( vtkDataArray scalars,
int  extent[6],
vtkIdType incX,
vtkIdType incY,
vtkIdType incZ
) [virtual]

Different ways to get the increments for moving around the data. incX is always returned with 0. incY is returned with the increment needed to move from the end of one X scanline of data to the start of the next line. incZ is filled in with the increment needed to move from the end of one image to the start of the next. The proper way to use these values is to for a loop over Z, Y, X, C, incrementing the pointer by 1 after each component. When the end of the component is reached, the pointer is set to the beginning of the next pixel, thus incX is properly set to 0. The first form of GetContinuousIncrements uses the active scalar field while the second form allows the scalar array to be passed in.

virtual void* vtkImageData::GetScalarPointerForExtent ( int  extent[6]) [virtual]

Access the native pointer for the scalar data

virtual void* vtkImageData::GetScalarPointer ( int  coordinates[3]) [virtual]

Access the native pointer for the scalar data

virtual void* vtkImageData::GetScalarPointer ( int  x,
int  y,
int  z
) [virtual]

Access the native pointer for the scalar data

virtual void* vtkImageData::GetScalarPointer ( ) [virtual]

Access the native pointer for the scalar data

virtual float vtkImageData::GetScalarComponentAsFloat ( int  x,
int  y,
int  z,
int  component
) [virtual]

For access to data from tcl

virtual void vtkImageData::SetScalarComponentFromFloat ( int  x,
int  y,
int  z,
int  component,
float  v
) [virtual]

For access to data from tcl

virtual double vtkImageData::GetScalarComponentAsDouble ( int  x,
int  y,
int  z,
int  component
) [virtual]

For access to data from tcl

virtual void vtkImageData::SetScalarComponentFromDouble ( int  x,
int  y,
int  z,
int  component,
double  v
) [virtual]

For access to data from tcl

virtual void vtkImageData::AllocateScalars ( int  dataType,
int  numComponents
) [virtual]

Allocate the point scalars for this dataset. The data type determines the type of the array (VTK_FLOAT, VTK_INT etc.) where as numComponents determines its number of components.

virtual void vtkImageData::AllocateScalars ( vtkInformation pipeline_info) [virtual]

Allocate the point scalars for this dataset. The data type and the number of components of the array is determined by the meta-data in the pipeline information. This is usually produced by a reader/filter upstream in the pipeline.

virtual void vtkImageData::CopyAndCastFrom ( vtkImageData inData,
int  extent[6]
) [virtual]

This method is passed a input and output region, and executes the filter algorithm to fill the output from the input. It just executes a switch statement to call the correct function for the regions data types.

virtual void vtkImageData::CopyAndCastFrom ( vtkImageData inData,
int  x0,
int  x1,
int  y0,
int  y1,
int  z0,
int  z1
) [inline, virtual]

This method is passed a input and output region, and executes the filter algorithm to fill the output from the input. It just executes a switch statement to call the correct function for the regions data types.

Definition at line 273 of file vtkImageData.h.

virtual void vtkImageData::Crop ( const int updateExtent) [virtual]

Reallocates and copies to set the Extent to updateExtent. This is used internally when the exact extent is requested, and the source generated more than the update extent.

Reimplemented from vtkDataObject.

virtual unsigned long vtkImageData::GetActualMemorySize ( ) [virtual]

Return the actual size of the data in kilobytes. This number is valid only after the pipeline has updated. The memory size returned is guaranteed to be greater than or equal to the memory required to represent the data (e.g., extra space in arrays, etc. are not included in the return value). THIS METHOD IS THREAD SAFE.

Reimplemented from vtkDataSet.

virtual void vtkImageData::SetSpacing ( double  ,
double  ,
double
) [virtual]

Set the spacing (width,height,length) of the cubical cells that compose the data set.

virtual void vtkImageData::SetSpacing ( double  [3]) [virtual]

Set the spacing (width,height,length) of the cubical cells that compose the data set.

virtual double* vtkImageData::GetSpacing ( ) [virtual]

Set the spacing (width,height,length) of the cubical cells that compose the data set.

virtual void vtkImageData::GetSpacing ( double ,
double ,
double
) [virtual]

Set the spacing (width,height,length) of the cubical cells that compose the data set.

virtual void vtkImageData::GetSpacing ( double  [3]) [virtual]

Set the spacing (width,height,length) of the cubical cells that compose the data set.

virtual void vtkImageData::SetOrigin ( double  ,
double  ,
double
) [virtual]

Set/Get the origin of the dataset. The origin is the position in world coordinates of the point of extent (0,0,0). This point does not have to be part of the dataset, in other words, the dataset extent does not have to start at (0,0,0) and the origin can be outside of the dataset bounding box. The origin plus spacing determine the position in space of the points.

virtual void vtkImageData::SetOrigin ( double  [3]) [virtual]

Set/Get the origin of the dataset. The origin is the position in world coordinates of the point of extent (0,0,0). This point does not have to be part of the dataset, in other words, the dataset extent does not have to start at (0,0,0) and the origin can be outside of the dataset bounding box. The origin plus spacing determine the position in space of the points.

virtual double* vtkImageData::GetOrigin ( ) [virtual]

Set/Get the origin of the dataset. The origin is the position in world coordinates of the point of extent (0,0,0). This point does not have to be part of the dataset, in other words, the dataset extent does not have to start at (0,0,0) and the origin can be outside of the dataset bounding box. The origin plus spacing determine the position in space of the points.

virtual void vtkImageData::GetOrigin ( double ,
double ,
double
) [virtual]

Set/Get the origin of the dataset. The origin is the position in world coordinates of the point of extent (0,0,0). This point does not have to be part of the dataset, in other words, the dataset extent does not have to start at (0,0,0) and the origin can be outside of the dataset bounding box. The origin plus spacing determine the position in space of the points.

virtual void vtkImageData::GetOrigin ( double  [3]) [virtual]

Set/Get the origin of the dataset. The origin is the position in world coordinates of the point of extent (0,0,0). This point does not have to be part of the dataset, in other words, the dataset extent does not have to start at (0,0,0) and the origin can be outside of the dataset bounding box. The origin plus spacing determine the position in space of the points.

static void vtkImageData::SetScalarType ( int  ,
vtkInformation meta_data
) [static]
static int vtkImageData::GetScalarType ( vtkInformation meta_data) [static]
static bool vtkImageData::HasScalarType ( vtkInformation meta_data) [static]
const char* vtkImageData::GetScalarTypeAsString ( ) [inline]

Definition at line 313 of file vtkImageData.h.

static void vtkImageData::SetNumberOfScalarComponents ( int  n,
vtkInformation meta_data
) [static]

Set/Get the number of scalar components for points. As with the SetScalarType method this is setting pipeline info.

Set/Get the number of scalar components for points. As with the SetScalarType method this is setting pipeline info.

static bool vtkImageData::HasNumberOfScalarComponents ( vtkInformation meta_data) [static]

Set/Get the number of scalar components for points. As with the SetScalarType method this is setting pipeline info.

Set/Get the number of scalar components for points. As with the SetScalarType method this is setting pipeline info.

virtual void vtkImageData::CopyInformationFromPipeline ( vtkInformation information) [virtual]

Override these to handle origin, spacing, scalar type, and scalar number of components. See vtkDataObject for details.

virtual void vtkImageData::PrepareForNewData ( ) [virtual]

make the output data ready for new data to be inserted. For most objects we just call Initialize. But for image data we leave the old data in case the memory can be reused.

Reimplemented from vtkDataObject.

virtual void vtkImageData::ShallowCopy ( vtkDataObject src) [virtual]

Shallow and Deep copy.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid.

virtual void vtkImageData::DeepCopy ( vtkDataObject src) [virtual]

Shallow and Deep copy.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid.

void* vtkImageData::GetArrayPointerForExtent ( vtkDataArray array,
int  extent[6]
)

These are convenience methods for getting a pointer from any filed array. It is a start at expanding image filters to process any array (not just scalars).

void* vtkImageData::GetArrayPointer ( vtkDataArray array,
int  coordinates[3]
)

These are convenience methods for getting a pointer from any filed array. It is a start at expanding image filters to process any array (not just scalars).

void vtkImageData::GetArrayIncrements ( vtkDataArray array,
vtkIdType  increments[3]
)

Since various arrays have different number of components, the will have different increments.

void vtkImageData::ComputeInternalExtent ( int intExt,
int tgtExt,
int bnds
)

Given how many pixel are required on a side for bounrary conditions (in bnds), the target extent to traverse, compute the internal extent (the extent for this ImageData that does not suffer from any boundary conditions) and place it in intExt

virtual int vtkImageData::GetExtentType ( ) [inline, virtual]

The extent type is a 3D extent

Reimplemented from vtkDataObject.

Definition at line 364 of file vtkImageData.h.

static vtkImageData* vtkImageData::GetData ( vtkInformation info) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid.

static vtkImageData* vtkImageData::GetData ( vtkInformationVector v,
int  i = 0
) [static]

Retrieve an instance of this class from an information object.

Reimplemented from vtkDataSet.

Reimplemented in vtkUniformGrid.

void vtkImageData::ComputeIncrements ( ) [inline, protected]

Definition at line 434 of file vtkImageData.h.

void vtkImageData::ComputeIncrements ( int  numberOfComponents) [inline, protected]

Definition at line 440 of file vtkImageData.h.

void vtkImageData::ComputeIncrements ( vtkDataArray scalars) [inline, protected]

Definition at line 446 of file vtkImageData.h.

void vtkImageData::ComputeIncrements ( vtkIdType  inc[3]) [protected]
void vtkImageData::ComputeIncrements ( int  numberOfComponents,
vtkIdType  inc[3]
) [protected]
void vtkImageData::ComputeIncrements ( vtkDataArray scalars,
vtkIdType  inc[3]
) [protected]
void vtkImageData::SetDataDescription ( int  desc) [protected]
int vtkImageData::GetDataDescription ( ) [inline, protected]

Definition at line 407 of file vtkImageData.h.


Friends And Related Function Documentation

friend class vtkUniformGrid [friend]

Definition at line 414 of file vtkImageData.h.


Member Data Documentation

int vtkImageData::Dimensions[3] [protected]

Definition at line 381 of file vtkImageData.h.

Definition at line 382 of file vtkImageData.h.

double vtkImageData::Origin[3] [protected]

Definition at line 384 of file vtkImageData.h.

double vtkImageData::Spacing[3] [protected]

Definition at line 385 of file vtkImageData.h.

int vtkImageData::Extent[6] [protected]

Definition at line 387 of file vtkImageData.h.

Definition at line 404 of file vtkImageData.h.


The documentation for this class was generated from the following file:
