A writer for MNI transformation files. More...

#include <vtkMNITransformWriter.h>

Inheritance diagram for vtkMNITransformWriter:

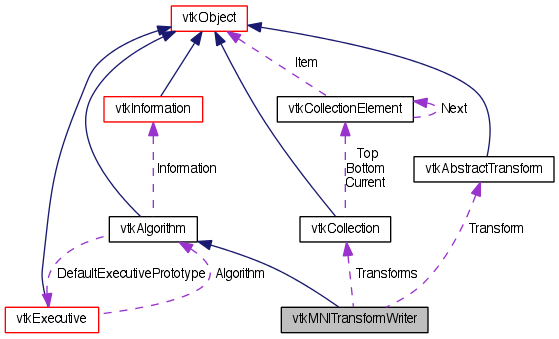

Collaboration diagram for vtkMNITransformWriter:

Public Types
typedef vtkAlgorithm	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkMNITransformWriter *	NewInstance () const
virtual void	PrintSelf (ostream &os, vtkIndent indent)
virtual void	AddTransform (vtkAbstractTransform *transform)
virtual int	GetNumberOfTransforms ()
virtual void	Write ()

virtual void	SetFileName (const char *)
virtual char *	GetFileName ()

virtual const char *	GetFileExtensions ()

virtual const char *	GetDescriptiveName ()

virtual void	SetTransform (vtkAbstractTransform *transform)
virtual vtkAbstractTransform *	GetTransform ()

virtual void	SetComments (const char *)
virtual char *	GetComments ()
Static Public Member Functions
static int	IsTypeOf (const char *type)
static vtkMNITransformWriter *	SafeDownCast (vtkObjectBase *o)
static vtkMNITransformWriter *	New ()
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkMNITransformWriter ()
	~vtkMNITransformWriter ()
int	WriteLinearTransform (ostream &outfile, vtkHomogeneousTransform *transform)
int	WriteThinPlateSplineTransform (ostream &outfile, vtkThinPlateSplineTransform *transform)
int	WriteGridTransform (ostream &outfile, vtkGridTransform *transform)
virtual int	WriteTransform (ostream &outfile, vtkAbstractTransform *transform)
virtual int	WriteFile ()
virtual int	ProcessRequest (vtkInformation request, vtkInformationVector inInfo, vtkInformationVector outInfo)
Protected Attributes
char *	FileName
vtkAbstractTransform *	Transform
vtkCollection *	Transforms
char *	Comments

Detailed Description

A writer for MNI transformation files.

The MNI .xfm file format is used to store geometrical transformations. Three kinds of transformations are supported by the file format: affine, thin-plate spline, and grid transformations. This file format was developed at the McConnell Brain Imaging Centre at the Montreal Neurological Institute and is used by their software.

See also:: vtkMINCImageWriter vtkMNITransformReader

Thanks:: Thanks to David Gobbi for writing this class and Atamai Inc. for contributing it to VTK.

Tests:: vtkMNITransformWriter (Tests)

Definition at line 78 of file vtkMNITransformWriter.h.

Member Typedef Documentation

typedef vtkAlgorithm vtkMNITransformWriter::Superclass

Reimplemented from vtkAlgorithm.

Definition at line 81 of file vtkMNITransformWriter.h.

Constructor & Destructor Documentation

vtkMNITransformWriter::vtkMNITransformWriter ( ) [protected]

vtkMNITransformWriter::~vtkMNITransformWriter ( ) [protected]

Member Function Documentation

static int vtkMNITransformWriter::IsTypeOf ( const char * name ) [static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

virtual int vtkMNITransformWriter::IsA ( const char * name ) [virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkAlgorithm.

static vtkMNITransformWriter* vtkMNITransformWriter::SafeDownCast ( vtkObjectBase * o ) [static]

Reimplemented from vtkAlgorithm.

virtual vtkObjectBase* vtkMNITransformWriter::NewInstanceInternal ( ) const [protected, virtual]

Reimplemented from vtkAlgorithm.

vtkMNITransformWriter* vtkMNITransformWriter::NewInstance ( ) const

Reimplemented from vtkAlgorithm.

static vtkMNITransformWriter* vtkMNITransformWriter::New ( ) [static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkAlgorithm.

virtual void vtkMNITransformWriter::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkAlgorithm.

virtual void vtkMNITransformWriter::SetFileName ( const char * ) [virtual]

Set the file name.

virtual char* vtkMNITransformWriter::GetFileName ( ) [virtual]

Set the file name.

virtual const char* vtkMNITransformWriter::GetFileExtensions ( ) [inline, virtual]

Get the entension for this file format.

Definition at line 94 of file vtkMNITransformWriter.h.

virtual const char* vtkMNITransformWriter::GetDescriptiveName ( ) [inline, virtual]

Get the name of this file format.

Definition at line 100 of file vtkMNITransformWriter.h.

virtual void vtkMNITransformWriter::SetTransform ( vtkAbstractTransform * transform ) [virtual]

Set the transform.

virtual vtkAbstractTransform* vtkMNITransformWriter::GetTransform ( ) [inline, virtual]

Set the transform.

Definition at line 107 of file vtkMNITransformWriter.h.

virtual void vtkMNITransformWriter::AddTransform ( vtkAbstractTransform * transform ) [virtual]

Add another transform to the file. The next time that SetTransform is called, all added transforms will be removed.

virtual int vtkMNITransformWriter::GetNumberOfTransforms ( ) [virtual]

Get the number of transforms that will be written.

virtual void vtkMNITransformWriter::SetComments ( const char * ) [virtual]

Set comments to be added to the file.

virtual char* vtkMNITransformWriter::GetComments ( ) [virtual]

Set comments to be added to the file.

virtual void vtkMNITransformWriter::Write ( ) [virtual]

Write the file.

int vtkMNITransformWriter::WriteLinearTransform	(	ostream &	outfile,
		vtkHomogeneousTransform *	transform
	)		`[protected]`

int vtkMNITransformWriter::WriteThinPlateSplineTransform	(	ostream &	outfile,
		vtkThinPlateSplineTransform *	transform
	)		`[protected]`

int vtkMNITransformWriter::WriteGridTransform	(	ostream &	outfile,
		vtkGridTransform *	transform
	)		`[protected]`

virtual int vtkMNITransformWriter::WriteTransform	(	ostream &	outfile,
		vtkAbstractTransform *	transform
	)		`[protected, virtual]`

virtual int vtkMNITransformWriter::WriteFile ( ) [protected, virtual]

virtual int vtkMNITransformWriter::ProcessRequest	(	vtkInformation *	request,
		vtkInformationVector **	inInfo,
		vtkInformationVector *	outInfo
	)		`[protected, virtual]`

Upstream/Downstream requests form the generalized interface through which executives invoke a algorithm's functionality. Upstream requests correspond to information flow from the algorithm's outputs to its inputs. Downstream requests correspond to information flow from the algorithm's inputs to its outputs. A downstream request is defined by the contents of the request information object. The input to the request is stored in the input information vector passed to ProcessRequest. The results of an downstream request are stored in the output information vector passed to ProcessRequest. An upstream request is defined by the contents of the request information object. The input to the request is stored in the output information vector passed to ProcessRequest. The results of an upstream request are stored in the input information vector passed to ProcessRequest. It returns the boolean status of the pipeline (false means failure).

Reimplemented from vtkAlgorithm.
