vtkMultiNewickTreeReader Class Reference

read multiple vtkTrees from Newick formatted file More...

#include <vtkMultiNewickTreeReader.h>

Inheritance diagram for vtkMultiNewickTreeReader:

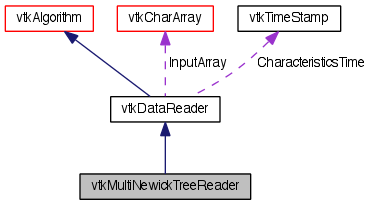

Collaboration diagram for vtkMultiNewickTreeReader:

List of all members.

Public Types
typedef vtkDataReader	Superclass
Public Member Functions
virtual int	IsA (const char *type)
vtkMultiNewickTreeReader *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
vtkMultiPieceDataSet *	GetOutput ()
vtkMultiPieceDataSet *	GetOutput (int idx)
void	SetOutput (vtkMultiPieceDataSet *output)
Static Public Member Functions
static vtkMultiNewickTreeReader *	New ()
static int	IsTypeOf (const char *type)
static vtkMultiNewickTreeReader *	SafeDownCast (vtkObjectBase *o)
Protected Member Functions
virtual vtkObjectBase *	NewInstanceInternal () const
	vtkMultiNewickTreeReader ()
	~vtkMultiNewickTreeReader ()
virtual int	RequestData (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	RequestUpdateExtent (vtkInformation *, vtkInformationVector **, vtkInformationVector *)
virtual int	FillOutputPortInformation (int, vtkInformation *)

---

Detailed Description

read multiple vtkTrees from Newick formatted file

vtkMultiNewickTreeReader is a source object that reads Newick tree format files. The output of this reader is a single vtkMultiPieceDataSet that contains multiple vtkTree objects. The superclass of this class, vtkDataReader, provides many methods for controlling the reading of the data file, see vtkDataReader for more information.

See also:

vtkTree vtkDataReader

Tests:

vtkMultiNewickTreeReader (Tests)

Definition at line 39 of file vtkMultiNewickTreeReader.h.

---

Member Typedef Documentation

typedef vtkDataReader vtkMultiNewickTreeReader::Superclass

Reimplemented from vtkDataReader.

Definition at line 43 of file vtkMultiNewickTreeReader.h.

---

Constructor & Destructor Documentation

vtkMultiNewickTreeReader::vtkMultiNewickTreeReader

(

)

[protected]

vtkMultiNewickTreeReader::~vtkMultiNewickTreeReader

(

)

[protected]

---

Member Function Documentation

static vtkMultiNewickTreeReader* vtkMultiNewickTreeReader::New

(

)

[static]

Create an object with Debug turned off, modified time initialized to zero, and reference counting on.

Reimplemented from vtkDataReader.

static int vtkMultiNewickTreeReader::IsTypeOf

(

const char *

name

)

[static]

Return 1 if this class type is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

virtual int vtkMultiNewickTreeReader::IsA

(

const char *

name

)

[virtual]

Return 1 if this class is the same type of (or a subclass of) the named class. Returns 0 otherwise. This method works in combination with vtkTypeMacro found in vtkSetGet.h.

Reimplemented from vtkDataReader.

static vtkMultiNewickTreeReader* vtkMultiNewickTreeReader::SafeDownCast

(

vtkObjectBase *

o

)

[static]

Reimplemented from vtkDataReader.

virtual vtkObjectBase* vtkMultiNewickTreeReader::NewInstanceInternal

(

)

const [protected, virtual]

Reimplemented from vtkDataReader.

vtkMultiNewickTreeReader* vtkMultiNewickTreeReader::NewInstance

(

)

const

Reimplemented from vtkDataReader.

void vtkMultiNewickTreeReader::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		[virtual]

Methods invoked by print to print information about the object including superclasses. Typically not called by the user (use Print() instead) but used in the hierarchical print process to combine the output of several classes.

Reimplemented from vtkDataReader.

vtkMultiPieceDataSet* vtkMultiNewickTreeReader::GetOutput

(

)

Get the output of this reader.

vtkMultiPieceDataSet* vtkMultiNewickTreeReader::GetOutput

(

int

idx

)

Get the output of this reader.

void vtkMultiNewickTreeReader::SetOutput

(

vtkMultiPieceDataSet *

output

)

Get the output of this reader.

virtual int vtkMultiNewickTreeReader::RequestData	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)		[protected, virtual]

Reimplemented from vtkDataReader.

virtual int vtkMultiNewickTreeReader::RequestUpdateExtent	(	vtkInformation *	,
		vtkInformationVector **	,
		vtkInformationVector *
	)		[protected, virtual]

Reimplemented from vtkDataReader.

virtual int vtkMultiNewickTreeReader::FillOutputPortInformation	(	int	port,
		vtkInformation *	info
	)		[protected, virtual]

Fill the output port information objects for this algorithm. This is invoked by the first call to GetOutputPortInformation for each port so subclasses can specify what they can handle.

Reimplemented from vtkAlgorithm.

---

The documentation for this class was generated from the following file:

• dox/IO/Infovis/vtkMultiNewickTreeReader.h
