Manage measurements on a resliced image. More...

#include <vtkResliceImageViewerMeasurements.h>

Inheritance diagram for vtkResliceImageViewerMeasurements:

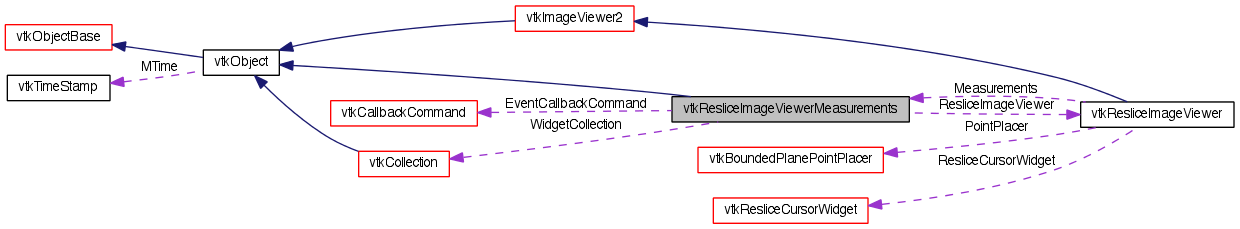

Collaboration diagram for vtkResliceImageViewerMeasurements:

Public Member Functions
virtual void	Render ()
virtual void	Update ()

virtual void	AddItem (vtkAbstractWidget *)
virtual void	RemoveItem (vtkAbstractWidget *)
virtual void	RemoveAllItems ()

virtual void	SetProcessEvents (int)
virtual int	GetProcessEvents ()
virtual void	ProcessEventsOn ()
virtual void	ProcessEventsOff ()

virtual void	SetTolerance (double)
virtual double	GetTolerance ()

virtual void	SetResliceImageViewer (vtkResliceImageViewer *)
virtual vtkResliceImageViewer *	GetResliceImageViewer ()
Protected Member Functions
	vtkResliceImageViewerMeasurements ()
	~vtkResliceImageViewerMeasurements ()

bool	IsItemOnReslicedPlane (vtkAbstractWidget *w)
bool	IsWidgetOnReslicedPlane (vtkDistanceWidget *w)
bool	IsWidgetOnReslicedPlane (vtkAngleWidget *w)
bool	IsWidgetOnReslicedPlane (vtkBiDimensionalWidget *w)
bool	IsWidgetOnReslicedPlane (vtkCaptionWidget *w)
bool	IsWidgetOnReslicedPlane (vtkContourWidget *w)
bool	IsWidgetOnReslicedPlane (vtkSeedWidget *w)
bool	IsWidgetOnReslicedPlane (vtkHandleWidget *w)
bool	IsPointOnReslicedPlane (vtkHandleRepresentation *h)
bool	IsPositionOnReslicedPlane (double p[3])
Static Protected Member Functions
static void	ProcessEventsHandler (vtkObject object, unsigned long event, void clientdata, void *calldata)
Protected Attributes
vtkResliceImageViewer *	ResliceImageViewer
vtkCollection *	WidgetCollection
vtkCallbackCommand *	EventCallbackCommand
int	ProcessEvents
double	Tolerance
typedef vtkObject	Superclass
static vtkResliceImageViewerMeasurements *	New ()
static int	IsTypeOf (const char *type)
static vtkResliceImageViewerMeasurements *	SafeDownCast (vtkObjectBase *o)
virtual int	IsA (const char *type)
vtkResliceImageViewerMeasurements *	NewInstance () const
void	PrintSelf (ostream &os, vtkIndent indent)
virtual vtkObjectBase *	NewInstanceInternal () const

Detailed Description

Manage measurements on a resliced image.

This class manages measurements on the resliced image. It toggles the the visibility of the measurements based on whether the resliced image is the same orientation as when the measurement was initially placed.

See also:: vtkResliceCursor vtkResliceCursorWidget vtkResliceCursorRepresentation

Definition at line 44 of file vtkResliceImageViewerMeasurements.h.

Member Typedef Documentation

typedef vtkObject vtkResliceImageViewerMeasurements::Superclass

Standard VTK methods.

Reimplemented from vtkObject.

Definition at line 51 of file vtkResliceImageViewerMeasurements.h.

Constructor & Destructor Documentation

vtkResliceImageViewerMeasurements::vtkResliceImageViewerMeasurements ( ) [protected]

vtkResliceImageViewerMeasurements::~vtkResliceImageViewerMeasurements ( ) [protected]

Member Function Documentation

static vtkResliceImageViewerMeasurements* vtkResliceImageViewerMeasurements::New ( ) [static]

Standard VTK methods.

Reimplemented from vtkObject.

static int vtkResliceImageViewerMeasurements::IsTypeOf ( const char * type ) [static]

Standard VTK methods.

Reimplemented from vtkObject.

virtual int vtkResliceImageViewerMeasurements::IsA ( const char * type ) [virtual]

Standard VTK methods.

Reimplemented from vtkObject.

static vtkResliceImageViewerMeasurements* vtkResliceImageViewerMeasurements::SafeDownCast ( vtkObjectBase * o ) [static]

Standard VTK methods.

Reimplemented from vtkObject.

virtual vtkObjectBase* vtkResliceImageViewerMeasurements::NewInstanceInternal ( ) const [protected, virtual]

Standard VTK methods.

Reimplemented from vtkObject.

vtkResliceImageViewerMeasurements* vtkResliceImageViewerMeasurements::NewInstance ( ) const

Standard VTK methods.

Reimplemented from vtkObject.

void vtkResliceImageViewerMeasurements::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)		`[virtual]`

Standard VTK methods.

Reimplemented from vtkObject.

virtual void vtkResliceImageViewerMeasurements::Render ( ) [virtual]

Render the measurements.

virtual void vtkResliceImageViewerMeasurements::AddItem ( vtkAbstractWidget * ) [virtual]

Add / remove a measurement widget

virtual void vtkResliceImageViewerMeasurements::RemoveItem ( vtkAbstractWidget * ) [virtual]

Add / remove a measurement widget

virtual void vtkResliceImageViewerMeasurements::RemoveAllItems ( ) [virtual]

Add / remove a measurement widget

virtual void vtkResliceImageViewerMeasurements::SetProcessEvents ( int ) [virtual]

Methods to change whether the widget responds to interaction. Set this to Off to disable interaction. On by default. Subclasses must overide SetProcessEvents() to make sure that they pass on the flag to all component widgets.

virtual int vtkResliceImageViewerMeasurements::GetProcessEvents ( ) [virtual]

Methods to change whether the widget responds to interaction. Set this to Off to disable interaction. On by default. Subclasses must overide SetProcessEvents() to make sure that they pass on the flag to all component widgets.

virtual void vtkResliceImageViewerMeasurements::ProcessEventsOn ( ) [virtual]

Methods to change whether the widget responds to interaction. Set this to Off to disable interaction. On by default. Subclasses must overide SetProcessEvents() to make sure that they pass on the flag to all component widgets.

virtual void vtkResliceImageViewerMeasurements::ProcessEventsOff ( ) [virtual]

Methods to change whether the widget responds to interaction. Set this to Off to disable interaction. On by default. Subclasses must overide SetProcessEvents() to make sure that they pass on the flag to all component widgets.

virtual void vtkResliceImageViewerMeasurements::SetTolerance ( double ) [virtual]

Tolerance for Point-in-Plane check

virtual double vtkResliceImageViewerMeasurements::GetTolerance ( ) [virtual]

Tolerance for Point-in-Plane check

virtual void vtkResliceImageViewerMeasurements::SetResliceImageViewer ( vtkResliceImageViewer * ) [virtual]

Set the reslice image viewer. This is automatically done in the class vtkResliceImageViewer

virtual vtkResliceImageViewer* vtkResliceImageViewerMeasurements::GetResliceImageViewer ( ) [virtual]

Set the reslice image viewer. This is automatically done in the class vtkResliceImageViewer

virtual void vtkResliceImageViewerMeasurements::Update ( ) [virtual]

Update the measurements. This is automatically called when the reslice cursor's axes are change.

bool vtkResliceImageViewerMeasurements::IsItemOnReslicedPlane ( vtkAbstractWidget * w ) [protected]
